0-66 — GENERATOR (#162033) — 32 parça

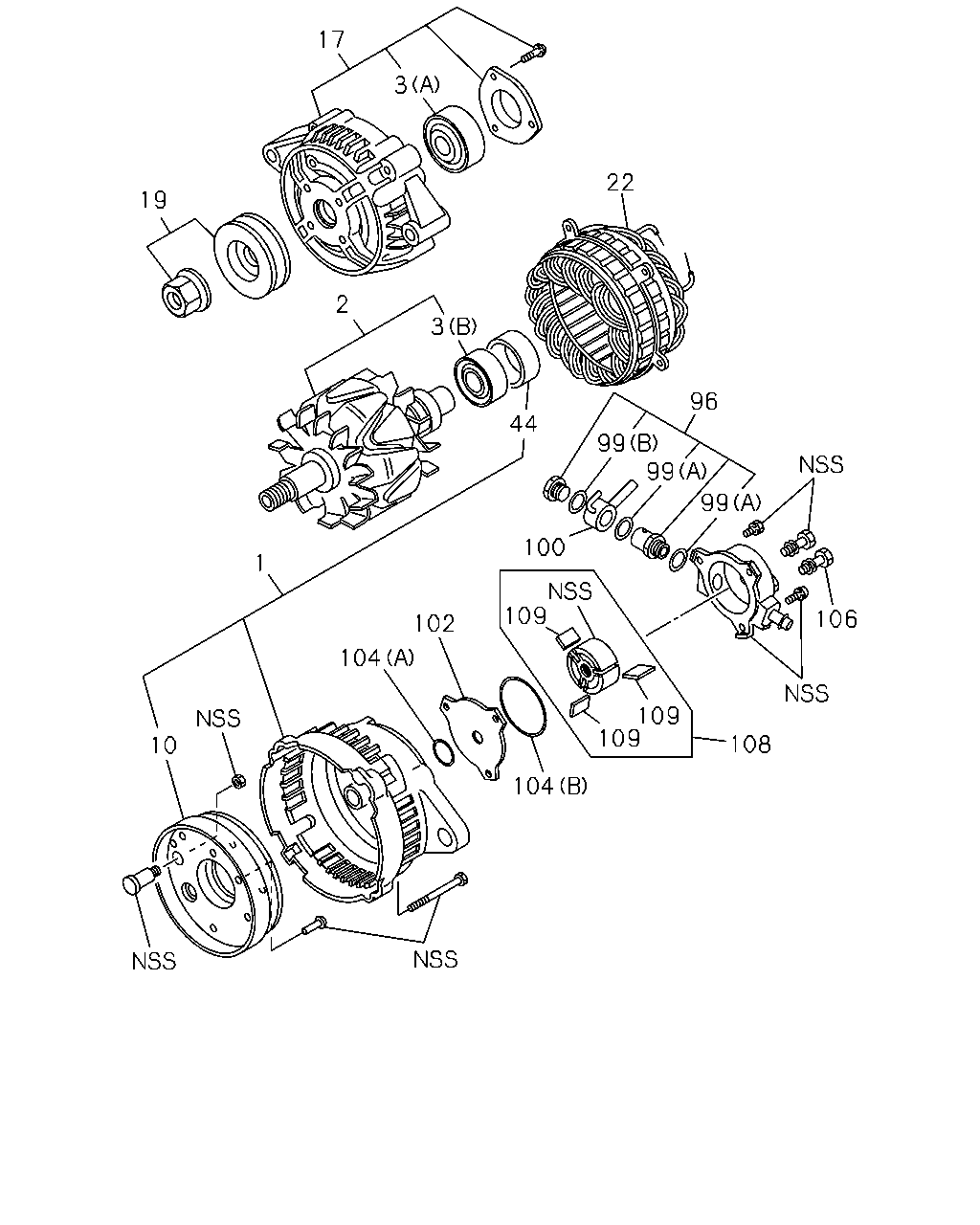

çizim 479296
96 99 22 3 17 2 19 3 44 100 109 102 104 10 1 109 108 109 104 106 99 99
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-97240-270-2 		8-98230-323-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-97240-270-2 		8-97313-435-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97240-270-2 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97240-270-2 		8-98159-457-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-97240-270-2 		8-98230-332-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-97240-270-2 		8-97313-446-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-97240-270-2 		8-97313-448-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-97240-270-2 		8-97313-437-0 01 1 -
44 SEAL; RR COVER,GEN
ASM PART: A = 8-97240-270-2 		8-94156-589-0 01 1 -
96 VALVE ASM; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-94223-991-0 01 1 -
99 GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-97240-270-2 		8-94223-992-0 02 1 -
99 GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-97240-270-2 		8-94223-993-0 01 1 -
100 CONNECTOR; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-97313-452-0 01 1 -
102 COVER; FRT,VAC PUMP
ASM PART: A = 8-97240-270-2 		8-97137-334-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(A) ASM PART: A = 8-97240-270-2 		8-94156-608-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(B) ASM PART: A = 8-97240-270-2 		8-94223-994-0 01 1 -
106 BOLT; OIL CONN,VAC PUMP
ASM PART: A = 8-97240-270-2 		8-94223-989-0 01 1 -
108 ROTOR; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-97236-693-0 01 1 -
109 VANE; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-94223-985-0 03 1 -

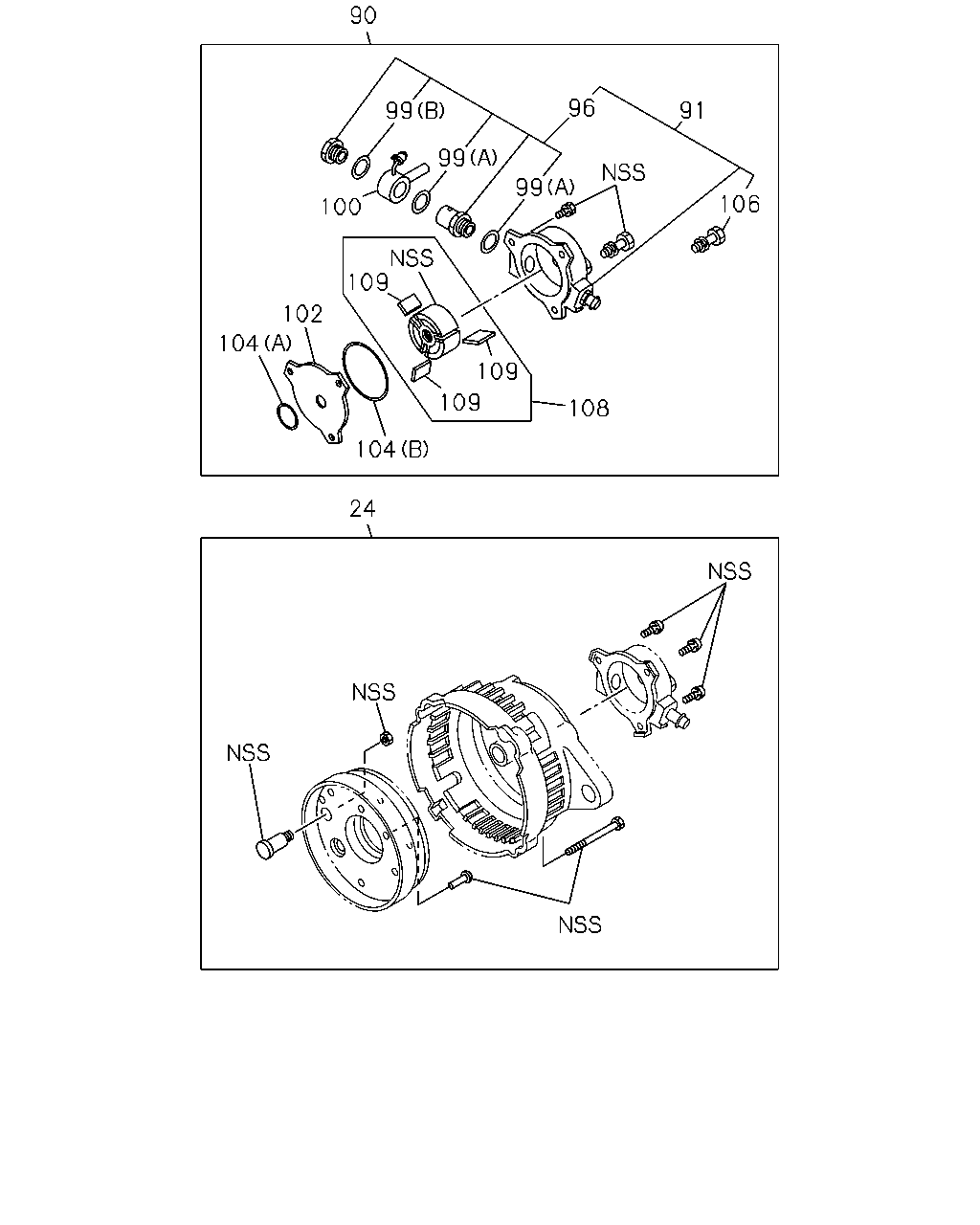

çizim 479772
104 104 109 102 109 109 108 106 91 96 99 90 99 24 99 100
BalonParca AdiParca NoAdetTipApplied Date
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-97240-270-2 		8-97161-697-0 01 1 -
90 PUMP ASM; VAC,GEN
ASM PART: A = 8-97240-270-2 		8-97313-450-0 01 1 -
91 BODY; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-97236-694-0 01 1 -
96 VALVE ASM; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-94223-991-0 01 1 -
99 GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-97240-270-2 		8-94223-992-0 02 1 -
99 GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-97240-270-2 		8-94223-993-0 01 1 -
100 CONNECTOR; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-97313-452-0 01 1 -
102 COVER; FRT,VAC PUMP
ASM PART: A = 8-97240-270-2 		8-97137-334-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(A) ASM PART: A = 8-97240-270-2 		8-94156-608-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(B) ASM PART: A = 8-97240-270-2 		8-94223-994-0 01 1 -
106 BOLT; OIL CONN,VAC PUMP
ASM PART: A = 8-97240-270-2 		8-94223-989-0 01 1 -
108 ROTOR; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-97236-693-0 01 1 -
109 VANE; VAC PUMP
ASM PART: A = 8-97240-270-2 		8-94223-985-0 03 1 -
