◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#162032) — 24 parça

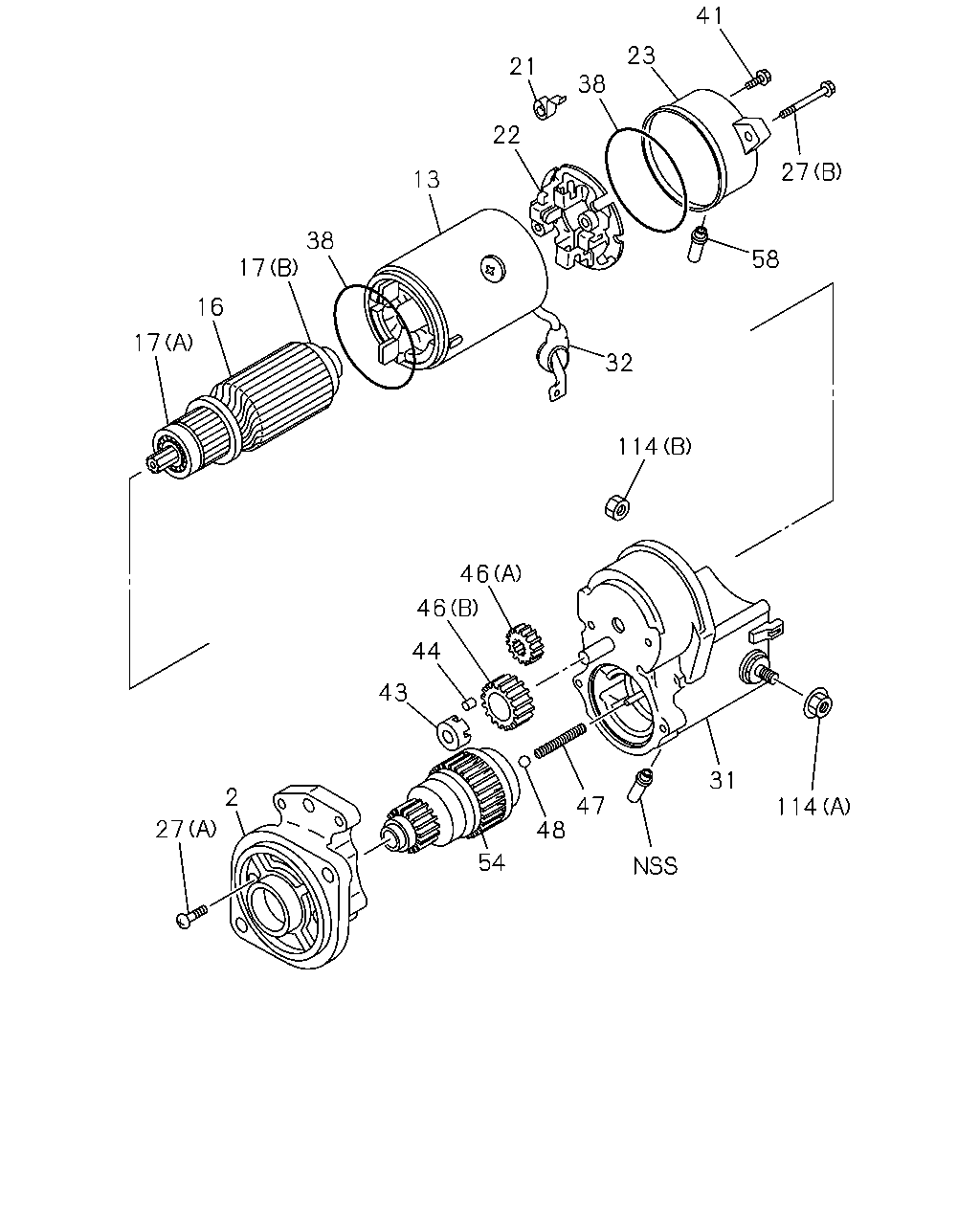

çizim 479293
27 41 23 38 21 22 13 38 17 16 17 46 46 44 43 2 27 54 47 48 31 114 114 32 58
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-97120-356-2 		8-97142-908-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 8-97120-356-2 		8-97135-497-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-97120-356-2 		8-97112-869-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-97120-356-2 		8-94377-240-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-97120-356-2 		8-97112-954-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97120-356-2 		8-97112-880-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-97120-356-2 		8-97112-873-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-97120-356-2 		8-97112-875-0 01 1 -
27 BOLT; THROUGH,STARTER
(A) ASM PART: A = 8-97120-356-2 		8-97112-881-0 02 1 -
27 BOLT; THROUGH,STARTER
(B) ASM PART: A = 8-97120-356-2 		8-97112-957-0 02 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97120-356-2 		8-97142-907-1 01 1 -
32 COVER; RUBBER,STARTER
ASM PART: A = 8-97120-356-2 		5-81119-029-0 01 1 -
38 GASKET; RR COVER,STARTER
ASM PART: A = 8-97120-356-2 		8-94170-214-0 02 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 8-97120-356-2 		8-97142-903-0 02 1 -
43 RETAINER; PINION STARTER
ASM PART: A = 8-97120-356-2 		8-94377-246-0 01 1 -
44 ROLLER; PINION STARTER
ASM PART: A = 8-97120-356-2 		5-81129-099-0 05 1 -
46 GEAR; CLU STARTER
(B) ASM PART: A = 8-97120-356-2 		8-97078-649-0 01 1 -
46 GEAR; CLU STARTER
(A) ASM PART: A = 8-97120-356-2 		8-97142-904-0 01 1 -
47 SPRING; PINION STARTER
ASM PART: A = 8-97120-356-2 		8-94377-245-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 8-97120-356-2 		5-81129-092-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-97120-356-2 		8-97148-687-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
ASM PART: A = 8-97120-356-2 		8-97041-421-0 01 1 -
114 NUT; TERMINAL
(A) ASM PART: A = 8-97120-356-2 		8-94109-763-0 01 1 -
114 NUT; TERMINAL
(B) ASM PART: A = 8-97120-356-2 		8-94377-238-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
