Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

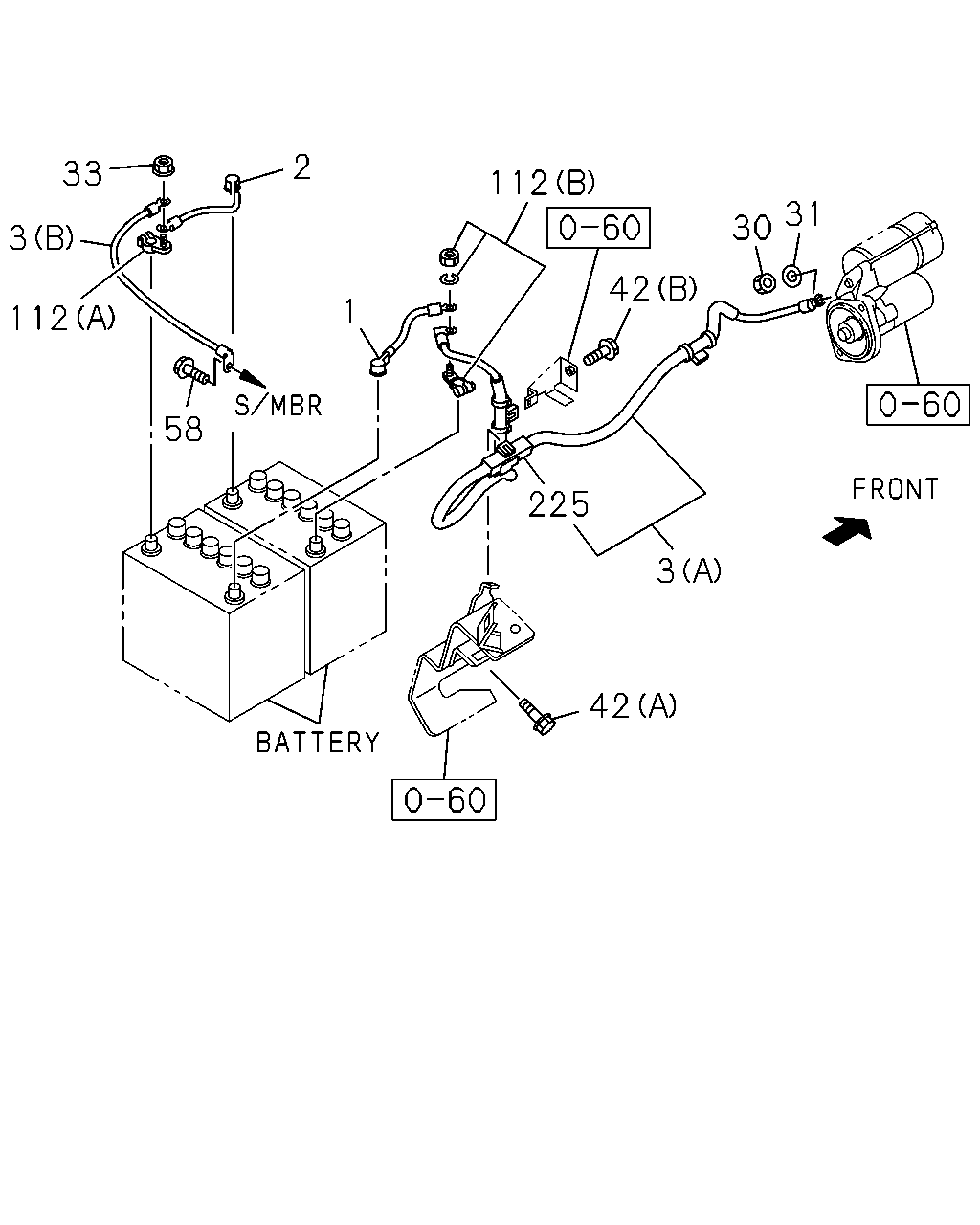

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#162031) — 13 parça
42
3
225
42
30
31
112
1
2
33
3
112
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
8-98241-495-0
01
1
1507-
2
CABLE; BATTERY
L=200
8-98056-337-1
01
1
1507-
3
HARNESS; CABLE,BATTERY TO STARTER
(B)
8-98120-101-0
01
1
1507-
3
HARNESS; CABLE,BATTERY TO STARTER
(A)
8-98294-710-0
01
1
1507-
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1507-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
0-91510-808-0
01
1
1507-
33
CAP; INSULATOR
M8 FLANGE
0-91180-108-0
01
1
1507-
42
BOLT; BRKT,BATTERY CABLE
(B) M6X25 FLANGE
0-28650-625-0
01
1
1507-
42
BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE
8-97329-599-0
01
1
1507-
58
BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1507-
112
TERMINAL; BATTERY
(A) <+>
8-97365-771-0
01
1
1507-
112
TERMINAL; BATTERY
(B) <->
8-98228-976-0
01
1
1507-
225
BLOCK; TERMINAL
8-98294-524-0
01
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
