Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#162030) — 26 parça
◀
[060A] STARTER,GENERATOR AND OTHER PARTS (9 parça)
[060A] BATTERY CABLE BRACKET (3 parça)
[060A] CONTROL UNIT AND RELAY (7 parça)
[060A] SENSOR AND DRM (7 parça)
▶
16
2
23
83
129
1
7
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW
8-97120-356-2
01
1
1507-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A
8-97240-270-2
01
1
1507-
4
BOLT; STARTER
M12X84
8-94107-769-2
02
1
1507-
7
NUT; STARTER
M12 FLANGE
0-91180-112-0
02
1
1507-
16
BOLT; GEN
M10X130 FLANGE
0-28056-013-0
01
1
1507-
23
NUT; GEN
M10 FLANGE
0-91180-210-0
01
1
1507-
83
THERMOMETER UNIT
DENSO
8-94235-691-0
01
1
1507-
83
THERMOMETER UNIT
YAZAKI
8-94237-861-0
01
1
1507-
129
SENSOR; GLOW PLUG,THERMO
8-97069-786-1
01
1
1507-

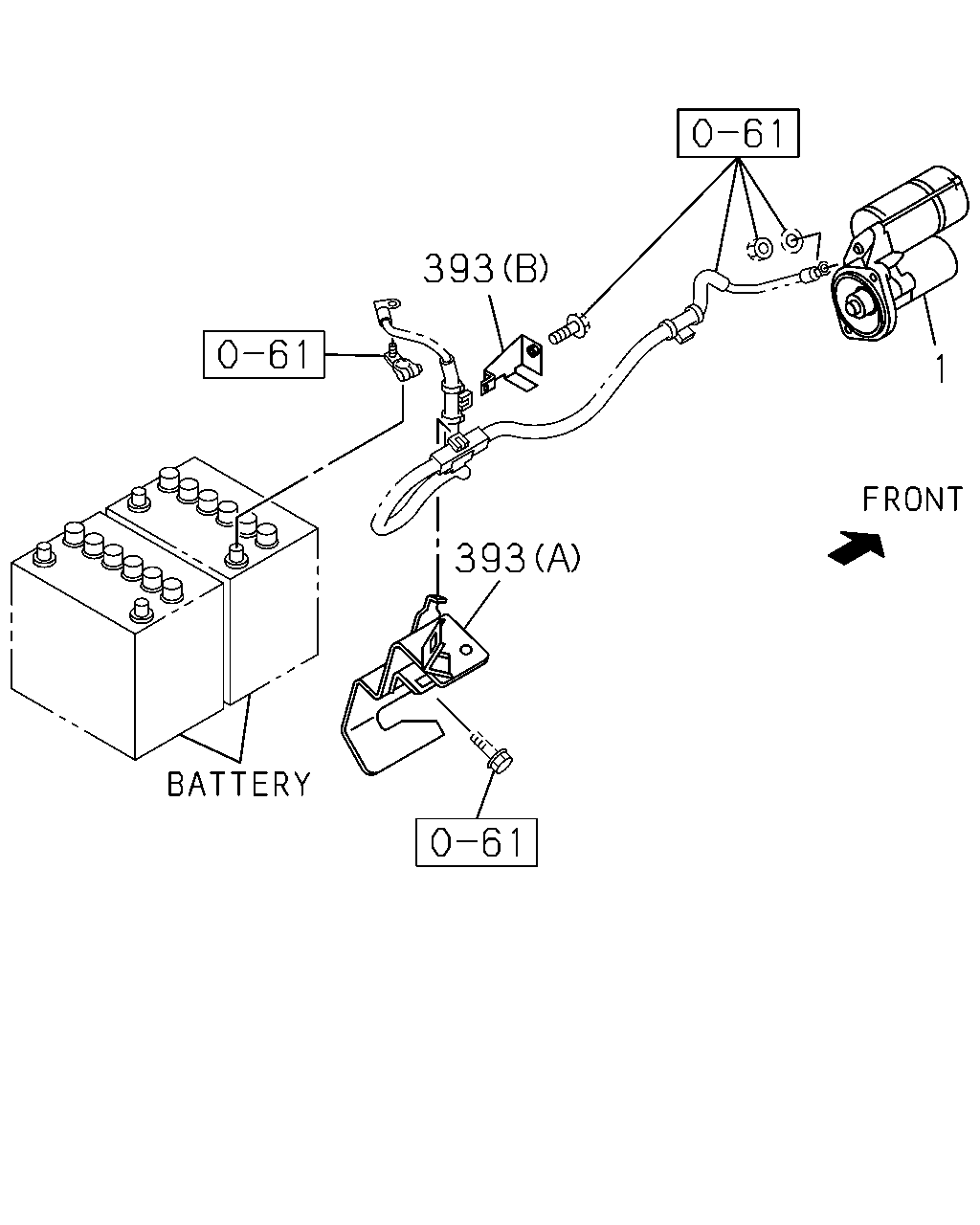

393
393
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW
8-97120-356-2
01
1
1507-
393
BRACKET; HARNESS TO BODY
(B)
8-98123-872-0
01
1
1507-
393
BRACKET; HARNESS TO BODY
(A)
8-98214-282-0
01
1
1507-

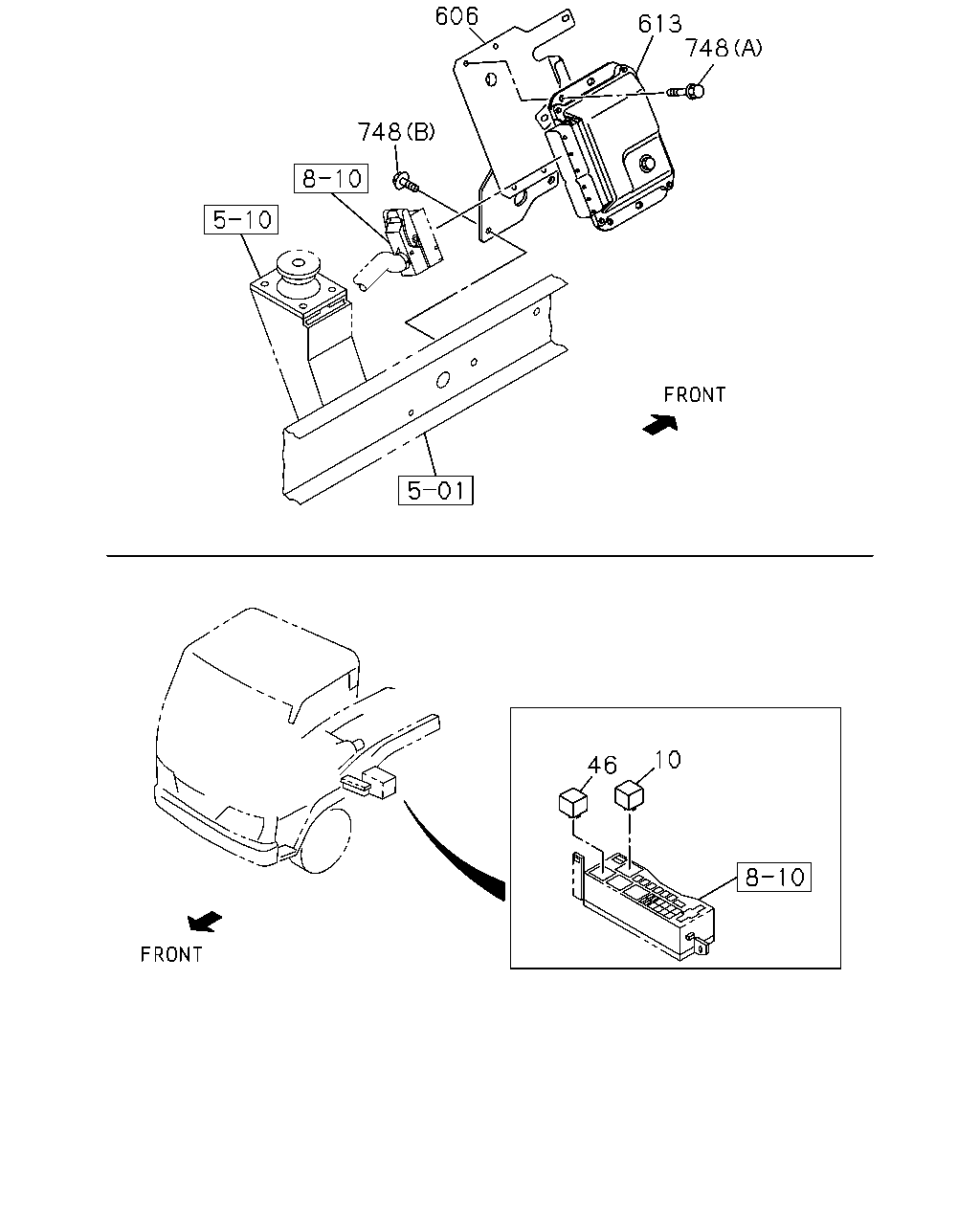

748
606
613
748
46
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
8-98195-608-0
01
1
1507-
46
RELAY; GLOW PLUG
12V 80A
8-97173-951-0
01
1
1507-
606
BRACKET; CONT UNIT
8-98209-244-0
01
1
1507-
613
CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ>
8-98325-090-0
01
1
1507-
613
CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>
8-98275-892-0
01
1
1507-
748
BOLT; CONT UNIT
(A) M6X20 FLANGE
0-28650-620-0
04
1
1507-
748
BOLT; CONT UNIT
(B) M8X25 FLANGE
0-28650-825-0
02
1
1507-

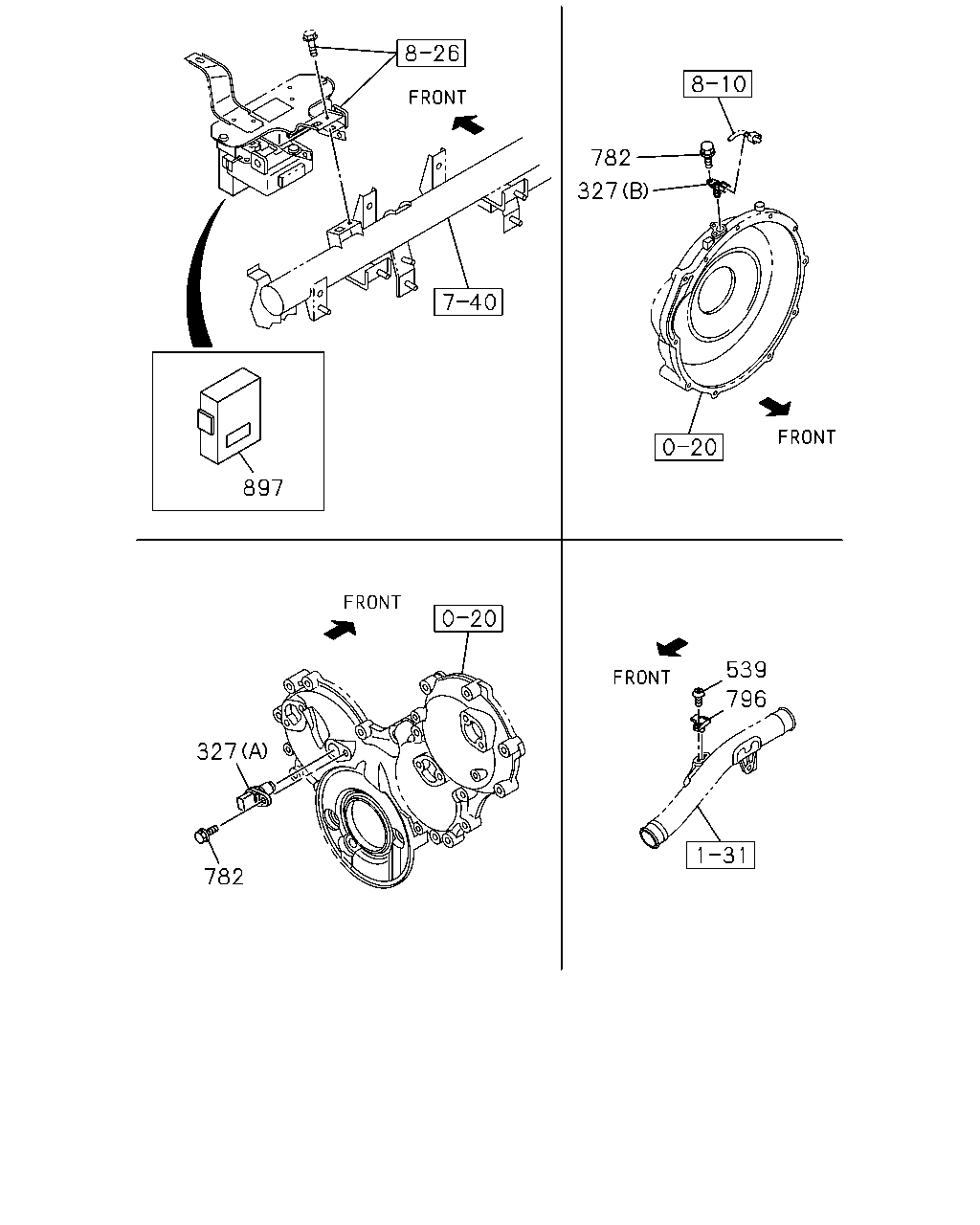

897
782
327
539
796
327
782
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
327
SENSOR; CAMSHAFT POSITION
(A)
8-98183-621-0
01
1
1507-
327
SENSOR; CAMSHAFT POSITION
(B)
8-97312-108-1
01
1
1507-
539
SCREW; SENSOR
M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1507-
782
BOLT; SENSOR
M6X16 FLANGE
0-28050-616-0
01
1
1507-
782
BOLT; SENSOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6X16 FLANGE
0-28050-616-0
01
1
1507-
796
SENSOR; MAP
8-98009-418-0
01
1
1507-
897
DRM
8-98184-246-4
01
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
