◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#162023) — 15 parça

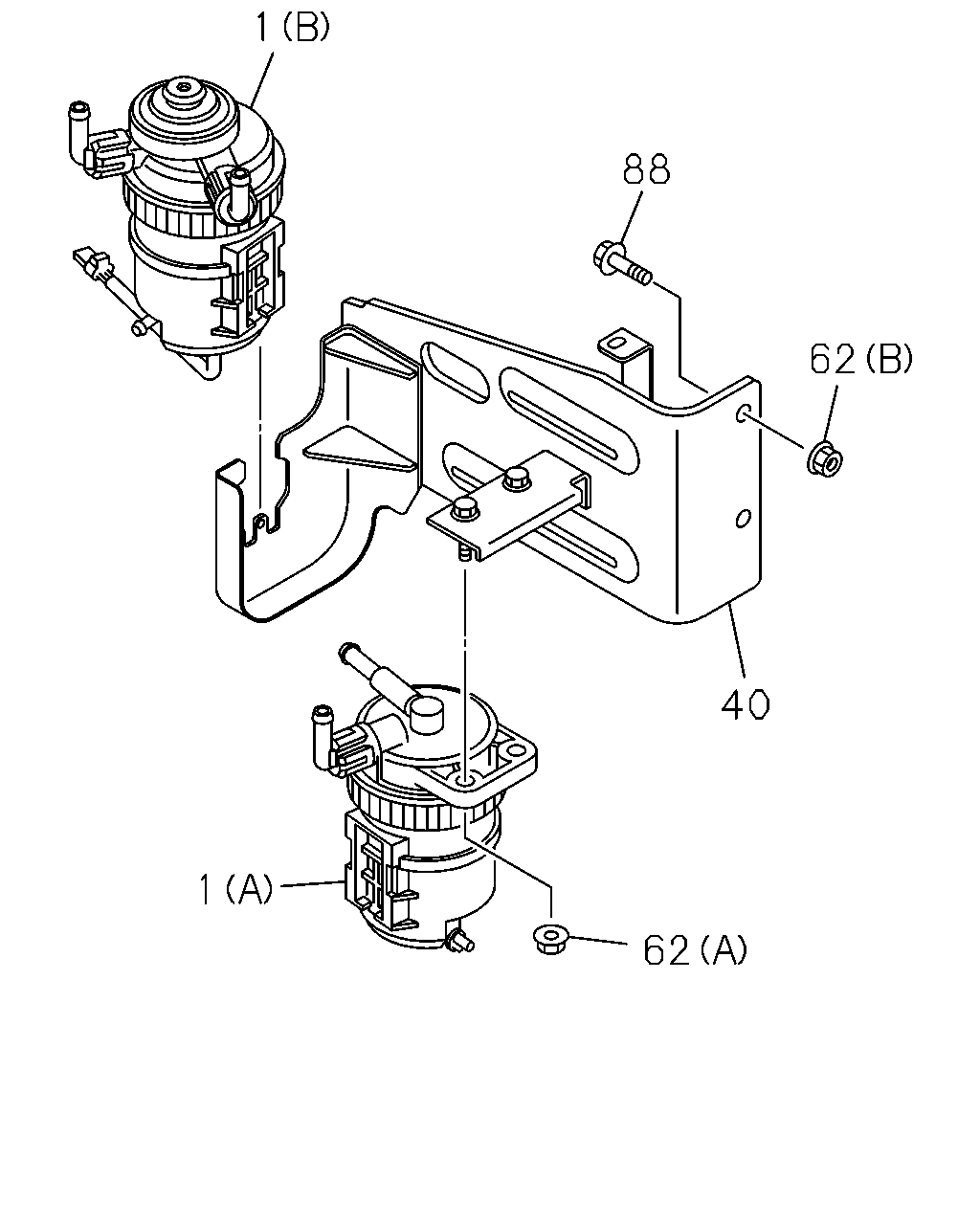

çizim 479207
1 88 62 40 62 1
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98184-212-1 01 1 1507-
1 FILTER ASM; FUEL
(B) 		8-98211-343-1 01 1 1507-
40 BRACKET; FUEL FILTER 8-98260-511-2 01 1 1507-
62 NUT; FUEL FILTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1507-
62 NUT; FUEL FILTER
(B) M10 FLANGE 		0-91180-110-0 02 1 1507-
88 BOLT; BRKT,FUEL FILTER
M10X30 FLANGE 		0-28651-030-0 02 1 1507-
çizim 479995
1 2 2 119 39 1 39 119
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98184-212-1 01 1 1507-
1 FILTER ASM; FUEL
(B) 		8-98211-343-1 01 1 1507-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98159-693-0 01 1 1507-
2 ELEMENT KIT; FUEL FILTER
(B) 		8-98194-119-0 01 1 1507-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS (IMIT LCV ONLY) 		5-87615-017-0 01 1 1507-
39 GASKET; DRAIN PLUG 8-98188-943-0 01 1 1507-
39 GASKET; DRAIN PLUG 8-98188-943-0 01 1 1507-
119 PLUG; DRAIN,FUEL FILTER 8-98188-941-0 01 1 1507-
119 PLUG; DRAIN,FUEL FILTER 8-98188-941-0 01 1 1507-
