0-36 — TURBOCHARGER SYSTEM
(#162020) — 32 parça
◀

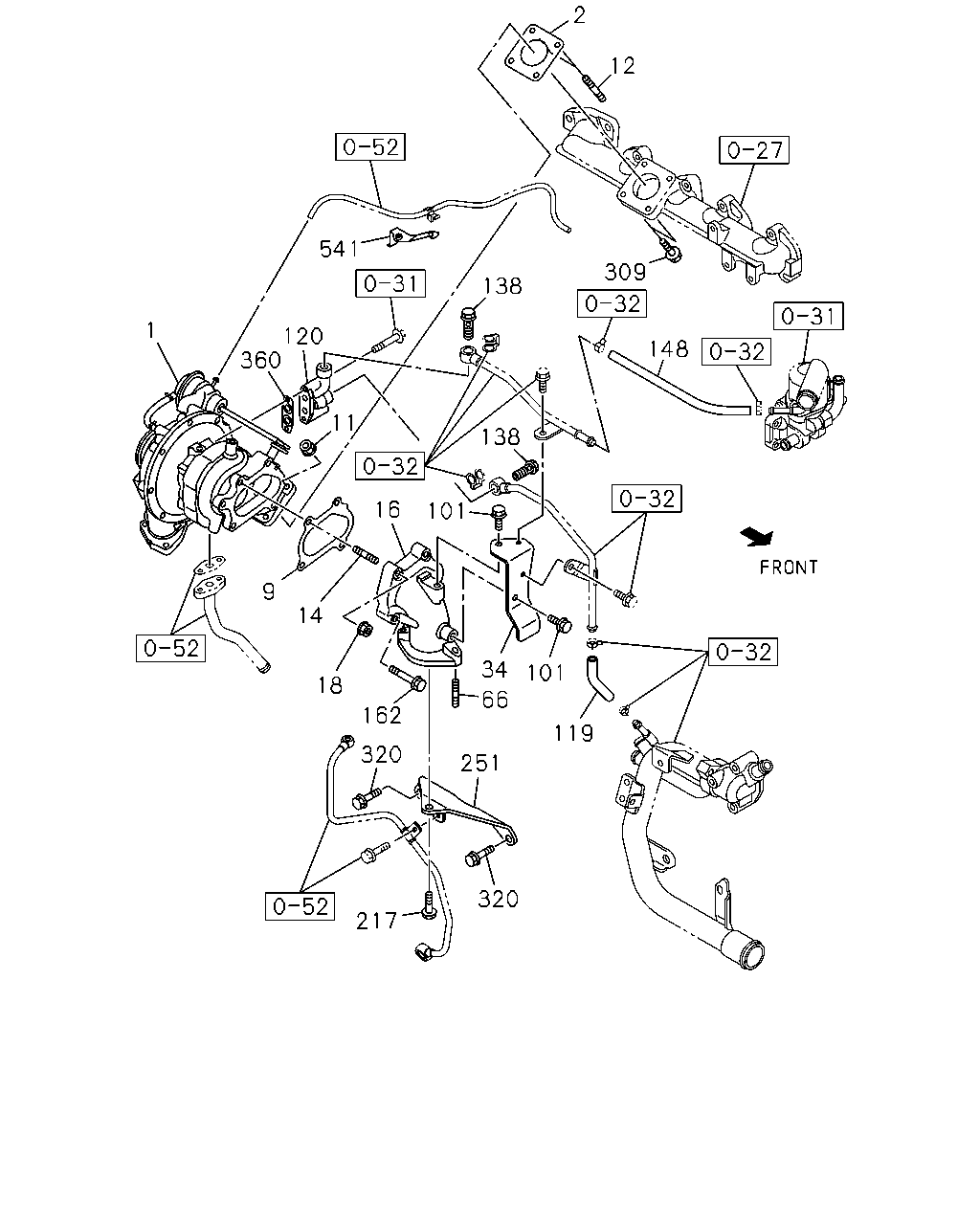

[036A] NO.2 (10 parça)

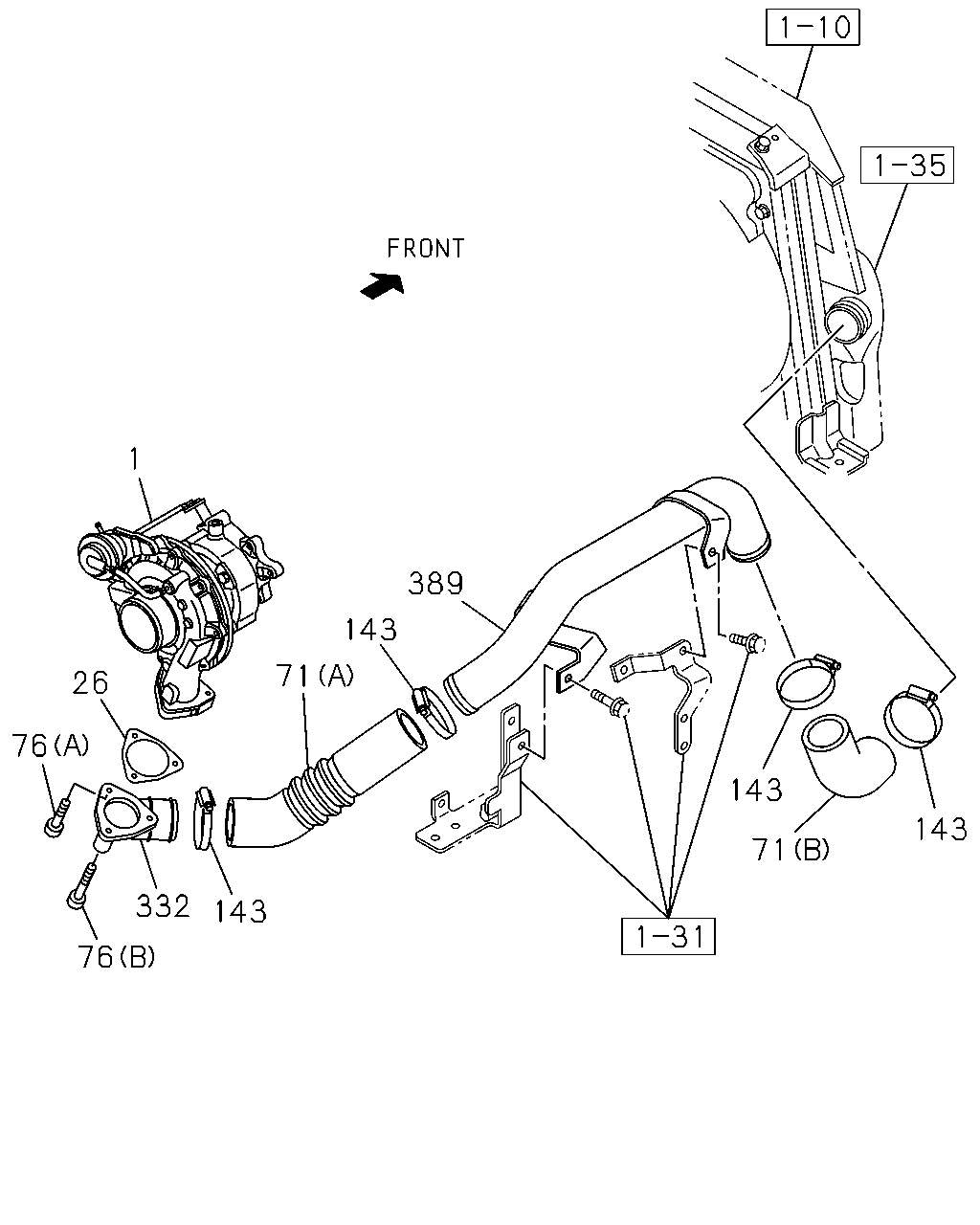

[036A] NO.1 (22 parça)
▶
71
389
143
1
26
76
76
332
143
143
71
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98243-561-0
01
1
1507-
26
GASKET; DUCT
8-98089-661-0
01
1
1507-
71
HOSE; INLET PIPE TO TURBOCHARGER
(A)
8-98253-027-0
01
1
1507-
71
HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98253-028-0
01
1
1507-
76
BOLT; AIR DUCT
(A) M6X20 HEX SOCKET
0-58330-620-0
01
1
1507-
76
BOLT; AIR DUCT
(B)
0-58330-645-0
02
1
1507-
143
CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> ID=45-65
8-98133-348-0
04
1
1507-
143
CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65
8-98096-418-0
04
1
1507-
332
DUCT; AIR,TURBOCHARGER
8-98237-776-1
01
1
1507-
389
PIPE; INL,TURBOCHARGER TO CAC
8-98253-024-0
01
1
1507-
148
309
12
2
541
120
360
11
1
9
14
18
162
320
251
66
34
101
119
320
217
16
101
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98243-561-0
01
1
1507-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
1507-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98015-116-3
01
1
1507-
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
02
1
1507-
12
STUD; TURBOCHARGER
M8X25 L=36
8-97378-062-0
02
1
1507-
14
STUD; TURBOCHARGER TO EXH PIPE
M8X35 L=46
8-97378-065-0
02
1
1507-
16
ADAPTER; EXH PIPE
8-98244-754-0
01
1
1507-
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
02
1
1507-
34
BRACKET; HEAT PROTECTOR
8-98242-284-0
01
1
1507-
66
STUD; EXH PIPE
M10X28 L=43
0-44011-028-0
02
1
1507-
101
BOLT; HEAT PROTECTOR
M8X14 FLANGE
8-97378-075-0
02
1
1507-
119
HOSE; WATER,TURBOCHARGER
8-97312-730-0
01
1
1507-
120
ADAPTER; WATER
8-98242-285-0
01
1
1507-
138
BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT
8-98037-067-0
02
1
1507-
148
HOSE; TURBOCHARGER,INL
L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1507-
162
BOLT; ADAPTER
M8X43 HEX SOCKET
8-98065-481-0
02
1
1507-
217
BOLT; BRKT
M10X30 FLANGE
8-98032-158-0
01
1
1507-
251
BRACKET; ADAPTER
8-98214-071-1
01
1
1507-
309
BOLT; TURBOCHARGER
M8X28 FLANGE
8-98043-528-0
02
1
1507-
320
BOLT; BRKT,TURBOCHARGER
M8X16 FLANGE
0-28050-816-0
02
1
1507-
360
GASKET; ADAPTER TO TURBOCHARGER
8-97352-985-0
01
1
1507-
541
BRACKET; HOSE
8-98242-362-1
01
1
1507-
