Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#162017) — 14 parça
◀

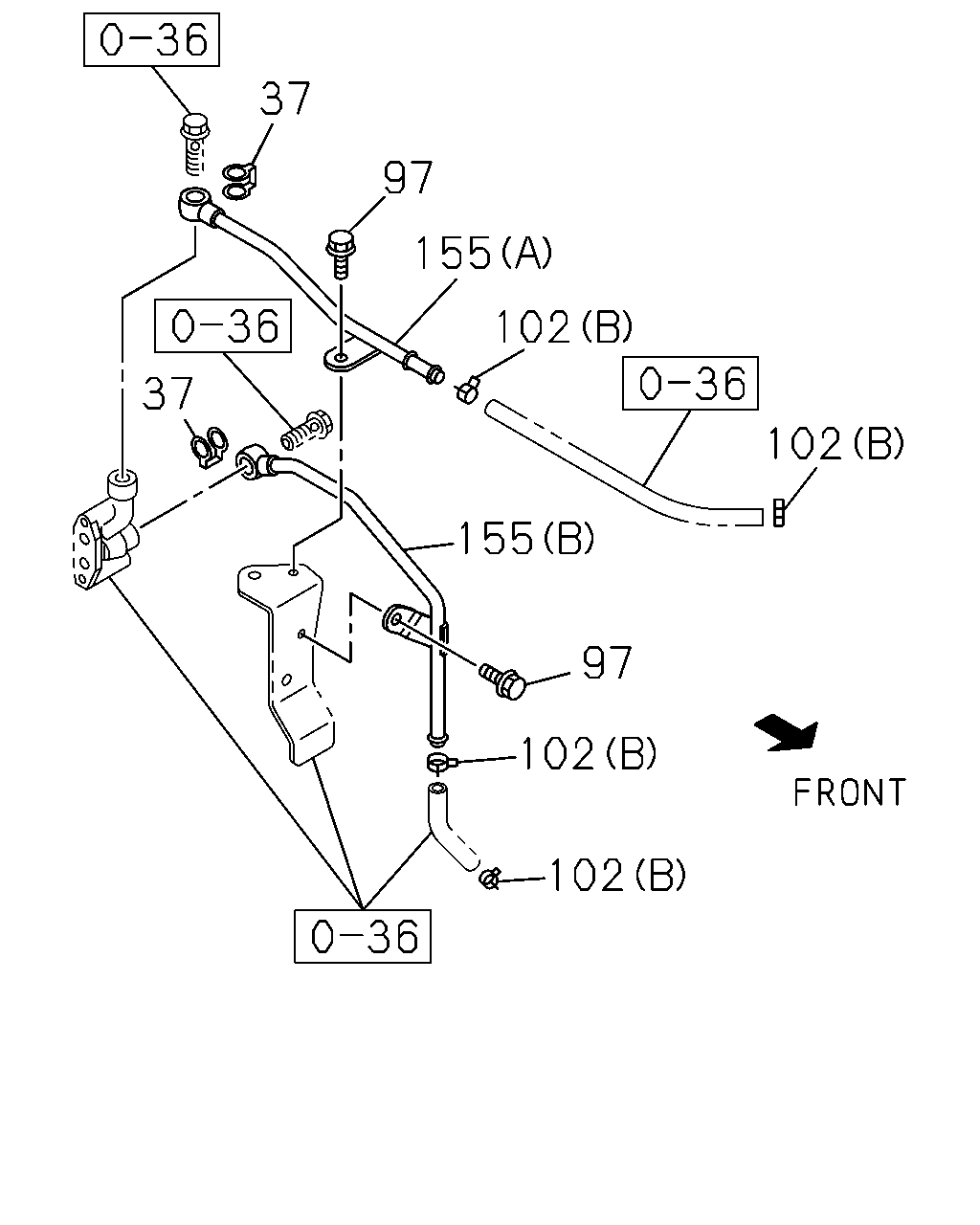

[032A] NO.2 (6 parça)
[032A] NO.1 (8 parça)
▶
102
102
155
97
37
37
155
97
102
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0
8-98113-762-0
02
1
1507-
97
BOLT; WATER PIPE
M6X14 FLANGE
8-97136-157-0
02
1
1507-
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
1507-
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
1507-
155
PIPE ASM; WATER
(A)
8-98242-282-0
01
1
1507-
155
PIPE ASM; WATER
(B)
8-98242-283-1
01
1
1507-
102
2
102
11
73
74
74
23
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-98214-089-0
01
1
1507-
11
PIPE; INL,WATER PUMP
8-98214-060-0
01
1
1507-
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1507-
72
BOLT; WATER PIPE
M8X50 W/LK WASHER
0-50540-850-0
02
1
1507-
73
PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1507-
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
1507-
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
1507-
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
1507-
