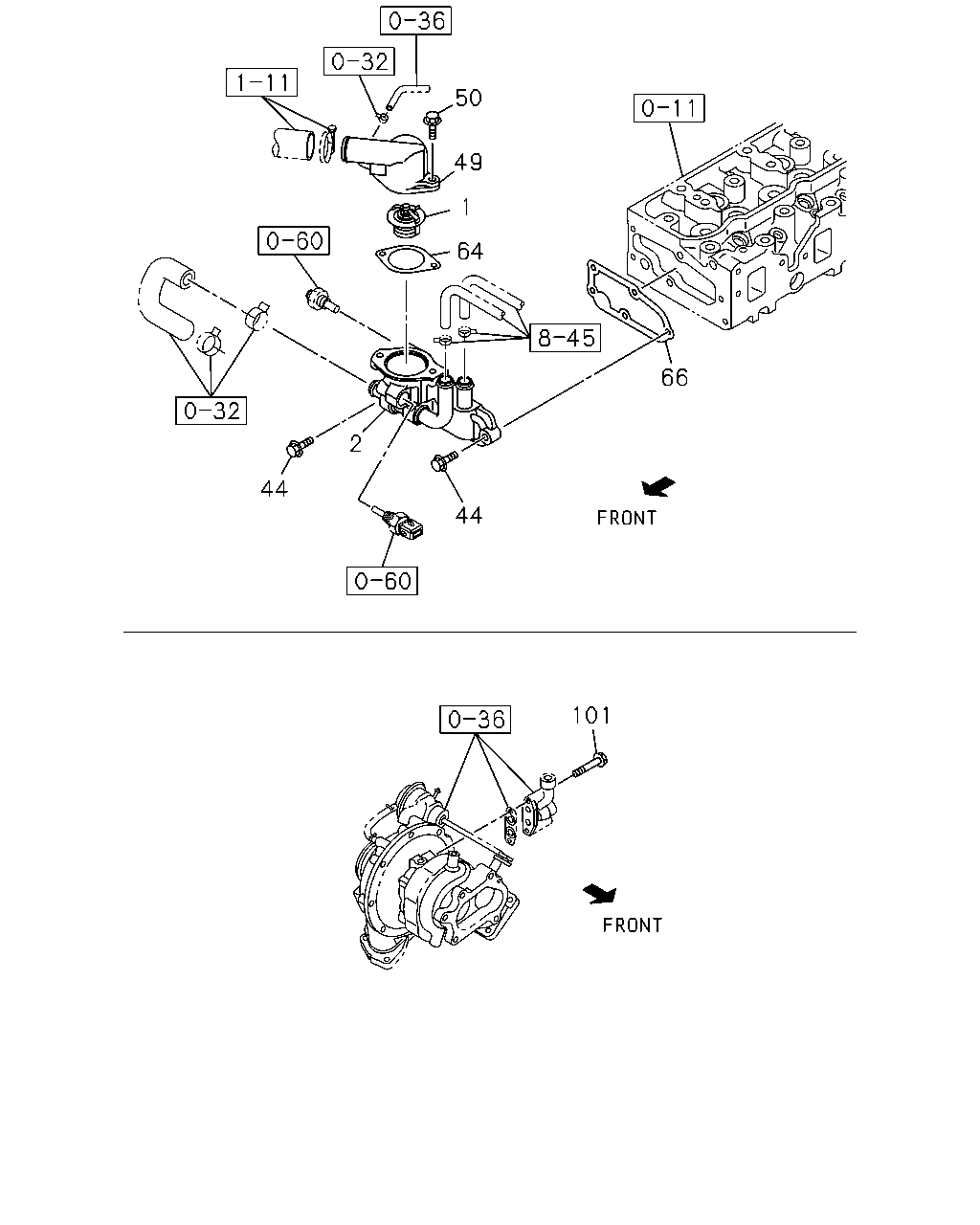

0-31 — THERMOSTAT AND HOUSING (#162016) — 8 parça

50 49 1 64 44 2 44 101 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	THERMOSTAT 82 CELSIUS	8-97254-816-1	01	1	1507-
2	HOUSING; THERMOSTAT	8-97372-989-1	01	1	1507-
44	BOLT; HSG TO HD M8X30 W/LK WASHER	0-50540-830-0	05	1	1507-
49	PIPE; WATER OUTLET	8-97289-011-0	01	1	1507-
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1507-
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-2	01	1	1507-
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97212-537-1	01	1	1507-
101	BOLT; PIPE M6X50 FLANGE	0-28050-650-0	02	1	1507-
