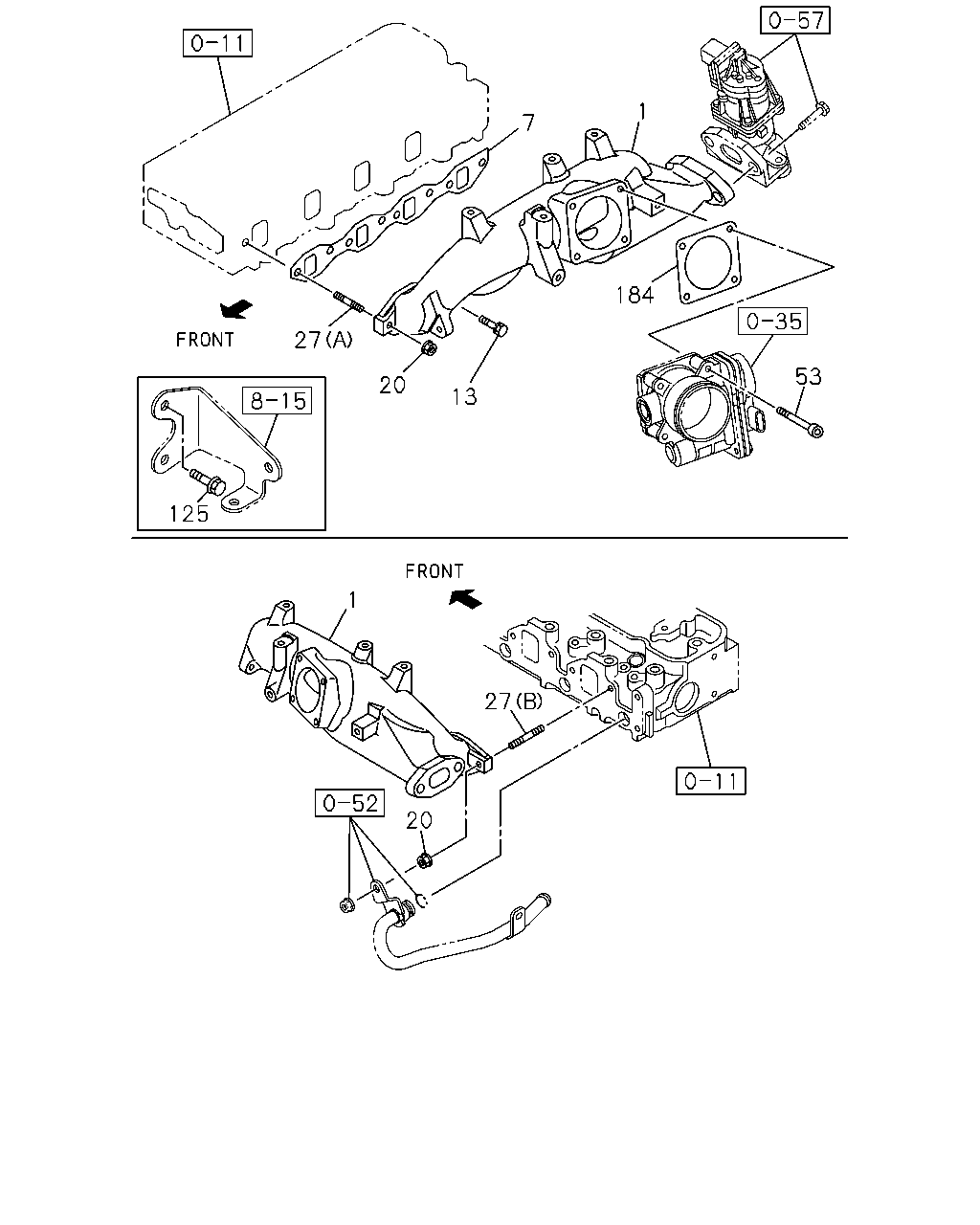

0-25 — INLET MANIFOLD (#162012) — 9 parça

7 1 184 53 13 20 27 1 125 27 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MANIFOLD; INL	8-98214-063-0	01	1	1507-
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	1507-
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50540-825-0	06	1	1507-
20	NUT; INL MANIF M8 FLANGE	8-97581-233-0	02	1	1507-
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	1507-
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	1507-
53	BOLT; INL PIPE M6X50 HEX SOCKET	0-58330-650-0	04	1	1507-
125	BOLT; BRKT TO INL MANIF M8X16 FLANGE	0-28050-816-0	02	1	1507-
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1507-
