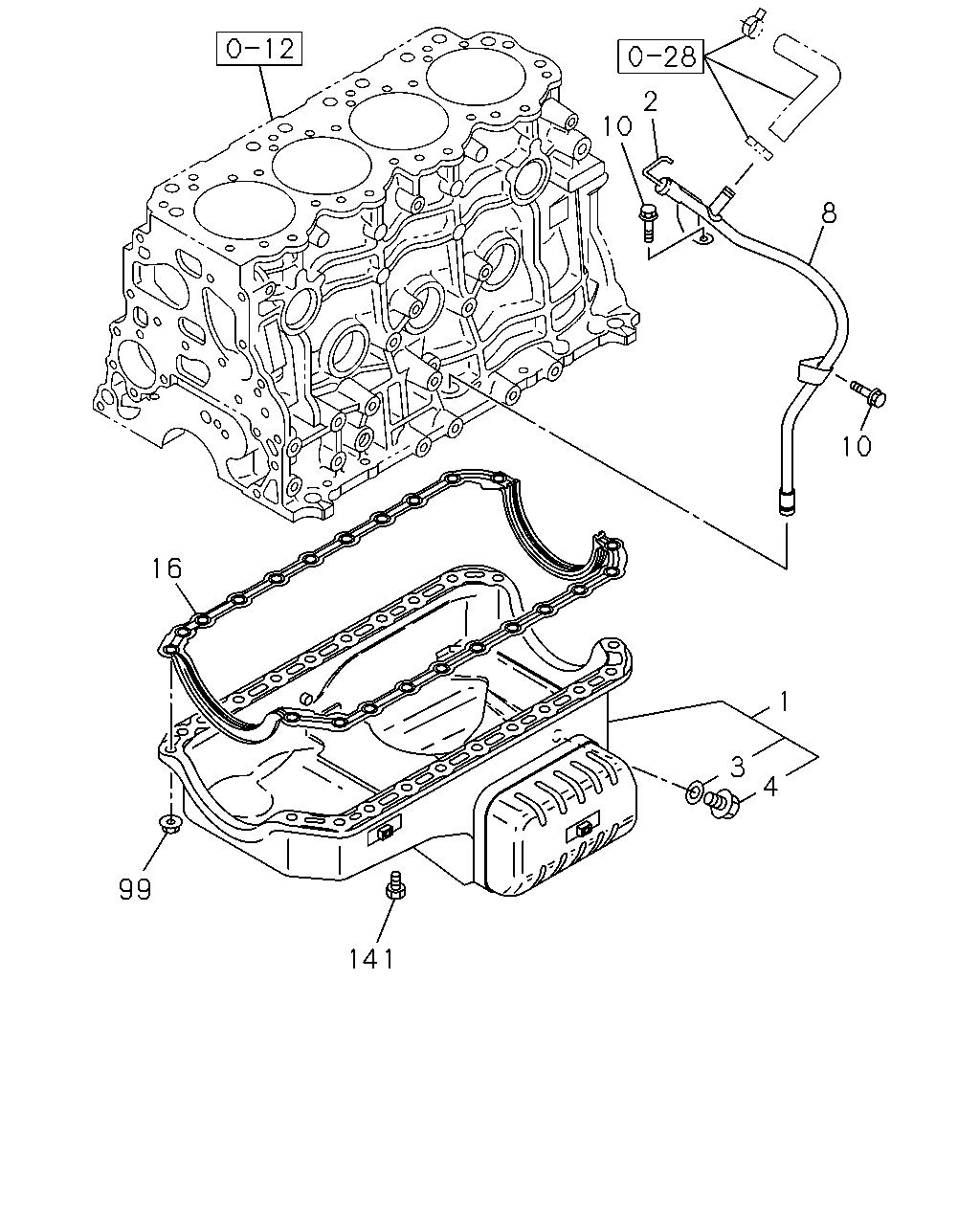

0-13 — OIL PAN AND LEVEL GAUGE (#162007) — 9 parça

10 2 8 10 1 3 4 141 99 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL	8-98000-123-0	01	1	1507-
2	GAUGE; OIL LEVEL	8-98188-697-1	01	1	1507-
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1507-
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1507-
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-98214-056-0	01	1	1507-
10	BOLT; GUIDE TUBE M8X16 FLANGE	0-28050-816-0	02	1	1507-
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	1507-
99	NUT; BRKT TO OIL PAN FIX M8 FLANGE	5-09440-010-0	10	1	1507-
141	BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	1507-
