Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

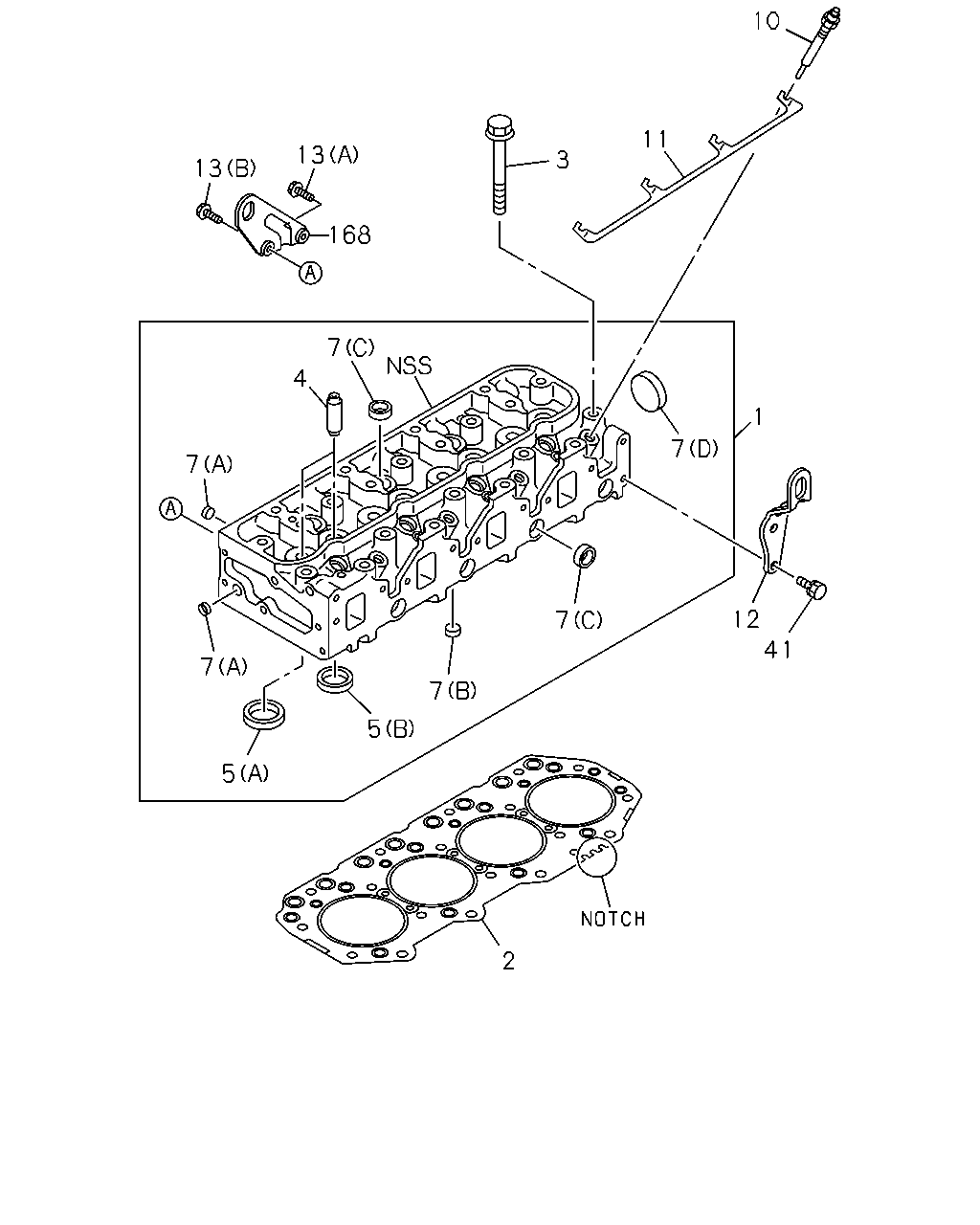

0-11 — CYLINDER HEAD
(#162005) — 20 parça
3
11
10
1
7
12
41
7
7
5
5
7
7
4
7
168
13
13
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98214-028-0
01
1
1507-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH
8-97259-601-0
01
1
1507-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH
8-97259-602-0
01
1
1507-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH
8-97259-603-0
01
1
1507-
3
BOLT; CYL HD TO BLOCK
M11X122
8-97133-416-1
18
1
1507-
4
GUIDE; VLV
L=50
5-11721-016-0
08
1
1507-
5
SEAT; VLV INSERT
(B) EXHAUST OD=36.7
8-97231-229-0
04
1
1507-
5
SEAT; VLV INSERT
(A) INLET OD=42.7
8-97378-030-0
04
1
1507-
7
CUP; SEALING,CYL HEAD
(D) OD=45
1-09600-005-2
01
1
1507-
7
CUP; SEALING,CYL HEAD
(A) OD=12.3
5-09600-013-0
05
1
1507-
7
CUP; SEALING,CYL HEAD
(B) OD=16
5-11129-006-0
03
1
1507-
7
CUP; SEALING,CYL HEAD
(C) OD=22
8-97209-609-0
06
1
1507-
10
PLUG; GLOW
BOSCH
8-94133-759-9
04
1
1507-
10
PLUG; GLOW
NGK
8-94175-158-2
04
1
1507-
11
CONNECTOR; GLOW PLUG
8-97146-517-0
01
1
1507-
12
HANGER; ENG,RR
8-97107-739-0
01
1
1507-
13
BOLT; HANGER
(B) M10X25 FLANGE
0-28051-025-0
01
1
1507-
13
BOLT; HANGER
(A) M8X25 W/LK WASHER
0-50540-825-0
01
1
1507-
41
BOLT; ENG HANGER
M8X16 FLANGE
0-28050-816-0
02
1
1507-
168
HANGER; ENG,FRT
8-94379-714-1
01
1
1507-
