1-50 — EXHAUST PIPE AND SILENCER (#16199) — 83 parça

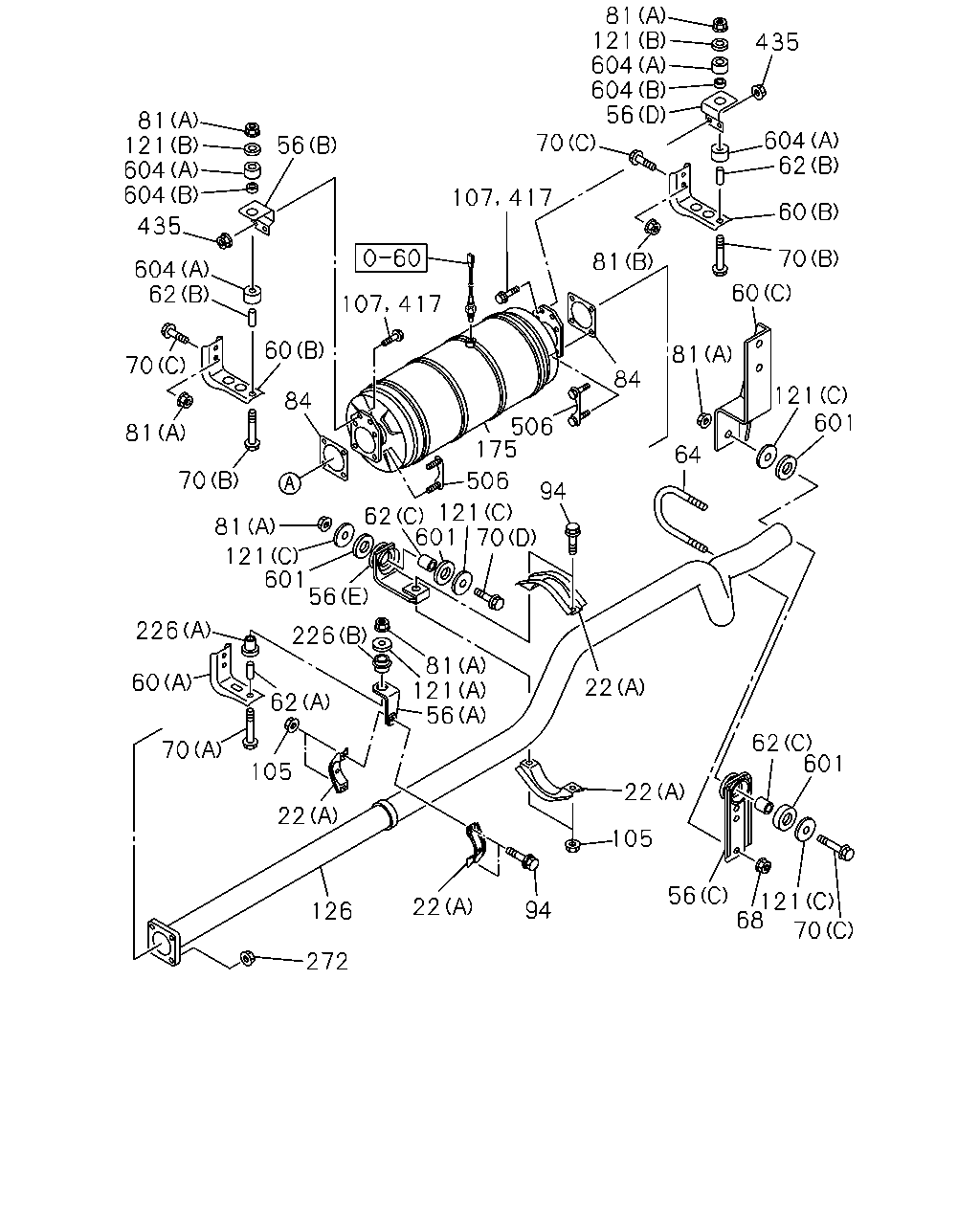

çizim 14658
81 121 604 604 56 435 81 121 604 604 604 62 70 56 107 60 435 70 81 604 62 60 107 60 70 81 84 121 601 84 506 175 81 64 70 506 94 62 121 81 121 601 56 226 226 81 121 56 60 22 62 62 601 70 105 22 22 105 56 121 68 70 22 94 126 272 417 417
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 0907-
22 CLAMP; EXH PIPE
(B) 		8-97615-334-0 01 1 0907-
56 BRACKET; CLAMP,EXH PIPE
(E) 		1-22134-116-0 01 1 0907-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-97614-742-0 01 1 0907-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97624-121-0 01 1 0907-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-97624-122-0 01 1 0907-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98059-754-0 01 1 0907-1309
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98245-533-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-274-1 01 1 0907-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-274-1 01 1 0907-
60 BRACKET; FRAME TO BRKT
(A) 		8-98059-753-1 01 1 0907-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(C) 		8-98094-807-0 01 1 0907-
62 TUBE; DIST,BRKT
(C) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
(C) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0907-
62 TUBE; DIST,BRKT
(B) L=37.5 		9-22151-217-0 01 1 0907-
62 TUBE; DIST,BRKT
(B) L=37.5 		9-22151-217-0 01 1 0907-
64 U-BOLT; EXH PIPE,RR 1-22113-101-0 01 1 0907-
68 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 02 1 0907-
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28051-050-0 01 1 0907-
70 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 01 1 0907-
70 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 01 1 0907-
70 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 01 1 0907-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0907-
70 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 02 1 0907-
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0907-
81 NUT; BRKT
(A) M8 FLANGE 		0-91180-208-0 02 1 0907-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0907-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0907-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0907-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 0907-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 04 1 0907-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 04 1 0907-
107 BOLT; BRKT
M8X30 FLANGE 		0-28050-830-0 02 1 0907-
121 WASHER; PL,BRKT
(A) ID=11 OD=54 		1-09503-154-2 01 1 0907-
121 WASHER; PL,BRKT
(C) ID=10.5 OD=40 T=3.2 		8-98010-405-0 02 1 0907-
121 WASHER; PL,BRKT
(C) ID=10.5 OD=40 T=3.2 		8-98010-405-0 02 1 0907-
121 WASHER; PL,BRKT
(B) OD=55 		9-09852-169-0 01 1 0907-
121 WASHER; PL,BRKT
(B) OD=55 		9-09852-169-0 01 1 0907-
126 PIPE; EXH,RR 8-97615-224-3 01 1 0907-
175 CONVERTER; CATALYST 8-98012-389-1 01 1 0907-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0907-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0907-
272 NUT; FLANGE
M12 FLANGE 		0-91180-212-0 04 1 0907-
417 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907-
435 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0907-
435 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0907-
506 BRACKET; STUD 1-22134-214-0 04 1 0907-
601 MOUNTING 8-98055-817-0 02 1 0907-
601 MOUNTING 8-98055-817-0 02 1 0907-
604 MESH; BRKT
(A) 		8-97379-882-0 02 1 0907-
604 MESH; BRKT
(A) 		8-97379-882-0 02 1 0907-
604 MESH; BRKT
(B) 		8-98090-400-0 01 1 0907-
604 MESH; BRKT
(B) 		8-98090-400-0 01 1 0907-

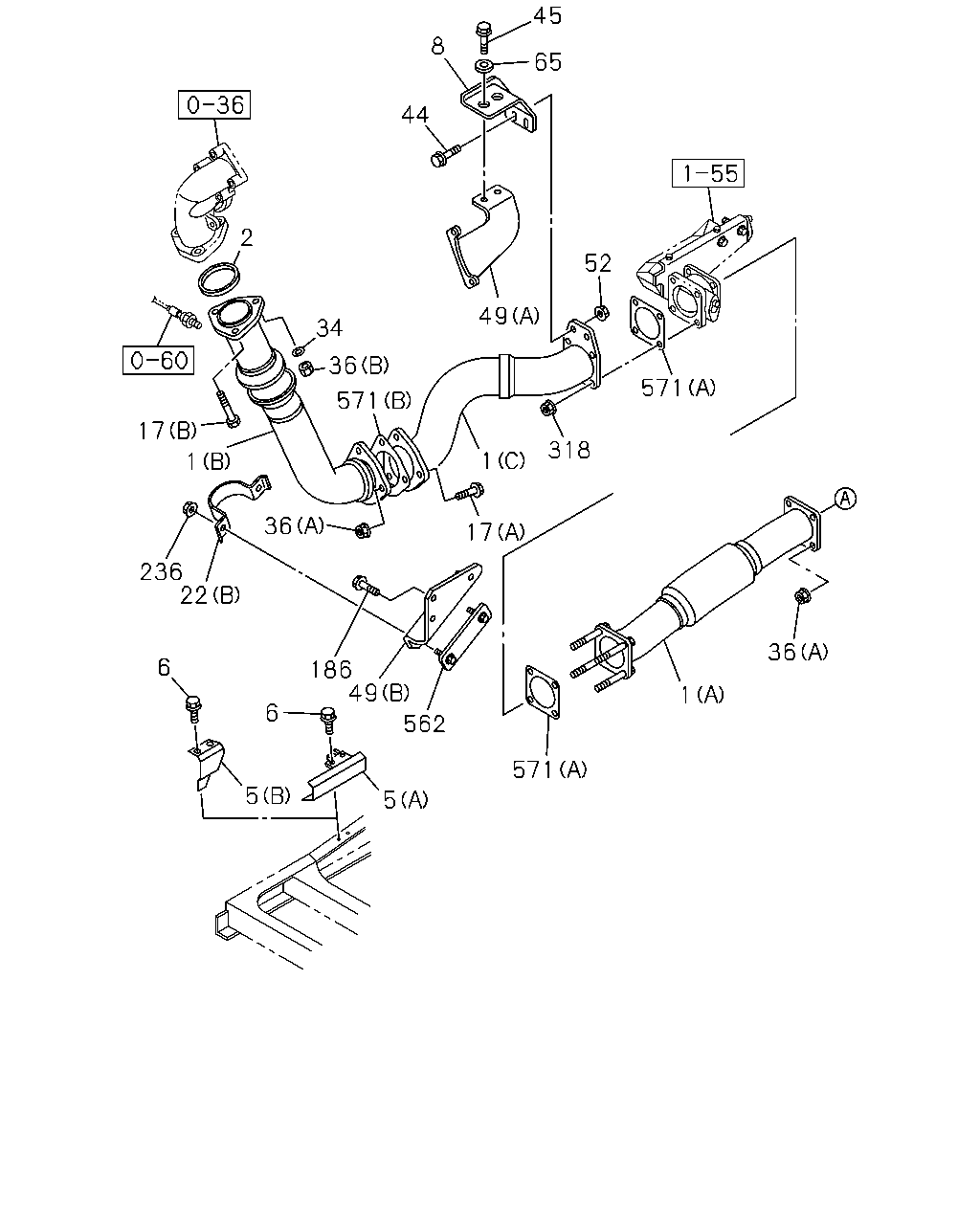

çizim 63226
45 8 65 44 2 52 49 34 36 571 571 17 318 1 1 36 17 236 22 36 6 186 49 1 6 562 571 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-97615-215-3 01 1 0907-
1 PIPE; EXH
(C) 		8-97623-917-1 01 1 0907-
1 PIPE; EXH
(B) 		8-97623-948-1 01 1 0907-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-22116-029-0 01 1 0907-
5 PROTECTOR; HEAT
(B) 		8-97624-208-0 01 1 0907-
5 PROTECTOR; HEAT
(A) 		8-97624-450-0 01 1 0907-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 04 1 0907-
8 BRACKET; EXH PIPE 8-97624-473-0 01 1 0907-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0907-
17 BOLT; EXH PIPE
(B) M12X65 		1-09000-386-0 02 1 0907-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 0907-
22 CLAMP; EXH PIPE
(B) 		8-97615-334-0 01 1 0907-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0907-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0907-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 06 1 0907-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0907-
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0907-
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-97622-935-0 01 1 0907-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98085-315-2 01 1 0907-1309
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98245-509-0 01 1 1310-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0907-
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 0907-
186 BOLT; BRKT TO ENG
M10X20 FLANGE 		0-28751-020-0 03 1 0907-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0907-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0907-
562 PLATE; STUD,BOLT 8-97615-333-1 01 1 0907-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0907-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0907-
