Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

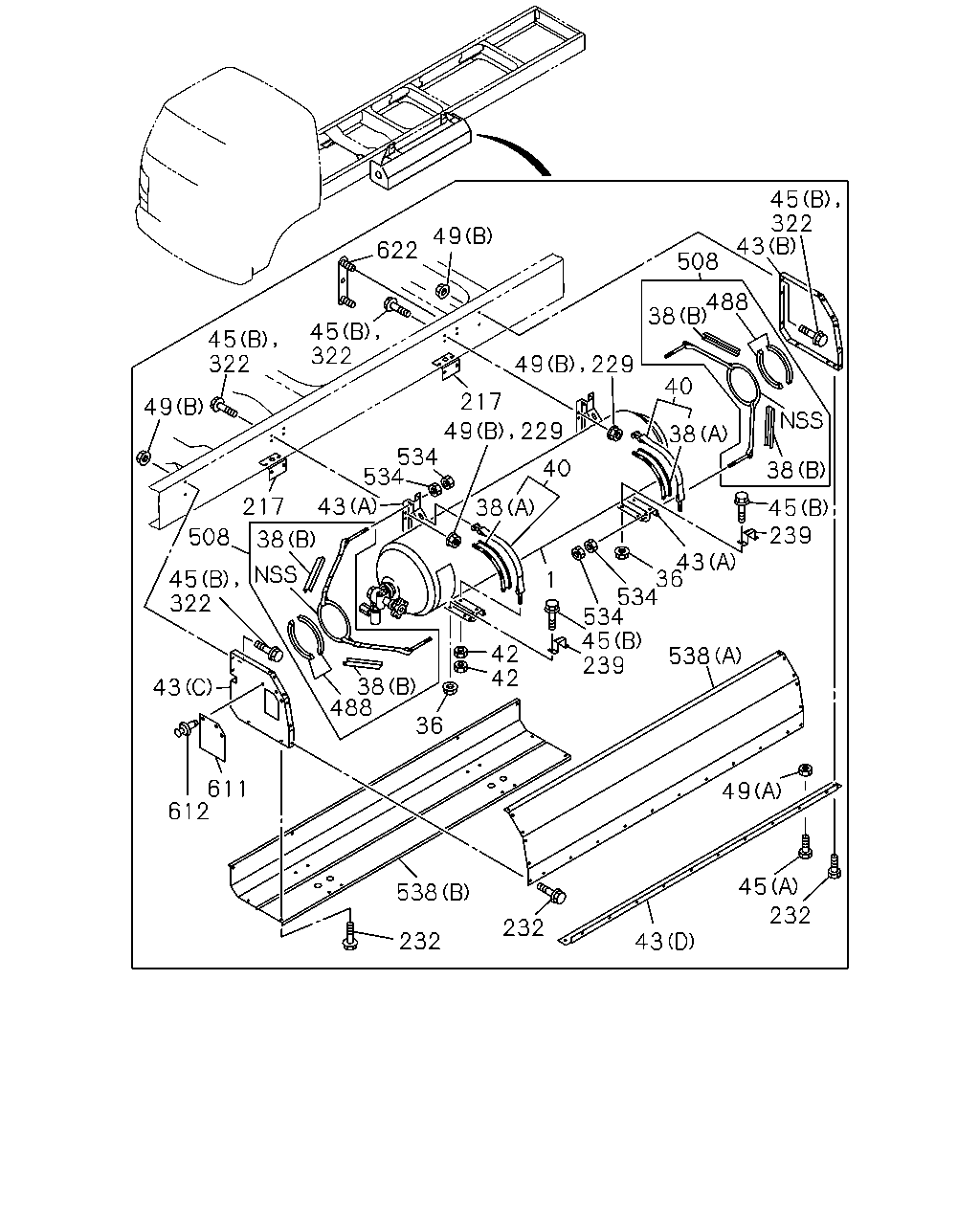

1-40 — FUEL TANK
(#16197) — 34 parça
45
322
43
49
622
508
488
38
45
322
45
322
40
217
49
534
534
38
40
38
217
43
38
45
239
508
38
43
36
534
534
45
239
45
322
1
42
42
538
38
488
43
36
611
612
49
45
538
232
232
232
43
49
229
229
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
OD=400 L=1610 150L
1-22420-088-1
01
1
0907-
36
NUT; SPACER,FUEL TANK
M10 FLANGE
0-91180-210-0
04
1
0907-
38
INSULATION; SUPPORT BELT
(B) L=540
1-22553-014-2
04
1
0907-
38
INSULATION; SUPPORT BELT
(A)
1-22553-053-1
02
1
0907-
40
BELT; SUPPORT,FUEL TANK
1-22550-246-1
02
1
0907-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0907-
43
BRACKET; FUEL TANK
(A) FRONT LH,REAR RH
1-22428-392-1
01
1
0907-
43
BRACKET; FUEL TANK
(A) FRONT RH,REAR LH
1-22428-394-1
01
1
0907-
43
BRACKET; FUEL TANK
(B)
1-22428-401-0
01
1
0907-
43
BRACKET; FUEL TANK
(C)
8-97615-635-0
01
1
0907-
43
BRACKET; FUEL TANK
(D)
8-97621-641-0
01
1
0907-
45
BOLT; BRKT,FUEL TANK
(B) M8X25 FLANGE
0-28650-825-0
02
1
0907-
45
BOLT; BRKT,FUEL TANK
(A) M10X25 FLANGE
0-28651-025-0
04
1
0907-
45
BOLT; BRKT,FUEL TANK
(B) M10X25 FLANGE
0-28661-025-0
04
1
0907-
45
BOLT; BRKT,FUEL TANK
(B) M12X35 FLANGE
0-28661-235-0
04
1
0907-
49
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
04
1
0907-
49
NUT; BRKT
(B) M12 FLANGE
0-91180-212-0
16
1
0907-
217
BRACKET; FUEL TANK,LOW
1-22428-431-0
01
1
0907-
217
BRACKET; FUEL TANK,LOW
1-22428-431-0
01
1
0907-
229
NUT; BRKT,FUEL TANK
M12 FLANGE
0-91180-212-0
04
1
0907-
232
BOLT; COVER
M8X28 W/LK&PL WASHER
8-94438-324-1
14
1
0912-
232
BOLT; COVER
M8X25 FLANGE
0-28650-825-0
32
1
0907-0911
232
BOLT; COVER
M8X25 FLANGE
0-28650-825-0
18
1
0912-
239
SUPPORT; FUEL TANK
1-22428-334-1
02
1
0907-
322
BOLT; BRKT FIX
M12X35 FLANGE
0-28661-235-0
14
1
0907-
488
HOSE; RUBBER
L=800
0-03412-800-0
02
1
0907-
508
STOPPER
1-22428-446-0
02
1
0907-
534
NUT; STOPPER
M10
0-91110-510-0
08
1
0907-
538
COVER; FUEL TANK
(A)
8-97621-645-2
01
1
0907-0911
538
COVER; FUEL TANK
(A)
8-98155-133-0
01
1
0912-
538
COVER; FUEL TANK
(B)
8-97621-648-0
01
1
0907-
611
RUBBER; SHUTTER
8-97620-284-1
02
1
0907-
612
FASTENER
OD=8.3
8-94279-989-0
06
1
0907-
622
STUD; BRACKET
8-97624-294-0
01
1
0907-
