4-12 — FRONT DRIVE SHAFT (#1619) — 181 parça

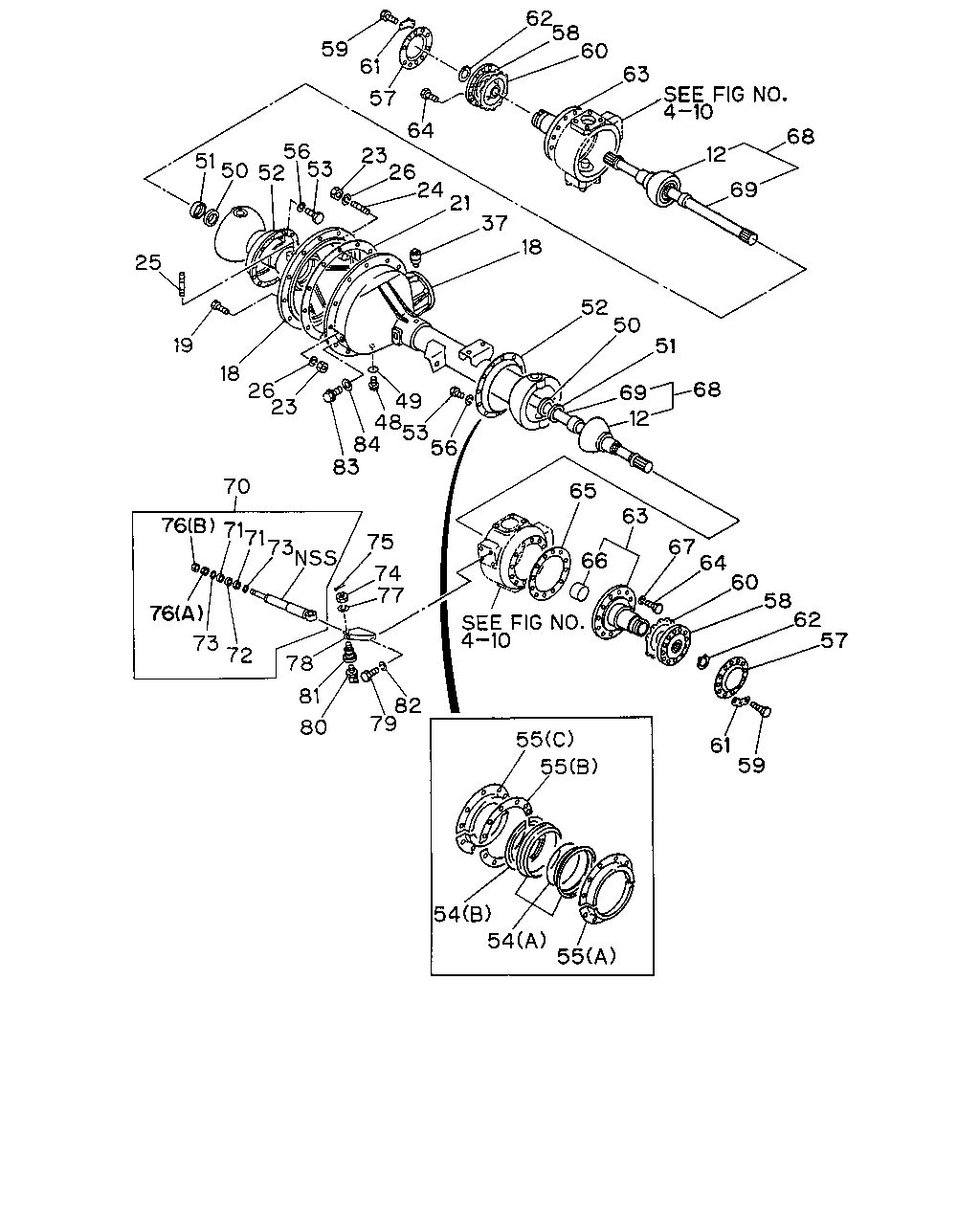

55 54 54 55 55 59 61 57 62 58 60 64 67 63 66 65 82 79 80 78 81 72 73 76 76 70 73 71 71 77 75 74 56 53 49 48 84 83 23 26 18 19 25 51 50 52 56 53 23 26 64 57 61 59 24 21 37 18 52 69 51 50 12 68 69 68 12 63 60 58 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-015-0	02	1	9207-	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-014-0	02	1	9207-	●	●
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9207-			●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9207-			●	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	9207-	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	9207-	●	●
18	CASE; FRT AXLE	1-43210-102-2	01	1	9207-			●		●
18	CASE; FRT AXLE EXC. REARWARD INNER SINGLE TIRE<YK3>	1-43210-102-2	01	1	9207-				●
18	CASE; FRT AXLE REARWARD INNER SINGLE TIRE<YK3>	1-43210-116-2	01	1	9207-				●
19	BOLT; FRT AXLE M12X45	9-91066-245-0	12	1	9207-	●	●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	9207-	●	●
23	NUT; FRT AXLE M12	9-99110-512-0	13	1	9207-	●	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	9207-	●	●
25	STUD; AXLE CASE TO SPRING SEAT M16X149 L=173	1-09302-116-0	04	1	9207-	●	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	9-09150-612-0	13	1	9207-	●	●
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	9207-	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	9207-			●	●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9207-			●	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9207-	●	●	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9207-	●	●	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9207-	●	●	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9207-	●	●	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9207-	●	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9207-	●	●	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9207-	●	●	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9207-	●	●	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9207-	●	●	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9207-	●	●	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9207-	●	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9207-	●	●	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9207-	●	●	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9207-	●	●	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9207-	●	●	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9207-	●	●	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9207-	●	●	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9207-	●	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-008-0	02	1	9207-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9207-			●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9207-	●	●	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9207-	●	●	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9207-	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	9-43321-004-0	02	1	9207-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-006-0	02	1	9207-			●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9207-	●	●	●	●	●
68	SHAFT ASM; FRT AXLE LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-052-0	01	1	9207-	●	●
68	SHAFT ASM; FRT AXLE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-048-0	01	1	9207-	●	●
68	SHAFT ASM; FRT AXLE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-047-0	01	1	9207-	●	●
68	SHAFT ASM; FRT AXLE LOCKING HUB FRT WHEEL DRIVE(W12) REARWARD INNER SINGLE TIRE<YK3>	1-43310-076-0	01	1	9207-				●
68	SHAFT ASM; FRT AXLE LOCKING HUB FRT WHEEL DRIVE(W12) REARWARD INNER SINGLE TIRE<YK3>	1-43310-075-0	01	1	9207-				●
68	SHAFT ASM; FRT AXLE REARWARD INNER SINGLE TIRE<YK3> EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-074-0	01	1	9207-				●
68	SHAFT ASM; FRT AXLE REARWARD INNER SINGLE TIRE<YK3> EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-073-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER	1-43311-030-0	01	1	9207-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-029-0	01	1	9207-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9207-			●		●
69	SHAFT; AXLE,FRT INNER EXC. REARWARD INNER SINGLE TIRE<YK3>	1-43311-038-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9207-			●		●
69	SHAFT; AXLE,FRT INNER EXC. REARWARD INNER SINGLE TIRE<YK3>	1-43311-037-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER REARWARD INNER SINGLE TIRE<YK3>	1-43311-042-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER REARWARD INNER SINGLE TIRE<YK3>	1-43311-041-0	01	1	9207-				●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	9207-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9207-			●	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-602-0	02	1	9207-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9207-			●	●	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	9207-	●	●
73	WASHER; LWR,FRT S/ABS	9-51631-048-0	02	1	9207-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9207-			●	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9207-			●	●	●
74	NUT; S/ABS M12	9-99116-412-0	01	1	9207-	●	●	●	●	●
74	NUT; S/ABS M16	9-99110-416-0	01	1	9207-			●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9207-	●	●	●	●	●
76	NUT; LWR,FRT S/ABS (A)	9-09110-410-0	01	1	9207-	●	●
76	NUT; LWR,FRT S/ABS (B)	9-09111-410-0	01	1	9207-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	9207-			●	●	●
77	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	01	1	9207-	●	●	●	●	●
77	WASHER; LK,S/ABS ID=16.2	9-09150-516-0	01	1	9207-			●	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9207-	●	●	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	9207-	●	●	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	9207-	●	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9207-	●	●	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9207-	●	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9207-	●	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-021-0	01	1	9207-9307	●	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9308-	●	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=24.5 OD=32.5	9-09920-392-0	01	1	9207-9307	●	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9308-	●	●	●	●	●

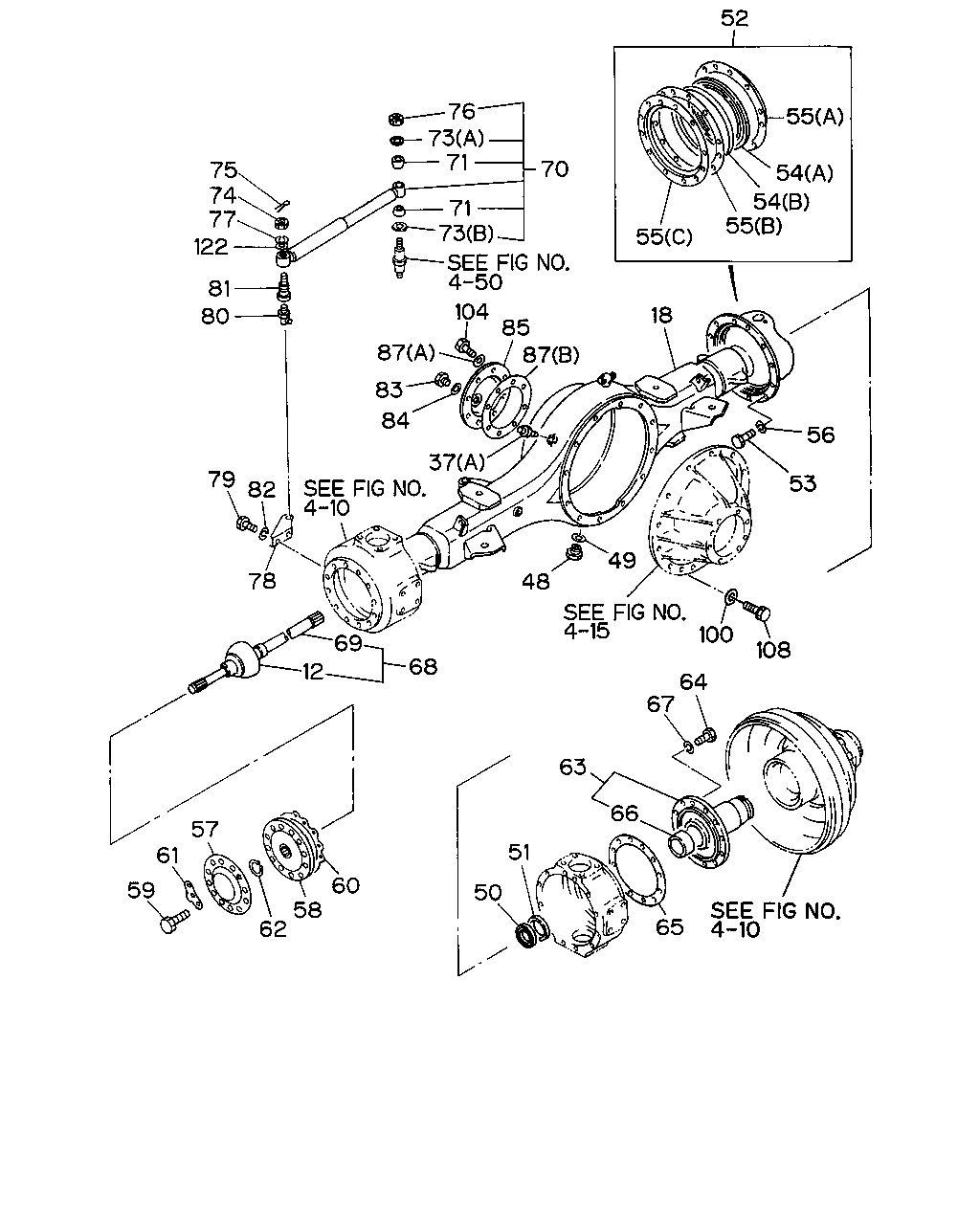

52 55 54 54 55 55 18 56 53 108 100 64 67 49 48 63 66 65 51 50 60 58 62 57 61 59 12 68 69 78 82 79 84 83 87 37 87 85 104 73 71 70 71 73 76 75 77 74 122 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-015-0	02	1	9207-	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-014-0	02	1	9207-	●	●
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9207-			●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9207-			●	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	9207-	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	9207-	●	●
18	CASE; FRT AXLE	1-43210-102-2	01	1	9207-			●		●
18	CASE; FRT AXLE EXC. REARWARD INNER SINGLE TIRE<YK3>	1-43210-102-2	01	1	9207-				●
18	CASE; FRT AXLE REARWARD INNER SINGLE TIRE<YK3>	1-43210-116-2	01	1	9207-				●
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	9207-	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	9207-			●	●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9207-			●	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9207-	●	●	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9207-	●	●	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9207-	●	●	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9207-	●	●	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9207-	●	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9207-	●	●	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9207-	●	●	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9207-	●	●	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9207-	●	●	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9207-	●	●	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9207-	●	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9207-	●	●	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9207-	●	●	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9207-	●	●	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9207-	●	●	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9207-	●	●	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9207-	●	●	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9207-	●	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-008-0	02	1	9207-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9207-			●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9207-	●	●	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9207-	●	●	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9207-	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	9-43321-004-0	02	1	9207-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-006-0	02	1	9207-			●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9207-	●	●	●	●	●
68	SHAFT ASM; FRT AXLE LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-052-0	01	1	9207-	●	●
68	SHAFT ASM; FRT AXLE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-048-0	01	1	9207-	●	●
68	SHAFT ASM; FRT AXLE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-047-0	01	1	9207-	●	●
68	SHAFT ASM; FRT AXLE LOCKING HUB FRT WHEEL DRIVE(W12) REARWARD INNER SINGLE TIRE<YK3>	1-43310-076-0	01	1	9207-				●
68	SHAFT ASM; FRT AXLE LOCKING HUB FRT WHEEL DRIVE(W12) REARWARD INNER SINGLE TIRE<YK3>	1-43310-075-0	01	1	9207-				●
68	SHAFT ASM; FRT AXLE REARWARD INNER SINGLE TIRE<YK3> EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-074-0	01	1	9207-				●
68	SHAFT ASM; FRT AXLE REARWARD INNER SINGLE TIRE<YK3> EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43310-073-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER	1-43311-030-0	01	1	9207-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-029-0	01	1	9207-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9207-			●		●
69	SHAFT; AXLE,FRT INNER EXC. REARWARD INNER SINGLE TIRE<YK3>	1-43311-038-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9207-			●		●
69	SHAFT; AXLE,FRT INNER EXC. REARWARD INNER SINGLE TIRE<YK3>	1-43311-037-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER REARWARD INNER SINGLE TIRE<YK3>	1-43311-042-0	01	1	9207-				●
69	SHAFT; AXLE,FRT INNER REARWARD INNER SINGLE TIRE<YK3>	1-43311-041-0	01	1	9207-				●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	9207-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9207-			●	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-602-0	02	1	9207-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9207-			●	●	●
73	WASHER; LWR,FRT S/ABS	9-51631-048-0	02	1	9207-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9207-			●	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9207-			●	●	●
74	NUT; S/ABS M12	9-99116-412-0	01	1	9207-	●	●	●	●	●
74	NUT; S/ABS M16	9-99110-416-0	01	1	9207-			●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9207-	●	●	●	●	●
76	NUT; LWR,FRT S/ABS (A)	9-09110-410-0	01	1	9207-	●	●
76	NUT; LWR,FRT S/ABS (B)	9-09111-410-0	01	1	9207-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	9207-			●	●	●
77	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	01	1	9207-	●	●	●	●	●
77	WASHER; LK,S/ABS ID=16.2	9-09150-516-0	01	1	9207-			●	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9207-	●	●	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	9207-	●	●	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	9207-	●	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9207-	●	●	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9207-	●	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9207-	●	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-021-0	01	1	9207-9307	●	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9308-	●	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=24.5 OD=32.5	9-09920-392-0	01	1	9207-9307	●	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9308-	●	●	●	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	9207-			●	●	●
87	GASKET; COVER,AXLE CASE (A)	9-09572-010-0	08	1	9207-			●	●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-1	01	1	9207-			●	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	9207-			●	●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	9207-			●	●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	9207-			●	●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	9207-			●	●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	9207-			●	●	●

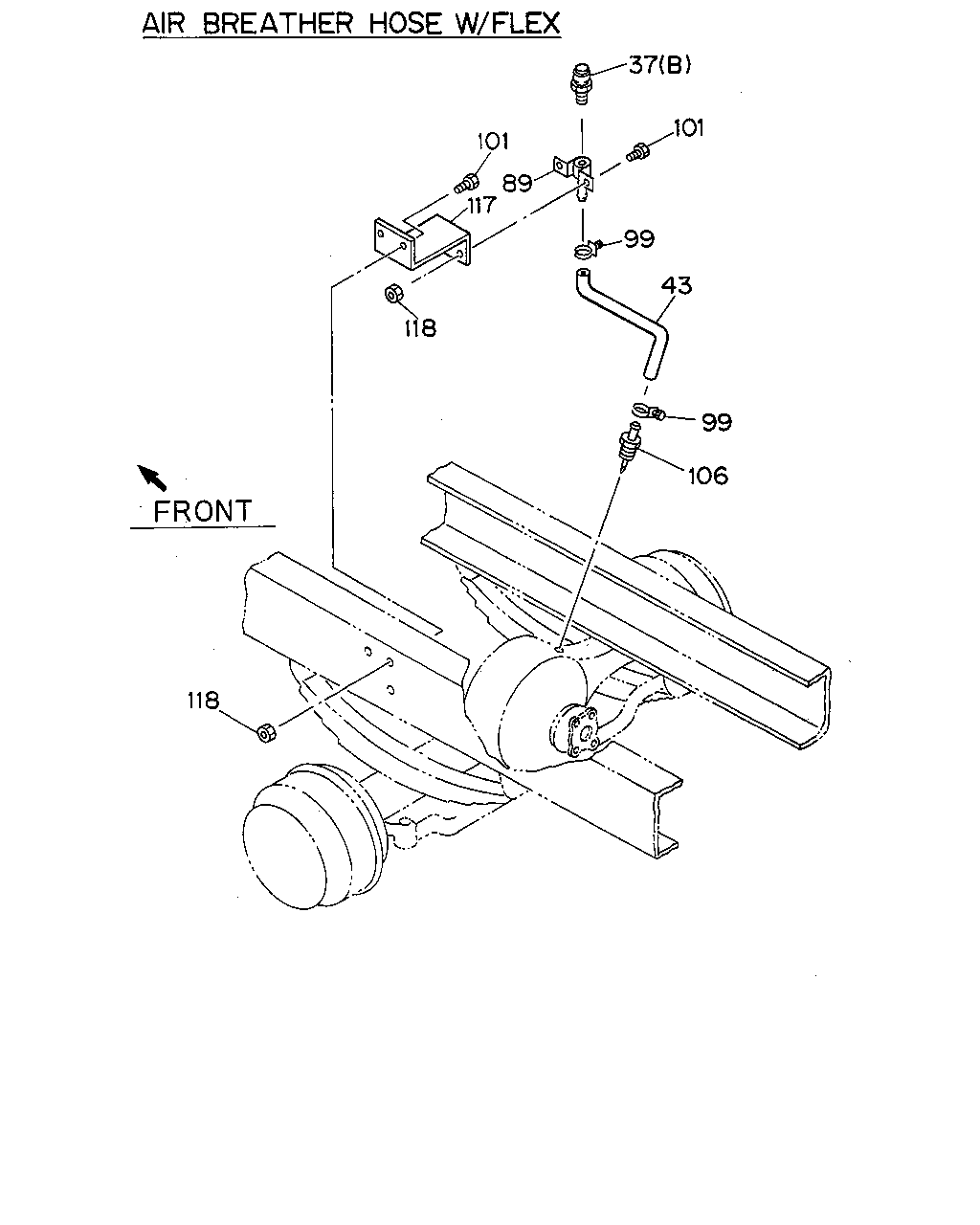

118 106 99 43 99 101 37 101 117 118 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	9207-	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	9207-			●	●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9207-			●	●	●
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=640 SERVICED BY L=3000	0-02857-300-0	01	1	9207-			●	●	●
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	9207-			●	●	●
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09704-072-0	02	1	9207-			●	●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28080-825-0	04	1	9207-			●	●	●
106	CONNECTOR; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-081-0	01	1	9207-			●	●	●
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-126-1	01	1	9207-			●	●	●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8	9-09110-408-0	04	1	9207-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
