0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#16188) — 78 parça

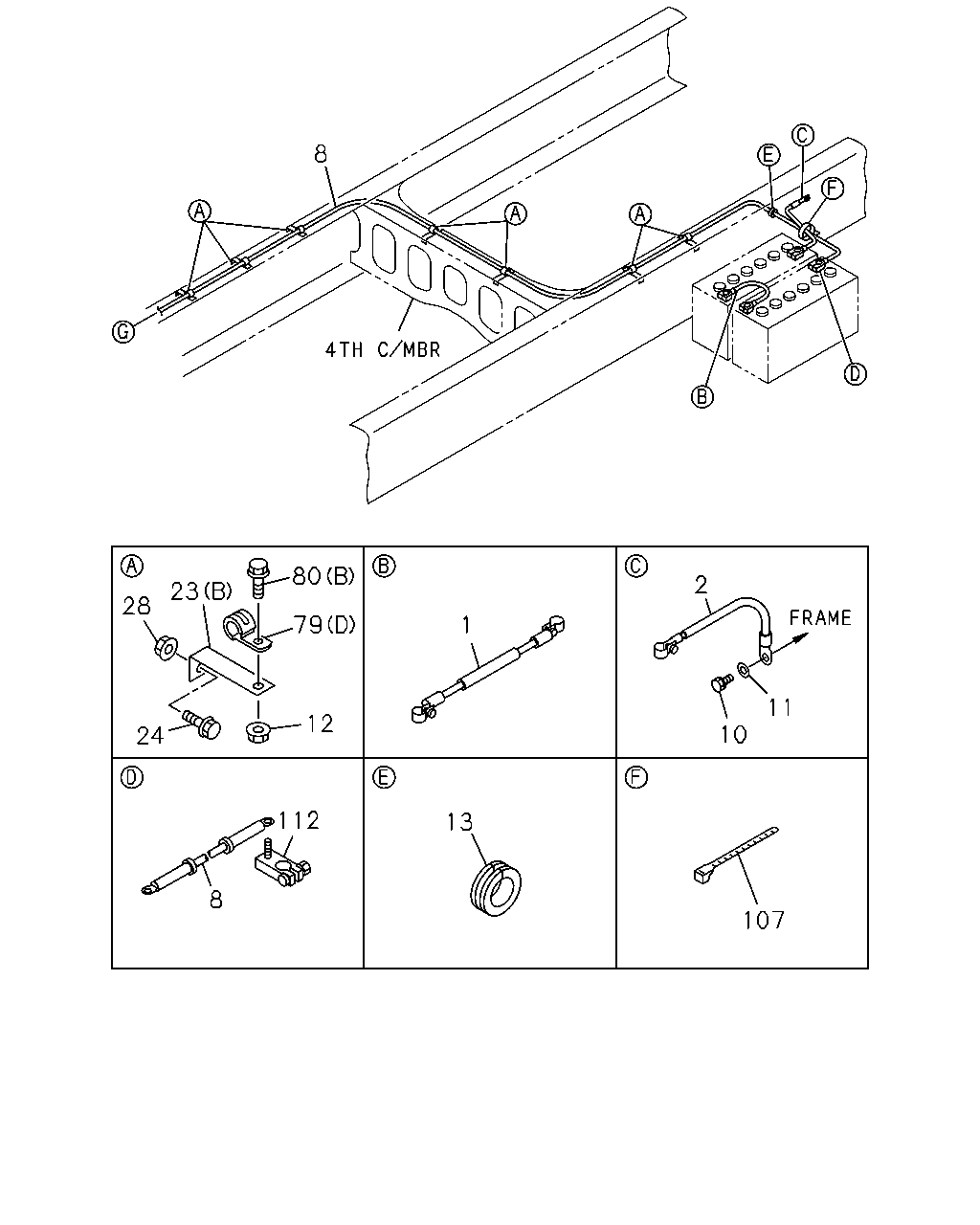

çizim 61777
8 80 2 23 28 79 1 11 12 10 24 112 13 8 107
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0907-
2 CABLE; BATTERY
BATTERY 80D26L<TM1> L=240 		8-97619-727-1 01 1 0907-1003
2 CABLE; BATTERY
BATTERY 80D26L<TM1> L=230 		8-98140-103-0 01 1 1004-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 0907-1003
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1004-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98151-095-0 01 1 0907-1003
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98157-083-0 01 1 1004-1012
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98176-291-0 01 1 1101-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98295-598-1 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98082-618-1 01 1 0907-1003
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98157-085-0 01 1 1004-1012
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98176-292-0 01 1 1101-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-599-1 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0907-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0907-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 08 1 0907-
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0907-
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98051-380-1 01 1 0907-1012
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98176-167-0 01 1 1101-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-381-2 01 1 0907-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 07 1 0907-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 07 1 0907-
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0907-1012
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 1101-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 08 1 0907-
79 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-98019-191-0 07 1 0907-1003
79 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-98019-191-0 08 1 1004-
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0907-1012
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1101-
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 0907-
79 CLIP; BATTERY CABLE
(B) ID=19 L=32 		1-09701-235-0 01 1 0907-1003
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 07 1 0907-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0907-1003
107 CLIP; BAND
BATTERY 115E41L<8MA> L=140 		5-09707-031-1 01 1 1004-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0907-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-

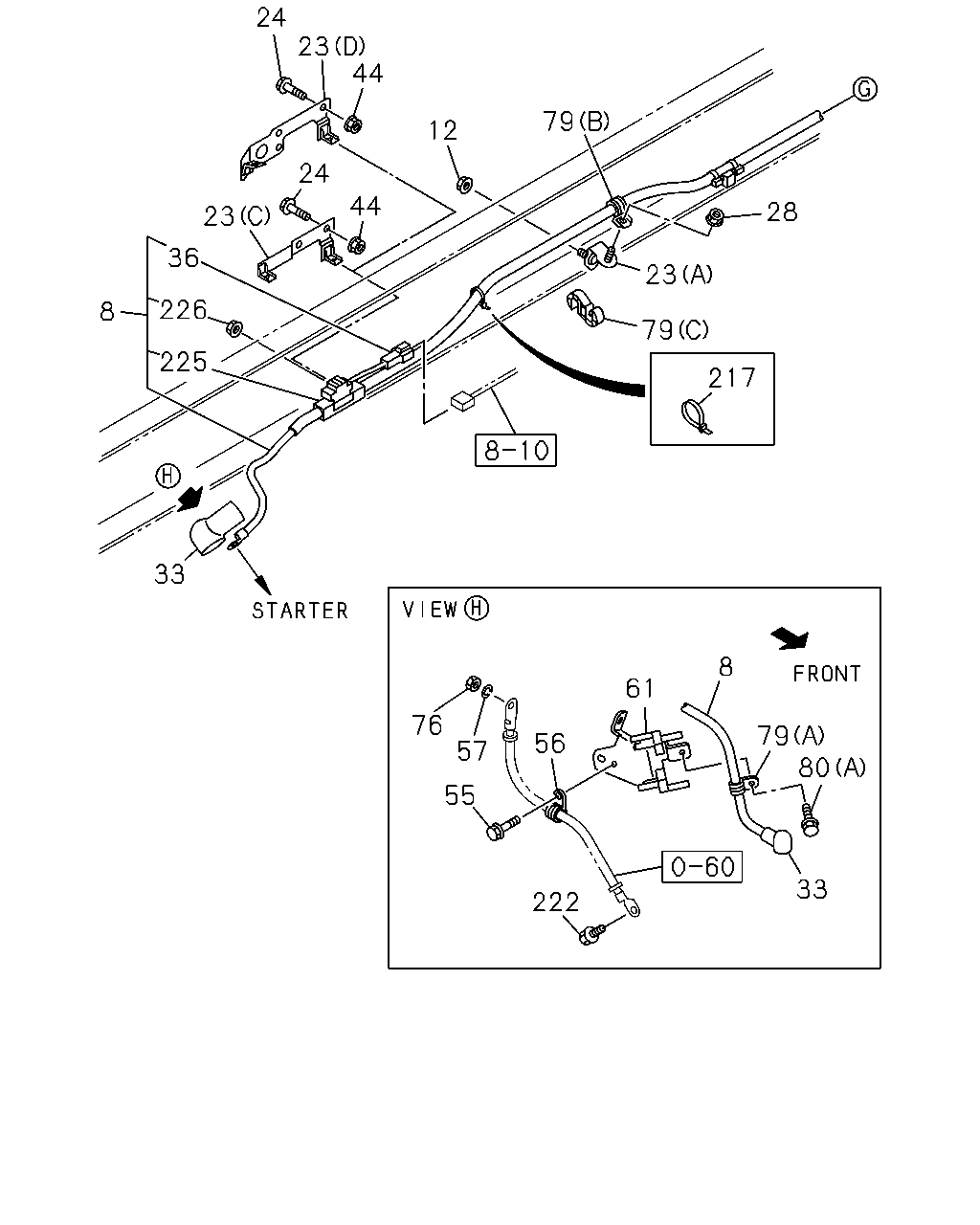

çizim 61778
24 23 44 79 12 24 44 28 23 36 23 226 8 79 225 217 33 8 61 76 79 80 56 57 55 33 222
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98151-095-0 01 1 0907-1003
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98157-083-0 01 1 1004-1012
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98176-291-0 01 1 1101-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1> 		8-98295-598-1 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98082-618-1 01 1 0907-1003
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98157-085-0 01 1 1004-1012
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98176-292-0 01 1 1101-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-599-1 01 1 1503-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 08 1 0907-
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98051-380-1 01 1 0907-1012
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98176-167-0 01 1 1101-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-381-2 01 1 0907-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 07 1 0907-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 07 1 0907-
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0907-1012
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 1101-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 08 1 0907-
33 CAP; INSULATOR 1-82699-431-0 01 1 0907-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0907-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0907-1012
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1101-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0907-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0907-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0907-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0907-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0907-
79 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-98019-191-0 07 1 0907-1003
79 CLIP; BATTERY CABLE
(D) ID=21 L=24 		8-98019-191-0 08 1 1004-
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0907-1012
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1101-
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 0907-
79 CLIP; BATTERY CABLE
(B) ID=19 L=32 		1-09701-235-0 01 1 0907-1003
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 07 1 0907-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
217 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 0907-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0907-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0907-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0907-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-
