Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶

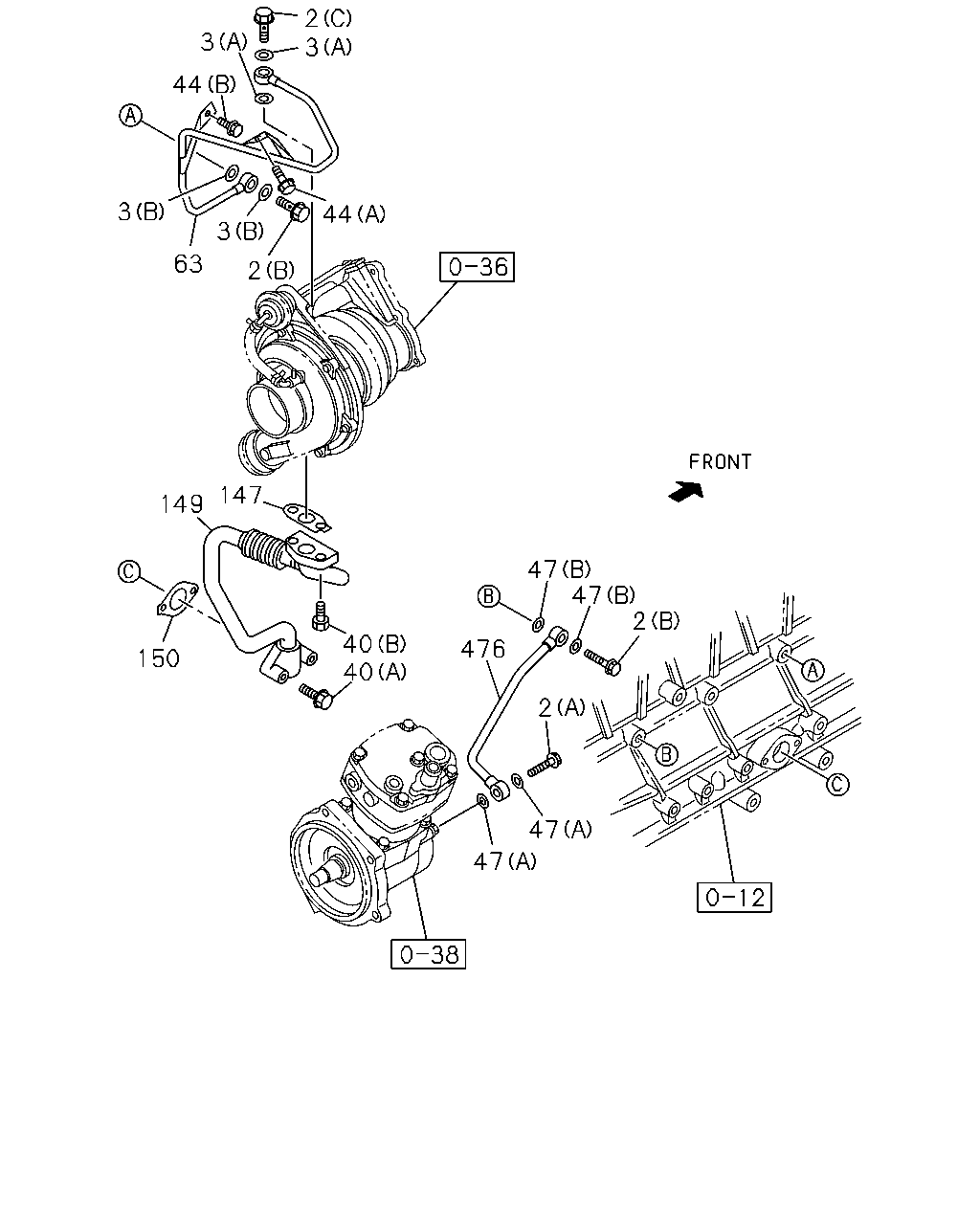

0-52 — OIL AND VACUUM PIPING; ENGINE
(#16185) — 22 parça
2
3
3
44
3
44
3
63
2
147
149
47
47
2
40
40
476
150
2
47
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
0907-
2
BOLT; EYE,OIL PIPE
(C) M12X25
5-09675-006-1
01
1
0907-
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
8-97372-238-0
01
1
0907-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
1-09630-084-0
02
1
0907-1312
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
8-98251-344-0
02
1
1401-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2
1-09630-085-0
02
1
0907-1312
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
40
BOLT; OIL PIPE
(A) M8X40 FLANGE
0-28050-840-0
02
1
0907-1001
40
BOLT; OIL PIPE
(A) M8X25 FLANGE
0-28650-825-0
02
1
1002-
40
BOLT; OIL PIPE
(B) M10X22 FLANGE
0-28181-022-0
02
1
0907-
44
BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE
0-28050-816-0
01
1
0907-
44
BOLT; CLIP,OIL PIPE
(A) M8X15
1-09000-114-0
01
1
0907-
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0907-
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2
1-09630-085-0
02
1
0907-1312
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
63
PIPE; OIL,TURBOCHARGER FEED
8-97600-503-0
01
1
0907-
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09637-058-2
01
1
0907-
149
PIPE; OIL RETURN,TURBOCHARGER
8-94394-196-1
01
1
0907-1001
149
PIPE; OIL RETURN,TURBOCHARGER
8-98147-092-0
01
1
1002-1101
149
PIPE; OIL RETURN,TURBOCHARGER
8-98181-873-0
01
1
1102-
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30
8-94394-671-0
01
1
0907-
476
PIPE; OIL,C/BL TO AIR CMPR
8-97608-935-0
01
1
0907-
