8-90 — RADIO AND TV (#161820) — 22 parça

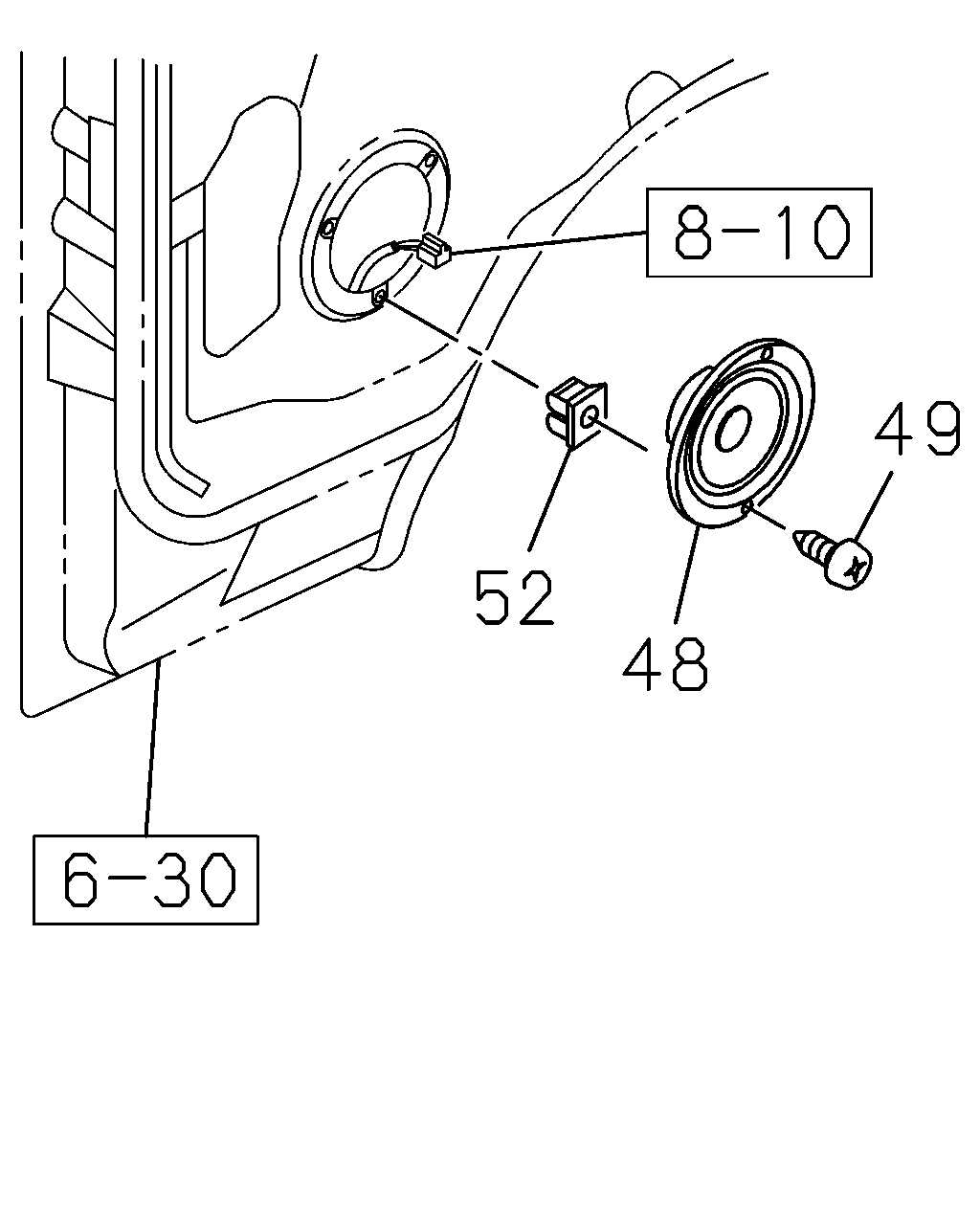

çizim 476270
52 48 49
BalonParca AdiParca NoAdetTipApplied Date
48 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-98208-827-1 02 1 1505-
49 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1505-1508
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1509-
52 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1505-1508
52 GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1509-

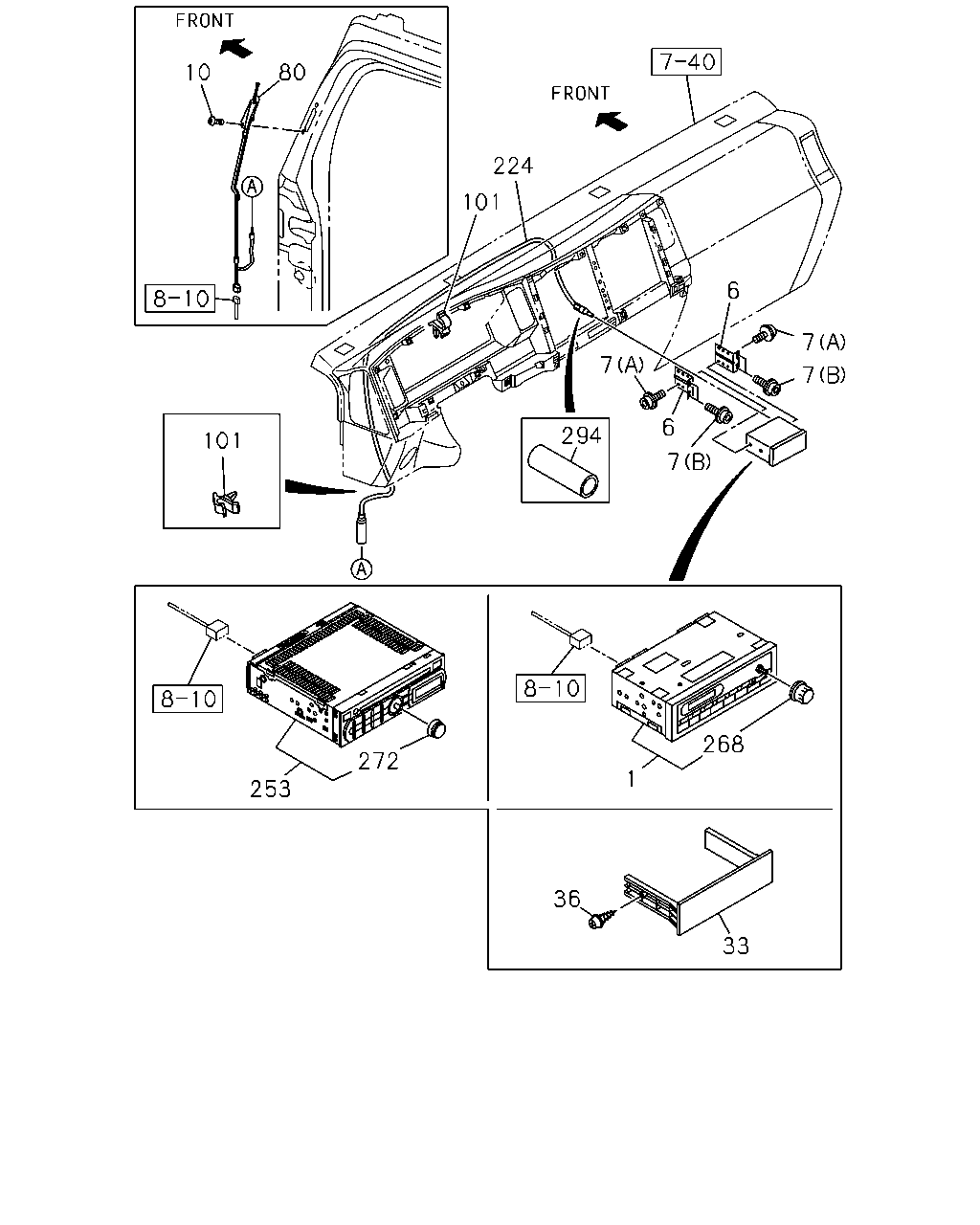

çizim 477041
10 80 101 253 272 1 36 33 268 7 6 6 7 7 7 224 101 294
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
RADIO AM/FM(U69) TUNER BAND ASIA<7DN> 		8-98032-643-0 01 1 1505-1505
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1505-
7 SCREW; RADIO
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1505-
7 SCREW; RADIO
RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) TUNER BAND ASIA<7DN> (A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1505-1505
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 1505-
33 COVER; RADIO
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) BLACK 		8-97407-896-2 01 1 1505-1505
33 COVER; RADIO
BLACK 		8-97407-896-2 01 1 1506-
36 SCREW; COVER
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1505-1505
36 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1506-
80 ANTENNA 8-98139-014-0 01 1 1505-
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 1505-
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 1505-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) TUNER BAND ASIA<7DN> 		8-98017-752-0 01 1 1505-1505
268 KNOB; VOL
RADIO AM/FM(U69) TUNER BAND ASIA<7DN> CLARION 		8-97375-820-0 01 1 1505-1505
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) TUNER BAND ASIA<7DN> CLARION 		8-98048-329-0 01 1 1505-1505
294 CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) 		8-98095-617-1 01 1 1505-1505
294 CAP; ANTENNA CABLE 8-98095-617-1 01 1 1506-
