Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶
8-60 — HEATER UNIT; FRONT
(#161814) — 87 parça
◀

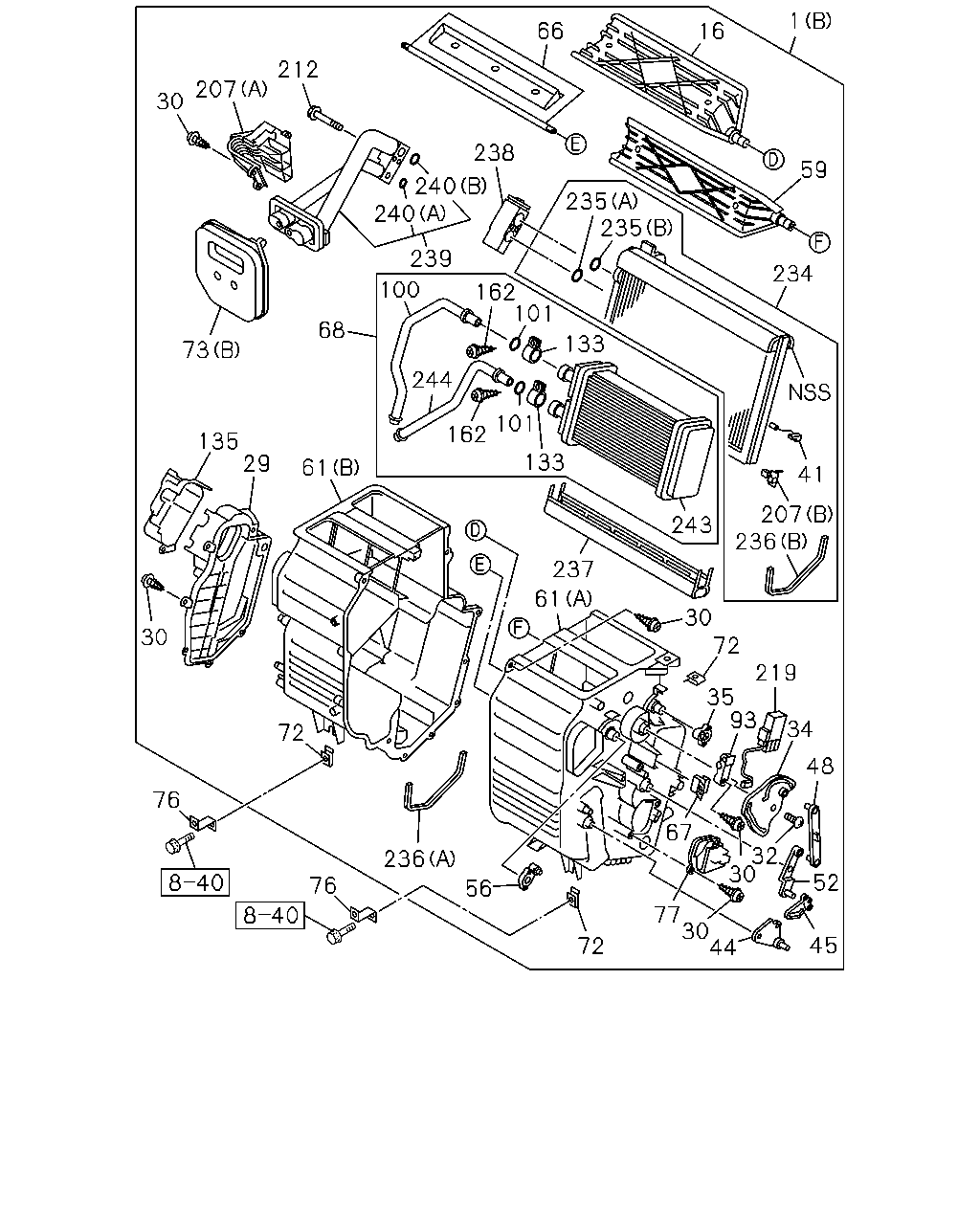

[860A] AIR CONDITIONER MANUAL CONTROL (49 parça)

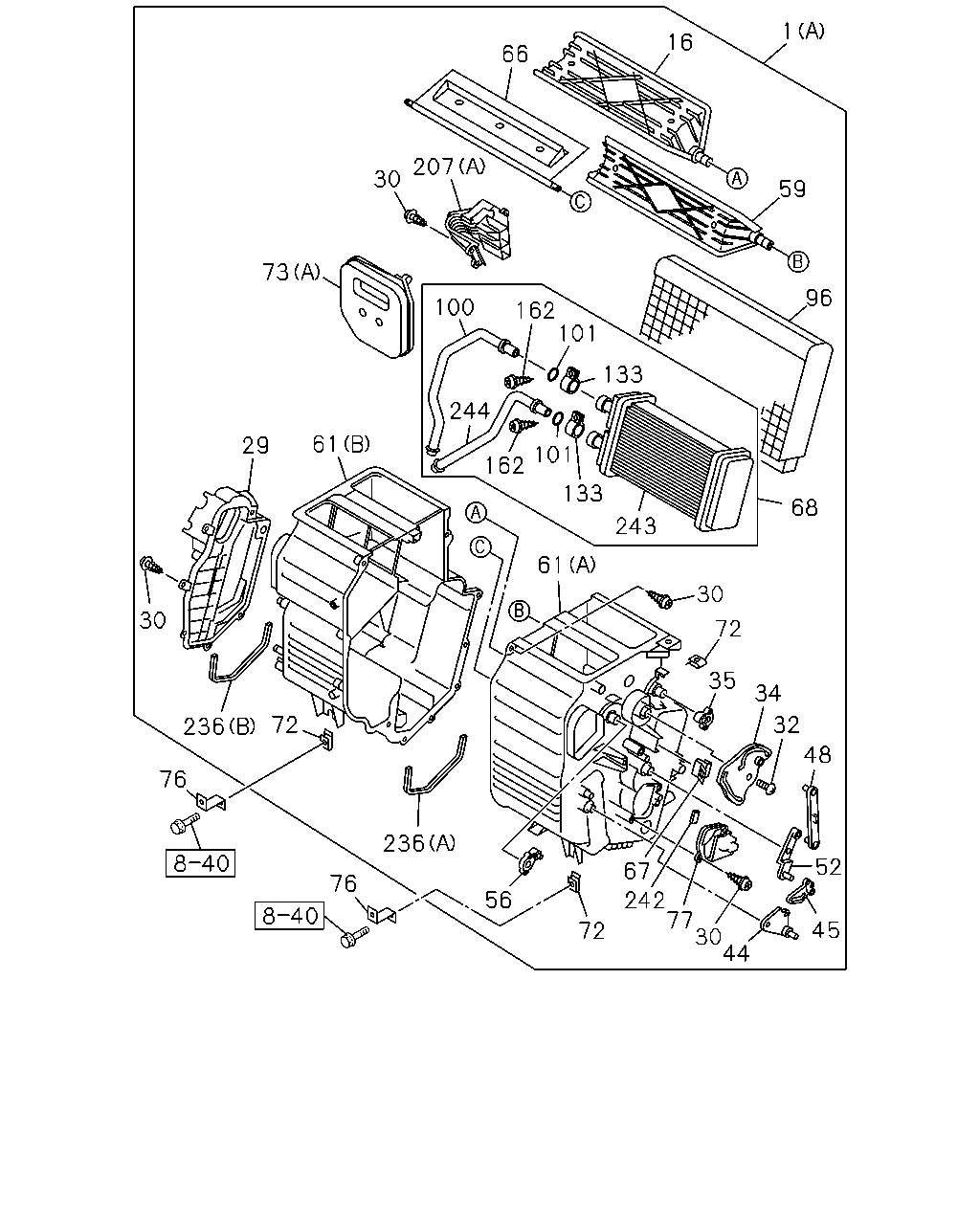

[860A] HEATER & DEFROSTER (38 parça)
▶
1
59
234
41
207
236
219
72
243
30
16
235
29
135
73
68
100
239
240
237
61
236
56
76
72
76
235
238
66
240
212
207
30
162
101
244
162
101
133
61
77
72
30
44
32
30
67
35
93
34
48
52
45
133
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98034-145-3
01
1
1505-
1
HEATER UNIT
HEATER & DEFROSTER(C41) (A)
8-98031-740-3
01
1
1505-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
1505-
29
COVER; HTR UNIT
8-98047-480-0
01
1
1505-
30
SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING
8-97957-708-0
27
1
1505-
30
SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING
8-97957-708-0
28
1
1505-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
03
1
1505-
34
LEVER; SHUTTER,HTR UNIT
8-98047-497-0
01
1
1505-
35
LEVER; SHUTTER,HTR UNIT
8-98047-500-0
01
1
1505-
41
THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-412-0
01
1
1505-
44
LEVER; SHUTTER,HTR UNIT
8-98047-502-0
01
1
1505-
45
LEVER; SHUTTER,HTR UNIT
8-98047-503-0
01
1
1505-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
1505-
52
LEVER; SHUTTER,HTR UNIT
8-98047-498-0
01
1
1505-
56
LEVER; SHUTTER,HTR UNIT
8-98047-501-0
01
1
1505-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
1505-
61
CASE; HTR UNIT
(A)
8-98047-478-0
01
1
1505-
61
CASE; HTR UNIT
(B)
8-98047-479-0
01
1
1505-
66
SHUTTER; HTR UNIT,CENTER LWR
8-98047-385-0
01
1
1505-
67
CLIP; HTR UNIT
8-98047-417-0
02
1
1505-
68
CORE; HTR UNIT
8-98074-122-0
01
1
1505-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
1505-
73
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-491-0
01
1
1505-
73
PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A)
8-98048-817-0
01
1
1505-
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1505-1508
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1509-
77
COVER; HTR CASE
8-98047-482-0
01
1
1505-
93
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-427-0
01
1
1505-
100
PIPE; CORE,HTR UNIT
8-98072-532-0
01
1
1505-
101
GASKET; CORE,HTR UNIT
8-98072-531-0
02
1
1505-
133
CLIP; PIPE
8-98072-530-0
02
1
1505-
135
COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-481-0
01
1
1505-
162
SCREW; CLIP FIX
8-98072-529-0
02
1
1505-
207
CLAMP; HTR UNIT
(A)
8-98047-493-0
01
1
1505-
207
CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-413-0
01
1
1505-
212
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61
8-98047-415-0
02
1
1505-
219
AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-429-0
01
1
1505-
234
EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98074-120-1
01
1
1505-
235
GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7
8-97095-907-0
01
1
1505-
235
GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
01
1
1505-
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
1505-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
1505-
237
INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-382-0
01
1
1505-
238
VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-383-0
01
1
1505-
239
TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98047-504-0
01
1
1505-
240
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
01
1
1505-
240
GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
01
1
1505-
243
CORE
8-98048-508-0
01
1
1505-
244
PIPE; INLET
8-98048-511-0
01
1
1505-
1
16
66
30
207
59
96
68
243
133
133
101
162
244
162
101
100
61
29
30
236
76
76
236
56
72
44
45
52
48
32
34
35
72
30
67
242
77
30
73
72
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98034-145-3
01
1
1505-
1
HEATER UNIT
HEATER & DEFROSTER(C41) (A)
8-98031-740-3
01
1
1505-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
1505-
29
COVER; HTR UNIT
8-98047-480-0
01
1
1505-
30
SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING
8-97957-708-0
27
1
1505-
30
SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING
8-97957-708-0
28
1
1505-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
03
1
1505-
34
LEVER; SHUTTER,HTR UNIT
8-98047-497-0
01
1
1505-
35
LEVER; SHUTTER,HTR UNIT
8-98047-500-0
01
1
1505-
44
LEVER; SHUTTER,HTR UNIT
8-98047-502-0
01
1
1505-
45
LEVER; SHUTTER,HTR UNIT
8-98047-503-0
01
1
1505-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
1505-
52
LEVER; SHUTTER,HTR UNIT
8-98047-498-0
01
1
1505-
56
LEVER; SHUTTER,HTR UNIT
8-98047-501-0
01
1
1505-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
1505-
61
CASE; HTR UNIT
(A)
8-98047-478-0
01
1
1505-
61
CASE; HTR UNIT
(B)
8-98047-479-0
01
1
1505-
66
SHUTTER; HTR UNIT,CENTER LWR
8-98047-385-0
01
1
1505-
67
CLIP; HTR UNIT
8-98047-417-0
02
1
1505-
68
CORE; HTR UNIT
8-98074-122-0
01
1
1505-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
1505-
73
PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-491-0
01
1
1505-
73
PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A)
8-98048-817-0
01
1
1505-
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1505-1508
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1509-
77
COVER; HTR CASE
8-98047-482-0
01
1
1505-
96
PLATE; HTR UNIT
HEATER & DEFROSTER(C41)
8-98048-815-0
01
1
1505-
100
PIPE; CORE,HTR UNIT
8-98072-532-0
01
1
1505-
101
GASKET; CORE,HTR UNIT
8-98072-531-0
02
1
1505-
133
CLIP; PIPE
8-98072-530-0
02
1
1505-
162
SCREW; CLIP FIX
8-98072-529-0
02
1
1505-
207
CLAMP; HTR UNIT
(A)
8-98047-493-0
01
1
1505-
207
CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98047-413-0
01
1
1505-
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
1505-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
1505-
242
GASKET; CASE
HEATER & DEFROSTER(C41)
8-98048-816-0
01
1
1505-
243
CORE
8-98048-508-0
01
1
1505-
244
PIPE; INLET
8-98048-511-0
01
1
1505-
