Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#161813) — 32 parça
◀
[852A] NO.1 (19 parça)
[852A] NO.2 (13 parça)
▶

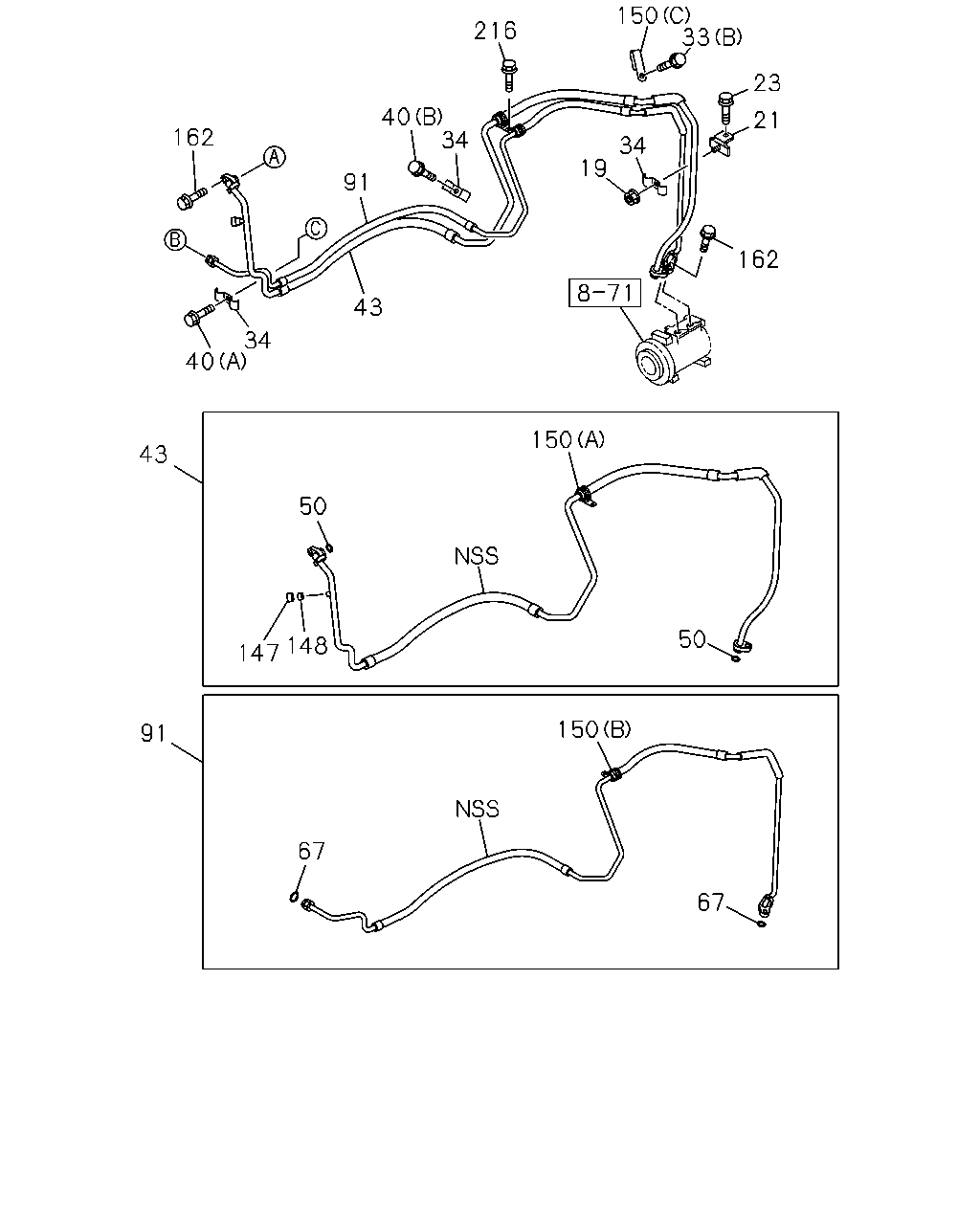

23
162
21
33
150
216
40
19
34
43
91
34
162
34
40
43
50
148
150
50
67
150
67
91
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1505-
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98116-948-0
01
1
1505-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE
0-28050-816-0
01
1
1505-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE
0-28650-616-0
02
1
1505-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE
0-28650-820-0
01
1
1505-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
03
1
1505-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
01
1
1505-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
01
1
1505-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98183-121-0
01
1
1505-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1505-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1505-
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98183-120-0
01
1
1505-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
8-97095-910-0
01
1
1505-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1505-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-249-0
01
1
1505-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-264-0
01
1
1505-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98052-857-0
01
1
1505-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1505-
216
BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
01
1
1505-

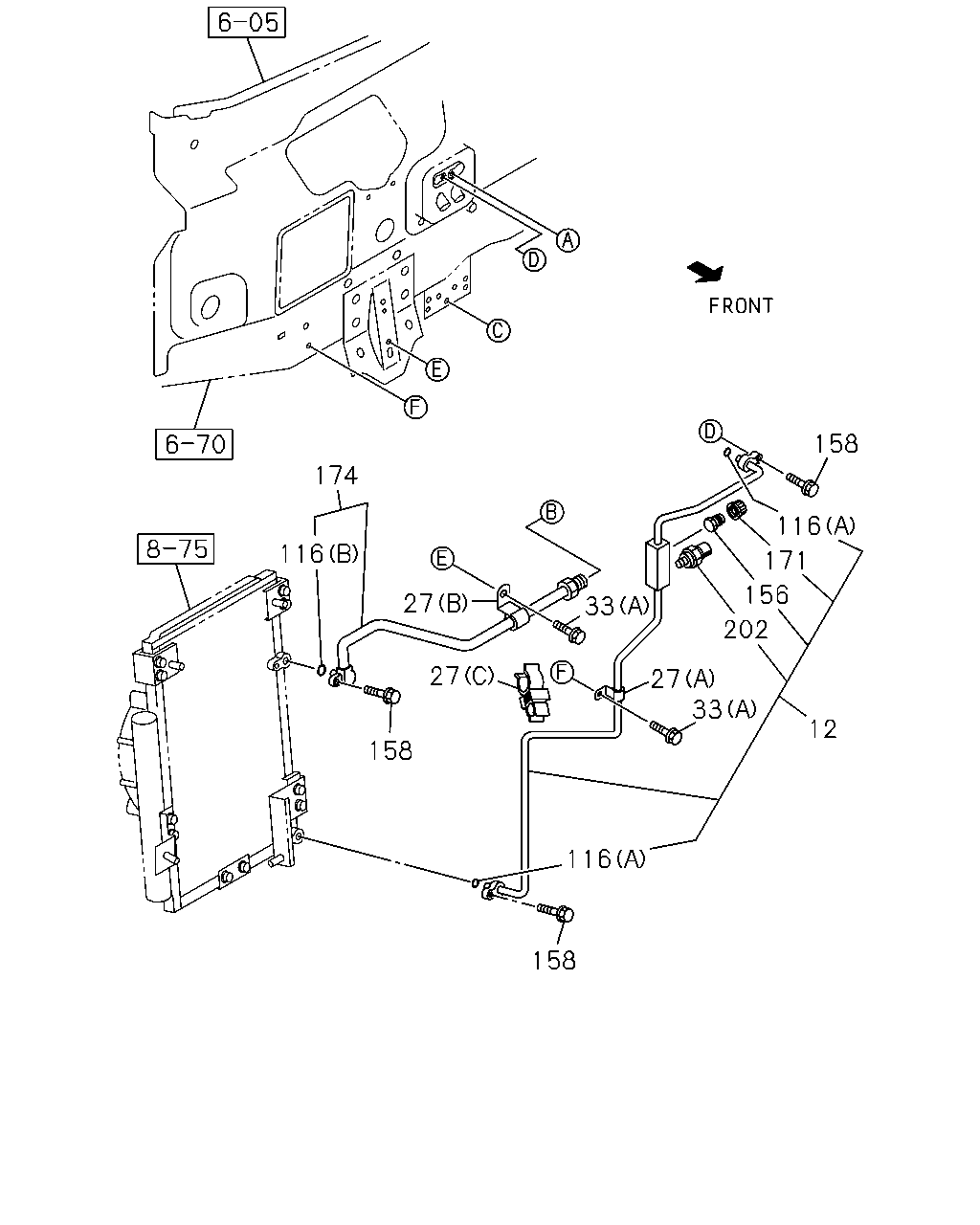

174
116
27
158
158
116
12
33
27
202
156
171
116
158
27
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-772-0
01
1
1505-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1505-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1505-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1505-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE
0-28650-616-0
02
1
1505-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE
0-28650-820-0
01
1
1505-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1505-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1505-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1505-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1505-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1505-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-774-0
01
1
1505-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1505-
