Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#161811) — 17 parça
◀

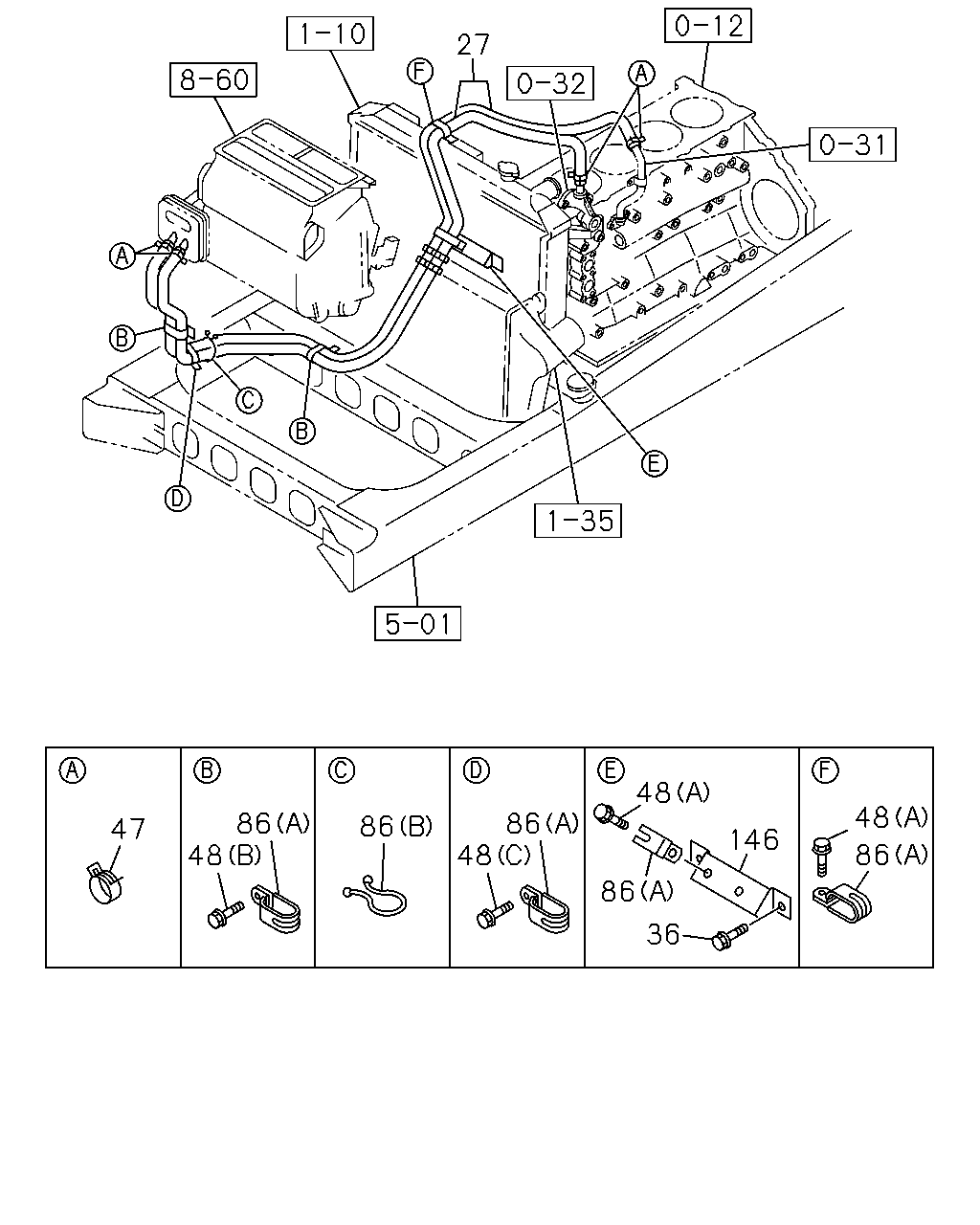

[845A] PIPING (12 parça)
[845A] COMPONENT;WATER HOSE (5 parça)
▶
27
48
83
36
146
86
86
48
48
86
86
48
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98236-813-0
01
1
1505-
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1505-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1505-1508
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1509-
48
BOLT; CLIP FIX
(C) M8X16 FLANGE
0-28050-816-0
01
1
1505-1508
48
BOLT; CLIP FIX
(C) M8X16 FLANGE
0-28050-816-0
01
1
1509-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
1505-
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
02
1
1505-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
05
1
1505-
86
CLIP; HTR HOSE
(B)
8-94463-508-0
01
1
1505-1508
86
CLIP; HTR HOSE
(B)
8-94463-508-0
01
1
1509-
146
BRACKET; HTR HOSE
8-98102-154-1
01
1
1505-
27
56
63
56
56
63
63
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98236-813-0
01
1
1505-
56
CLAMP; HTR HOSE
ID=22
8-97359-141-0
04
1
1505-
63
HOSE; WATER
(A)
8-98226-167-0
01
1
1505-
63
HOSE; WATER
(B)
8-98226-168-0
01
1
1505-
63
HOSE; WATER
(C)
8-98238-215-0
01
1
1505-
