Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#161810) — 46 parça
◀
[840A] OTHER PARTS (6 parça)

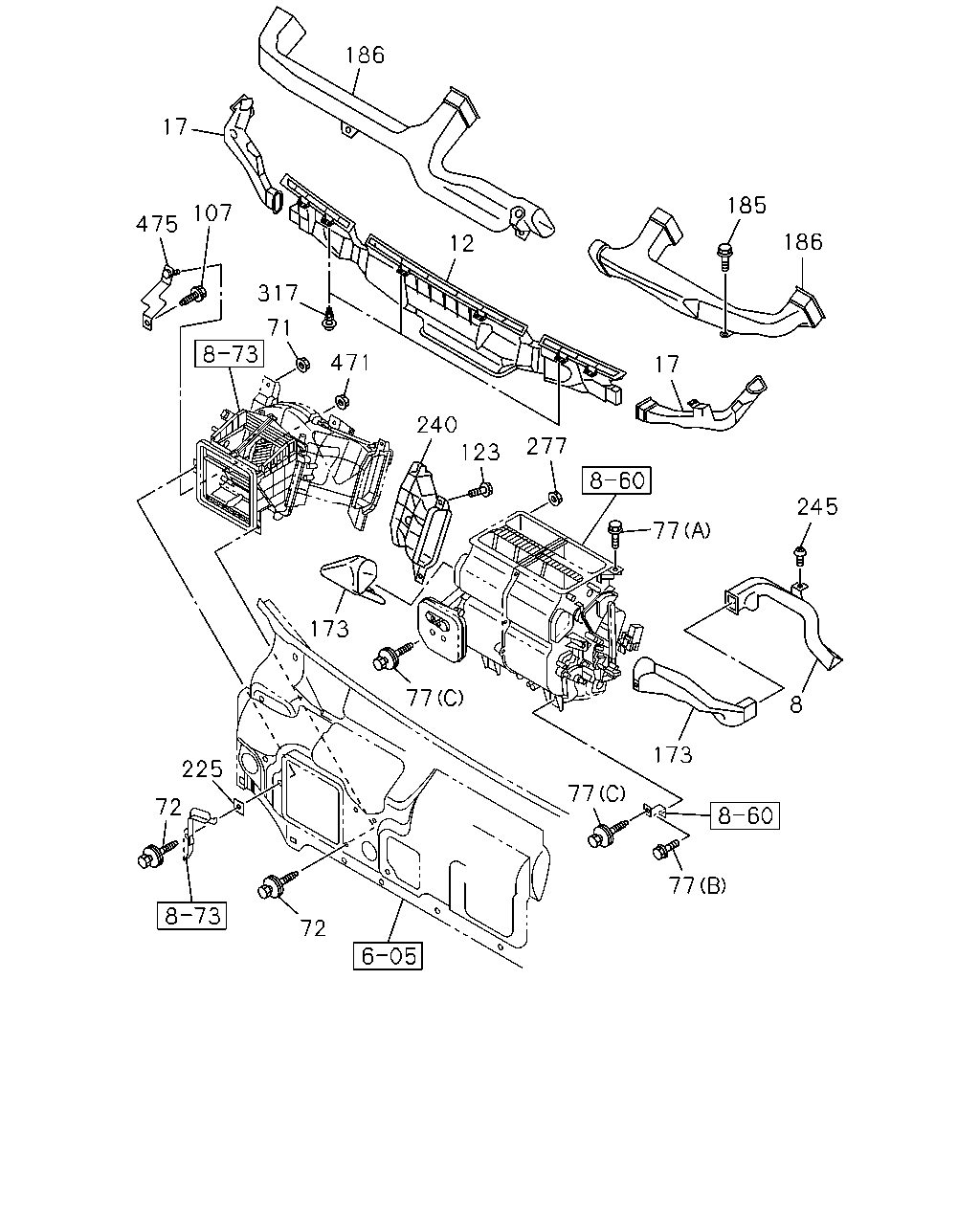

[840A] DUCT (40 parça)
▶
223
50
476
206
407
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
8-98080-998-1
01
1
1505-
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1505-1508
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1509-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1505-
407
JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-758-0
01
1
1505-
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1505-
186
185
12
186
17
475
317
107
71
240
471
277
123
77
245
8
173
77
77
173
225
72
72
77
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
8-98011-567-0
01
1
1505-
12
NOZZLE; DEFROSTER
8-98040-010-2
01
1
1505-
17
NOZZLE; DEFROSTER,SIDE
8-98040-012-0
01
1
1505-
17
NOZZLE; DEFROSTER,SIDE
8-98040-017-0
01
1
1505-1508
17
NOZZLE; DEFROSTER,SIDE
8-98040-017-0
01
1
1509-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
0-91180-106-0
02
1
1505-1508
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
0-91180-106-0
02
1
1509-
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1505-1508
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1509-
77
BOLT; HTR UNIT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1505-1508
77
BOLT; HTR UNIT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1509-
77
BOLT; HTR UNIT
(B) M6X20 FLANGE
0-28650-620-0
02
1
1505-1508
77
BOLT; HTR UNIT
(B) M6X20 FLANGE
0-28650-620-0
02
1
1509-
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1505-1508
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1509-
107
BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1505-1508
107
BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1509-
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1505-1508
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1509-
173
DUCT; FOOT,HTR
8-97585-508-1
01
1
1505-
173
DUCT; FOOT,HTR
8-98011-460-1
01
1
1505-
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1505-1508
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1509-
186
DUCT; VENTILATOR
8-98285-573-0
01
1
1505-
186
DUCT; VENTILATOR
8-98285-578-0
01
1
1505-
225
SEAL; WATER
8-97856-616-0
01
1
1505-1508
225
SEAL; WATER
8-97856-616-0
01
1
1509-
240
DUCT; AIR,HTR
8-98062-749-1
01
1
1505-1508
240
DUCT; AIR,HTR
8-98062-749-1
01
1
1509-
245
CLIP; FOOT DUCT
8-98056-059-0
03
1
1505-1508
245
CLIP; FOOT DUCT
8-98056-059-0
03
1
1509-
277
NUT; HTR
M6 FLANGE
0-91180-106-0
01
1
1505-1508
277
NUT; HTR
M6 FLANGE
0-91180-106-0
01
1
1509-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1505-1508
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1505-1508
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1509-
471
NUT; BLOWER
M6 FLANGE
0-91180-106-0
01
1
1505-1508
471
NUT; BLOWER
M6 FLANGE
0-91180-106-0
01
1
1509-
475
BRACKET; BLOWER
8-98028-309-1
01
1
1505-1508
475
BRACKET; BLOWER
8-98028-309-1
01
1
1509-
