8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#161806) — 73 parça
çizim 476642
164
BalonParca AdiParca NoAdetTipApplied Date
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505-

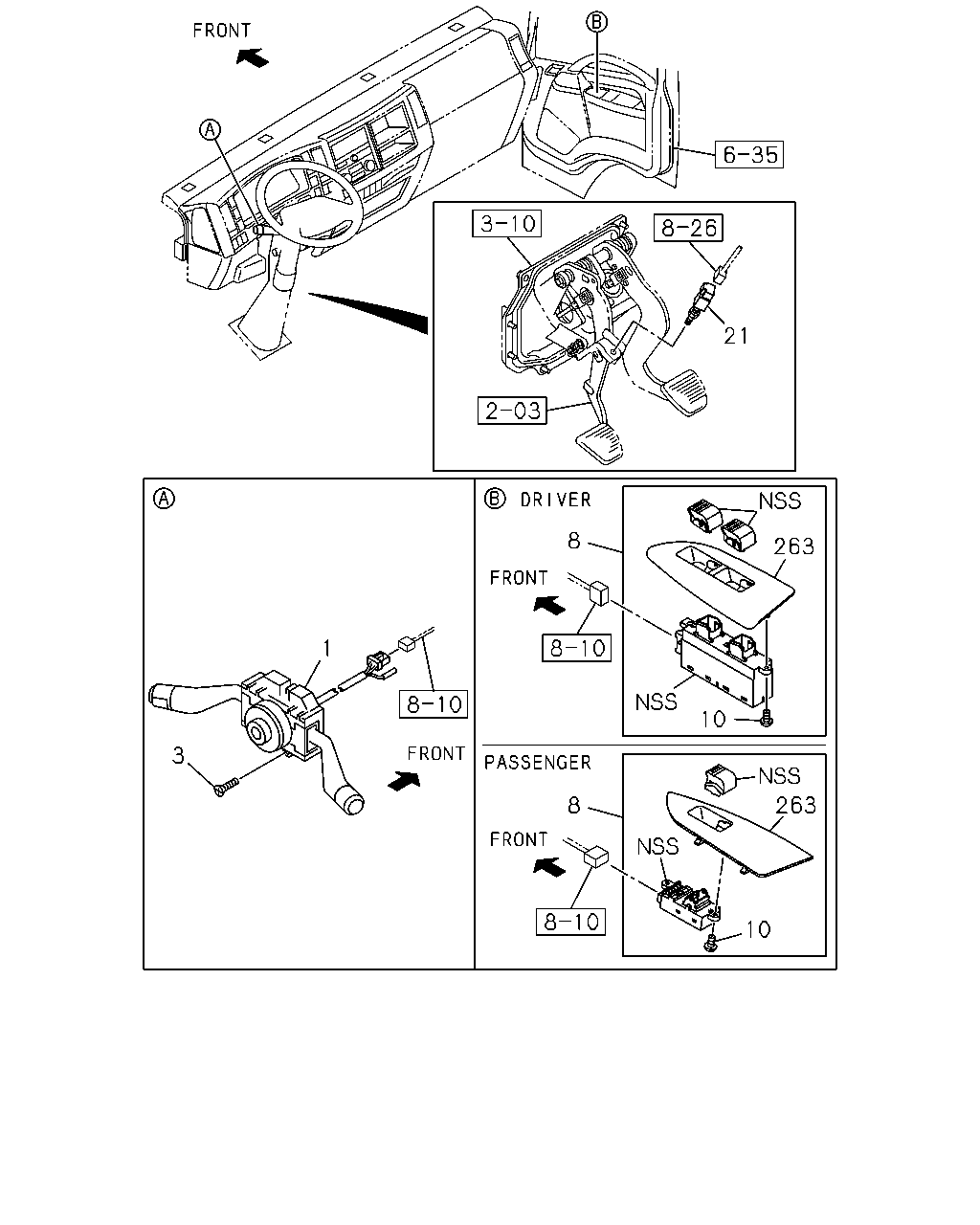

çizim 476848
21 8 263 10 263 10 8 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 8-98243-711-0 01 1 1505-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1505-1508
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1509-
8 SWITCH; POWER WINDOW
PASSENGER 		8-98001-737-2 01 1 1505-1508
8 SWITCH; POWER WINDOW
PASSENGER 		8-98001-737-2 01 1 1509-1509
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-418-0 01 1 1510-
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-544-0 01 1 1505-1509
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-751-0 01 1 1510-
10 SCREW; POWER WINDOW SW 8-98153-865-0 02 1 1509-
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1505-1508
10 SCREW; POWER WINDOW SW 8-98153-865-0 01 1 1509-
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1505-
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1505-
263 COVER; SW
DRIVER 		8-98153-838-0 01 1 1505-
263 COVER; SW
PASSENGER 		8-98153-843-0 01 1 1505-1508
263 COVER; SW 8-98153-843-0 01 1 1509-

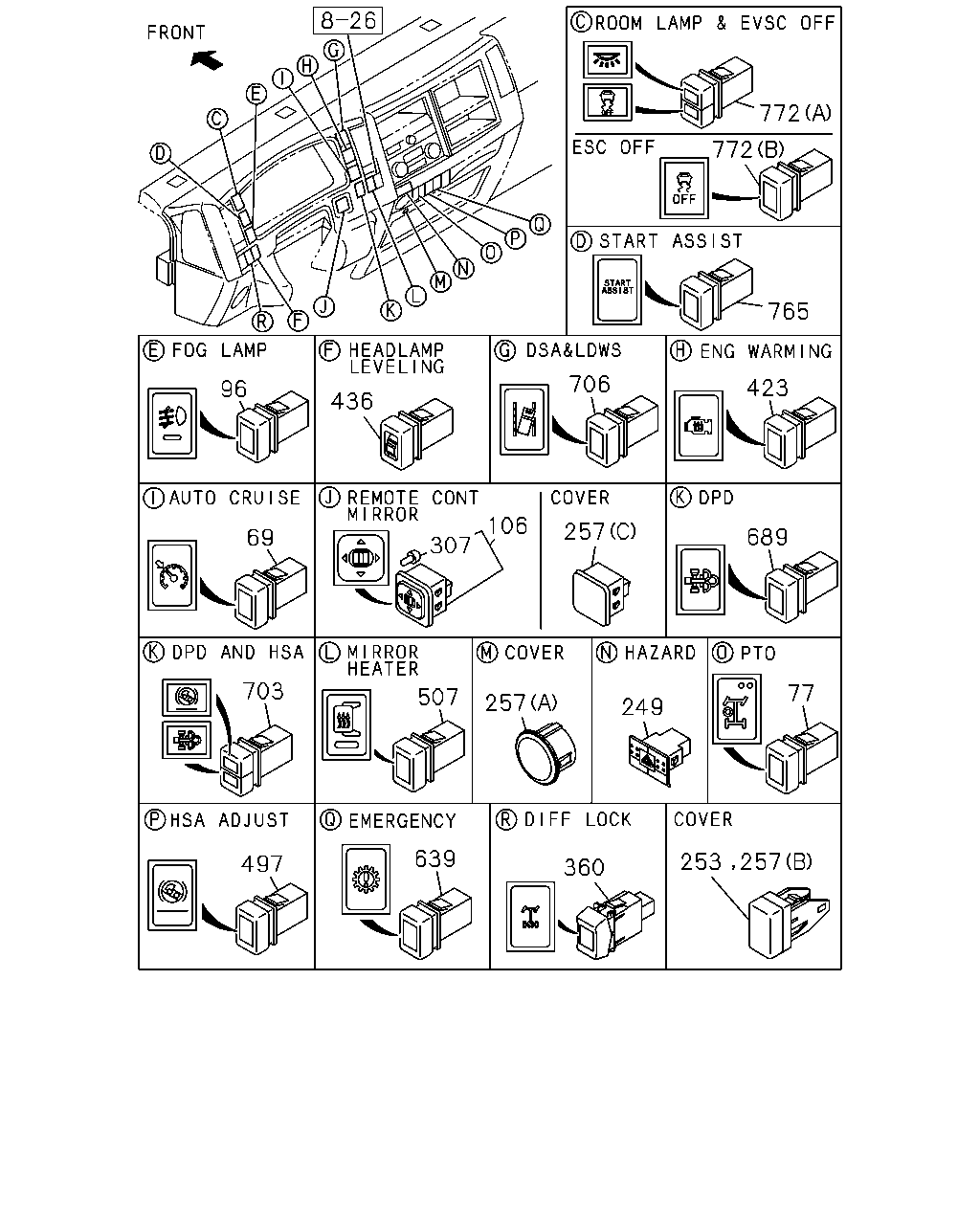

çizim 477028
772 772 765 423 706 436 96 69 307 106 257 689 77 249 257 507 703 497 639 360 253 257
BalonParca AdiParca NoAdetTipApplied Date
69 SWITCH; AUTO CRUISE 8-98011-344-1 01 1 1505-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) SMOOTHER-FX(TYPE2)(8NS) 		8-97386-964-2 01 1 1505-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1505-
96 SWITCH; FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1505-
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505-
249 SWITCH; HAZARD 8-97386-922-1 01 1 1505-
253 COVER; SW HOLE 8-98025-954-1 02 1 1505-
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1505-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98025-954-1 01 1 1505-1506
257 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1505-1506
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98025-954-1 01 1 1505-1506
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98025-954-1 01 1 1505-1506
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98025-954-1 01 1 1507-1508
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (B) 		8-98025-954-1 01 1 1507-1508
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98025-954-1 01 1 1507-1508
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98025-954-1 01 1 1507-1508
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (B) 		8-98025-954-1 01 1 1509-
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98025-954-1 01 1 1509-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98025-954-1 01 1 1509-
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) 		8-98025-954-1 01 1 1509-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98025-954-1 01 1 1509-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98029-914-1 01 1 1505-
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98025-954-1 02 1 1505-
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1505-
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		8-98234-894-1 01 1 1507-
423 SWITCH; ENG WARMING 8-97387-010-2 01 1 1505-
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1505-
497 SWITCH; HSA 8-98119-947-1 01 1 1505-
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 1505-
639 SWITCH; EMERGENCY
SMOOTHER-FX(TYPE2)(8NS) 		8-98119-948-0 01 1 1505-
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1505-
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1505-
706 SWITCH; DRIVING SAFETY ADVISER,ADJUST 8-98208-989-1 01 1 1505-
765 SWITCH; START ASSIST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) START ASSIST 		8-98209-667-1 01 1 1505-
772 SWITCH; EVSC
FLUORESCENT LAMP<6UC> (A) 		8-98190-385-1 01 1 1505-
772 SWITCH; EVSC
EXC. FLUORESCENT LAMP<6UC> (B) 		8-98190-384-1 01 1 1505-

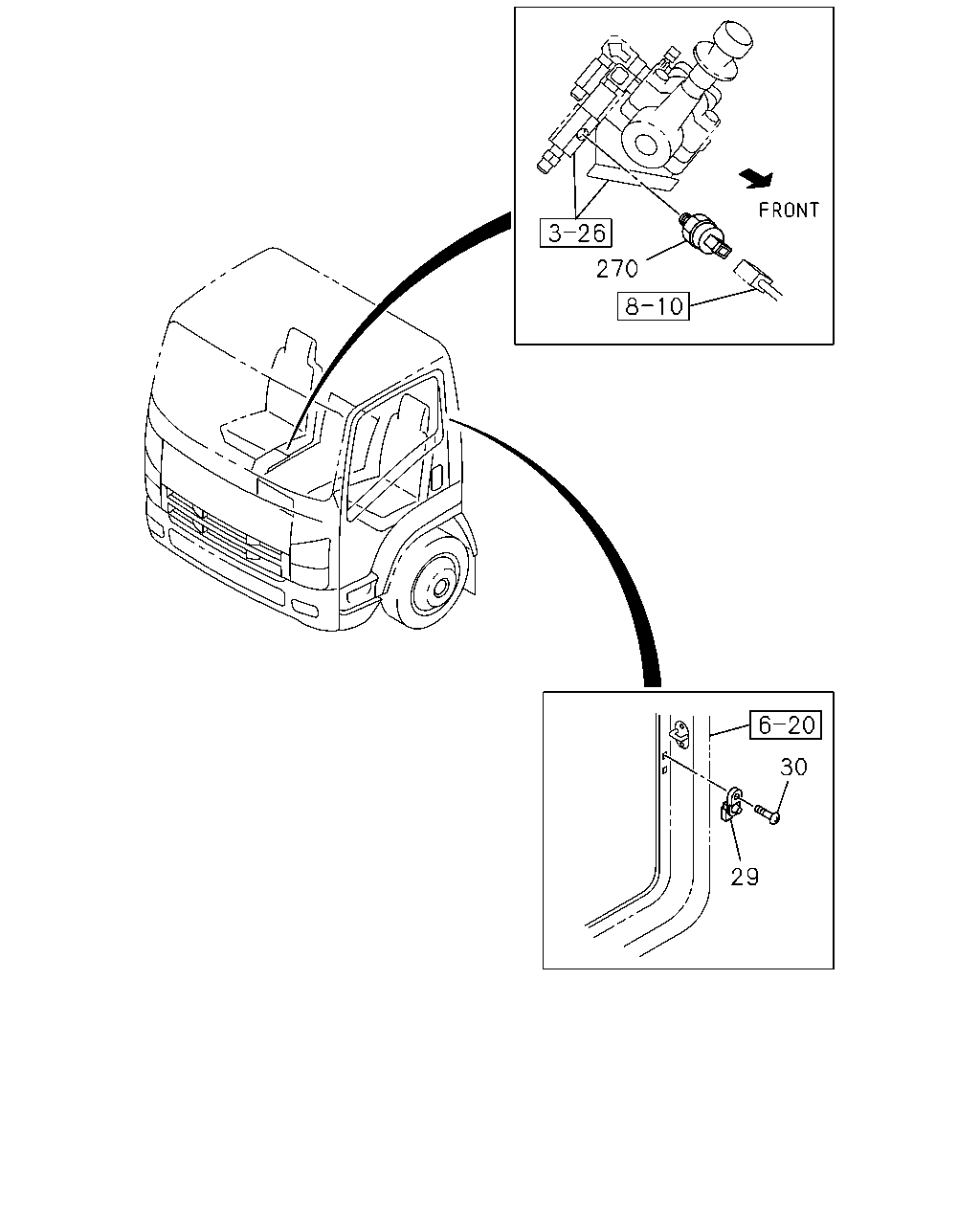

çizim 477064
270 30 29
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-FX(TYPE2)(8NS) BLACK 		8-98022-211-0 01 1 1505-
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. SMOOTHER-FX(TYPE2)(8NS) BLACK 		8-98022-211-0 01 1 1505-
29 SWITCH; DOOR
SMOOTHER-FX(TYPE2)(8NS) BLACK 		8-98022-211-0 01 1 1505-
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1505-
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, SMOOTHER-FX(TYPE2)(8NS) M5X18 		8-98047-201-0 01 1 1505-
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. SMOOTHER-FX(TYPE2)(8NS) M5X18 		8-98047-201-0 01 1 1505-
30 SCREW; DOOR SW
SMOOTHER-FX(TYPE2)(8NS) M5X18 		8-98047-201-0 01 1 1505-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1505-
270 SWITCH; PRESS,WHEEL PARKING
STAMP 5.5 		8-97609-249-0 01 1 1505-

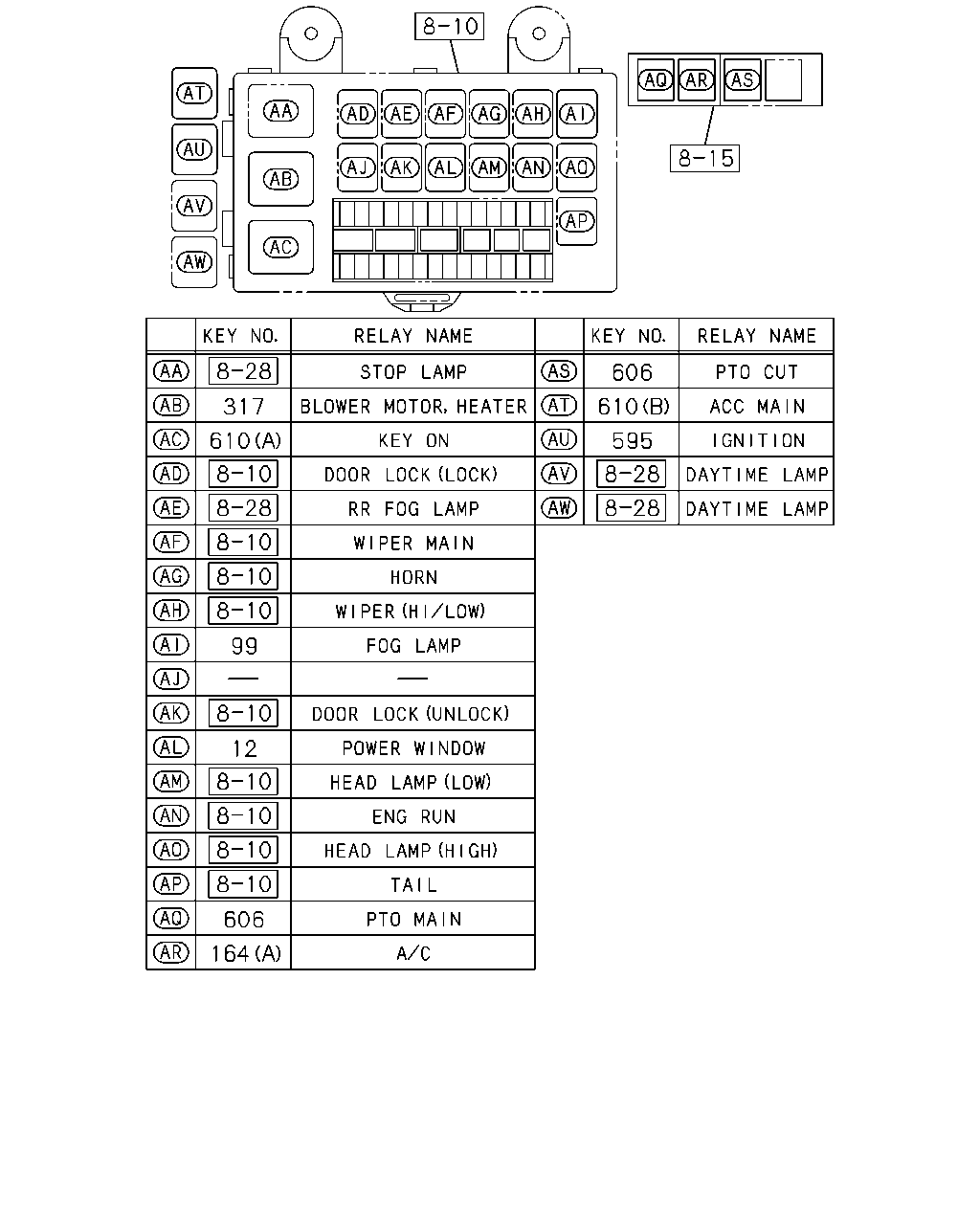

çizim 477080
317 610 99 12 606 164 606 610 595
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
99 RELAY; FOG LAMP
FOG LAMP FRONT VAR2<X99> 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505-
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505-
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
610 RELAY; KEY ON
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
610 RELAY; KEY ON
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505-
