◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#161805) — 20 parça

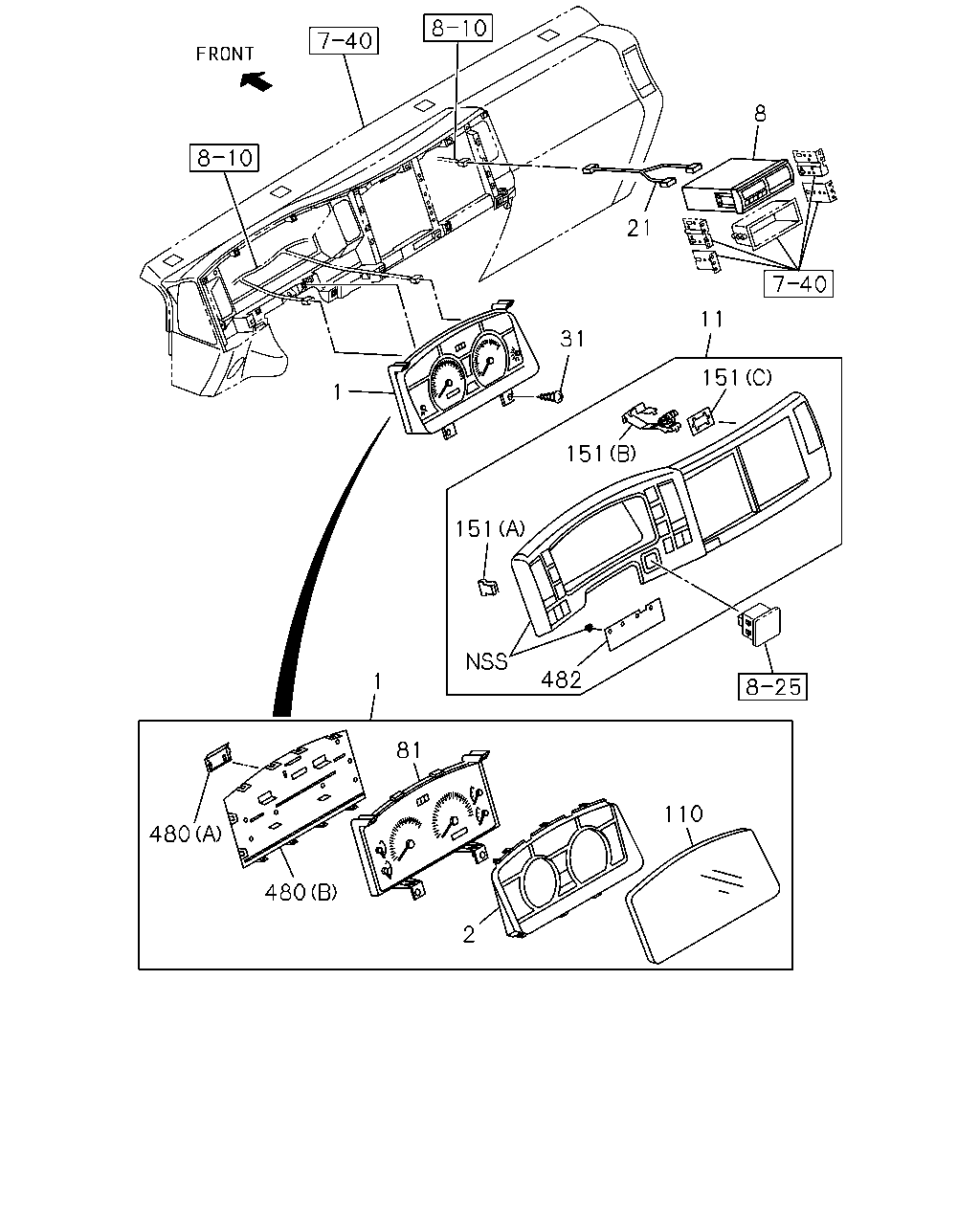

çizim 476788
21 8 11 151 31 151 1 151 482 1 81 110 2 480 480
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
SMOOTHER-FX(TYPE2)(8NS) 		8-98253-090-2 01 1 1505-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98253-089-2 01 1 1505-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1505-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98204-004-0 01 1 1507-
11 CLUSTER ASM; METER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97418-531-1 01 1 1507-
11 CLUSTER ASM; METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> DARK GRAY 		8-97418-534-1 01 1 1505-
21 HARNESS; TACHOGRAPH
SMOOTHER-FX(TYPE2)(8NS) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98203-748-0 01 1 1507-
21 HARNESS; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> SMOOTHER-FX(TYPE2)(8NS) 		8-98135-337-0 01 1 1505-
21 HARNESS; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98099-111-0 01 1 1505-
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98203-747-0 01 1 1507-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1505-
81 METER SUB ASM
SMOOTHER-FX(TYPE2)(8NS) 		8-98287-387-0 01 1 1505-
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-385-0 01 1 1505-
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1505-
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1505-
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1505-
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1505-
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1505-
480 COVER; METER
(B) 		8-98151-362-0 01 1 1505-
482 SEAL; CLUSTER METER 8-98116-843-0 01 1 1505-
