◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#161802) — 307 parça

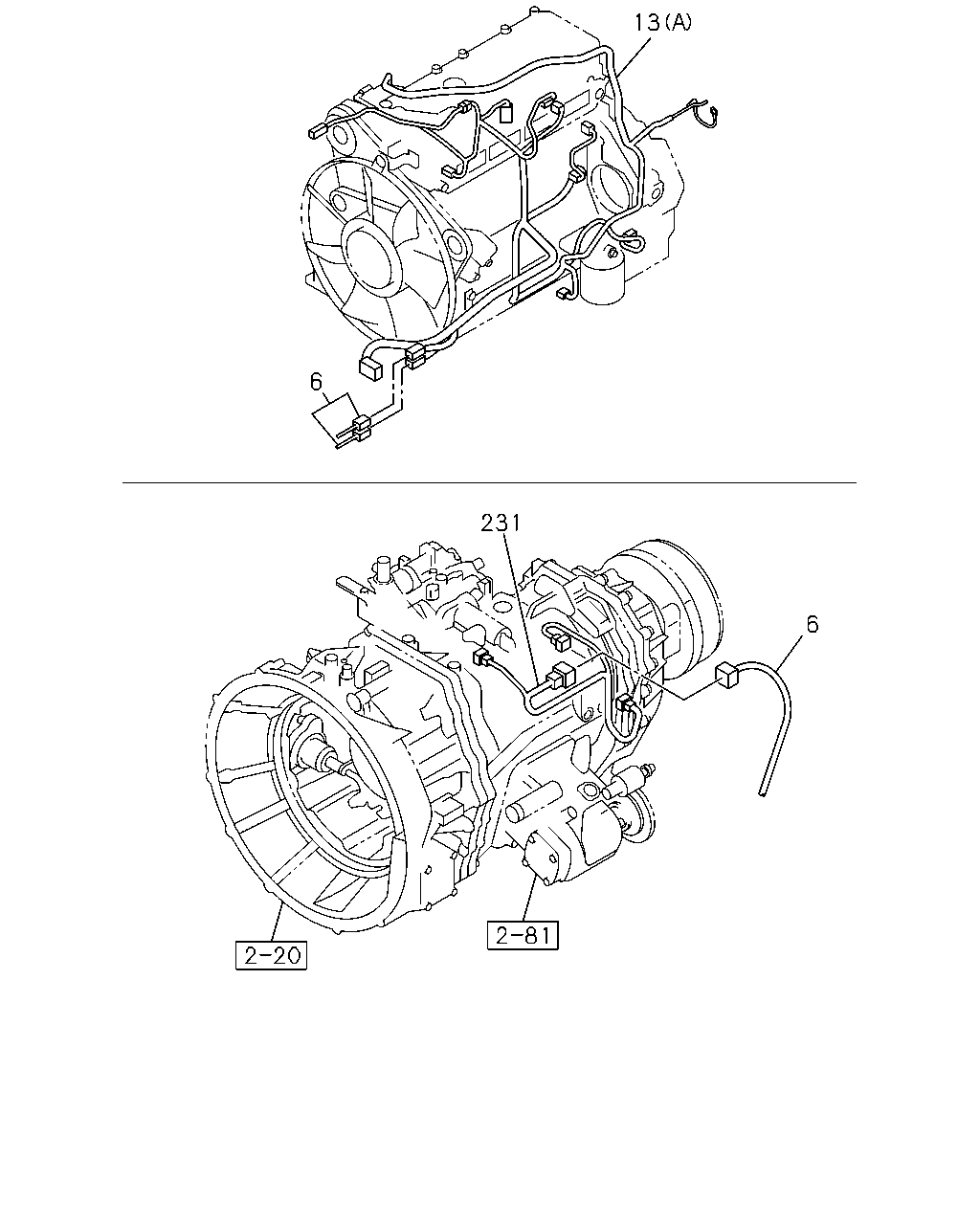

çizim 476076
6 231 13 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-733-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-734-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-735-4 01 1 1505-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-736-4 01 1 1505-
13 HARNESS; ENG
(B) 		8-98120-924-0 01 1 1505-
13 HARNESS; ENG
(A) 		8-98291-790-0 01 1 1505-
231 HARNESS; TRANS
SMOOTHER-FX(TYPE2)(8NS) 		8-97620-317-3 01 1 1505-
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-728-1 01 1 1505-

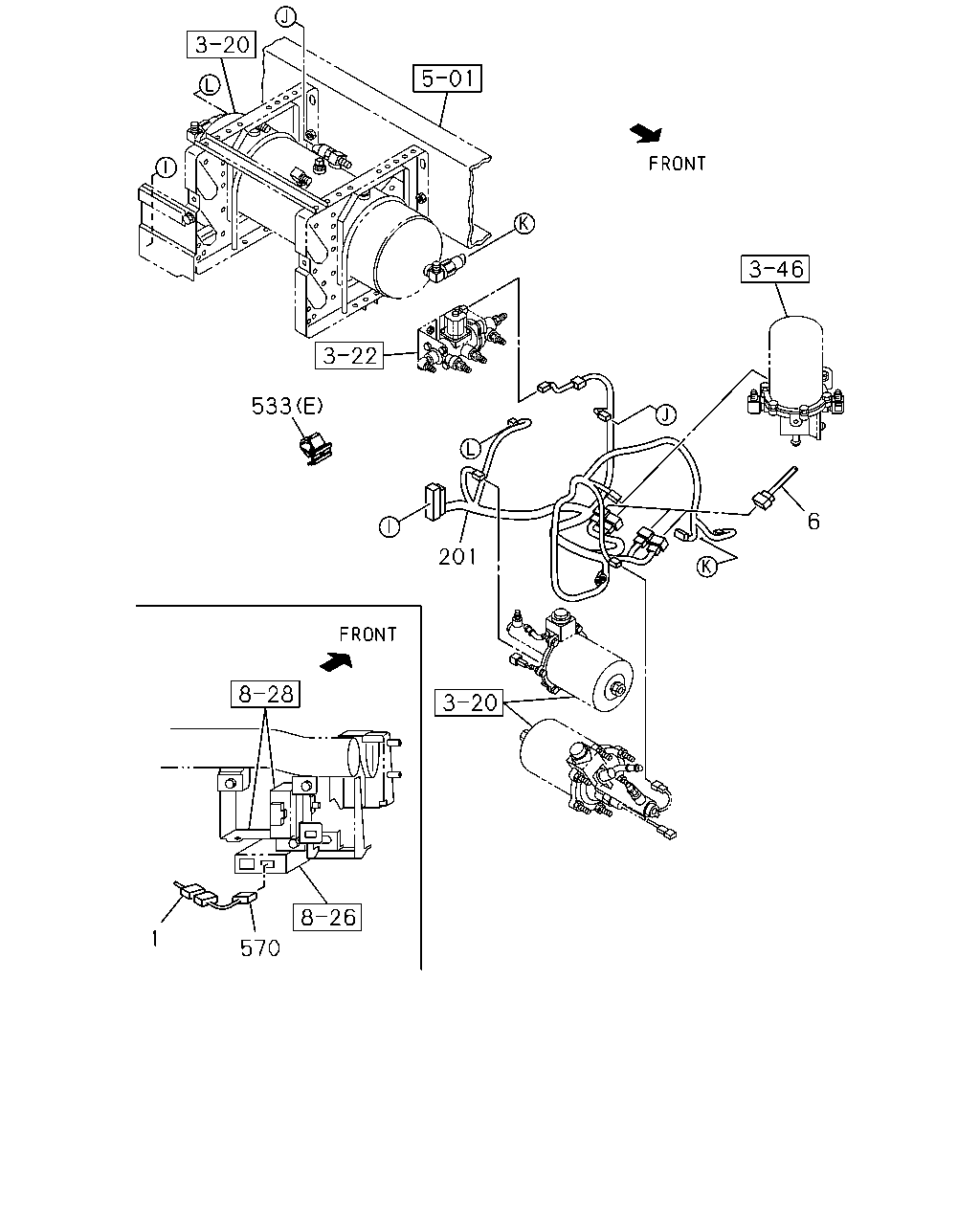

çizim 476132
6 201 533 1 570
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-513-5 01 1 1505-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-515-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-514-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-516-5 01 1 1505-
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-733-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-734-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-735-4 01 1 1505-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-736-4 01 1 1505-
201 HARNESS; AIR TANK 8-98284-980-1 01 1 1505-
533 CLIP
(D) L=350 		1-09707-183-0 03 1 1505-1506
533 CLIP
(D) L=350 		1-09707-183-0 03 1 1507-1508
533 CLIP
(H) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1505-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1505-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1505-
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1505-
533 CLIP
(E) L=112 		8-94232-618-0 04 1 1505-
533 CLIP
(G) OD=8.95 H=6.25 		8-97375-754-0 02 1 1505-
533 CLIP
(F) ID=14 L=44 		9-09917-427-0 01 1 1505-
533 CLIP
DIFF LOCK<C3N> (A) ID=4.8 		1-09701-218-0 01 1 1507-
533 CLIP
DIFF LOCK<C3N> (G) OD=8.95 H=6.25 		8-97375-754-0 01 1 1507-
533 CLIP
WHEEL BASE 3700MM(37W) (F) ID=14 L=44 		9-09917-427-0 09 1 1507-
533 CLIP
DIFF LOCK<C3N> (B) ID=11 L=20 		0-95235-035-0 01 1 1507-
533 CLIP
DIFF LOCK<C3N> (B) ID=11 L=20 		0-95235-035-0 01 1 1507-
533 CLIP
WHEEL BASE 4300MM(43W) (F) ID=14 L=44 		9-09917-427-0 14 1 1505-
533 CLIP
EXC. SMOOTHER-FX(TYPE2)(8NS) (I) ID=32 L=50 		1-09701-055-1 01 1 1505-1507
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 1508-1508
533 CLIP
EXC. SMOOTHER-FX(TYPE2)(8NS) (I) ID=32 L=50 		1-09701-055-1 01 1 1509-
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=35 L=50 		1-09701-214-0 01 1 1505-1507
533 CLIP
SMOOTHER-FX(TYPE2)(8NS) (C) ID=35 L=50 		1-09701-214-0 01 1 1508-1508
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=35 L=50 		1-09701-214-0 01 1 1509-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1505-1506
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1507-
533 CLIP
DIFF LOCK<C3N> (D) L=350 		1-09707-183-0 01 1 1507-
533 CLIP
WHEEL BASE 4900MM(49W) (F) ID=14 L=44 		9-09917-427-0 15 1 1505-
533 CLIP
WHEEL BASE 5300MM(53W) (F) ID=14 L=44 		9-09917-427-0 17 1 1505-
533 CLIP
WHEEL BASE 5500MM(55W) (F) ID=14 L=44 		9-09917-427-0 18 1 1505-1506
533 CLIP
WHEEL BASE 5500MM(55W) EXC. DIFF LOCK<C3N> (F) ID=14 L=44 		9-09917-427-0 18 1 1507-1507
533 CLIP
WHEEL BASE 5500MM(55W) EXC. DIFF LOCK<C3N> (F) ID=14 L=44 		9-09917-427-0 19 1 1507-
570 HARNESS; SPEED SENSOR 8-98058-327-1 01 1 1505-1506
570 HARNESS; SPEED SENSOR
KD PREPARATORY PACK<6HF> SMOOTHER-FX(TYPE2)(8NS) 		8-98058-327-1 01 1 1507-
570 HARNESS; SPEED SENSOR
EXC. KD PREPARATORY PACK<6HF> 		8-98058-327-1 01 1 1507-
570 HARNESS; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98091-562-0 01 1 1505-

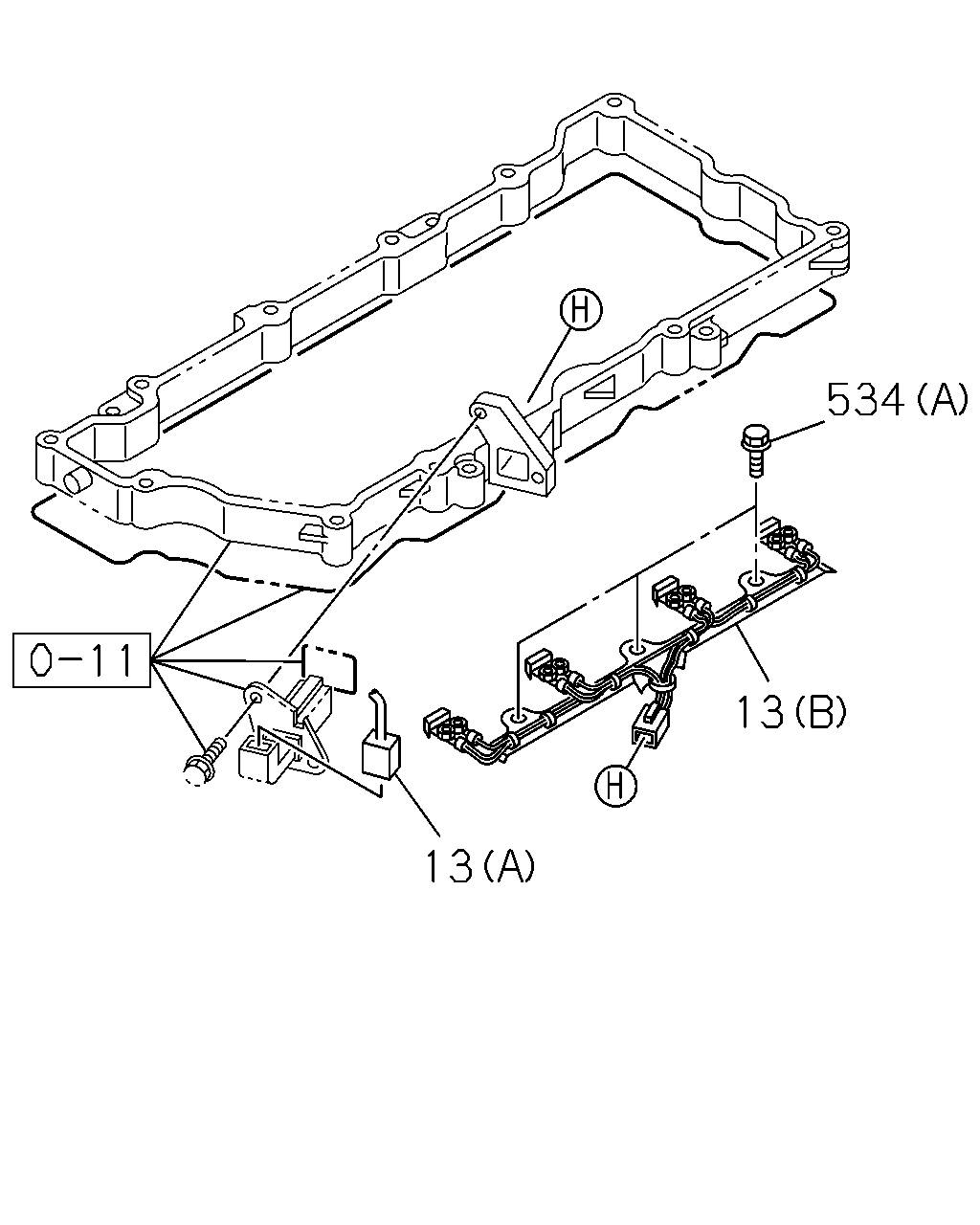

çizim 476240
534 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98120-924-0 01 1 1505-
13 HARNESS; ENG
(A) 		8-98291-790-0 01 1 1505-
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1505-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1505-

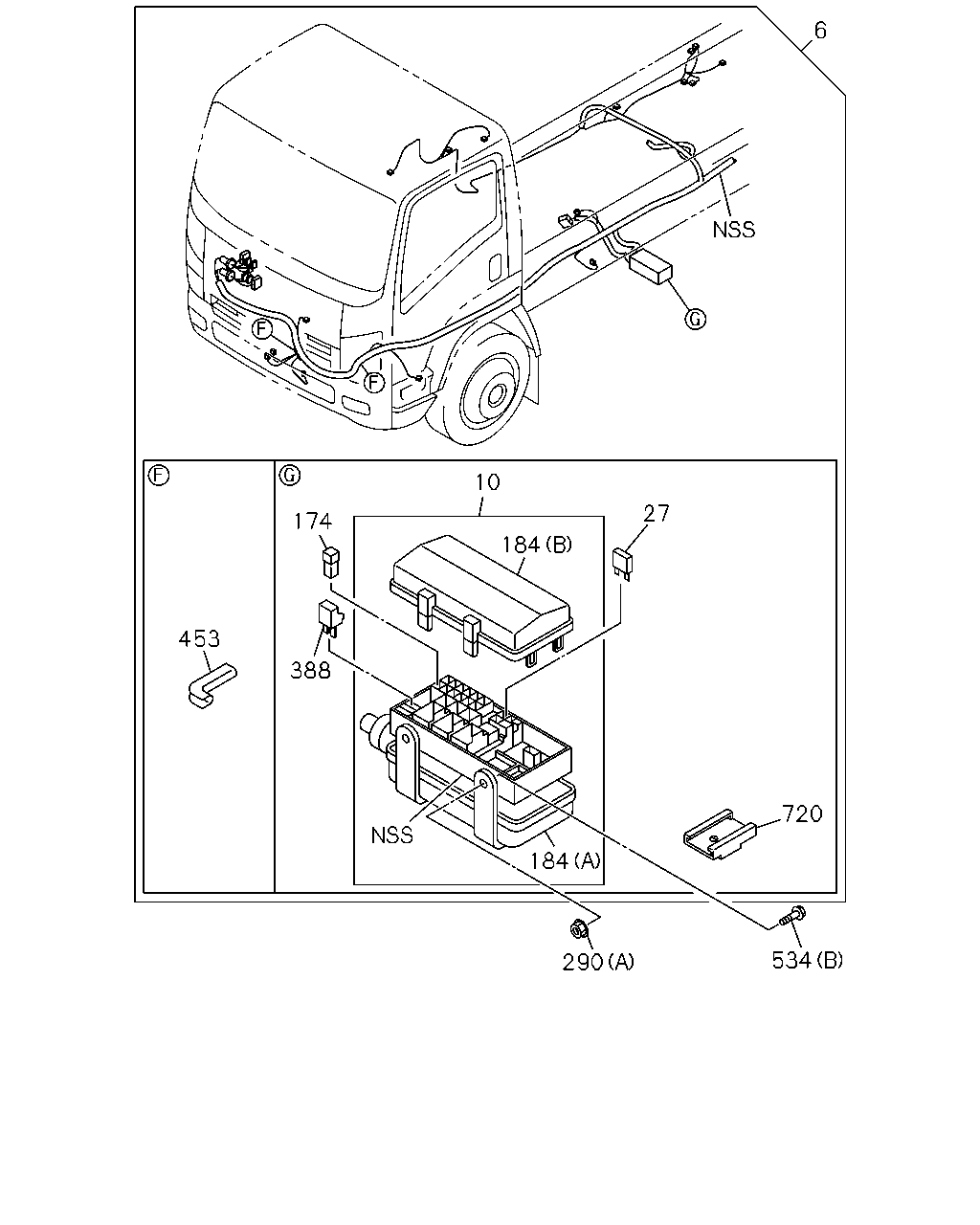

çizim 476328
6 10 27 720 534 290 184 388 184 174 453
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-733-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-734-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-735-4 01 1 1505-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-736-4 01 1 1505-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1505-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1505-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1505-
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 01 1 1505-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1505-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1505-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1505-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1505-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1505-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1505-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1505-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1505-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1505-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1505-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1505-
290 NUT; BRKT
DIFF LOCK<C3N> (C) M6 FLANGE 		0-91180-106-0 03 1 1507-
290 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 02 1 1507-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1505-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1505-
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1505-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1505-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1505-
çizim 476432
431 431 479
BalonParca AdiParca NoAdetTipApplied Date
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1505-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1505-
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82690-667-0 01 1 1505-

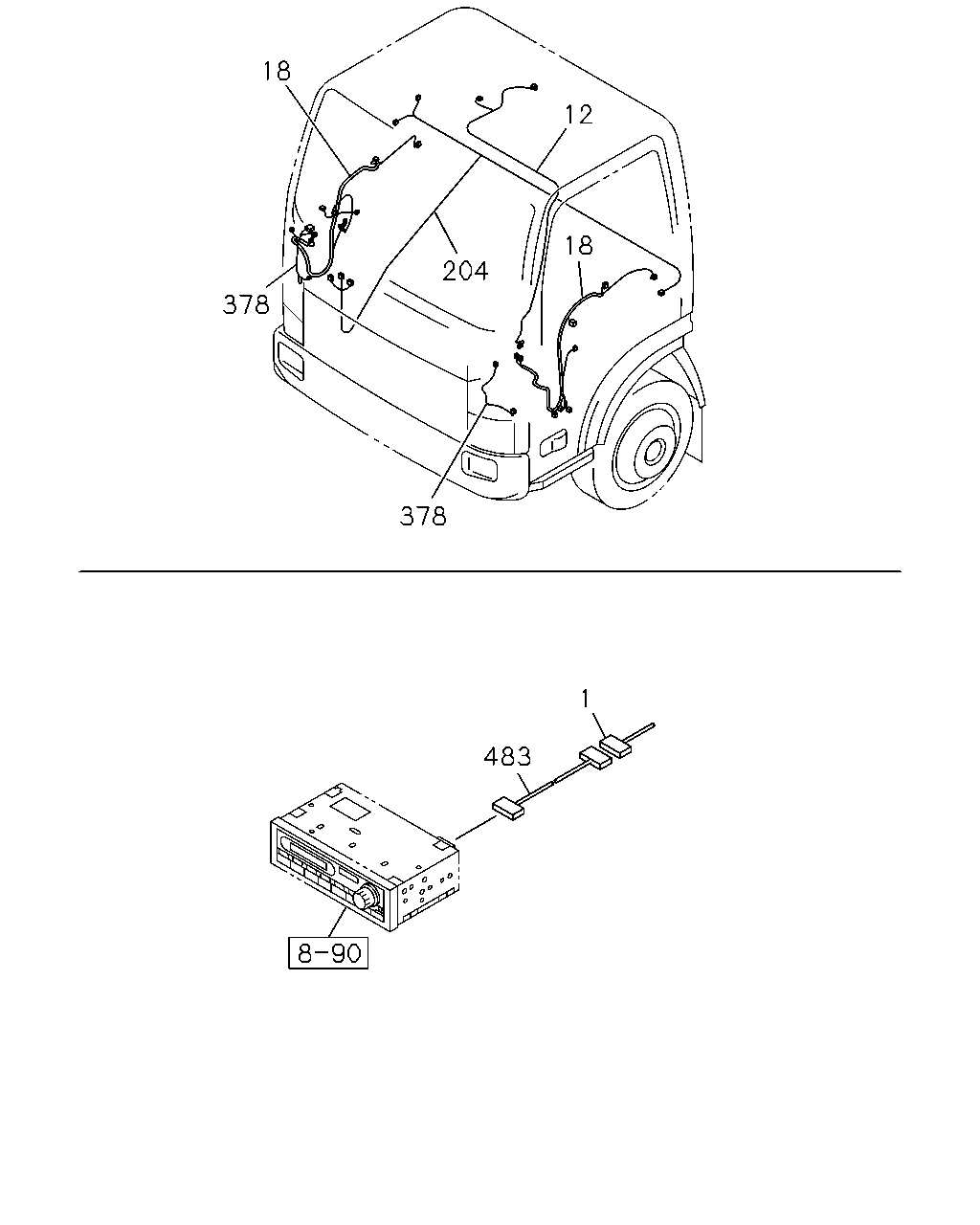

çizim 476444
18 378 204 18 12 378 483 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-513-5 01 1 1505-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-515-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-514-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-516-5 01 1 1505-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98269-190-2 01 1 1505-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98269-191-2 01 1 1505-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-905-1 01 1 1505-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-909-1 01 1 1505-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-906-1 01 1 1505-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98268-910-1 01 1 1505-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) SMOOTHER-FX(TYPE2)(8NS) 		8-98270-461-3 01 1 1505-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98270-465-3 01 1 1505-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) SMOOTHER-FX(TYPE2)(8NS) 		8-98270-462-3 01 1 1505-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98270-466-3 01 1 1505-
378 HARNESS; EXT,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. ISRAEL COUNTRY(CV4) 		8-98125-654-0 02 1 1507-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. ISRAEL COUNTRY(CV4) 		8-98125-653-0 02 1 1507-
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 1505-

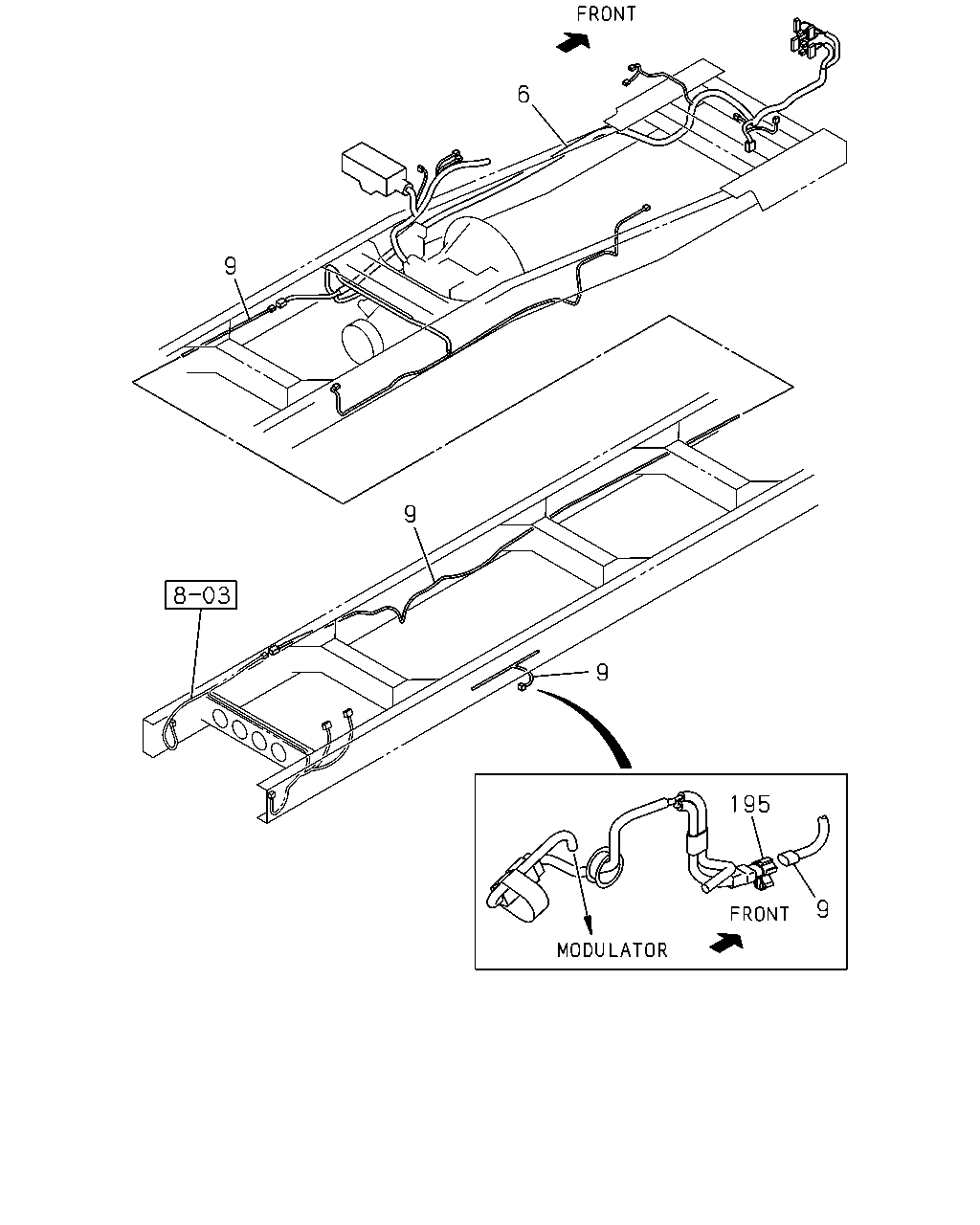

çizim 476527
9 195 9 9 9 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-733-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-734-4 01 1 1507-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) SMOOTHER-FX(TYPE2)(8NS) 		8-98284-735-4 01 1 1505-
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-736-4 01 1 1505-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) DIFF LOCK<C3N> 		8-98284-749-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) EXC. DIFF LOCK<C3N> 		8-98284-750-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98284-752-3 01 1 1505-1506
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) EXC. DIFF LOCK<C3N> 		8-98284-752-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) DIFF LOCK<C3N> 		8-98284-751-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98284-754-3 01 1 1505-1506
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) EXC. DIFF LOCK<C3N> 		8-98284-754-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) DIFF LOCK<C3N> 		8-98284-753-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98284-756-3 01 1 1505-1506
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) EXC. DIFF LOCK<C3N> 		8-98284-756-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) DIFF LOCK<C3N> 		8-98284-755-3 01 1 1507-
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98284-757-3 01 1 1505-1506
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. DIFF LOCK<C3N> 		8-98284-757-3 01 1 1507-
195 HARNESS; EXT 8-98284-766-1 02 1 1505-
çizim 476664
82 486 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-513-5 01 1 1505-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-515-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-514-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-516-5 01 1 1505-
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> 		8-98286-195-0 01 1 1507-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1505-

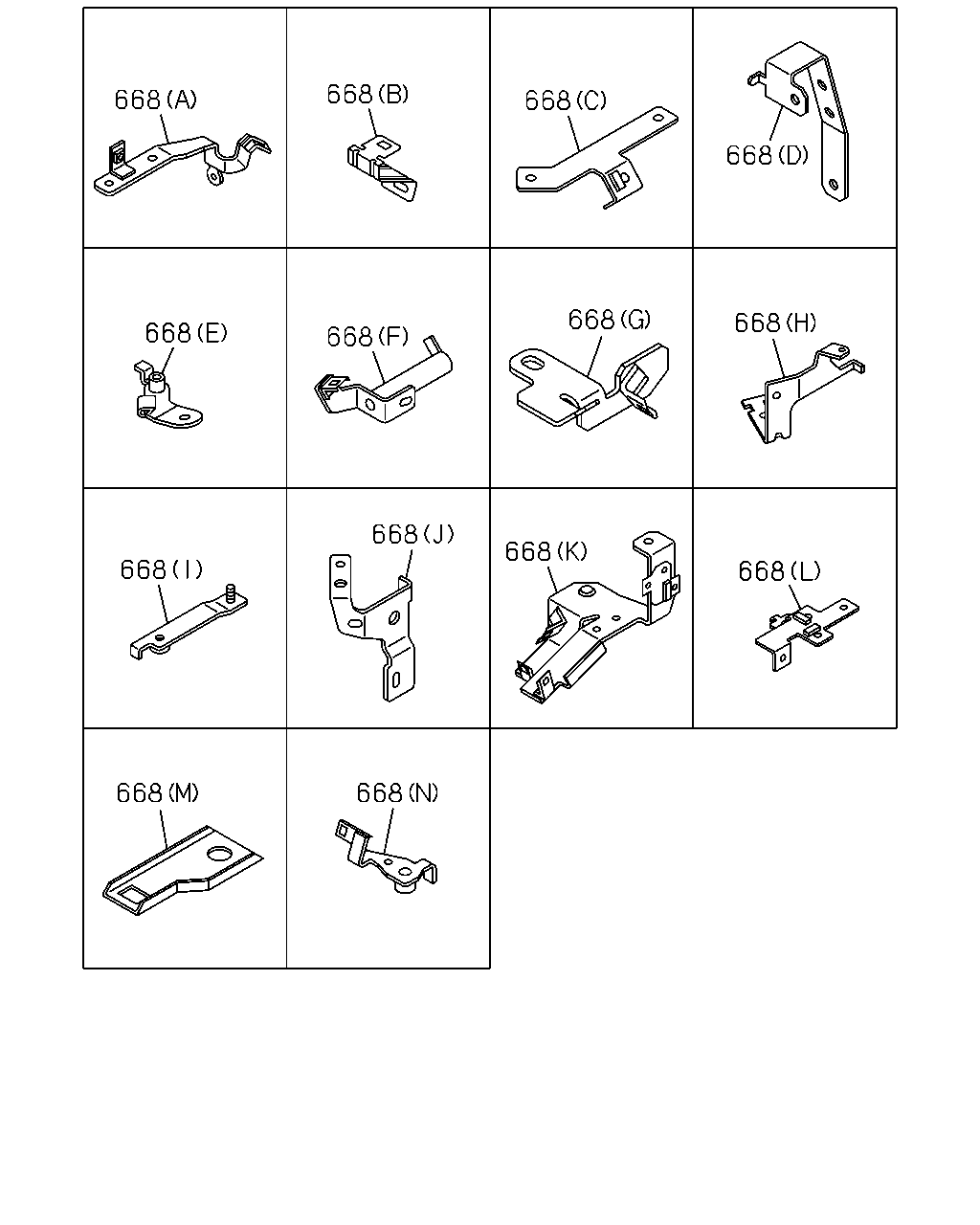

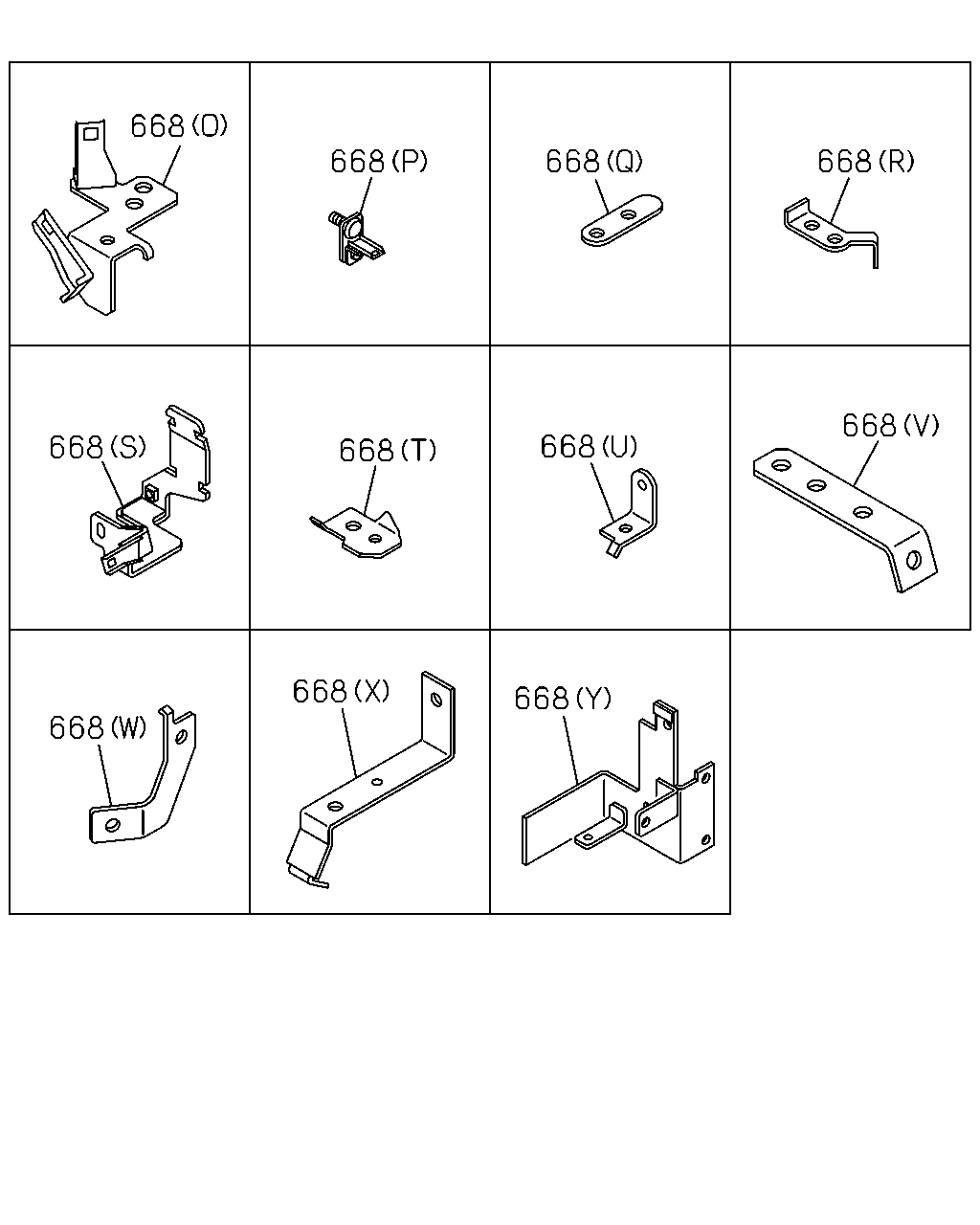

çizim 476783
668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
668 BRACKET; HARNESS
(V) 		1-82698-167-0 01 1 1505-1506
668 BRACKET; HARNESS
(V) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (V) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1505-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1505-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1505-
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1505-
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1505-
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1505-
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1505-
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1505-
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1505-
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1505-
668 BRACKET; HARNESS
(R) 		8-98150-855-1 01 1 1505-
668 BRACKET; HARNESS
(Q) 		8-98161-100-0 02 1 1505-
668 BRACKET; HARNESS
(N) 		8-98164-831-0 01 1 1505-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1505-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1505-
668 BRACKET; HARNESS
(S) 		8-98207-041-0 01 1 1505-
668 BRACKET; HARNESS
(L) 		8-98236-735-0 01 1 1505-
668 BRACKET; HARNESS
(K) 		8-98236-736-0 01 1 1505-
668 BRACKET; HARNESS
(J) 		8-98242-475-0 01 1 1505-
668 BRACKET; HARNESS
(C) 		8-98249-358-0 01 1 1505-
668 BRACKET; HARNESS
(G) 		8-98254-592-0 01 1 1505-
668 BRACKET; HARNESS
(W) 		8-98270-886-1 01 1 1505-
668 BRACKET; HARNESS
(X) 		8-98284-901-0 02 1 1505-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Y) 		8-98286-196-0 01 1 1507-

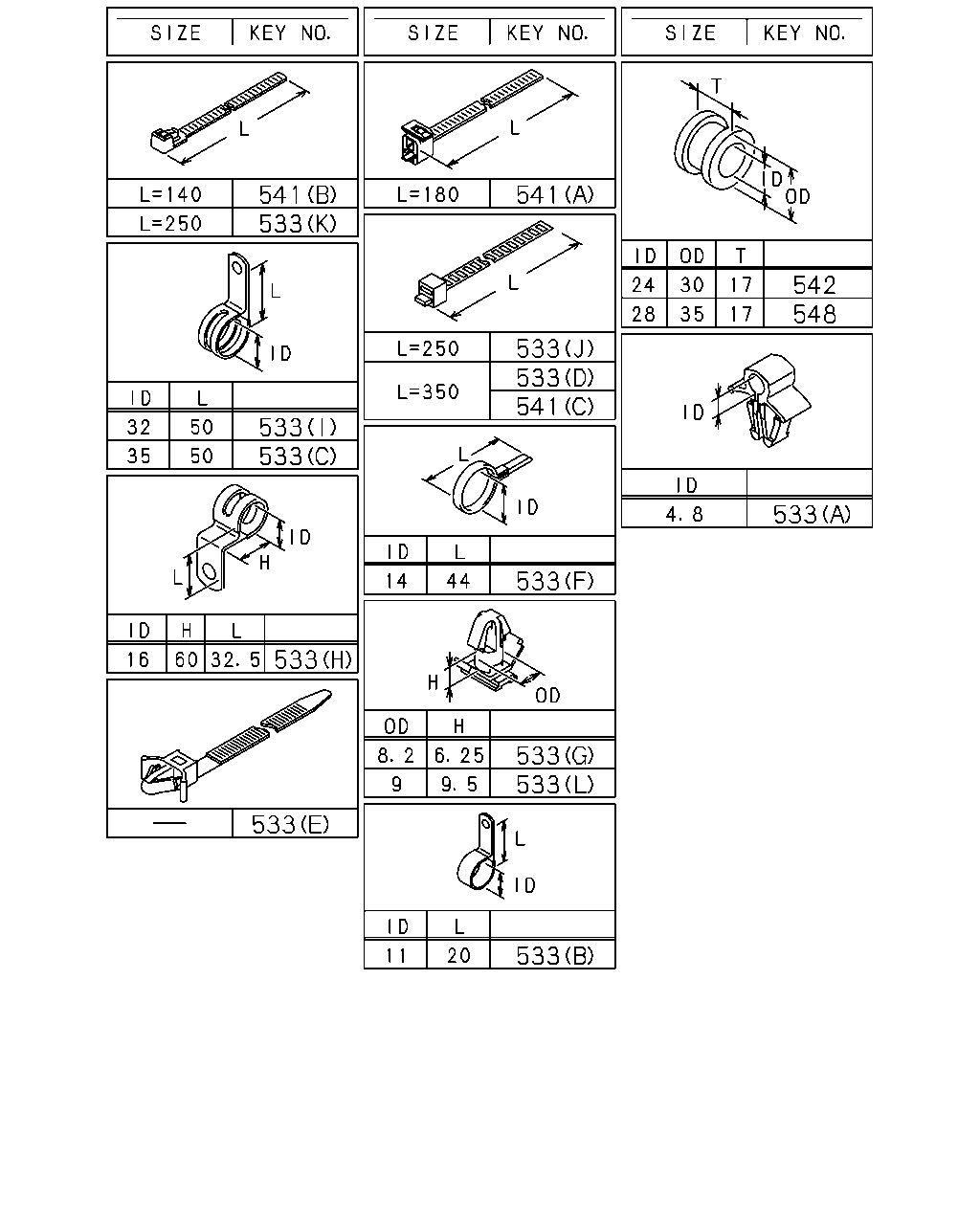

çizim 476818
541 533 533 533 533 533 533 533 533 533 541 533 533 541 542 548 533
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
(D) L=350 		1-09707-183-0 03 1 1505-1506
533 CLIP
(D) L=350 		1-09707-183-0 03 1 1507-1508
533 CLIP
(H) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1505-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1505-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1505-
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1505-
533 CLIP
(E) L=112 		8-94232-618-0 04 1 1505-
533 CLIP
(G) OD=8.95 H=6.25 		8-97375-754-0 02 1 1505-
533 CLIP
(F) ID=14 L=44 		9-09917-427-0 01 1 1505-
533 CLIP
DIFF LOCK<C3N> (A) ID=4.8 		1-09701-218-0 01 1 1507-
533 CLIP
DIFF LOCK<C3N> (G) OD=8.95 H=6.25 		8-97375-754-0 01 1 1507-
533 CLIP
WHEEL BASE 3700MM(37W) (F) ID=14 L=44 		9-09917-427-0 09 1 1507-
533 CLIP
DIFF LOCK<C3N> (B) ID=11 L=20 		0-95235-035-0 01 1 1507-
533 CLIP
DIFF LOCK<C3N> (B) ID=11 L=20 		0-95235-035-0 01 1 1507-
533 CLIP
WHEEL BASE 4300MM(43W) (F) ID=14 L=44 		9-09917-427-0 14 1 1505-
533 CLIP
EXC. SMOOTHER-FX(TYPE2)(8NS) (I) ID=32 L=50 		1-09701-055-1 01 1 1505-1507
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 1508-1508
533 CLIP
EXC. SMOOTHER-FX(TYPE2)(8NS) (I) ID=32 L=50 		1-09701-055-1 01 1 1509-
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=35 L=50 		1-09701-214-0 01 1 1505-1507
533 CLIP
SMOOTHER-FX(TYPE2)(8NS) (C) ID=35 L=50 		1-09701-214-0 01 1 1508-1508
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=35 L=50 		1-09701-214-0 01 1 1509-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1505-1506
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1507-
533 CLIP
DIFF LOCK<C3N> (D) L=350 		1-09707-183-0 01 1 1507-
533 CLIP
WHEEL BASE 4900MM(49W) (F) ID=14 L=44 		9-09917-427-0 15 1 1505-
533 CLIP
WHEEL BASE 5300MM(53W) (F) ID=14 L=44 		9-09917-427-0 17 1 1505-
533 CLIP
WHEEL BASE 5500MM(55W) (F) ID=14 L=44 		9-09917-427-0 18 1 1505-1506
533 CLIP
WHEEL BASE 5500MM(55W) EXC. DIFF LOCK<C3N> (F) ID=14 L=44 		9-09917-427-0 18 1 1507-1507
533 CLIP
WHEEL BASE 5500MM(55W) EXC. DIFF LOCK<C3N> (F) ID=14 L=44 		9-09917-427-0 19 1 1507-
541 CLIP
(C) L=350 		1-09707-183-0 02 1 1511-
541 CLIP
(C) L=350 		1-09707-183-0 01 1 1505-1507
541 CLIP
(C) L=350 		1-09707-183-0 03 1 1508-1510
541 CLIP
(C) L=350 		1-09707-183-0 01 1 1511-
541 CLIP
(B) L=140 		5-09707-031-1 01 1 1505-
541 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 1505-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1505-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1505-
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 03 1 1505-

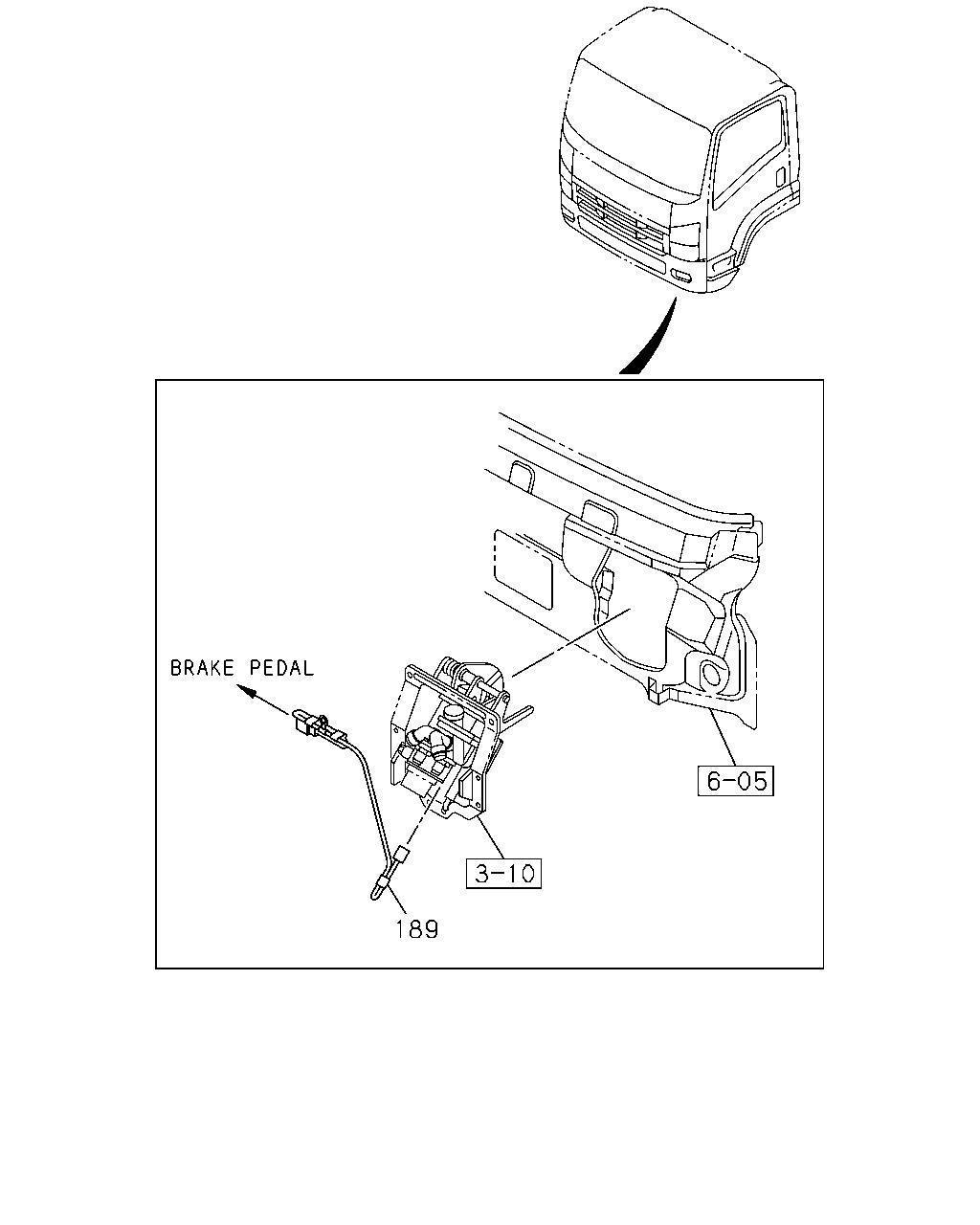

çizim 476824
189
BalonParca AdiParca NoAdetTipApplied Date
189 HARNESS; EXT 8-98284-542-1 01 1 1505-

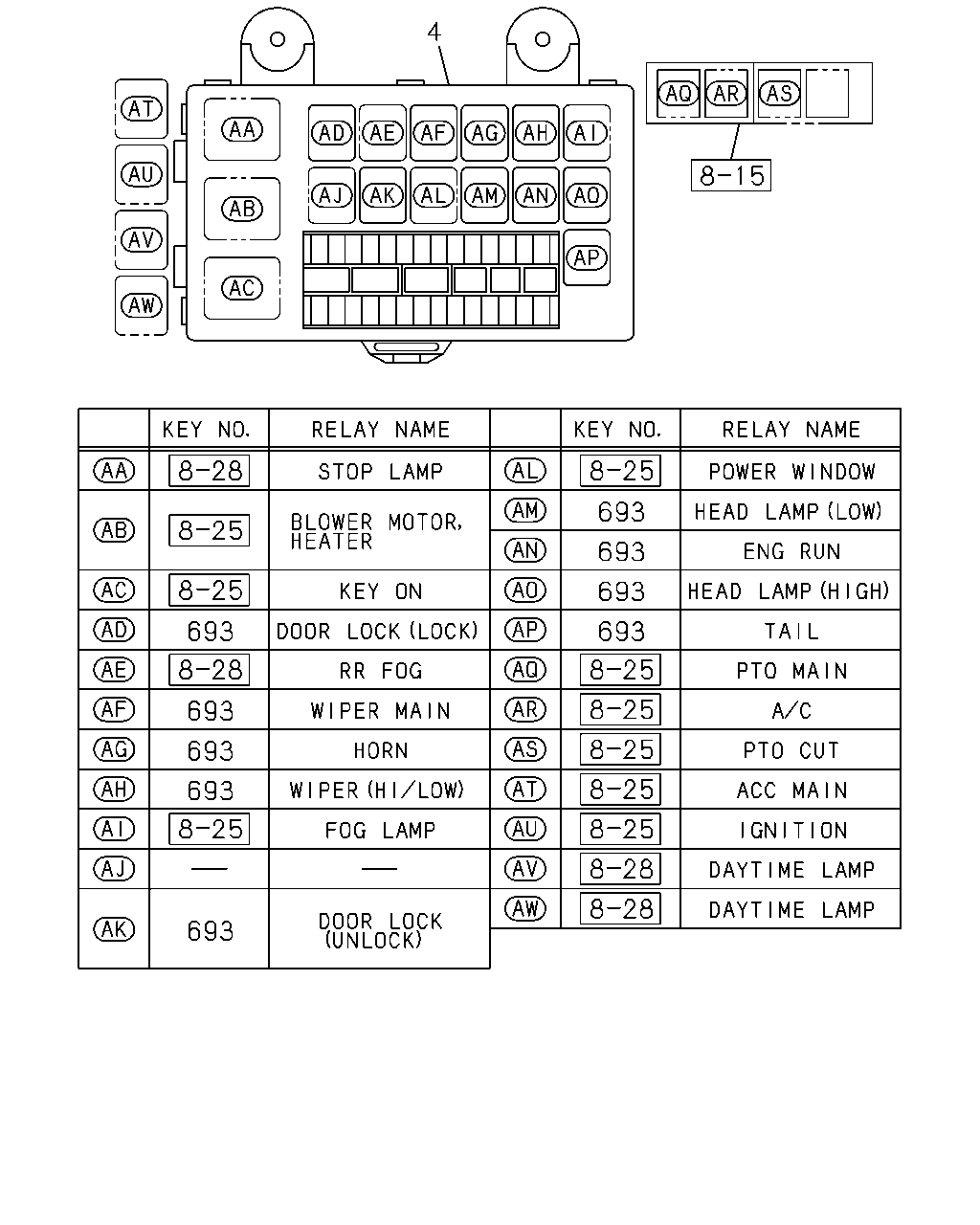

çizim 476826
693 693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1505-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1505-

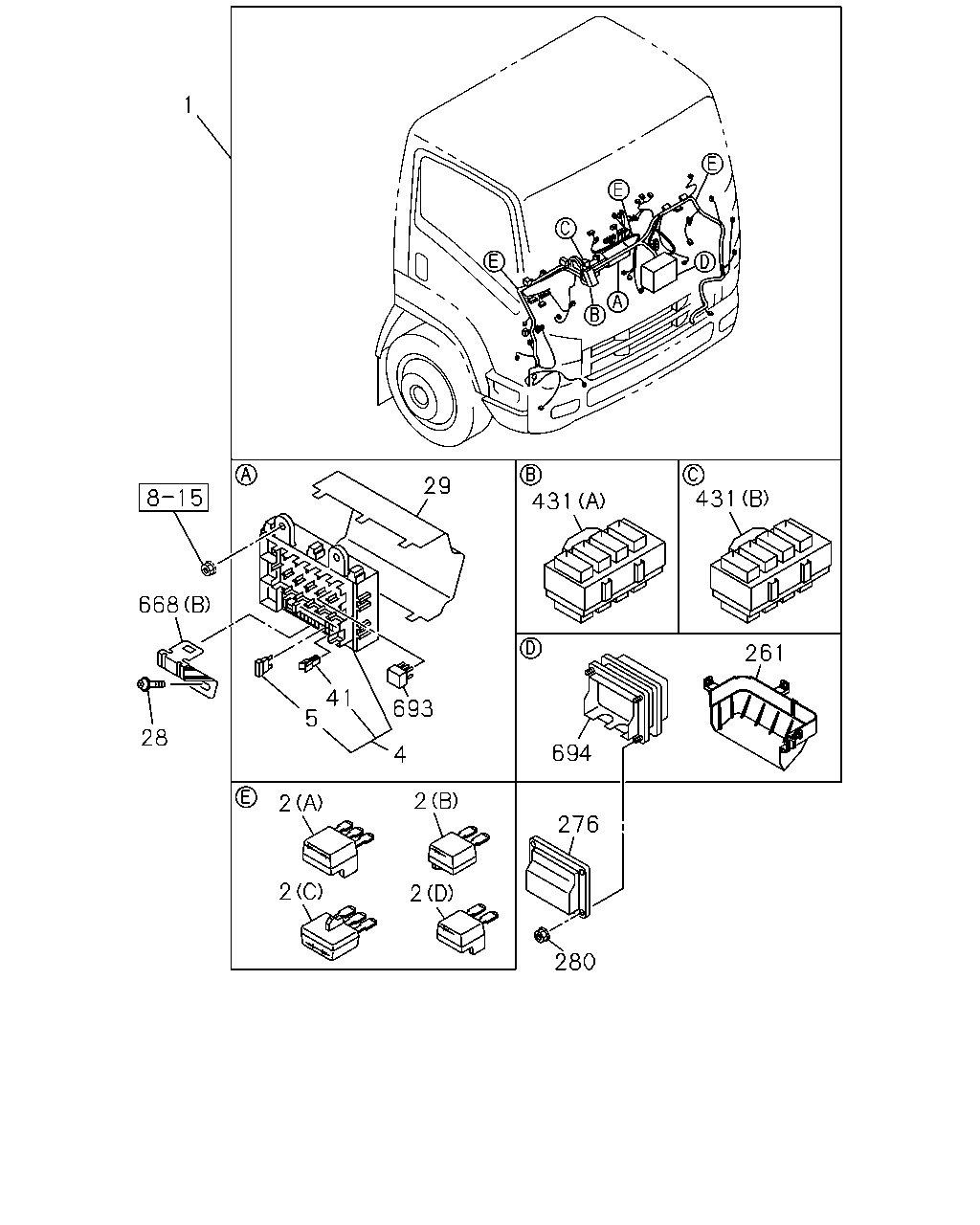

çizim 476865
1 668 28 5 41 693 4 2 2 2 2 276 694 261 431 431 280 29
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-513-5 01 1 1505-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98284-515-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-514-5 01 1 1505-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) POWER WINDOW FRT DOOR<A32> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EUROPE EQUIPMENT(E09),ISRAEL EQUIPMENT(2G1) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> IMMOBILIZER SYSTEM<7KC> SMOOTHER-FX(TYPE2)(8NS) 		8-98284-516-5 01 1 1505-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 01 1 1505-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 04 1 1505-1505
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 1505-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94422-640-1 01 1 1505-
2 DIODE; CABLE HARNESS
(D) 2P 		8-98223-969-0 01 1 1505-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1505-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1505-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1505-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1505-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1505-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1505-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1505-
41 PULLER; FUSE 8-98054-260-0 01 1 1505-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1505-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1505-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1505-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1505-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1505-
668 BRACKET; HARNESS
(V) 		1-82698-167-0 01 1 1505-1506
668 BRACKET; HARNESS
(V) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (V) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1505-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1505-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1505-
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1505-
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1505-
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1505-
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1505-
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1505-
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1505-
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1505-
668 BRACKET; HARNESS
(R) 		8-98150-855-1 01 1 1505-
668 BRACKET; HARNESS
(Q) 		8-98161-100-0 02 1 1505-
668 BRACKET; HARNESS
(N) 		8-98164-831-0 01 1 1505-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1505-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1505-
668 BRACKET; HARNESS
(S) 		8-98207-041-0 01 1 1505-
668 BRACKET; HARNESS
(L) 		8-98236-735-0 01 1 1505-
668 BRACKET; HARNESS
(K) 		8-98236-736-0 01 1 1505-
668 BRACKET; HARNESS
(J) 		8-98242-475-0 01 1 1505-
668 BRACKET; HARNESS
(C) 		8-98249-358-0 01 1 1505-
668 BRACKET; HARNESS
(G) 		8-98254-592-0 01 1 1505-
668 BRACKET; HARNESS
(W) 		8-98270-886-1 01 1 1505-
668 BRACKET; HARNESS
(X) 		8-98284-901-0 02 1 1505-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Y) 		8-98286-196-0 01 1 1507-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1505-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1505-
çizim 476909
668 668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
668 BRACKET; HARNESS
(V) 		1-82698-167-0 01 1 1505-1506
668 BRACKET; HARNESS
(V) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (V) 		1-82698-167-0 01 1 1507-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1505-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1505-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1505-
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1505-
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1505-
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1505-
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1505-
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1505-
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1505-
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1505-
668 BRACKET; HARNESS
(R) 		8-98150-855-1 01 1 1505-
668 BRACKET; HARNESS
(Q) 		8-98161-100-0 02 1 1505-
668 BRACKET; HARNESS
(N) 		8-98164-831-0 01 1 1505-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1505-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1505-
668 BRACKET; HARNESS
(S) 		8-98207-041-0 01 1 1505-
668 BRACKET; HARNESS
(L) 		8-98236-735-0 01 1 1505-
668 BRACKET; HARNESS
(K) 		8-98236-736-0 01 1 1505-
668 BRACKET; HARNESS
(J) 		8-98242-475-0 01 1 1505-
668 BRACKET; HARNESS
(C) 		8-98249-358-0 01 1 1505-
668 BRACKET; HARNESS
(G) 		8-98254-592-0 01 1 1505-
668 BRACKET; HARNESS
(W) 		8-98270-886-1 01 1 1505-
668 BRACKET; HARNESS
(X) 		8-98284-901-0 02 1 1505-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Y) 		8-98286-196-0 01 1 1507-

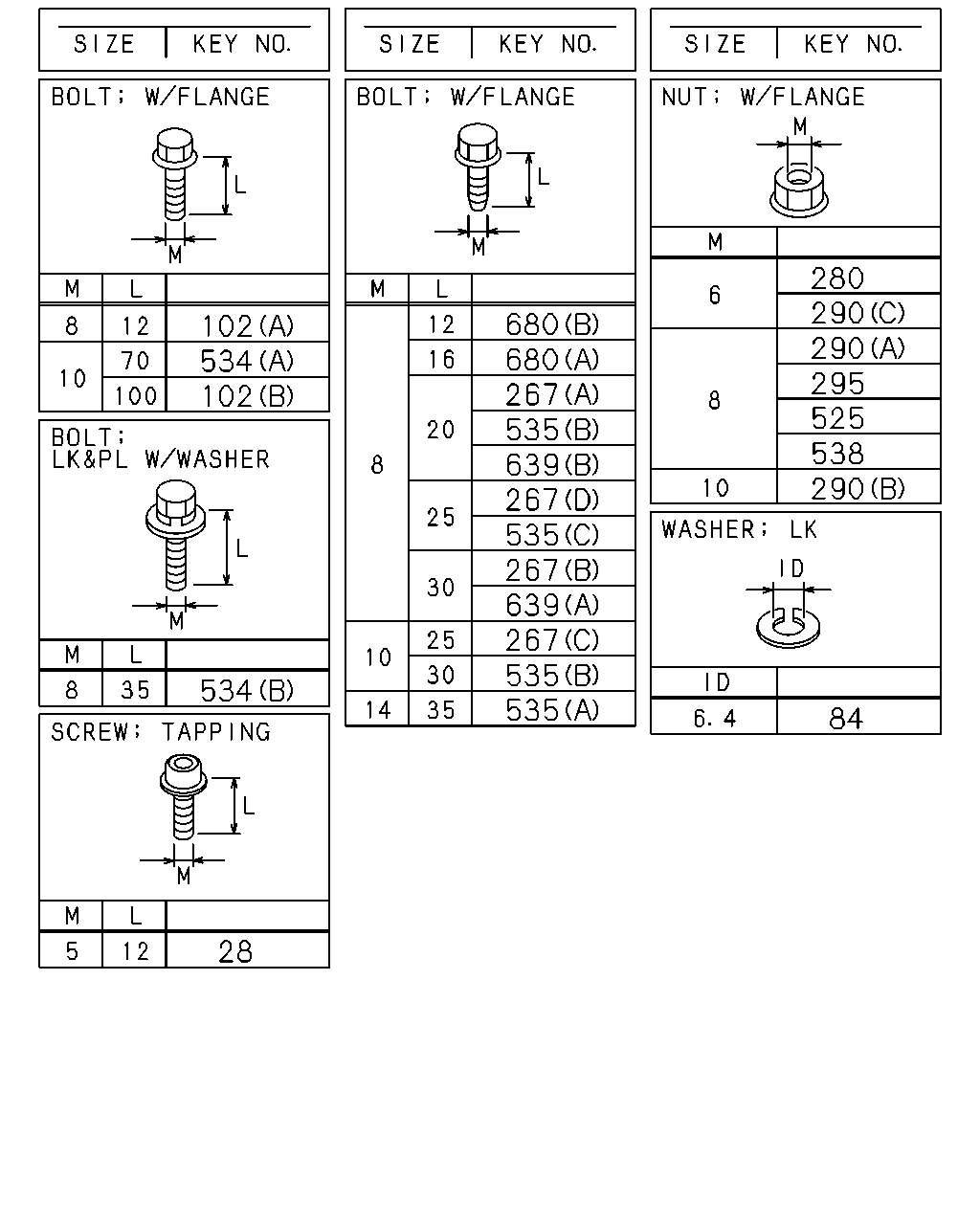

çizim 476926
28 534 102 534 102 535 680 535 639 267 267 535 267 639 535 267 680 280 290 538 525 295 290 290 84
BalonParca AdiParca NoAdetTipApplied Date
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1505-
84 WASHER; LK
DIFF LOCK<C3N> ID=6.4 		0-91614-506-0 03 1 1507-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1505-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M10X100 FLANGE 		0-28151-000-0 01 1 1505-
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1505-1506
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
267 BOLT; BRKT
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
267 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1505-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1505-1506
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1505-
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1505-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1505-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1505-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1505-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1505-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1505-
290 NUT; BRKT
DIFF LOCK<C3N> (C) M6 FLANGE 		0-91180-106-0 03 1 1507-
290 NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 02 1 1507-
295 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 01 1 1505-1506
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1505-1506
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1507-
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1507-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1505-1506
525 NUT; CLIP
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 01 1 1507-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1507-
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1505-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1505-
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1505-
535 BOLT; BRKT FIX
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-
535 BOLT; BRKT FIX
(A) M14X35 FLANGE 		0-28851-435-0 01 1 1505-
538 NUT
M8 FLANGE 		0-91180-108-0 02 1 1505-
639 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1505-
639 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
680 BOLT; ENG HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1505-
680 BOLT; ENG HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
