◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#161797) — 19 parça
çizim 476228
169 88
BalonParca AdiParca NoAdetTipApplied Date
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1505-
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 01 1 1505-

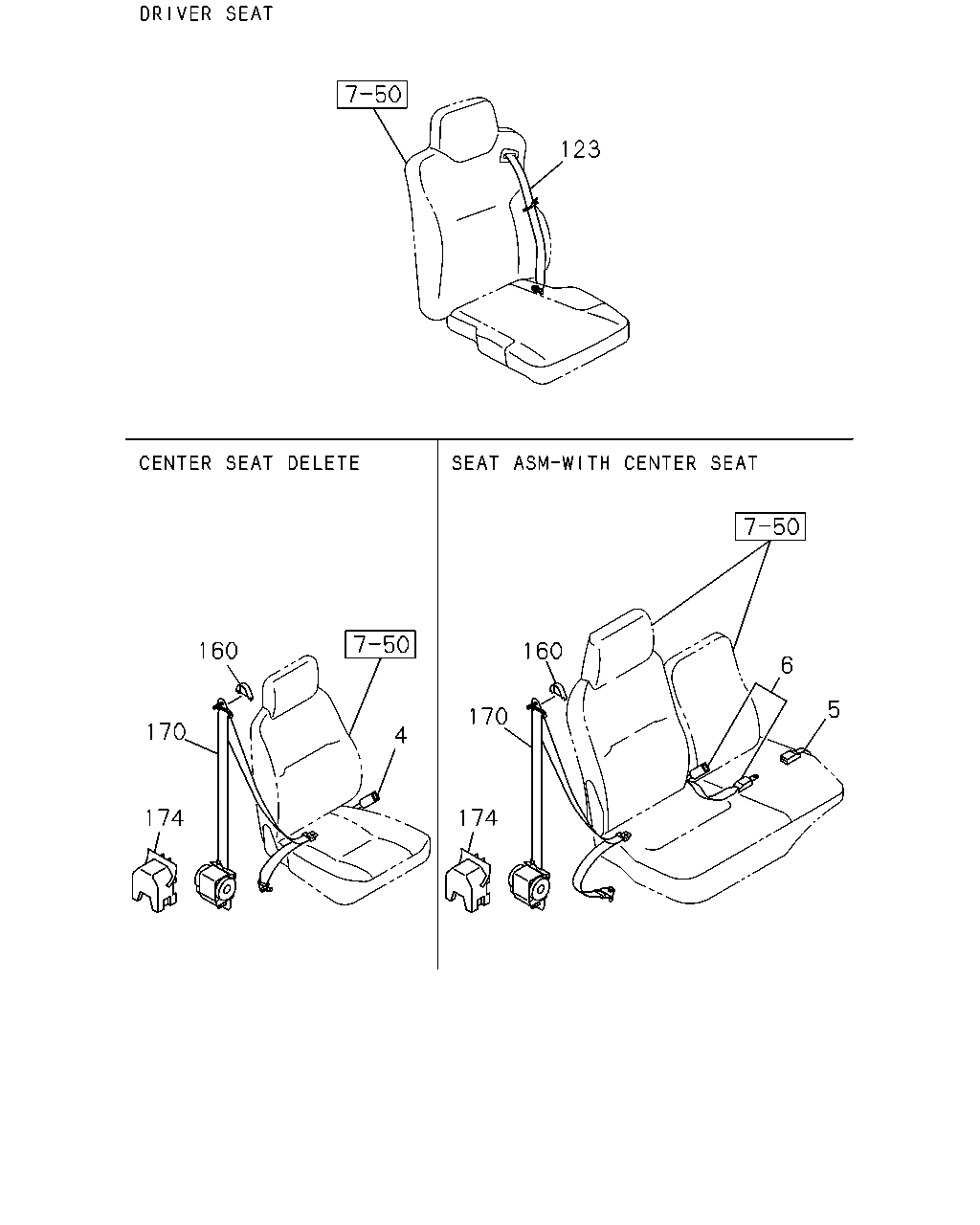

çizim 476839
123 4 160 170 174 5 6 160 170 174
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97409-769-1 01 1 1505-
5 BELT; CENTER SEAT,BUCKLE SIDE
FLEET USER PACKAGE<6SX> SEAT ASM - WITH CENTER SEAT<7BC> 		8-97466-332-1 01 1 1507-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1505-1506
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97407-377-1 01 1 1507-
6 BELT; CENTER SEAT,TONGUE SIDE
FLEET USER PACKAGE<6SX> SEAT ASM - WITH CENTER SEAT<7BC> 		8-97466-331-1 01 1 1507-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1505-1506
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97423-660-1 01 1 1507-
123 BELT ASM; SEAT 8-98097-970-0 01 1 1505-1506
123 BELT ASM; SEAT
EXC. FLEET USER PACKAGE<6SX> 		8-98097-970-0 01 1 1507-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1505-
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) FLEET USER PACKAGE<6SX> 		8-97466-329-0 01 1 1507-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FLEET USER PACKAGE<6SX> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97466-335-0 01 1 1507-
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1505-1506
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) EXC. FLEET USER PACKAGE<6SX> GRAY 		8-97428-394-0 01 1 1507-
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1505-1506
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5),FLEET USER PACKAGE<6SX> GRAY 		8-97428-435-0 01 1 1507-
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1505-
