7-50 — FRONT SEAT (#161796) — 170 parça

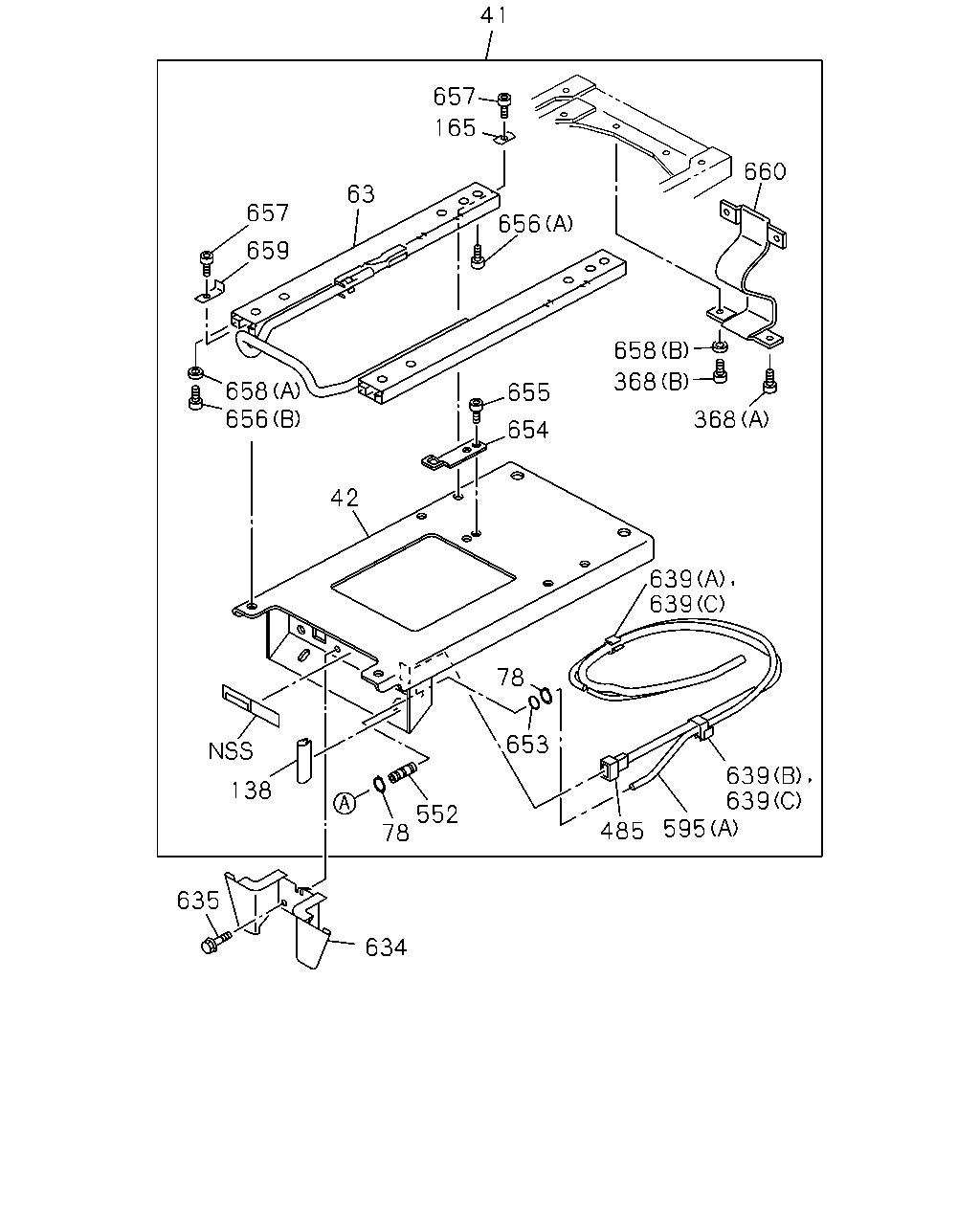

41 657 63 165 656 660 658 368 368 655 654 42 639 639 639 639 595 485 653 78 552 78 634 635 138 656 658 659 657

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER	8-98195-065-0	01	1	1505-1506
41	SEAT ASM; DRIVER EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1507-
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	1505-1506
42	STAND; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX>	8-98106-346-0	01	1	1507-
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	1505-1506
63	ADJUSTER; SEAT SLIDE EXC. FLEET USER PACKAGE<6SX>	8-98098-005-0	01	1	1507-
78	RING; SNAP	8-98101-900-0	02	1	1505-1506
78	RING; SNAP EXC. FLEET USER PACKAGE<6SX>	8-98101-900-0	02	1	1507-
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1505-1506
138	PROTECTOR; SEAT STAND EXC. FLEET USER PACKAGE<6SX>	8-98106-351-0	01	1	1507-
165	WASHER; PL	1-75590-086-0	04	1	1505-1506
165	WASHER; PL EXC. FLEET USER PACKAGE<6SX>	1-75590-086-0	04	1	1507-
368	BOLT; SEAT (A)	8-98106-353-0	03	1	1505-1506
368	BOLT; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-353-0	03	1	1507-
368	BOLT; SEAT (B)	8-98106-358-0	01	1	1505-1506
368	BOLT; SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-358-0	01	1	1507-
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	1505-1506
485	HARNESS; FRT SEAT EXC. FLEET USER PACKAGE<6SX>	8-98106-360-0	01	1	1507-
552	CONNECTOR	8-98101-902-0	01	1	1505-1506
552	CONNECTOR EXC. FLEET USER PACKAGE<6SX>	8-98101-902-0	01	1	1507-1508
552	CONNECTOR EXC. FLEET USER PACKAGE<6SX>	8-98308-101-0	01	1	1509-
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1505-1508
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1509-
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1505-1506
595	TUBE; NYLON EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-348-0	01	1	1507-
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	1505-
635	BOLT; COVER M6X16	0-52000-616-0	02	1	1505-
639	CLIP; SEAT (B)	8-98106-350-0	01	1	1505-1506
639	CLIP; SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-350-0	01	1	1507-1508
639	CLIP; SEAT (A)	8-98106-349-0	01	1	1505-1506
639	CLIP; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-349-0	01	1	1507-1508
639	CLIP; SEAT EXC. FLEET USER PACKAGE<6SX> (C)	8-98308-100-0	02	1	1509-
653	GASKET	8-98101-901-0	01	1	1505-1506
653	GASKET EXC. FLEET USER PACKAGE<6SX>	8-98101-901-0	01	1	1507-
654	HOOK; STOPPER	8-98106-352-0	01	1	1505-1506
654	HOOK; STOPPER EXC. FLEET USER PACKAGE<6SX>	8-98106-352-0	01	1	1507-
655	BOLT; HOOK	8-98106-353-0	02	1	1505-1506
655	BOLT; HOOK EXC. FLEET USER PACKAGE<6SX>	8-98106-353-0	02	1	1507-
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1505-1506
656	BOLT; SLIDER TO SEAT EXC. FLEET USER PACKAGE<6SX> (A)	1-75590-085-0	04	1	1507-
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1505-1506
656	BOLT; SLIDER TO SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-354-0	02	1	1507-
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1505-1506
657	BOLT; SLIDER TO STAND EXC. FLEET USER PACKAGE<6SX>	1-75590-085-0	06	1	1507-
658	SPACER; BOLT (A)	8-98106-355-0	02	1	1505-1506
658	SPACER; BOLT EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-355-0	02	1	1507-
658	SPACER; BOLT (B)	8-98106-359-0	01	1	1505-1506
658	SPACER; BOLT EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-359-0	01	1	1507-
659	STOPPER	8-98106-356-0	02	1	1505-1506
659	STOPPER EXC. FLEET USER PACKAGE<6SX>	8-98106-356-0	02	1	1507-
660	BELT; TETHER	8-98106-357-0	01	1	1505-1506
660	BELT; TETHER EXC. FLEET USER PACKAGE<6SX>	8-98106-357-0	01	1	1507-

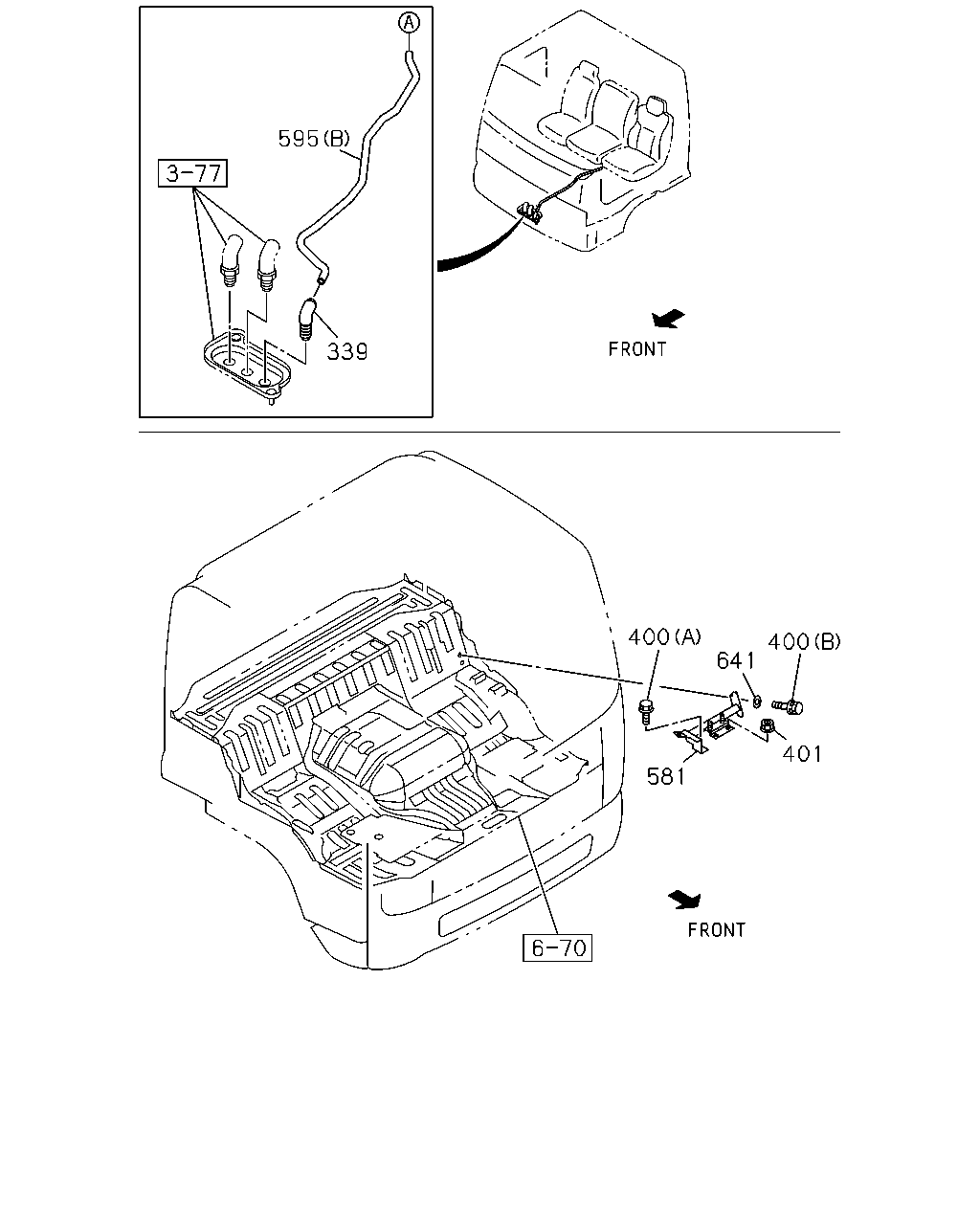

595 339 400 641 400 401 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	1505-1508
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	1509-
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	1505-
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	1505-
581	PIPE; SEAT	8-98049-531-3	01	1	1505-
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1505-1508
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1509-
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1505-1506
595	TUBE; NYLON EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-348-0	01	1	1507-
641	WASHER; SUPPORT	8-98099-007-0	02	1	1505-

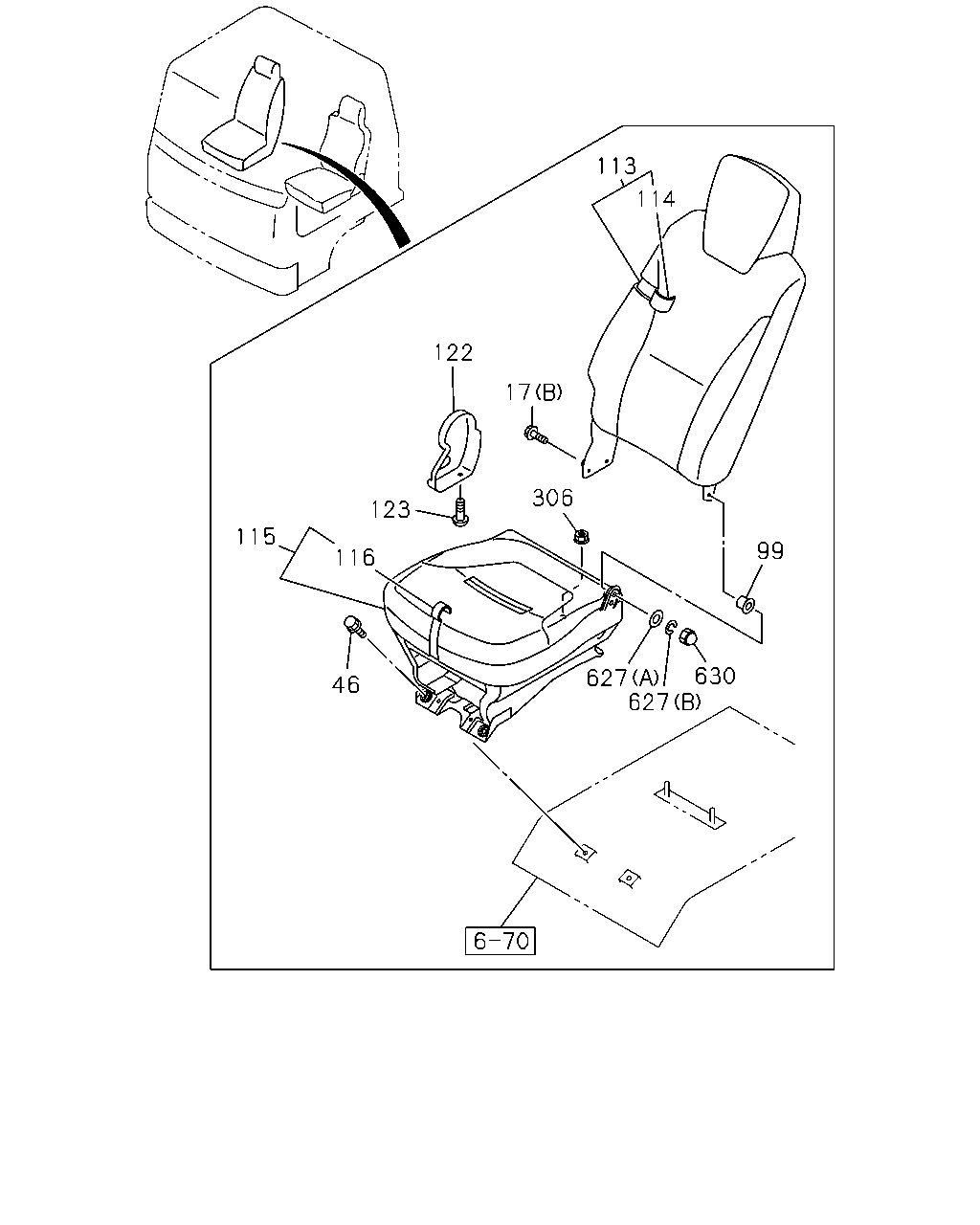

113 99 630 627 627 46 115 116 123 306 122 17 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1505-
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1505-1506
17	BOLT; RECLINING EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-974-0	02	1	1507-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1505-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1505-
113	BACK ASM; SEAT DARK GRAY	8-97421-423-0	01	1	1505-
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-425-0	01	1	1505-
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-419-1	01	1	1505-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-421-0	01	1	1505-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1505-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1505-
306	NUT; SEAT ADJ M10 FLANGE	0-91180-110-0	02	1	1505-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1505-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1505-
630	NUT; CAP M8	8-98063-225-0	01	1	1505-

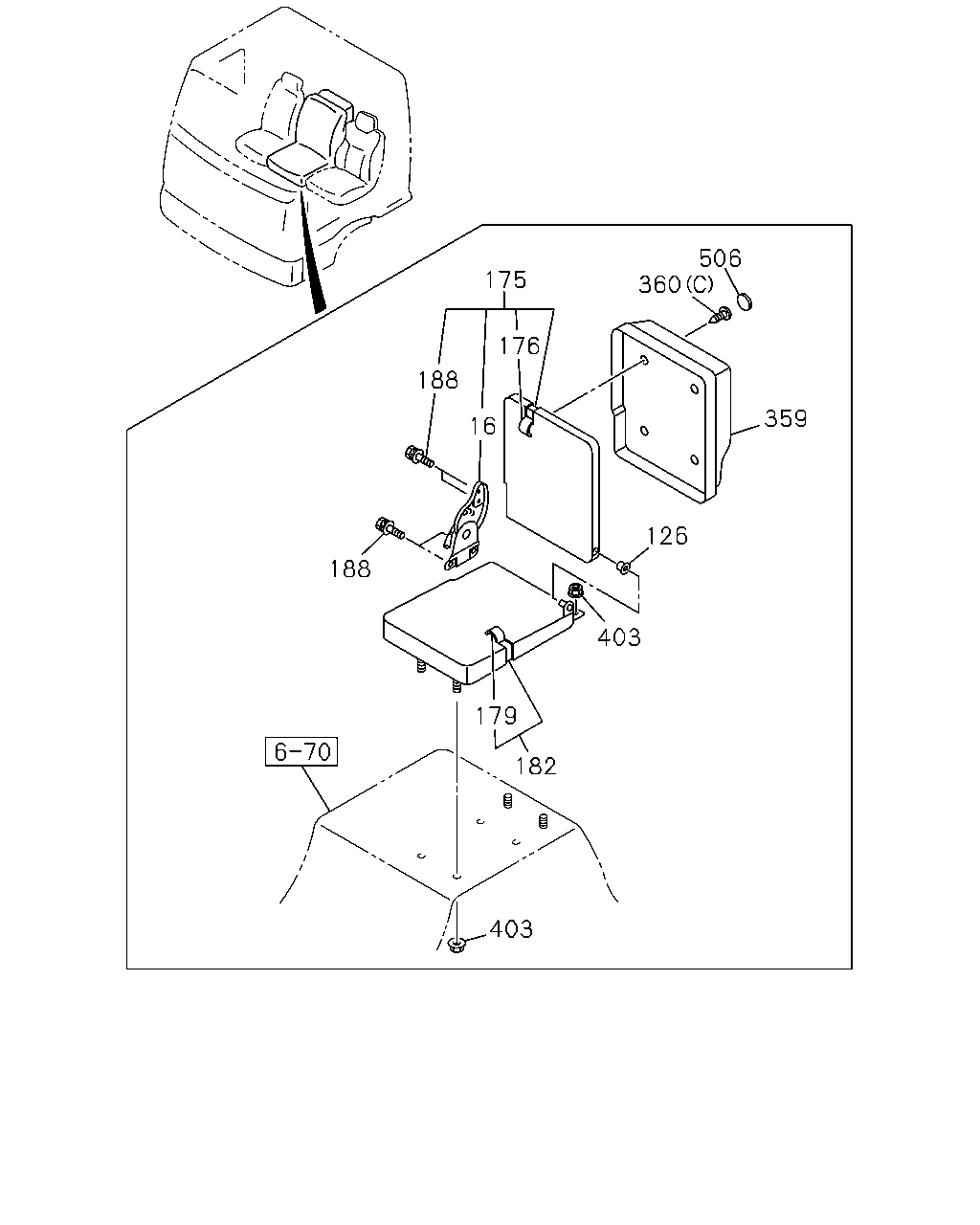

175 188 403 179 506 359 176 16 403 182 188 126 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1505-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	8-97854-900-0	01	1	1505-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1505-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1505-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-433-1	01	1	1505-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-431-3	01	1	1505-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1505-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1505-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1505-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1505-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1505-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1505-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1505-

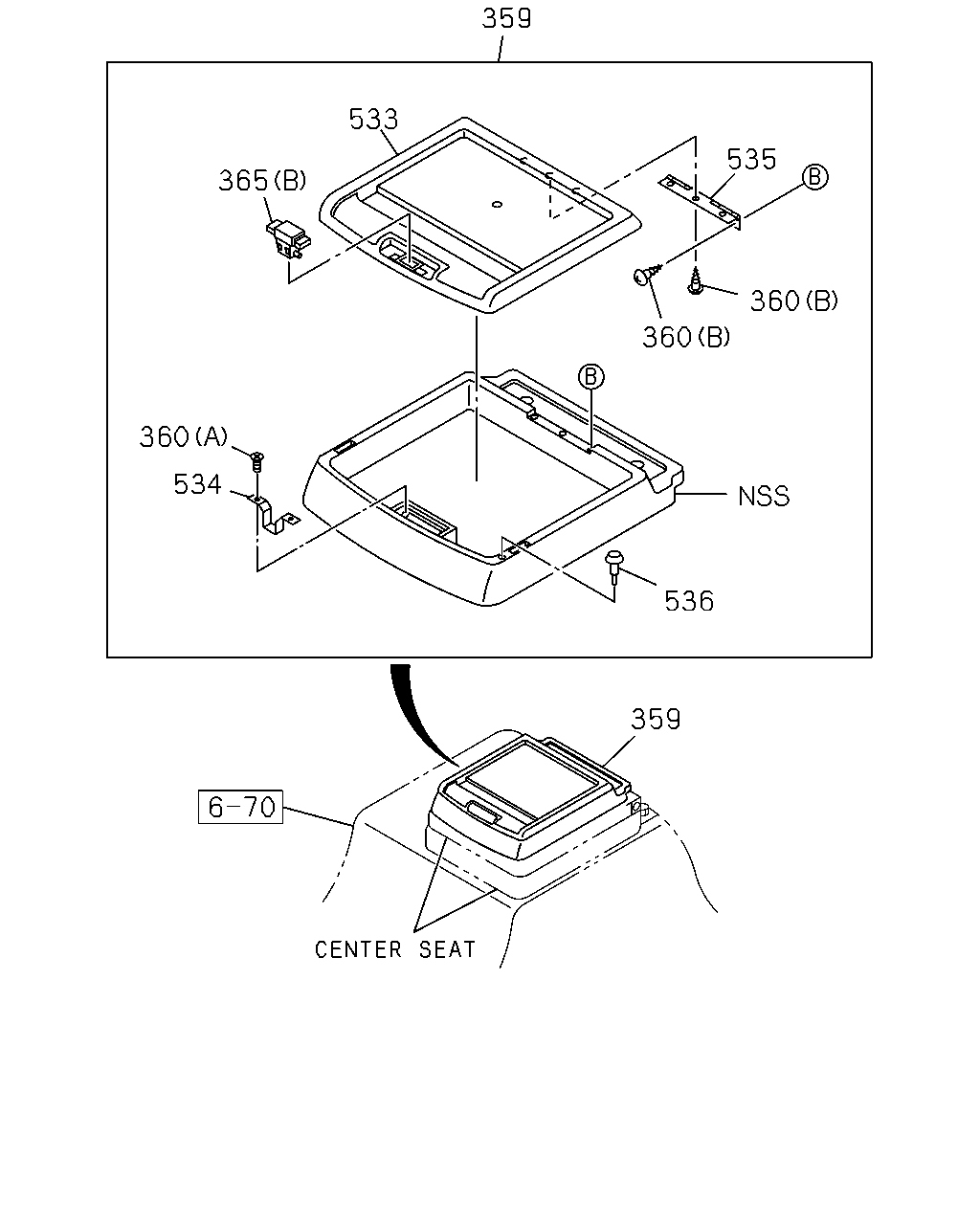

359 533 365 360 534 536 360 360 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1505-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1505-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1505-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1505-
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1505-1506
365	LOCK ASM; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-972-0	01	1	1507-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1505-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1505-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1505-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1505-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1505-

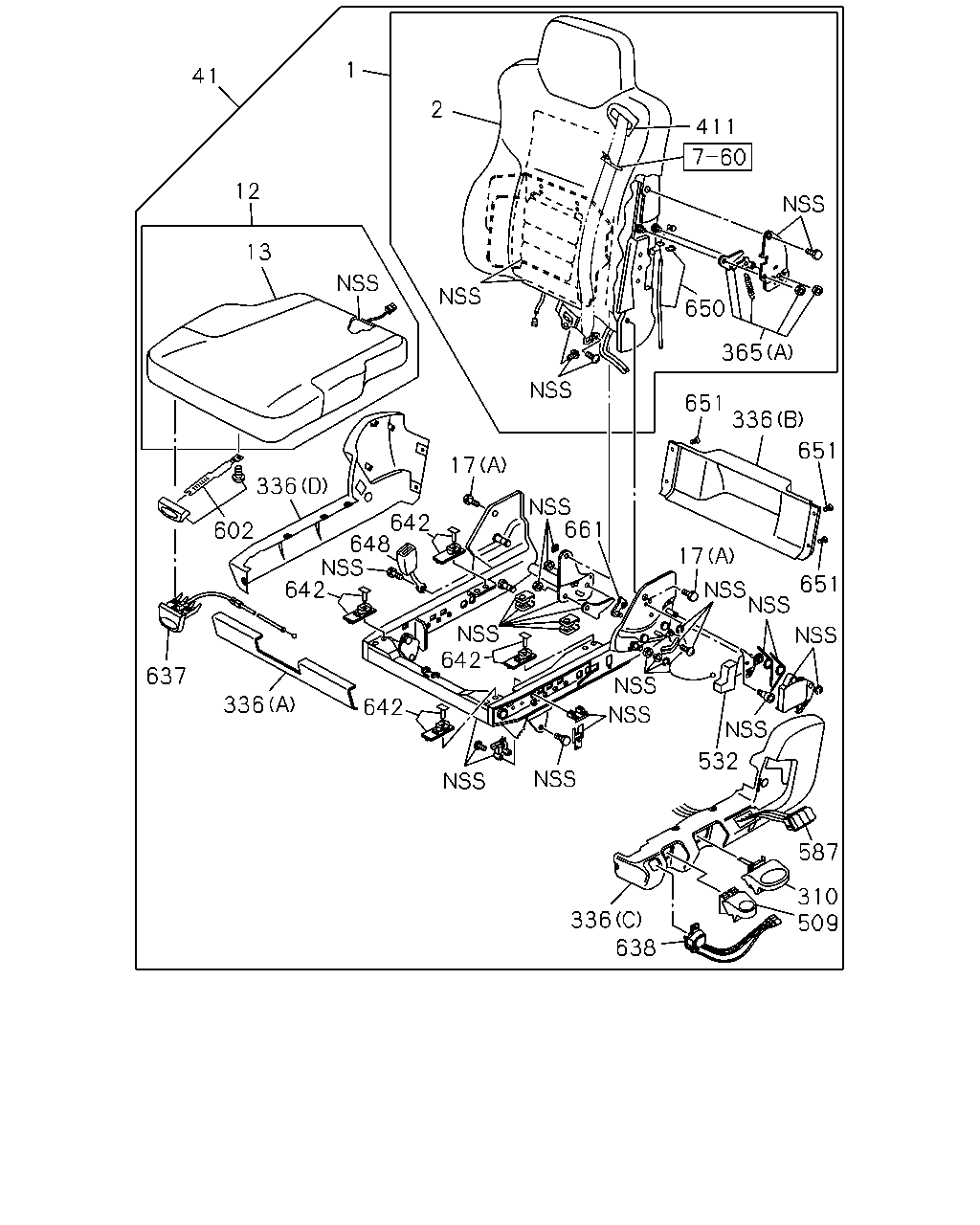

638 336 587 310 509 532 651 17 336 637 642 642 602 336 648 642 17 13 12 41 1 2 411 650 651 651 661 365 336 642

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT	8-98097-962-0	01	1	1505-1506
1	BACK ASM; SEAT EXC. FLEET USER PACKAGE<6SX>	8-98097-962-0	01	1	1507-
2	COVER; TRIM,FRT SEAT,BACK	8-98232-352-0	01	1	1505-1506
2	COVER; TRIM,FRT SEAT,BACK EXC. FLEET USER PACKAGE<6SX>	8-98232-352-0	01	1	1507-
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	1505-1506
12	CUSHION; SEAT,FRT EXC. FLEET USER PACKAGE<6SX>	8-98098-006-0	01	1	1507-
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	1505-1506
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FLEET USER PACKAGE<6SX>	8-98098-007-0	01	1	1507-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1505-
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1505-1506
17	BOLT; RECLINING EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-974-0	02	1	1507-
41	SEAT ASM; DRIVER	8-98195-065-0	01	1	1505-1506
41	SEAT ASM; DRIVER EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1507-
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-991-0	01	1	1505-1506
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT EXC. FLEET USER PACKAGE<6SX>	8-98097-991-0	01	1	1507-
336	COVER; DRIVER SEAT (D)	8-98097-977-0	01	1	1505-1506
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (D)	8-98097-977-0	01	1	1507-1508
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (D)	8-98333-916-0	01	1	1509-
336	COVER; DRIVER SEAT (C)	8-98097-983-0	01	1	1505-1506
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-983-0	01	1	1507-
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1505-1506
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-995-0	01	1	1507-
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1505-1506
336	COVER; DRIVER SEAT EXC. FLEET USER PACKAGE<6SX> (B)	8-98097-996-0	01	1	1507-
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1505-1506
365	LOCK ASM; SEAT EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-972-0	01	1	1507-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1505-
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1505-1506
411	GUIDE; SEAT BELT EXC. FLEET USER PACKAGE<6SX>	8-98097-967-0	01	1	1507-
509	LEVER; DAMPER	8-98097-987-0	01	1	1505-1506
509	LEVER; DAMPER EXC. FLEET USER PACKAGE<6SX>	8-98097-987-0	01	1	1507-
532	LEVER ASM; TILT	8-98097-981-0	01	1	1505-1506
532	LEVER ASM; TILT EXC. FLEET USER PACKAGE<6SX>	8-98097-981-0	01	1	1507-
587	VALVE; LUMBAR SUPPORT	8-98097-985-0	01	1	1505-1506
587	VALVE; LUMBAR SUPPORT EXC. FLEET USER PACKAGE<6SX>	8-98097-985-0	01	1	1507-
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1505-1506
602	KNOB; ADJ,SEAT EXC. FLEET USER PACKAGE<6SX>	8-98098-008-0	01	1	1507-
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1505-1506
637	LEVER; SLOPE ADJ EXC. FLEET USER PACKAGE<6SX>	8-98097-989-0	01	1	1507-
638	VALVE; LOWERING	8-98097-993-0	01	1	1505-1506
638	VALVE; LOWERING EXC. FLEET USER PACKAGE<6SX>	8-98097-993-0	01	1	1507-
642	SLIDER; CUSHION	8-98192-932-0	04	1	1505-1506
642	SLIDER; CUSHION EXC. FLEET USER PACKAGE<6SX>	8-98192-932-0	04	1	1507-
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1505-1506
648	BUCKLE; SEAT BELT EXC. FLEET USER PACKAGE<6SX>	8-98097-976-0	01	1	1507-
650	CABLE	8-98232-354-0	01	1	1505-1506
650	CABLE EXC. FLEET USER PACKAGE<6SX>	8-98232-354-0	01	1	1507-
651	RIVET	8-98194-075-0	04	1	1505-1506
651	RIVET EXC. FLEET USER PACKAGE<6SX>	8-98194-075-0	04	1	1507-
661	LOCK ASM; RECLINING	8-98097-979-0	01	1	1505-1506
661	LOCK ASM; RECLINING EXC. FLEET USER PACKAGE<6SX>	8-98097-979-0	01	1	1507-

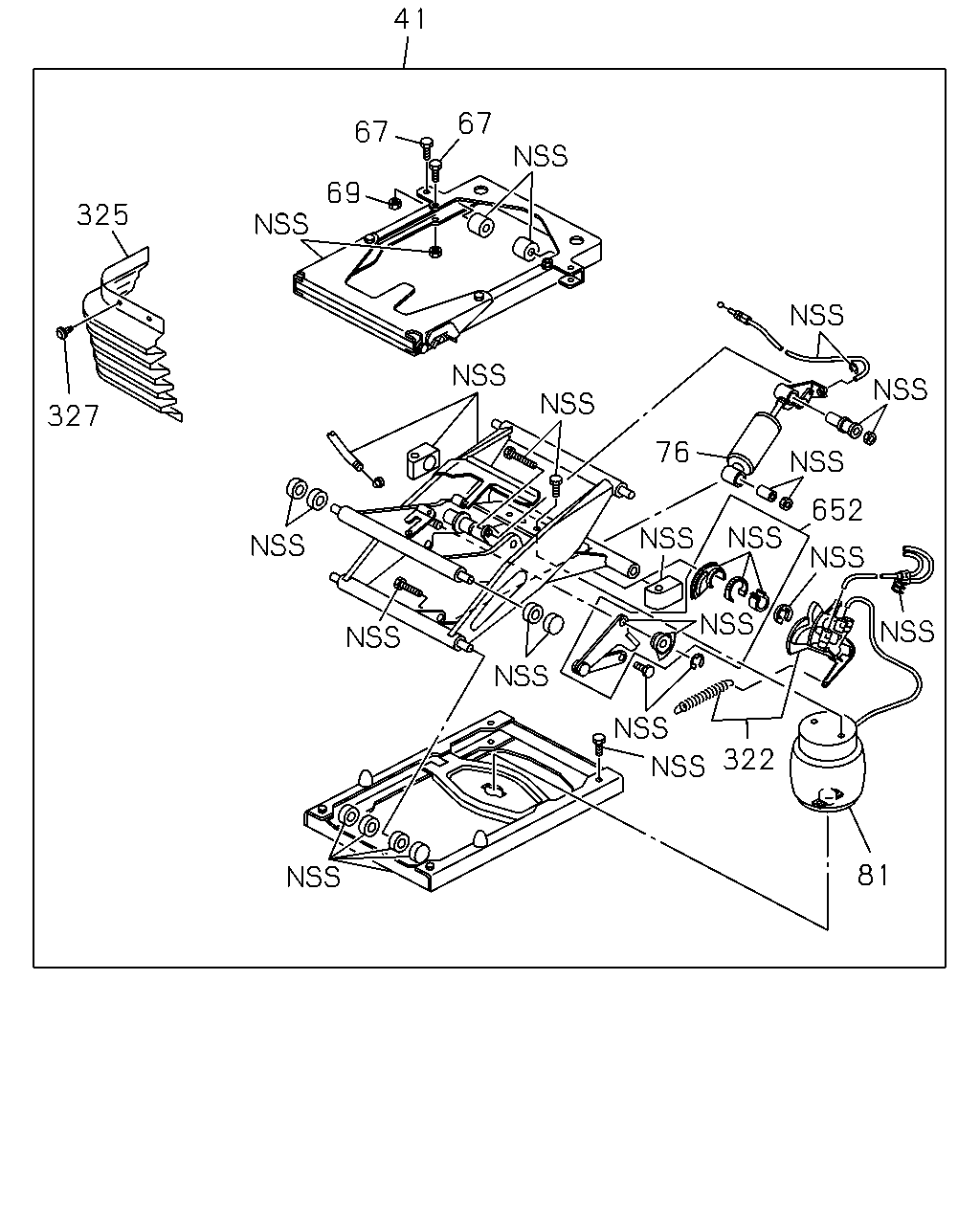

67 76 652 81 322 327 325 69 67 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER	8-98195-065-0	01	1	1505-1506
41	SEAT ASM; DRIVER EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1507-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1505-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1505-
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	1505-1506
76	DAMPER; AIR SUSP EXC. FLEET USER PACKAGE<6SX>	8-98097-999-0	01	1	1507-
81	SPRING; AIR	8-98098-000-0	01	1	1505-1506
81	SPRING; AIR EXC. FLEET USER PACKAGE<6SX>	8-98098-000-0	01	1	1507-
322	VALVE; AIR SPRING	8-98098-001-0	01	1	1505-1506
322	VALVE; AIR SPRING EXC. FLEET USER PACKAGE<6SX>	8-98098-001-0	01	1	1507-1508
322	VALVE; AIR SPRING EXC. FLEET USER PACKAGE<6SX>	8-98331-314-0	01	1	1509-
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1505-1506
325	COVER; SUSPENSION DEVICE EXC. FLEET USER PACKAGE<6SX>	8-98098-003-0	01	1	1507-
327	CLIP; COVER	8-98098-004-0	01	1	1505-1506
327	CLIP; COVER EXC. FLEET USER PACKAGE<6SX>	8-98098-004-0	01	1	1507-
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1505-1506
652	LOCK ASM; HEIGHT EXC. FLEET USER PACKAGE<6SX>	8-98098-002-0	01	1	1507-
