◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#161792) — 148 parça

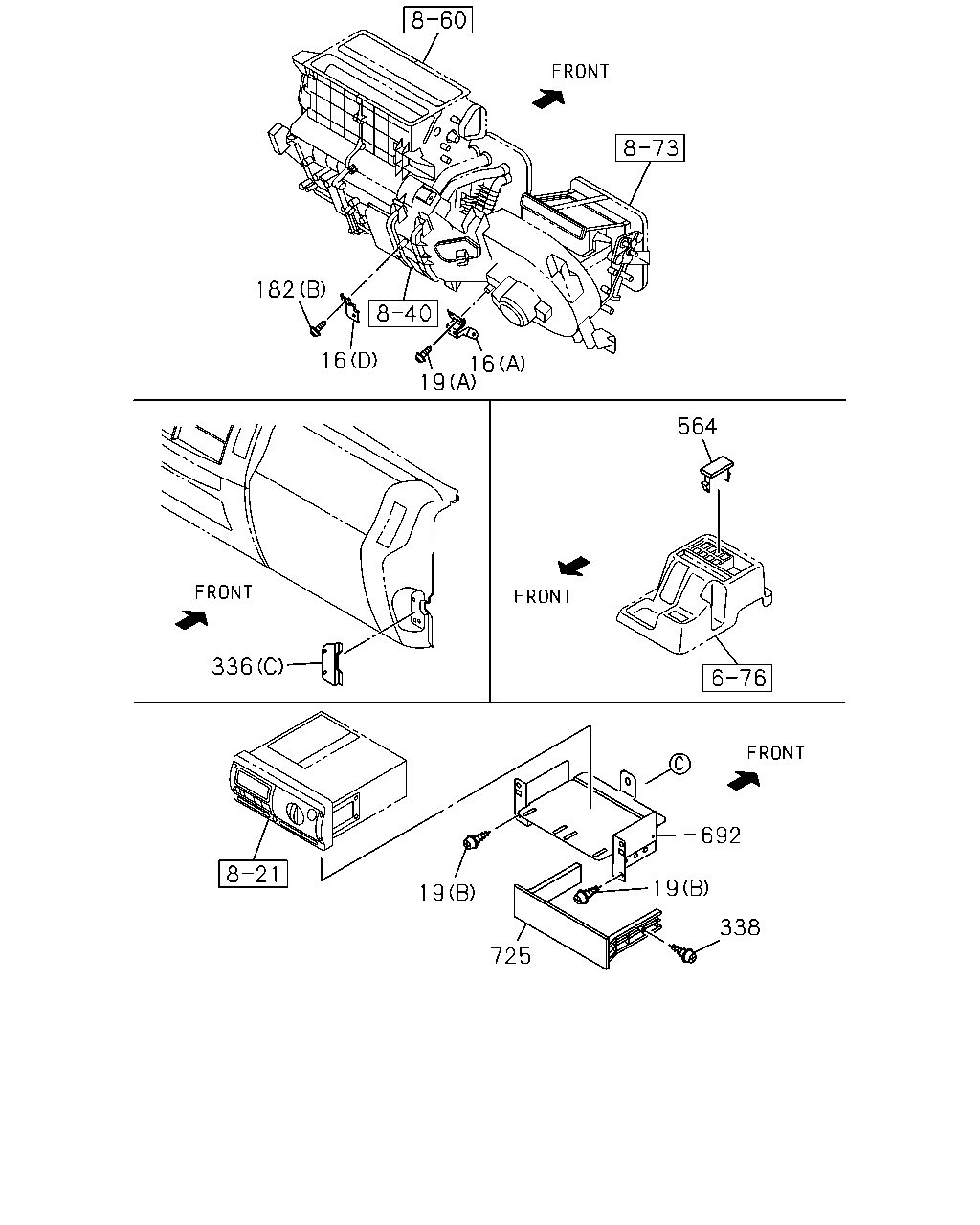

çizim 476278
692 338 19 725 19 336 16 19 16 182 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1505-
16 BRACKET; INST PNL
(D) 		8-98017-527-0 01 1 1505-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1505-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1505-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1505-
19 SCREW; BRKT
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505-1508
19 SCREW; BRKT
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1505-1506
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1507-1508
19 SCREW; BRKT
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1507-1508
19 SCREW; BRKT
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509-
19 SCREW; BRKT
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1505-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1505-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505-1508
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1505-1508
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1509-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1505-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1505-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1505-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1505-
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1505-1506
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1507-1508
338 SCREW; COVER
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1507-1508
338 SCREW; COVER
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
338 SCREW; COVER
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
564 COVER; SW 8-97043-732-1 06 1 1505-
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-98094-272-0 01 1 1505-1506
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 1507-1508
692 BRACKET; TACHOGRAPH
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1507-1508
692 BRACKET; TACHOGRAPH
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1509-
692 BRACKET; TACHOGRAPH
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1509-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1505-1506
725 COVER; TACHOGRAPH
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> BLACK 		8-97407-896-2 01 1 1507-
725 COVER; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 1507-

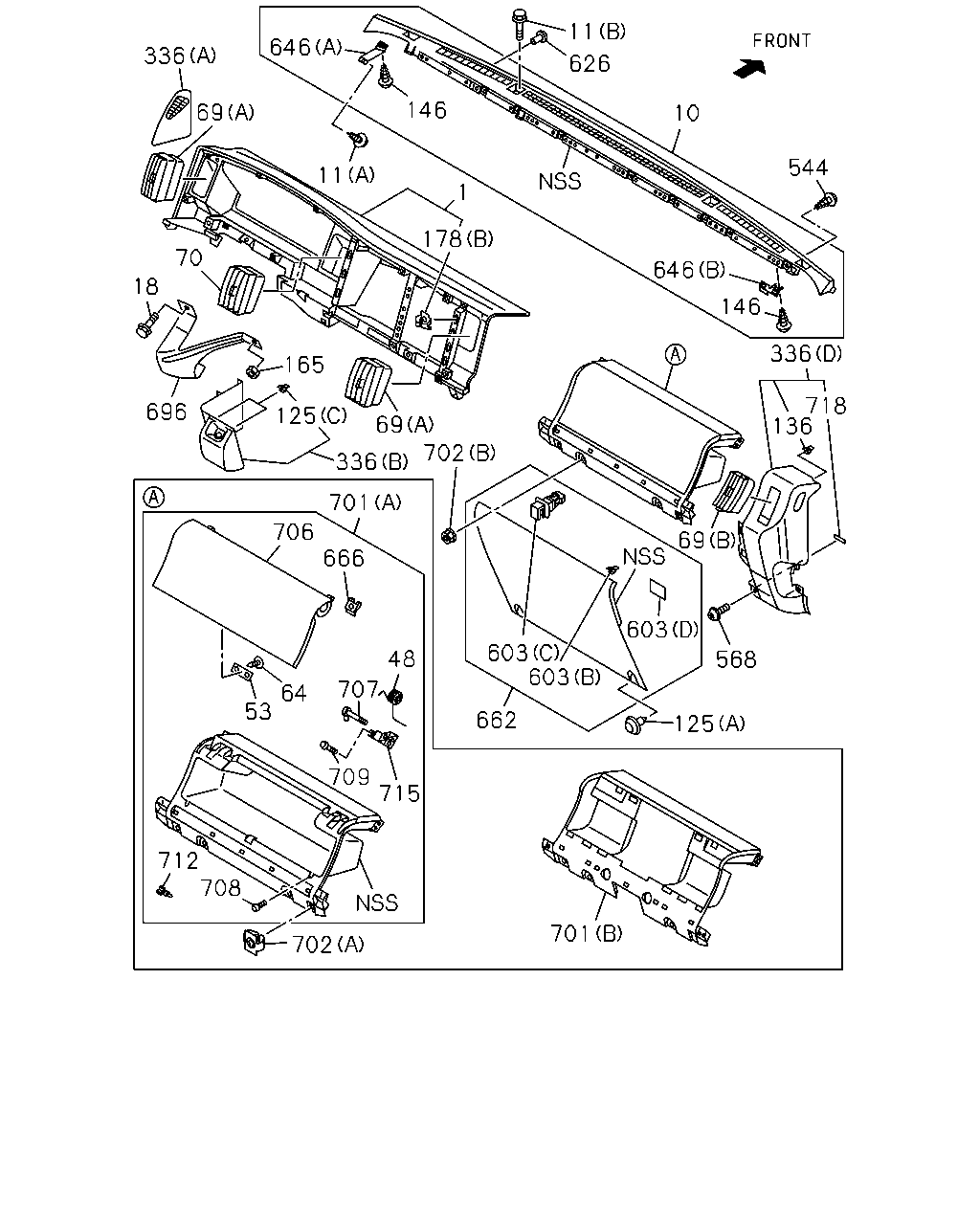

çizim 476499
336 646 69 11 70 18 165 696 125 69 336 702 1 178 146 11 626 10 544 646 146 336 718 136 69 603 568 603 603 125 662 701 706 666 48 707 64 53 709 715 712 708 702 701
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1505-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1505-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1505-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1505-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1505-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1505-1508
48 SPRING; GLOVE BOX LID
AIR BAG DRIVER(AJ3) 		8-98270-763-0 01 1 1509-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1505-1508
48 SPRING; GLOVE BOX LID
AIR BAG DRIVER(AJ3) 		8-98270-764-0 01 1 1509-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-765-0 01 1 1505-1508
53 STRIKER; GLOVE BOX
AIR BAG DRIVER(AJ3) 		8-98270-765-0 01 1 1509-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) M4X85 		8-97926-404-0 02 1 1505-1508
64 SCREW; STRIKER
AIR BAG DRIVER(AJ3) M4X85 		8-97926-404-0 02 1 1509-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1505-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1505-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1505-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1505-
136 CLIP; INST COVER 8-98076-254-0 02 1 1505-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1505-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1505-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1505-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1505-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1505-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1505-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1505-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1505-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1505-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505-1508
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1505-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1505-
603 CLIP; COVER
(E) 		8-98021-271-0 01 1 1505-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1505-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1505-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1505-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1505-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1505-
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1505-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1505-1508
666 INSERT; INST PANEL
AIR BAG DRIVER(AJ3) M5 		8-97926-400-0 04 1 1509-
696 BRACKET; KNEE 8-98098-126-1 01 1 1505-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 1505-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1505-1508
701 TRAY; INST
AIR BAG DRIVER(AJ3) (A) GRAY 		8-97429-703-1 01 1 1509-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1505-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1505-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1505-1508
706 LID; TRAY INST
AIR BAG DRIVER(AJ3) GRAY 		8-97429-992-0 01 1 1509-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1505-1508
707 SHAFT; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-97926-393-0 02 1 1509-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1505-1508
708 STOPPER; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-98010-867-1 02 1 1509-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1505-1508
709 SCREW; TRAY INST
AIR BAG DRIVER(AJ3) M5X16 TAPPING 		0-71040-516-0 04 1 1509-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1505-1508
712 LOCK; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-98031-846-0 01 1 1509-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1505-1508
715 SUPPORT; TRAY,HINGE
AIR BAG DRIVER(AJ3) 		8-97926-396-0 01 1 1509-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1505-1508
715 SUPPORT; TRAY,HINGE
AIR BAG DRIVER(AJ3) 		8-97926-397-0 01 1 1509-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1505-

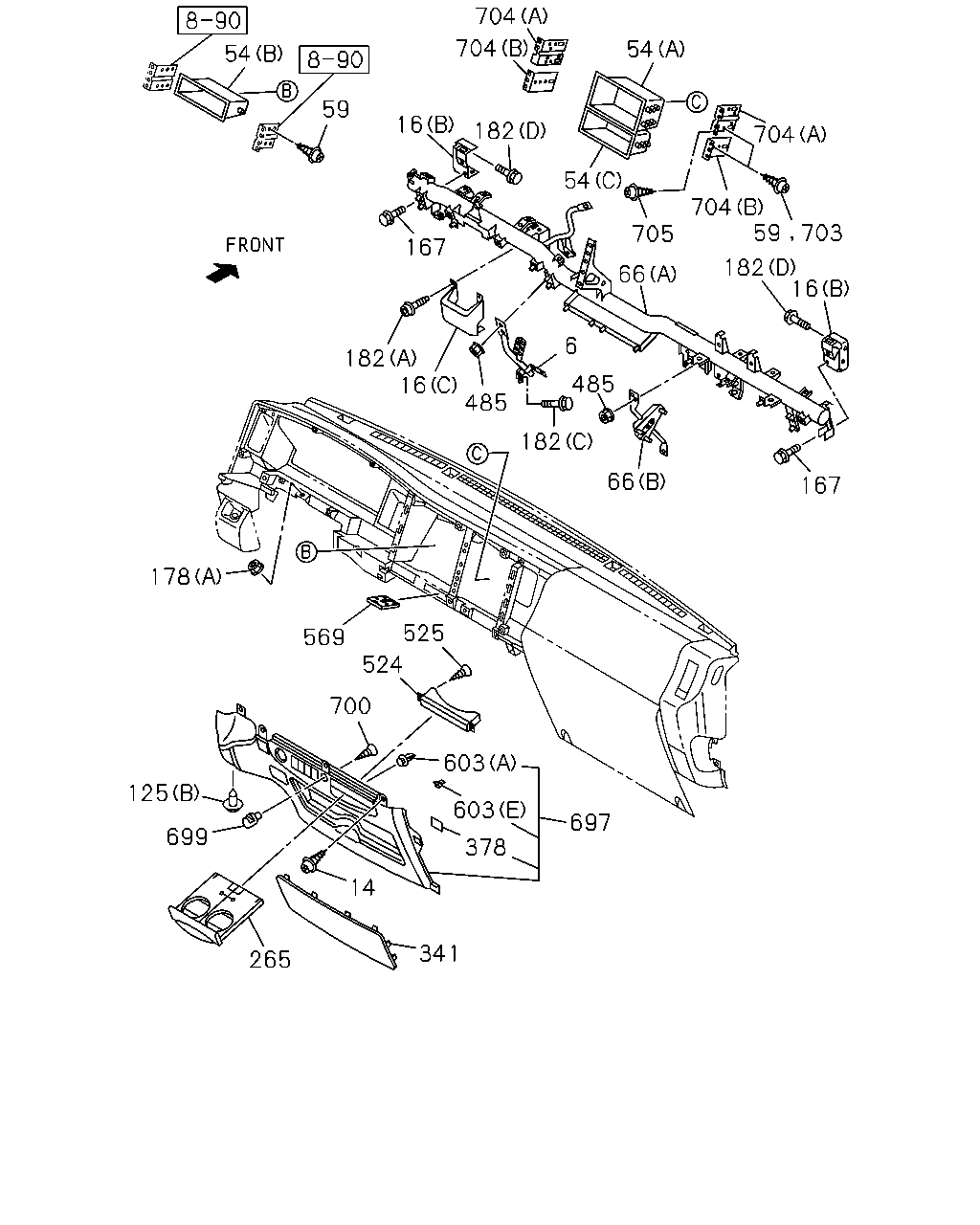

çizim 476651
54 59 704 704 54 16 182 167 54 704 704 59 703 182 16 705 66 6 167 66 182 485 16 182 178 525 569 524 700 603 603 378 697 125 699 14 341 265 485
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1505-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1505-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1505-
16 BRACKET; INST PNL
(D) 		8-98017-527-0 01 1 1505-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1505-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1505-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1505-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1505-1508
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1509-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1505-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1505-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1505-1508
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1505-1508
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1509-
66 REINFORCEMENT; INST PANEL
(B) 		8-98082-466-1 01 1 1505-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98253-177-0 01 1 1505-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98248-349-0 01 1 1505-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1505-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1505-1508
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1509-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1505-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1505-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1505-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1505-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505-1508
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1505-1508
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1509-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1505-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1505-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1505-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1505-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1505-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1505-
569 HOLDER; CARD 8-97410-276-1 01 1 1505-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1505-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1505-
603 CLIP; COVER
(E) 		8-98021-271-0 01 1 1505-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1505-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1505-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1505-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1505-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1505-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1505-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1505-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1505-
