7-10 — CAUTION PLATE AND LABEL (#161789) — 19 parça

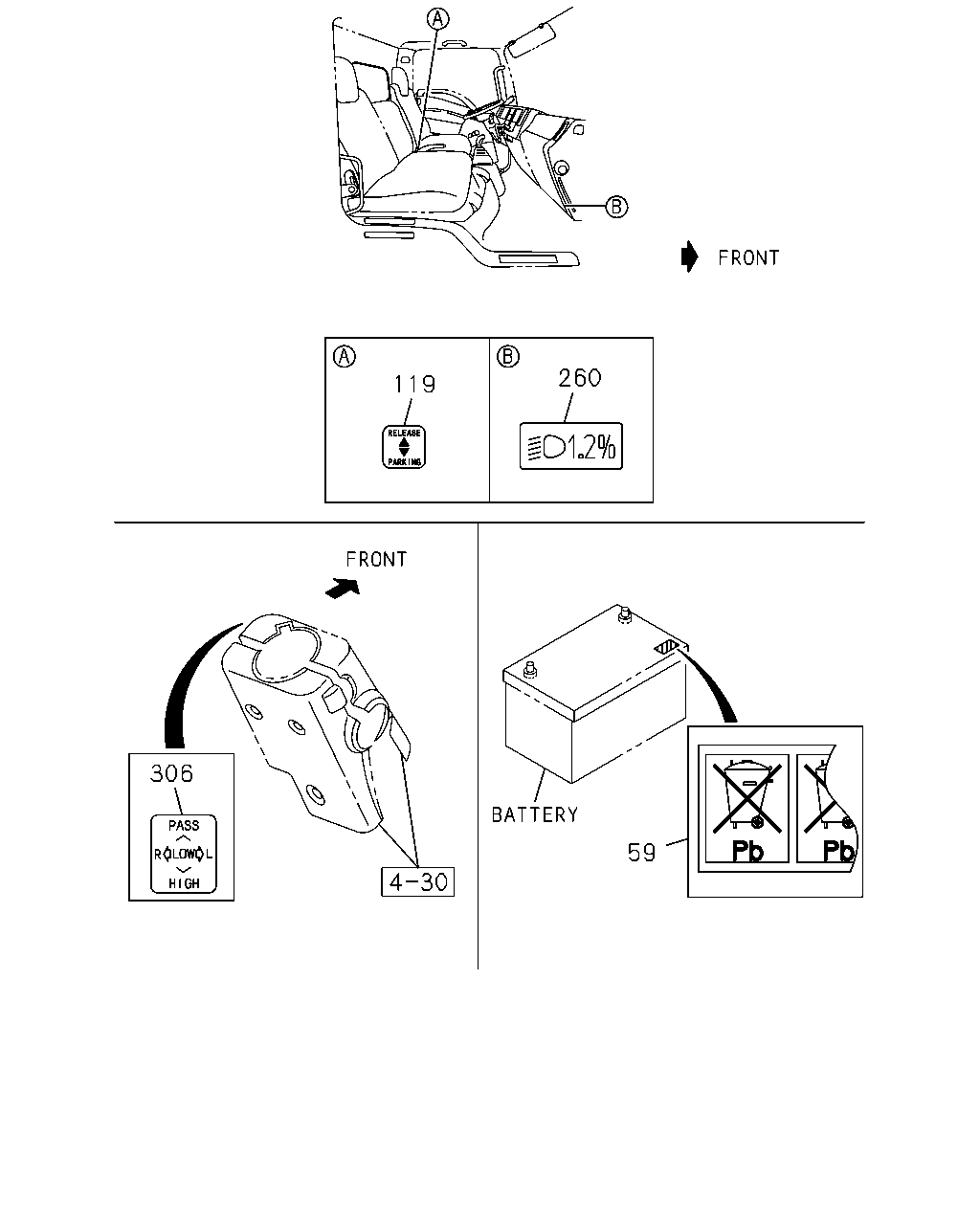

çizim 476184

119 260 306 59

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	59	PLATE; CAUTION,BATTERY 10 PER 1 SHEET	8-97116-760-0	02	1	1505-1506
	59	PLATE; CAUTION,BATTERY EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET	8-97116-760-0	02	1	1507-
	119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1505-
	260	PLATE; CAUTION,HEAD LAMP LEVELING EUROPE EQUIPMENT(E09)	1-85878-416-1	01	1	1505-1510
	260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-416-1	01	1	1511-
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1505-

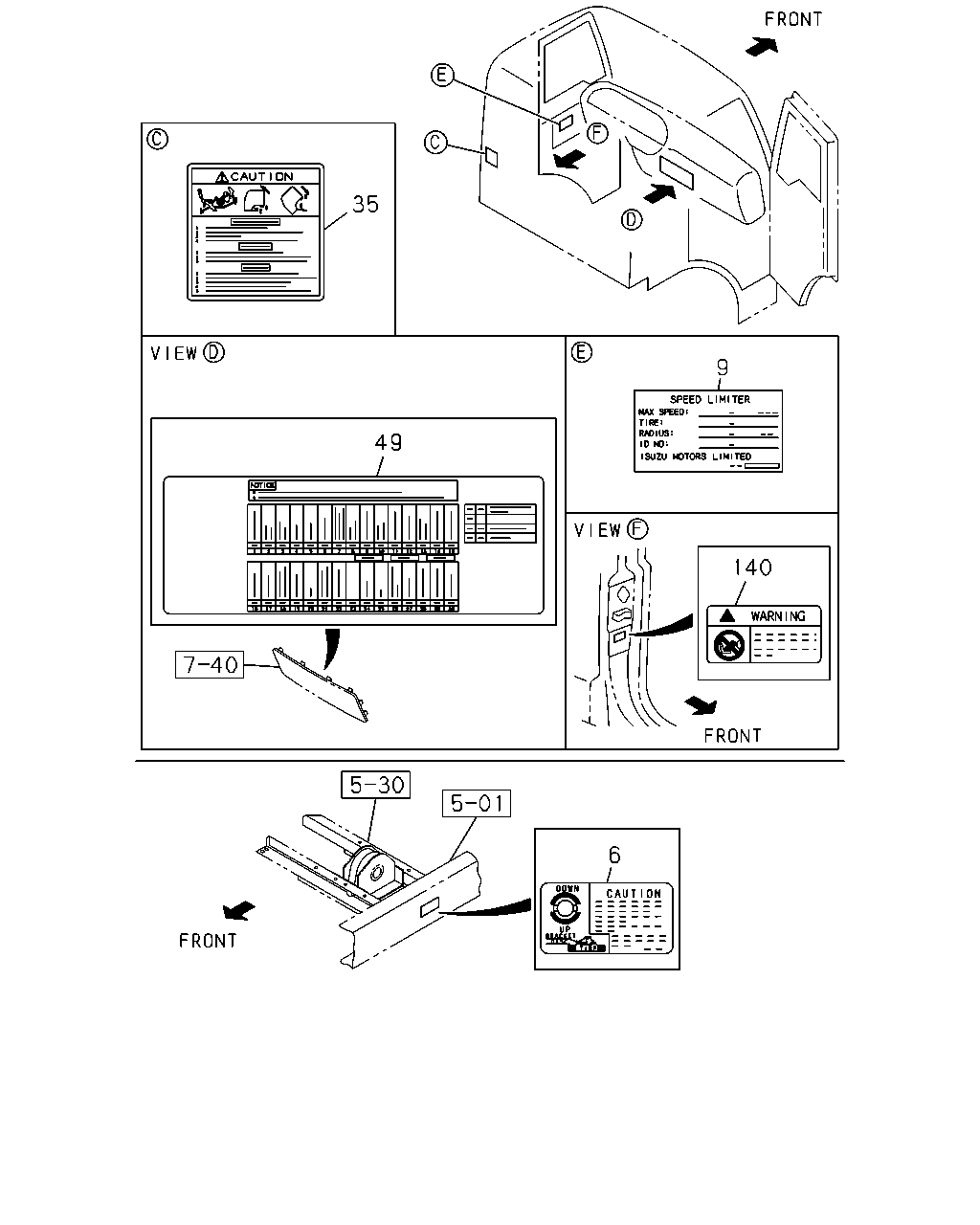

çizim 476807

35 9 49 6 140

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>	8-98082-437-0	01	1	1505-
	9	PLATE; NAME,SPD RANGE TIRE 245/70R19.5-136/134M RIB EEC(5J8) SMOOTHER-FX(TYPE2)(8NS)	8-98285-252-0	01	1	1505-1506
	9	PLATE; NAME,SPD RANGE TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) SMOOTHER-FX(TYPE2)(8NS)	8-98285-252-0	01	1	1507-
	9	PLATE; NAME,SPD RANGE TIRE 245/70R19.5-136/134M RIB EEC(5J8) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98285-250-0	01	1	1505-1506
	9	PLATE; NAME,SPD RANGE TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98285-250-0	01	1	1507-
	9	PLATE; NAME,SPD RANGE TIRE 265/70R19.5-140/138M RIB EEC(5S2) SMOOTHER-FX(TYPE2)(8NS)	8-98285-253-0	01	1	1505-1506
	9	PLATE; NAME,SPD RANGE TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) SMOOTHER-FX(TYPE2)(8NS)	8-98285-253-0	01	1	1507-
	9	PLATE; NAME,SPD RANGE TIRE 265/70R19.5-140/138M RIB EEC(5S2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98285-251-0	01	1	1505-1506
	9	PLATE; NAME,SPD RANGE TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98285-251-0	01	1	1507-
	35	PLATE; CAUTION,CAB	8-98065-363-0	01	1	1505-
	49	PLATE; CAUTION,FUSE BOX	8-98284-560-0	01	1	1505-
	140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	02	1	1505-

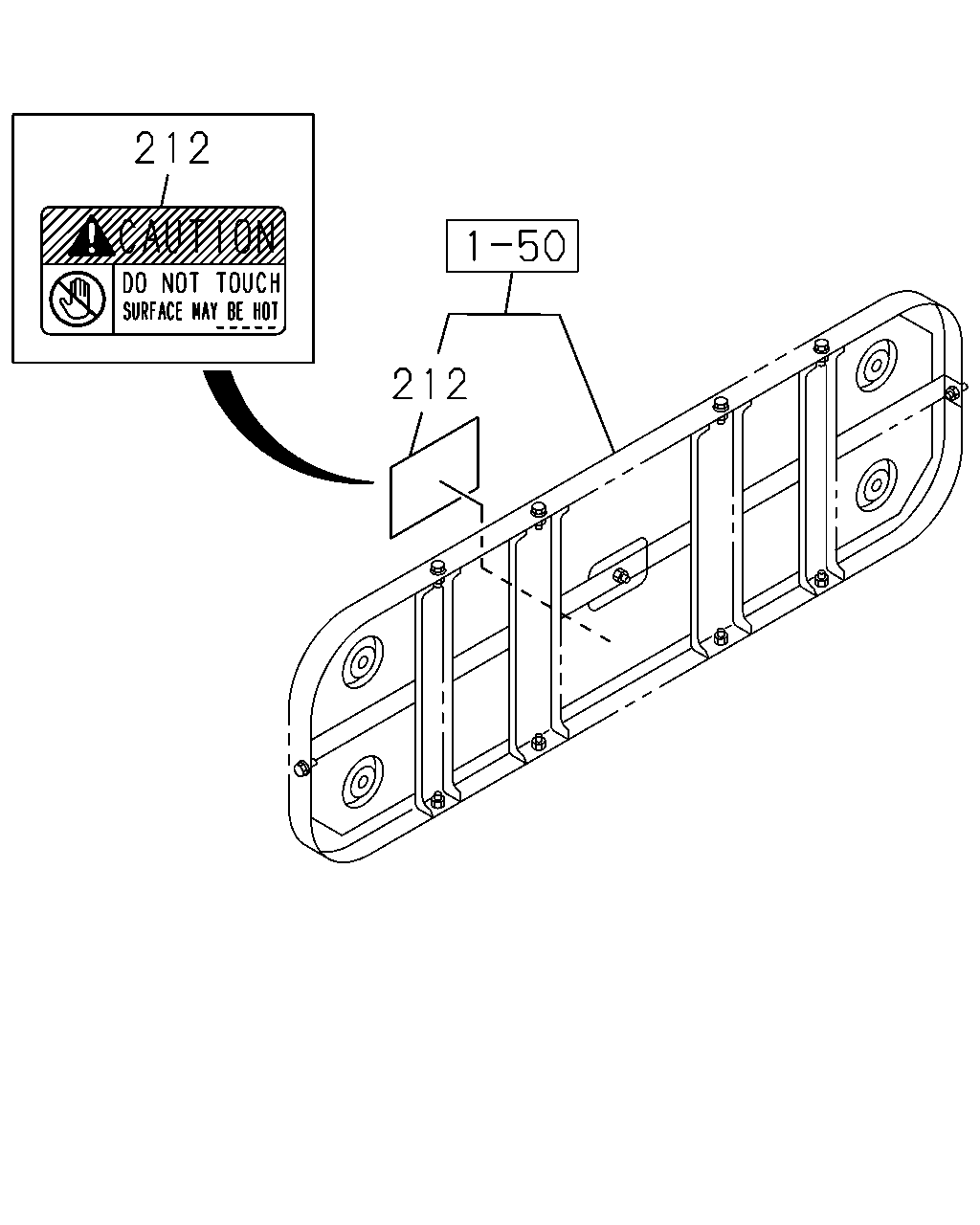

çizim 498486

212 212

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	212	LABEL; SAFETY	8-98236-285-0	01	1	1505-
