◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#161779) — 9 parça

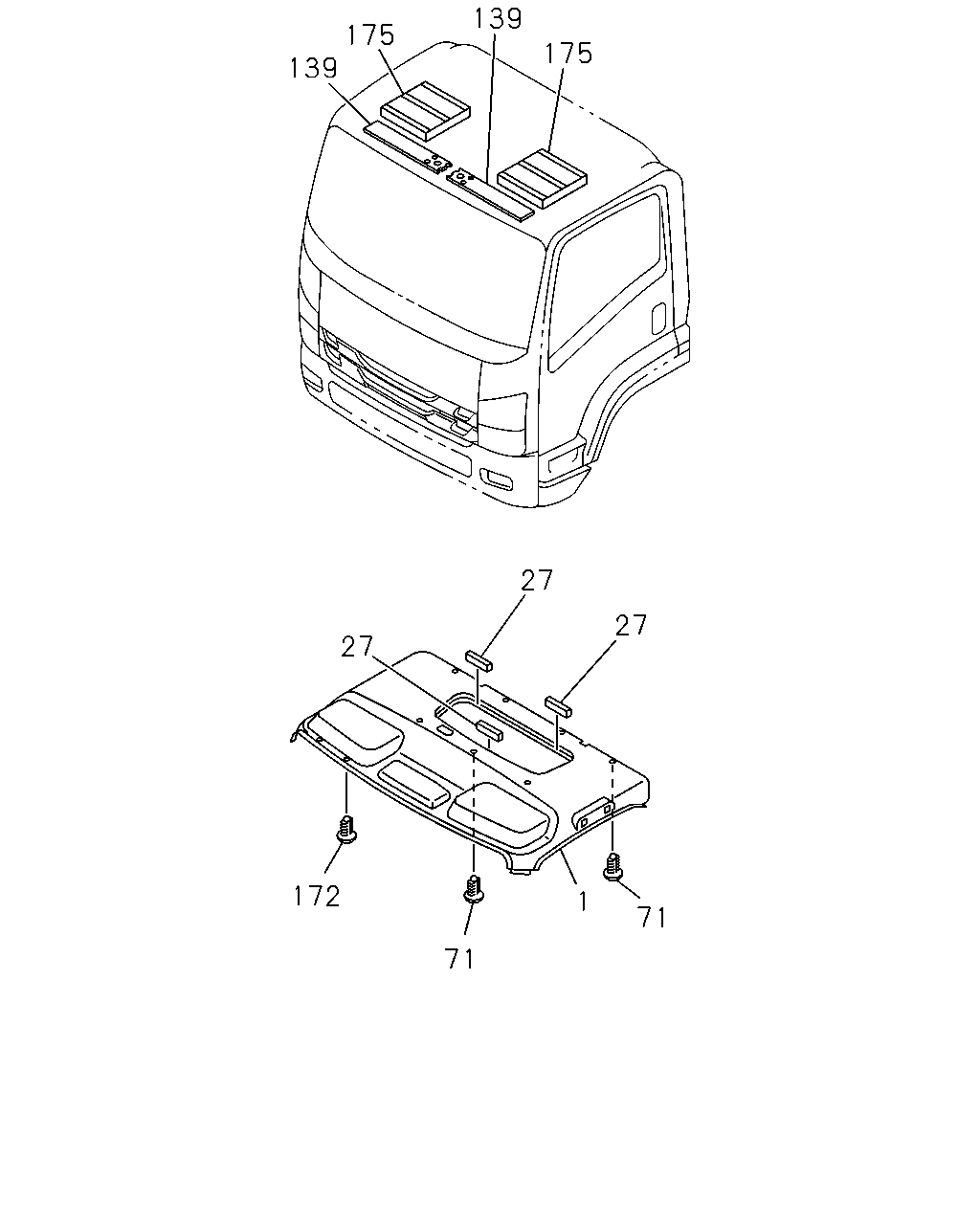

çizim 476911
175 139 175 139 27 27 27 172 71 71 1
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY 		8-97429-634-1 01 1 1505-
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,FLUORESCENT LAMP<6UC> DARK GRAY 		8-97429-632-1 01 1 1505-
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97429-635-1 01 1 1505-
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97429-633-1 01 1 1505-
27 INSULATION; ROOF
FLUORESCENT LAMP<6UC> 		8-98046-638-2 03 1 1505-
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1505-
139 SEAL; ROOF 8-98169-116-0 02 1 1505-
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 14 1 1505-
175 CUSHION; HEAD LINING 8-98030-965-2 02 1 1505-
