6-47 — MUD GUARD AND INSULATOR (#161777) — 131 parça

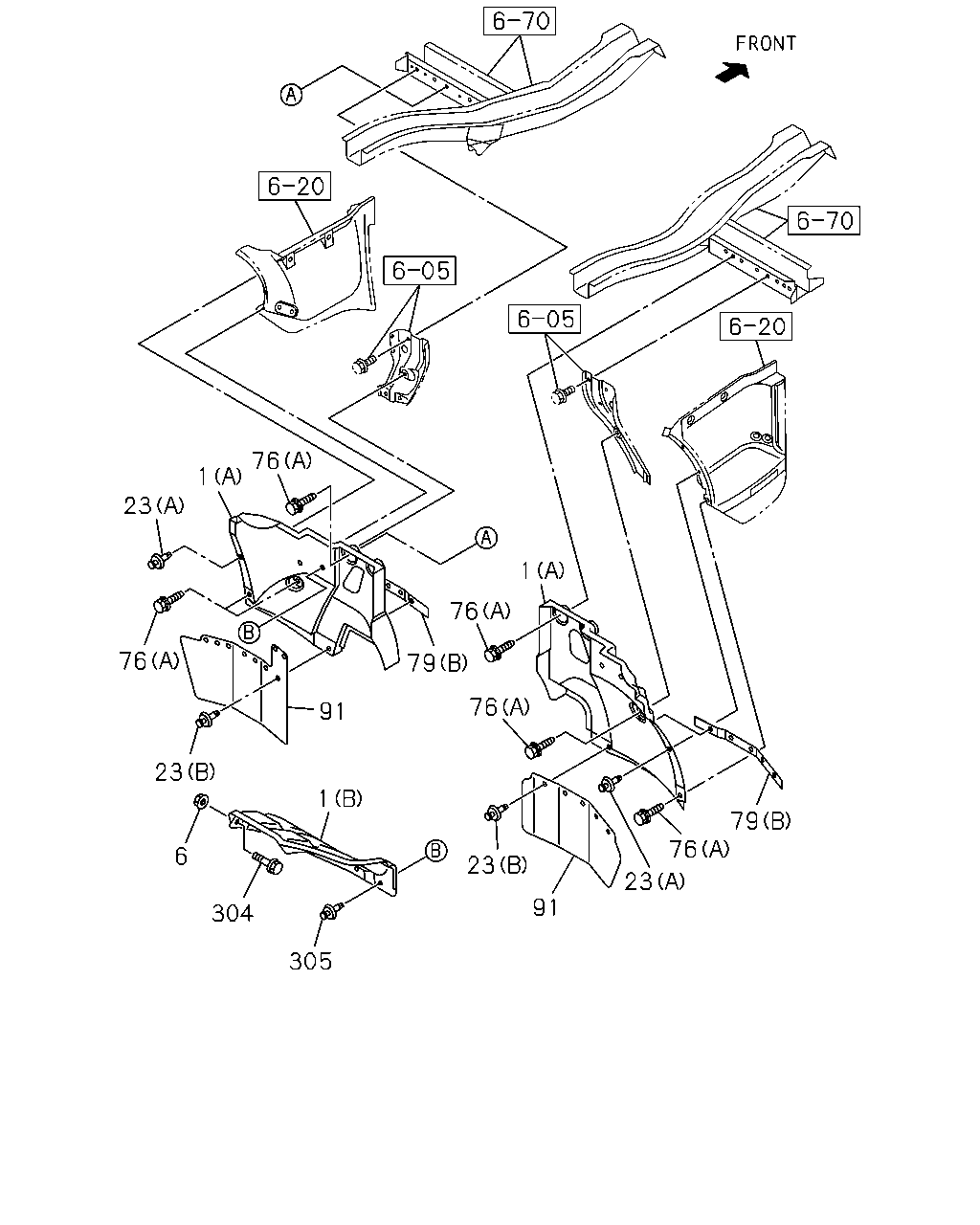

76 1 23 76 23 6 304 1 91 79 76 76 1 76 79 23 91 23 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	1505-
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	1505-
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-191-0	01	1	1505-
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1505-
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	1505-
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1505-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1505-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1505-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1505-
79	RETAINER; MUD COVER (C)	8-98117-496-0	06	1	1505-1506
79	RETAINER; MUD COVER EXC. KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	06	1	1507-
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	1507-
79	RETAINER; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8) (A)	8-98083-606-1	04	1	1505-1506
79	RETAINER; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) (A)	8-98083-606-1	04	1	1507-
79	RETAINER; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2) (D)	8-98273-187-0	04	1	1505-1506
79	RETAINER; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) (D)	8-98273-187-0	04	1	1507-
91	COVER; MUD,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98057-430-2	01	1	1505-1506
91	COVER; MUD,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98057-430-2	01	1	1507-
91	COVER; MUD,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98057-432-2	01	1	1505-1506
91	COVER; MUD,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98057-432-2	01	1	1507-
91	COVER; MUD,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98041-214-3	01	1	1505-1506
91	COVER; MUD,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98041-214-3	01	1	1507-
91	COVER; MUD,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98057-428-2	01	1	1505-1506
91	COVER; MUD,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98057-428-2	01	1	1507-
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1505-
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1505-

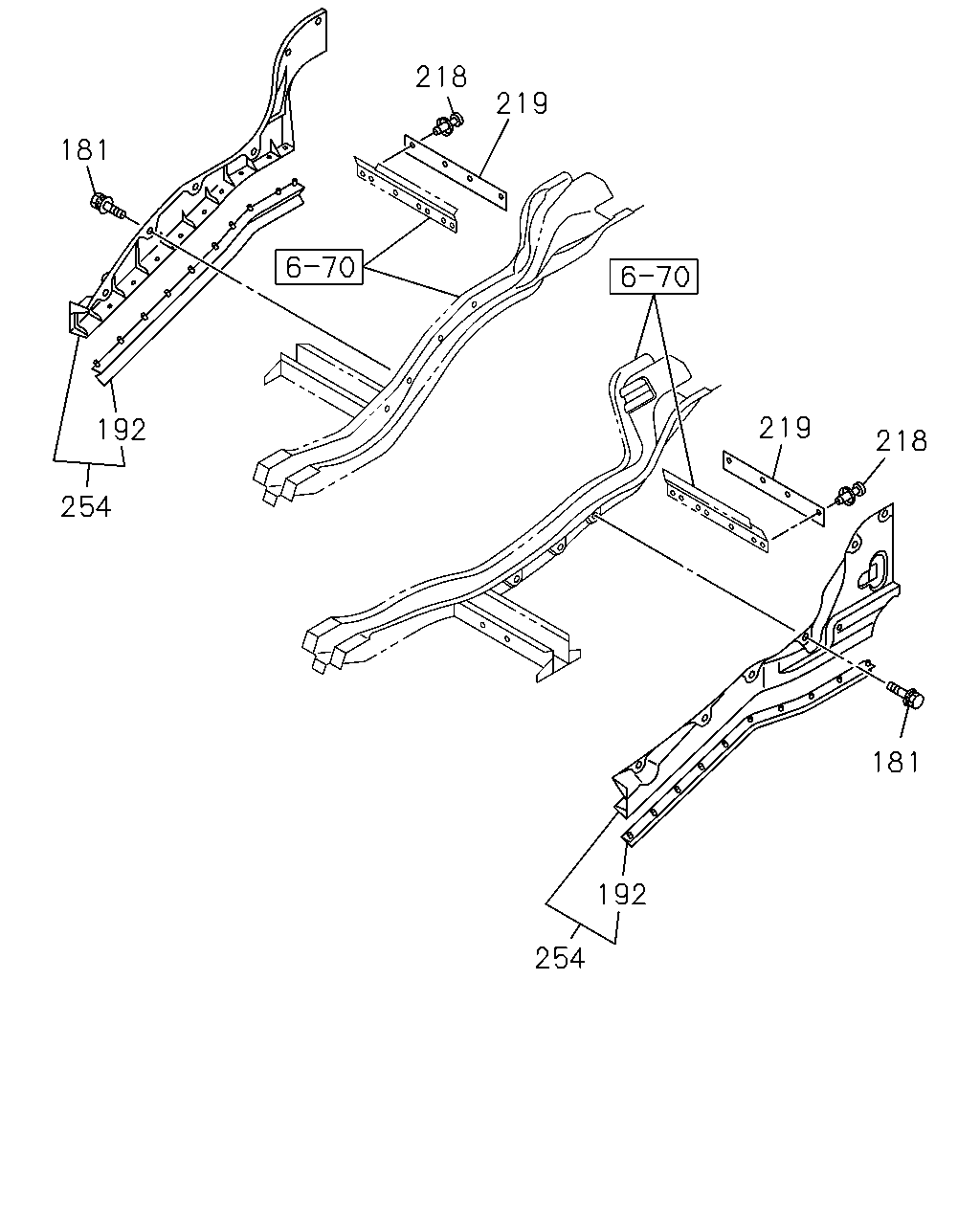

181 254 192 218 219 219 218 181 192 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	1505-
192	SEAL; MUD COVER	8-98041-157-2	01	1	1505-
192	SEAL; MUD COVER	8-98041-156-2	01	1	1505-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1505-
219	FLAP; MUD GUARD	8-98041-150-1	02	1	1505-
254	COVER; MUD,VALANCE	8-98039-924-1	01	1	1505-
254	COVER; MUD,VALANCE	8-98148-215-0	01	1	1505-

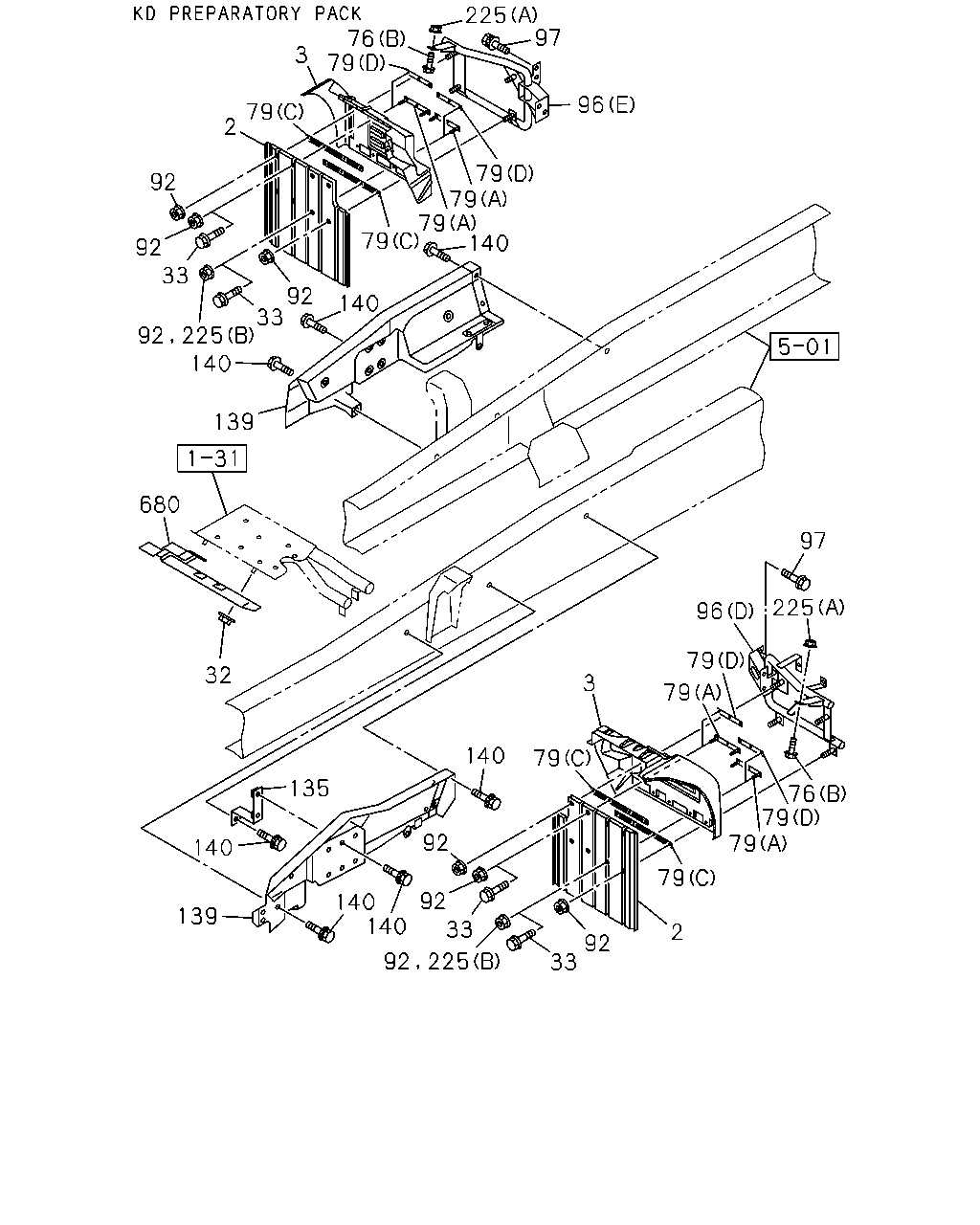

225 76 3 79 79 2 92 92 33 92 225 140 139 680 33 92 140 79 79 79 79 96 97 140 32 140 135 140 79 3 79 79 96 225 97 76 79 79 79 92 2 92 92 33 225 92 140 140 139 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR	8-98261-620-0	01	1	1505-
2	COVER; MUD,TIRE RR	8-98261-619-0	01	1	1505-
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98090-849-1	01	1	1505-1506
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98090-849-1	01	1	1507-
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98205-385-1	01	1	1505-1506
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98205-385-1	01	1	1507-
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98281-202-0	01	1	1505-1506
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98281-202-0	01	1	1507-
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98281-203-1	01	1	1505-1506
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98281-203-1	01	1	1507-
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1505-
33	BOLT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8) M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	1505-1506
33	BOLT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) EXC. KD PREPARATORY PACK<6HF> M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	1507-
33	BOLT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) KD PREPARATORY PACK<6HF> M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	1507-
33	BOLT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2) M8X55 W/LK+PL WASHER	8-98125-919-0	16	1	1505-1506
33	BOLT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) EXC. KD PREPARATORY PACK<6HF> M8X55 W/LK+PL WASHER	8-98125-919-0	16	1	1507-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1505-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1505-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1505-
79	RETAINER; MUD COVER (C)	8-98117-496-0	06	1	1505-1506
79	RETAINER; MUD COVER EXC. KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	06	1	1507-
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	1507-
79	RETAINER; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8) (A)	8-98083-606-1	04	1	1505-1506
79	RETAINER; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) (A)	8-98083-606-1	04	1	1507-
79	RETAINER; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2) (D)	8-98273-187-0	04	1	1505-1506
79	RETAINER; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) (D)	8-98273-187-0	04	1	1507-
92	NUT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	16	1	1507-
92	NUT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 265/70R19.5-140/138M RIB EEC(5S2) M8 W/DISHED WASHER	8-97329-625-0	08	1	1505-1506
92	NUT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	08	1	1507-
92	NUT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) M8 W/DISHED WASHER	8-97329-625-0	08	1	1507-
96	STAY; MUD GUARD (C)	8-98126-041-0	01	1	1505-1506
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (C)	8-98126-041-0	01	1	1507-
96	STAY; MUD GUARD (A)	8-98124-930-0	01	1	1505-1506
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (A)	8-98124-930-0	01	1	1507-
96	STAY; MUD GUARD (B)	8-98124-933-0	01	1	1505-1506
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (B)	8-98124-933-0	01	1	1507-
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (D)	8-98056-956-1	01	1	1507-
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (E)	8-98140-674-0	01	1	1507-
97	BOLT; STAY TO FRAME M10X35 FLANGE	0-28651-035-0	06	1	1505-1506
97	BOLT; STAY TO FRAME EXC. KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	06	1	1507-
97	BOLT; STAY TO FRAME KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	08	1	1507-
135	BRACKET; SIDE PANEL	1-53457-191-0	01	1	1505-
139	PANEL; SIDE	8-98090-078-0	01	1	1505-
139	PANEL; SIDE	8-98122-448-0	01	1	1505-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	09	1	1505-
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1505-
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1505-
680	GUARD; MUD,UPPER	8-98276-121-1	01	1	1505-

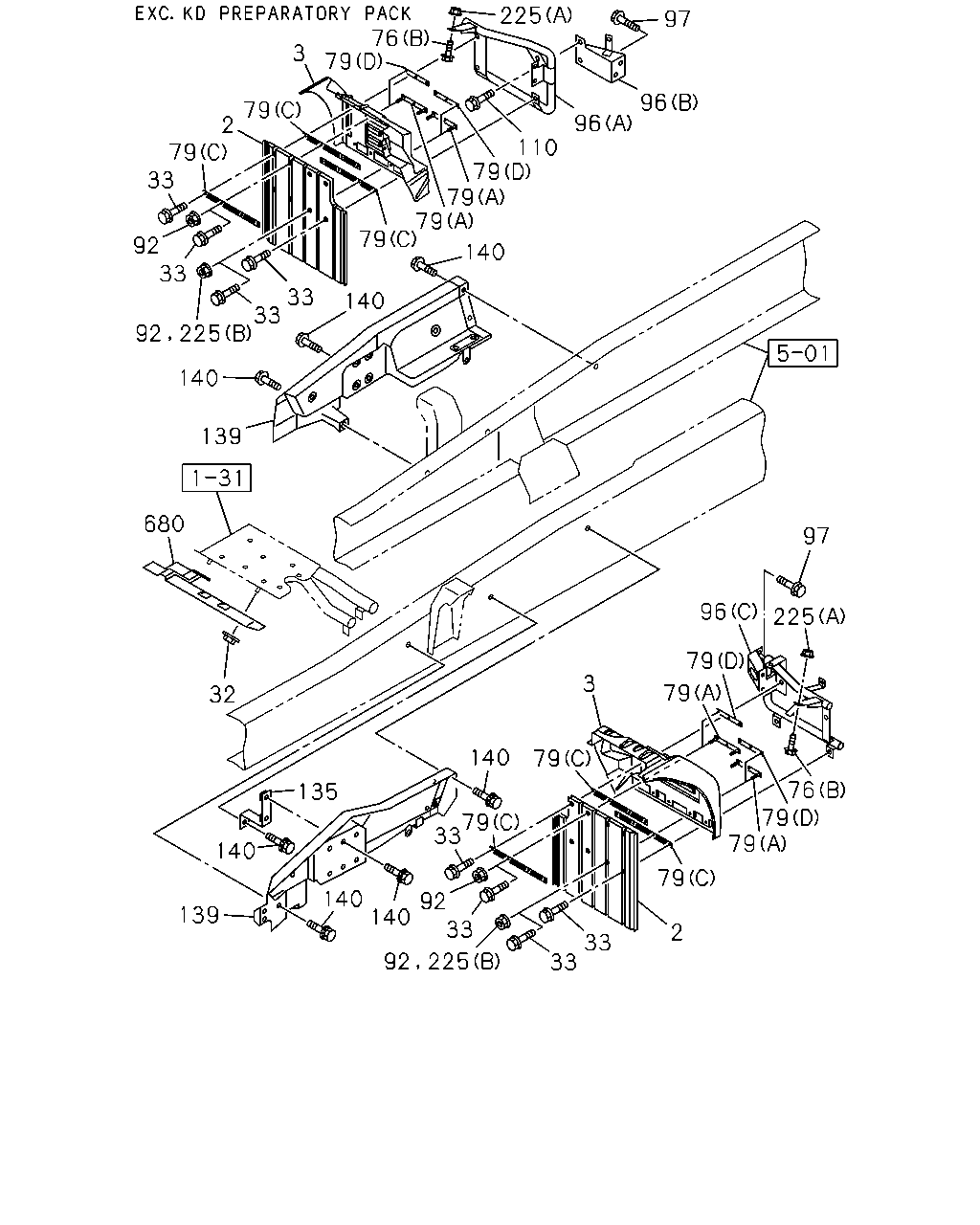

3 79 2 79 33 92 92 33 225 140 139 680 33 33 140 79 79 79 79 110 140 96 96 97 225 76 79 32 135 140 139 140 140 33 92 33 79 140 79 3 79 96 79 225 97 76 79 79 79 2 33 33 225 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR	8-98261-620-0	01	1	1505-
2	COVER; MUD,TIRE RR	8-98261-619-0	01	1	1505-
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98090-849-1	01	1	1505-1506
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98090-849-1	01	1	1507-
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98205-385-1	01	1	1505-1506
3	GUARD; MUD,RR TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98205-385-1	01	1	1507-
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98281-202-0	01	1	1505-1506
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98281-202-0	01	1	1507-
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98281-203-1	01	1	1505-1506
3	GUARD; MUD,RR TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98281-203-1	01	1	1507-
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1505-
33	BOLT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8) M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	1505-1506
33	BOLT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) EXC. KD PREPARATORY PACK<6HF> M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	1507-
33	BOLT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) KD PREPARATORY PACK<6HF> M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	1507-
33	BOLT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2) M8X55 W/LK+PL WASHER	8-98125-919-0	16	1	1505-1506
33	BOLT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) EXC. KD PREPARATORY PACK<6HF> M8X55 W/LK+PL WASHER	8-98125-919-0	16	1	1507-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1505-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1505-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1505-
79	RETAINER; MUD COVER (C)	8-98117-496-0	06	1	1505-1506
79	RETAINER; MUD COVER EXC. KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	06	1	1507-
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	1507-
79	RETAINER; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8) (A)	8-98083-606-1	04	1	1505-1506
79	RETAINER; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) (A)	8-98083-606-1	04	1	1507-
79	RETAINER; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2) (D)	8-98273-187-0	04	1	1505-1506
79	RETAINER; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) (D)	8-98273-187-0	04	1	1507-
92	NUT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	16	1	1507-
92	NUT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 265/70R19.5-140/138M RIB EEC(5S2) M8 W/DISHED WASHER	8-97329-625-0	08	1	1505-1506
92	NUT; MUD COVER TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	08	1	1507-
92	NUT; MUD COVER TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) M8 W/DISHED WASHER	8-97329-625-0	08	1	1507-
96	STAY; MUD GUARD (C)	8-98126-041-0	01	1	1505-1506
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (C)	8-98126-041-0	01	1	1507-
96	STAY; MUD GUARD (A)	8-98124-930-0	01	1	1505-1506
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (A)	8-98124-930-0	01	1	1507-
96	STAY; MUD GUARD (B)	8-98124-933-0	01	1	1505-1506
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (B)	8-98124-933-0	01	1	1507-
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (D)	8-98056-956-1	01	1	1507-
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (E)	8-98140-674-0	01	1	1507-
97	BOLT; STAY TO FRAME M10X35 FLANGE	0-28651-035-0	06	1	1505-1506
97	BOLT; STAY TO FRAME EXC. KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	06	1	1507-
97	BOLT; STAY TO FRAME KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	08	1	1507-
110	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	1505-1506
110	BOLT; BRKT EXC. KD PREPARATORY PACK<6HF> M10X30 FLANGE	0-28651-030-0	04	1	1507-
135	BRACKET; SIDE PANEL	1-53457-191-0	01	1	1505-
139	PANEL; SIDE	8-98090-078-0	01	1	1505-
139	PANEL; SIDE	8-98122-448-0	01	1	1505-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	09	1	1505-
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1505-
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1505-
680	GUARD; MUD,UPPER	8-98276-121-1	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
