11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

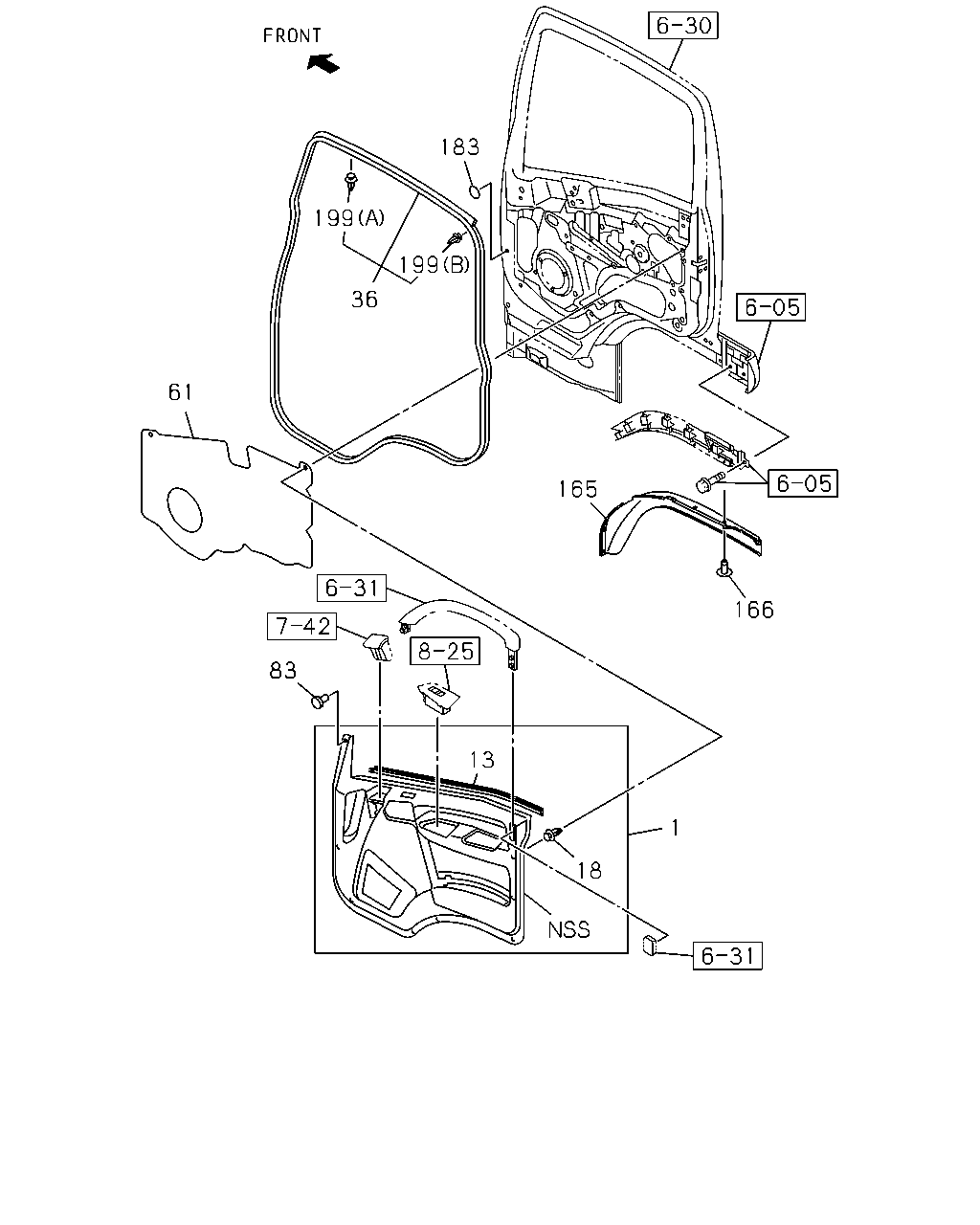

6-35 — FRONT DOOR TRIM
(#161775) — 18 parça
166
1
18
13
83
61
36
199
199
183
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-306-6
01
1
1505-
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-304-6
01
1
1505-
13
SEAL; DOOR TRIM
8-98029-202-1
01
1
1505-
13
SEAL; DOOR TRIM
8-98029-201-1
01
1
1505-
18
CLIP; DOOR PAD
8-98004-025-0
14
1
1505-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-199-3
01
1
1505-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98077-429-0
01
1
1505-
61
SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95>
8-98029-395-2
01
1
1505-1508
61
SEAL; WATER,DOOR PAD
8-98029-395-2
01
1
1509-
61
SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95>
8-98029-394-2
01
1
1505-1508
61
SEAL; WATER,DOOR PAD
8-98029-394-2
01
1
1509-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
1505-
165
LINER; DOOR LWR
8-98299-436-0
01
1
1505-
165
LINER; DOOR LWR
8-98299-434-0
01
1
1505-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
10
1
1505-
183
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
1505-
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
80
1
1505-
199
CLIP; SEAL
(B) RED
8-98062-271-0
02
1
1505-
