Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#161773) — 71 parça
◀

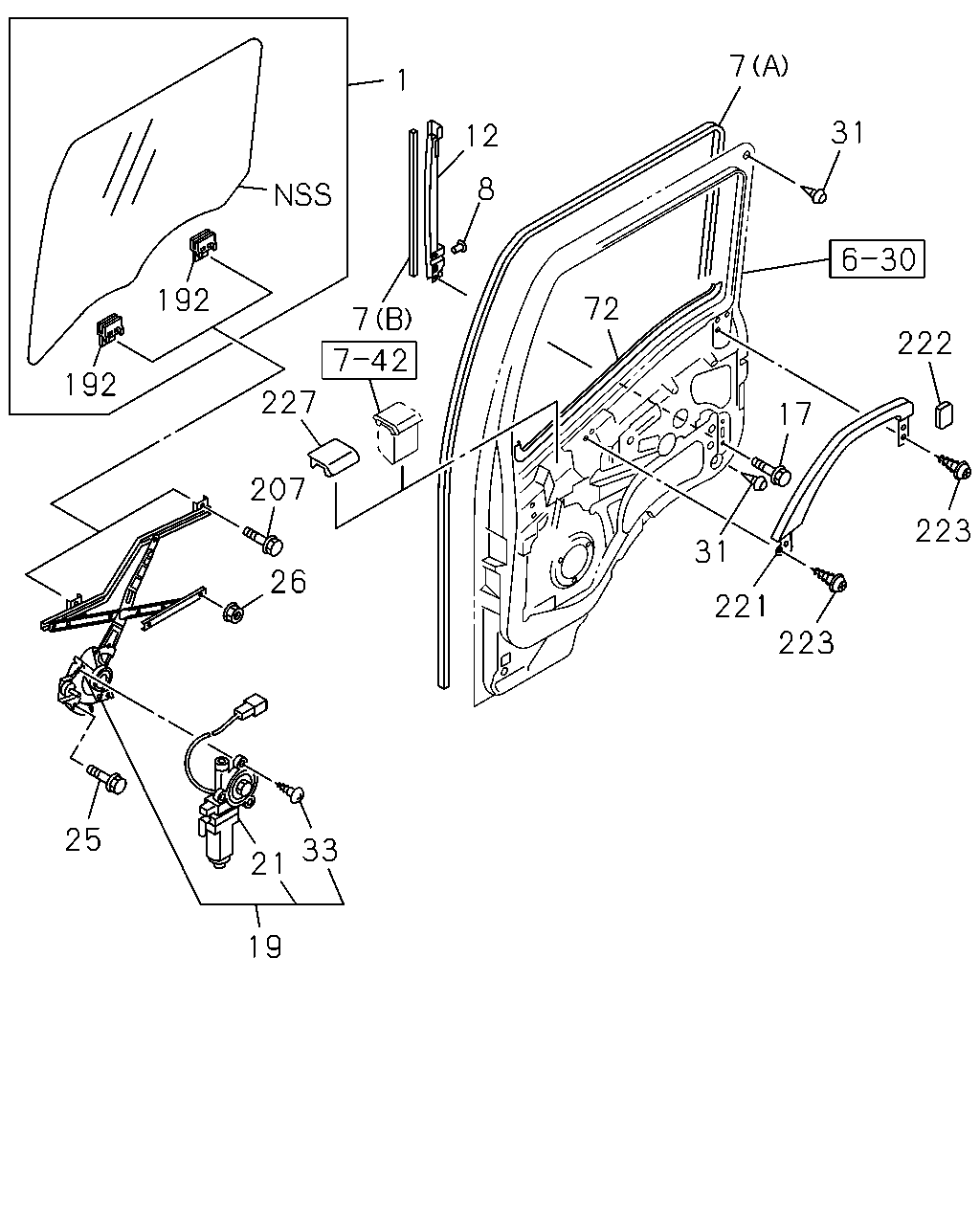

[631A] RH (36 parça)

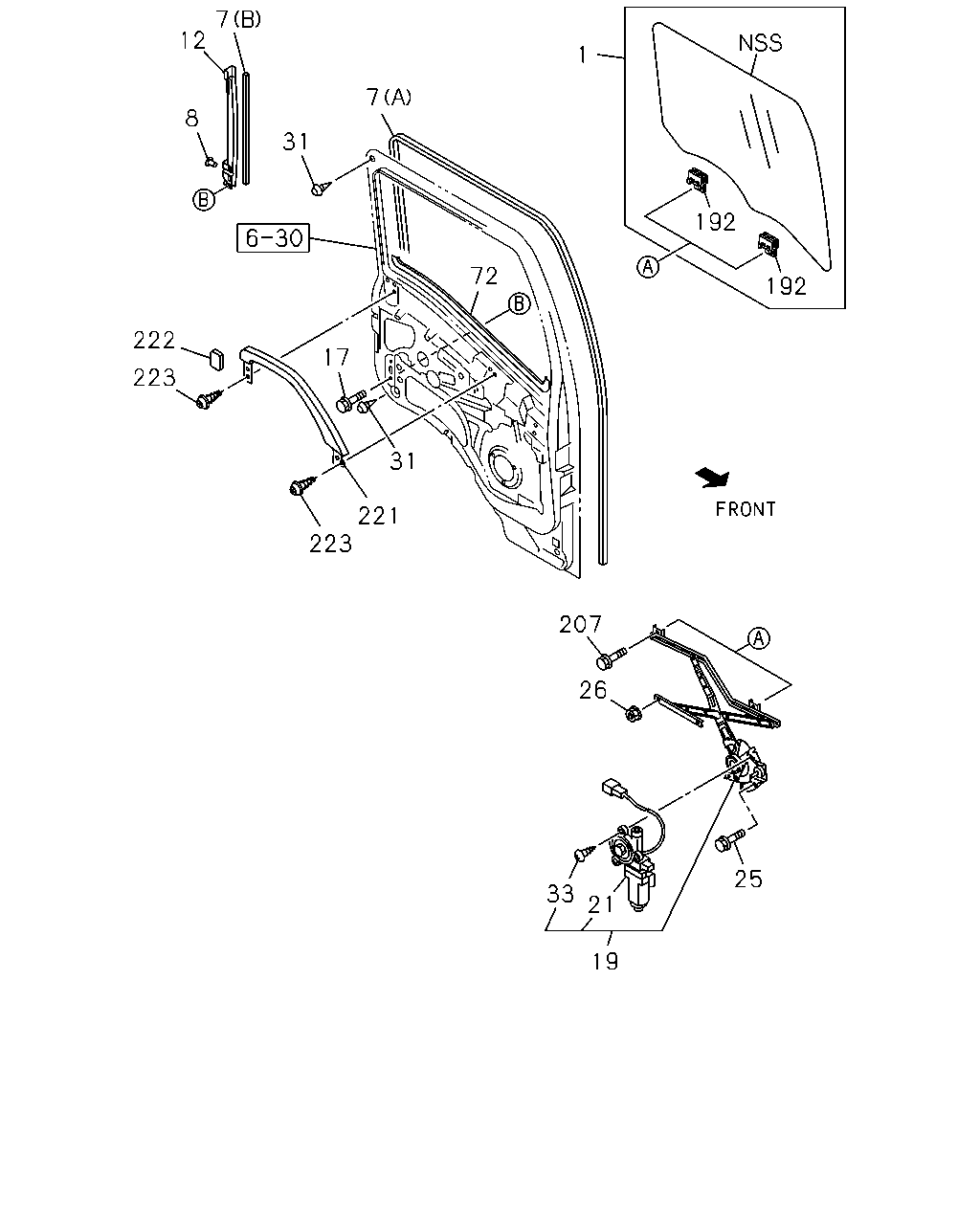

[631A] LH (35 parça)
▶
1
8
12
72
17
31
221
223
223
222
31
7
192
192
227
207
26
33
21
19
25
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
8-98211-765-0
01
1
1505-1508
1
GLASS; FRT DOOR
8-98211-765-0
01
1
1509-
1
GLASS; FRT DOOR
8-98211-764-0
01
1
1505-
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1505-
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1505-
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1505-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1505-
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1505-
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1505-
17
SCREW; RR CHANNEL
M6X10 FLANGE
0-28050-610-0
04
1
1505-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-237-3
01
1
1505-1508
19
REGULATOR; WINDOW,FRT DOOR
8-98029-237-3
01
1
1509-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-236-3
01
1
1505-1508
19
REGULATOR; WINDOW,FRT DOOR
8-98029-236-3
01
1
1509-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-430-0
01
1
1505-1508
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-430-0
01
1
1509-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-429-0
01
1
1505-1508
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-429-0
01
1
1509-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1505-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1505-1508
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1509-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1505-
33
SCREW; REG MOTOR
8-98058-431-0
06
1
1505-1508
33
SCREW; REG MOTOR
8-98058-431-0
06
1
1509-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1505-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1505-
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1505-1508
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1505-1508
192
HOLDER; DOOR GLASS
8-98211-762-0
04
1
1509-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1505-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1505-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1505-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1505-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1505-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1505-
227
RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY
8-97405-321-0
01
1
1505-
1
192
192
72
7
31
7
12
8
17
31
221
223
222
223
207
26
25
33
21
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
8-98211-765-0
01
1
1505-1508
1
GLASS; FRT DOOR
8-98211-765-0
01
1
1509-
1
GLASS; FRT DOOR
8-98211-764-0
01
1
1505-
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1505-
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1505-
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1505-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1505-
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1505-
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1505-
17
SCREW; RR CHANNEL
M6X10 FLANGE
0-28050-610-0
04
1
1505-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-237-3
01
1
1505-1508
19
REGULATOR; WINDOW,FRT DOOR
8-98029-237-3
01
1
1509-
19
REGULATOR; WINDOW,FRT DOOR
8-98029-236-3
01
1
1505-1508
19
REGULATOR; WINDOW,FRT DOOR
8-98029-236-3
01
1
1509-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-430-0
01
1
1505-1508
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-430-0
01
1
1509-
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-429-0
01
1
1505-1508
21
MOTOR; POWER WINDOW REG,FRT DOOR
8-98058-429-0
01
1
1509-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1505-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1505-1508
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1509-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1505-
33
SCREW; REG MOTOR
8-98058-431-0
06
1
1505-1508
33
SCREW; REG MOTOR
8-98058-431-0
06
1
1509-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1505-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1505-
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1505-1508
192
HOLDER; DOOR GLASS
8-98211-762-0
02
1
1505-1508
192
HOLDER; DOOR GLASS
8-98211-762-0
04
1
1509-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1505-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1505-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1505-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1505-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1505-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
