6-20 — SIDE PANEL AND STEP (#161771) — 151 parça

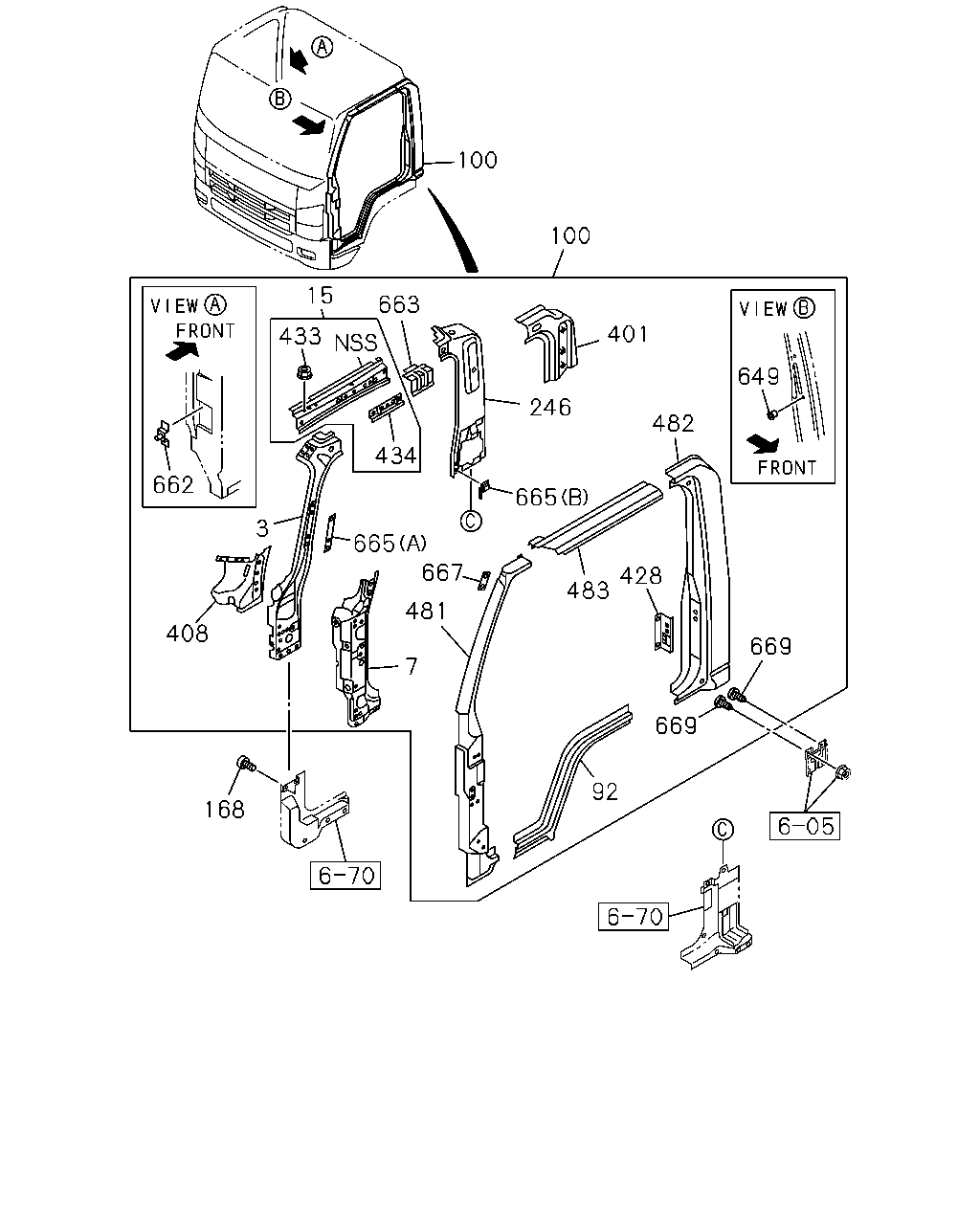

100 100 663 15 433 434 665 3 662 408 168 7 481 483 92 428 482 246 401 665 667 669 669 649

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1505-
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1505-
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1505-
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1505-
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	1505-
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	1505-
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	1505-
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	1505-
100	PANEL ASM; BODY SIDE	8-97586-056-4	01	1	1505-
100	PANEL ASM; BODY SIDE	8-98088-577-4	01	1	1505-
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1505-
246	PANEL; RR PILLAR,INNER	8-97585-301-3	01	1	1505-
246	PANEL; RR PILLAR,INNER	8-97586-154-3	01	1	1505-
401	PATCH; CLOSING,FRT PILLAR	8-97585-303-2	01	1	1505-
401	PATCH; CLOSING,FRT PILLAR	8-98065-791-0	01	1	1505-
408	GUSSET; PILLAR	8-97586-194-2	01	1	1505-
408	GUSSET; PILLAR	8-97586-193-3	01	1	1505-
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	1505-
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	1505-
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	1505-
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1505-
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1505-
481	PANEL; SIDE FRT PILLAR	8-98093-581-0	01	1	1505-
481	PANEL; SIDE FRT PILLAR	8-98092-911-0	01	1	1505-
482	PANEL; SIDE RR PILLAR	8-98055-467-1	01	1	1505-
482	PANEL; SIDE RR PILLAR	8-98092-922-0	01	1	1505-
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	1505-
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	1505-
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1505-
662	BRACKET; DUCT	8-97584-611-1	01	1	1505-
663	BRACKET; AIR	8-97585-208-2	01	1	1505-
663	BRACKET; AIR	8-97585-207-2	01	1	1505-
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	02	1	1505-
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	02	1	1505-
667	BRACKET; MIRROR	8-98109-948-0	01	1	1505-
669	STUD; FENDER M6X18	8-98013-113-1	04	1	1505-

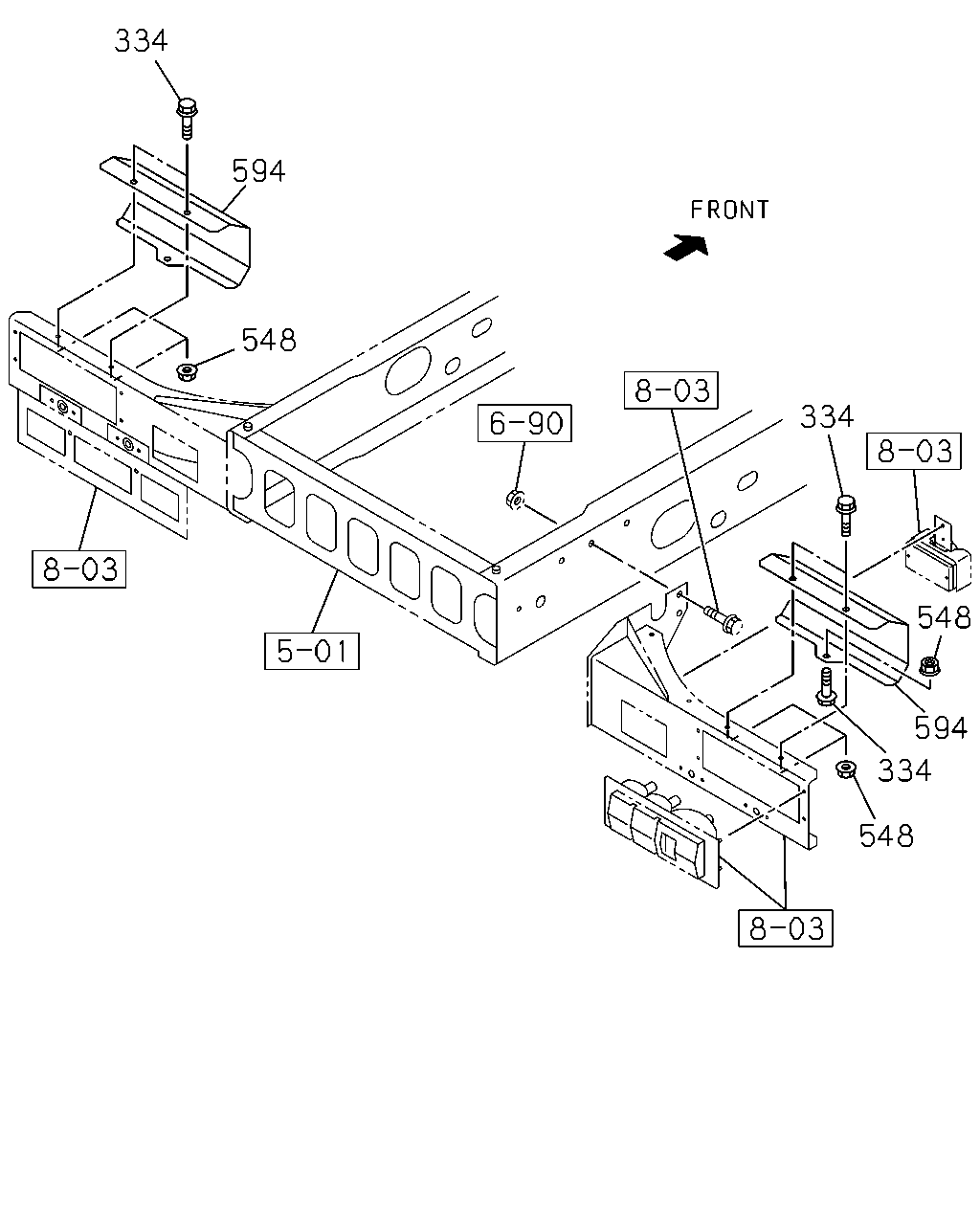

334 548 594 334 548 548 594 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
334	BOLT; COVER EUROPE EQUIPMENT(E09) EXC. ISRAEL COUNTRY(CV4) M8X12 FLANGE	0-28060-812-0	06	1	1507-
548	NUT; BRKT EUROPE EQUIPMENT(E09) EXC. ISRAEL COUNTRY(CV4) M8 CAP NUT FLANGE	8-98261-347-0	06	1	1507-
594	COVER; RR COMB LAMP EUROPE EQUIPMENT(E09) EXC. ISRAEL COUNTRY(CV4)	8-98249-274-0	02	1	1507-

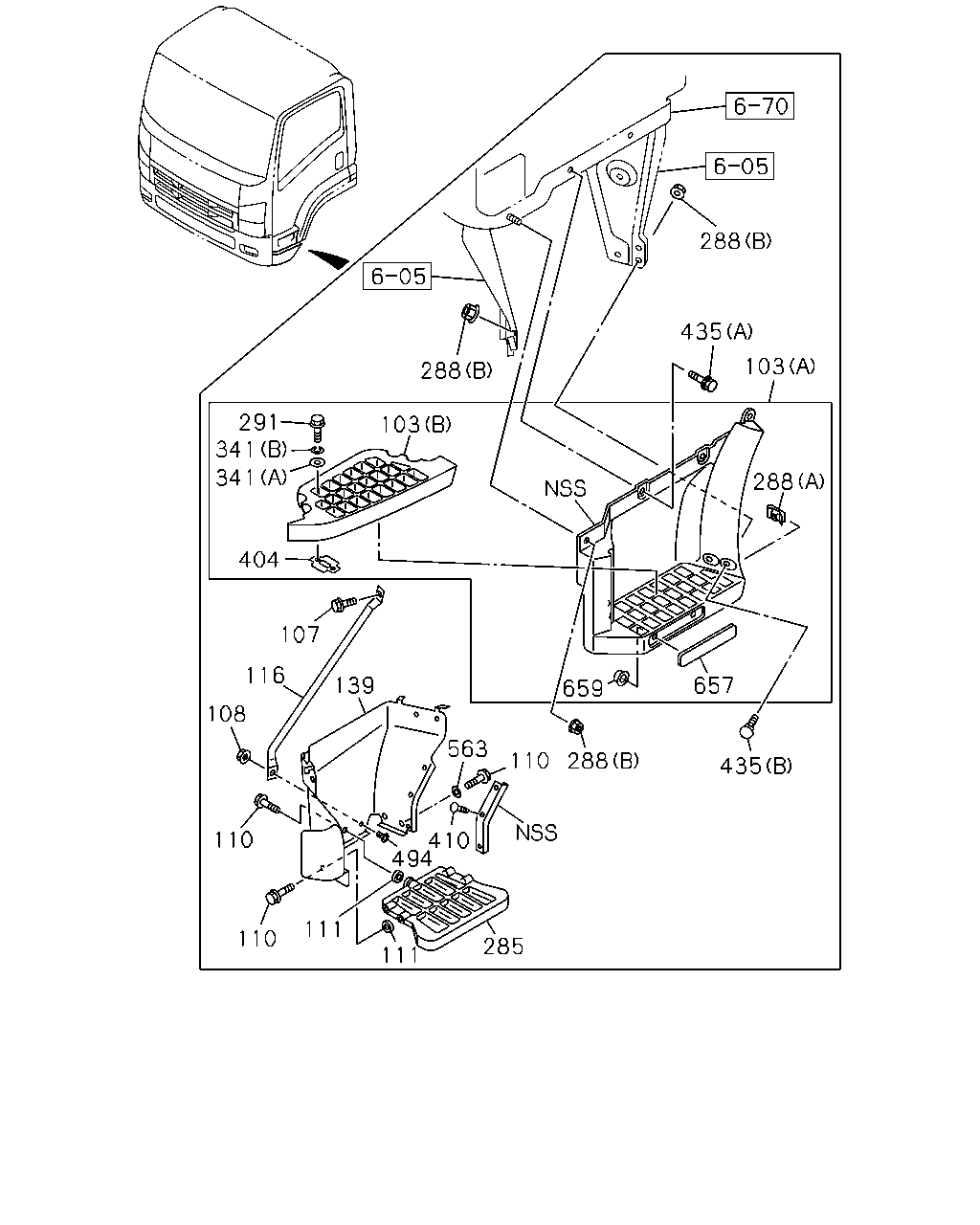

435 288 657 659 288 110 563 410 494 111 110 110 108 107 116 139 103 291 341 341 404 288 435 288 103 111 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
103	PLATE; STEP (A)	8-98080-623-1	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	1507-
103	PLATE; STEP (B)	8-98080-628-0	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	1507-
103	PLATE; STEP (A)	8-98080-622-1	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	1507-
103	PLATE; STEP (B)	8-98080-627-0	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	1507-
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	1507-
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	1507-
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	1505-
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	1505-
110	BOLT; 1ST STEP PLATE TIRE 245/70R19.5-136/134M RIB EEC(5J8) M8X16 FLANGE	0-28050-816-0	10	1	1505-1506
110	BOLT; 1ST STEP PLATE TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) M8X16 FLANGE	0-28050-816-0	10	1	1507-
110	BOLT; 1ST STEP PLATE TIRE 265/70R19.5-140/138M RIB EEC(5S2) M8X20 FLANGE	0-28050-820-0	10	1	1505-1506
110	BOLT; 1ST STEP PLATE TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) M8X20 FLANGE	0-28050-820-0	10	1	1507-
111	COVER; 1ST STEP	1-71998-153-0	10	1	1505-
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-640-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-640-0	01	1	1507-
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-639-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-639-0	01	1	1507-
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-249-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-249-0	01	1	1507-
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-248-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-248-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-636-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-636-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-635-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-635-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-565-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-565-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-564-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-564-0	01	1	1507-
285	PLATE; STEP,1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8)	1-71998-312-2	02	1	1505-1506
285	PLATE; STEP,1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	1-71998-312-2	02	1	1507-
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-569-0	01	1	1505-1506
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-569-0	01	1	1507-
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-567-0	01	1	1505-1506
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-567-0	01	1	1507-
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1505-
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1505-
291	BOLT; STEP PLATE	8-98165-009-0	08	1	1505-1506
291	BOLT; STEP PLATE EXC. KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1507-
341	WASHER; PL,STEP (A)	8-98112-672-1	08	1	1505-1506
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	1507-
341	WASHER; PL,STEP (B)	8-98112-673-1	08	1	1505-1506
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	1507-
404	BRACKET	8-98080-646-1	04	1	1505-1506
404	BRACKET EXC. KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	1507-
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	1505-
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1505-
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1505-
494	STUD; BRKT	8-94389-701-0	02	1	1505-
563	WASHER; PL TIRE 265/70R19.5-140/138M RIB EEC(5S2) ID=8.4 OD=26	0-91614-808-0	02	1	1505-1506
563	WASHER; PL TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) ID=8.4 OD=26	0-91614-808-0	02	1	1507-
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	1505-
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1505-

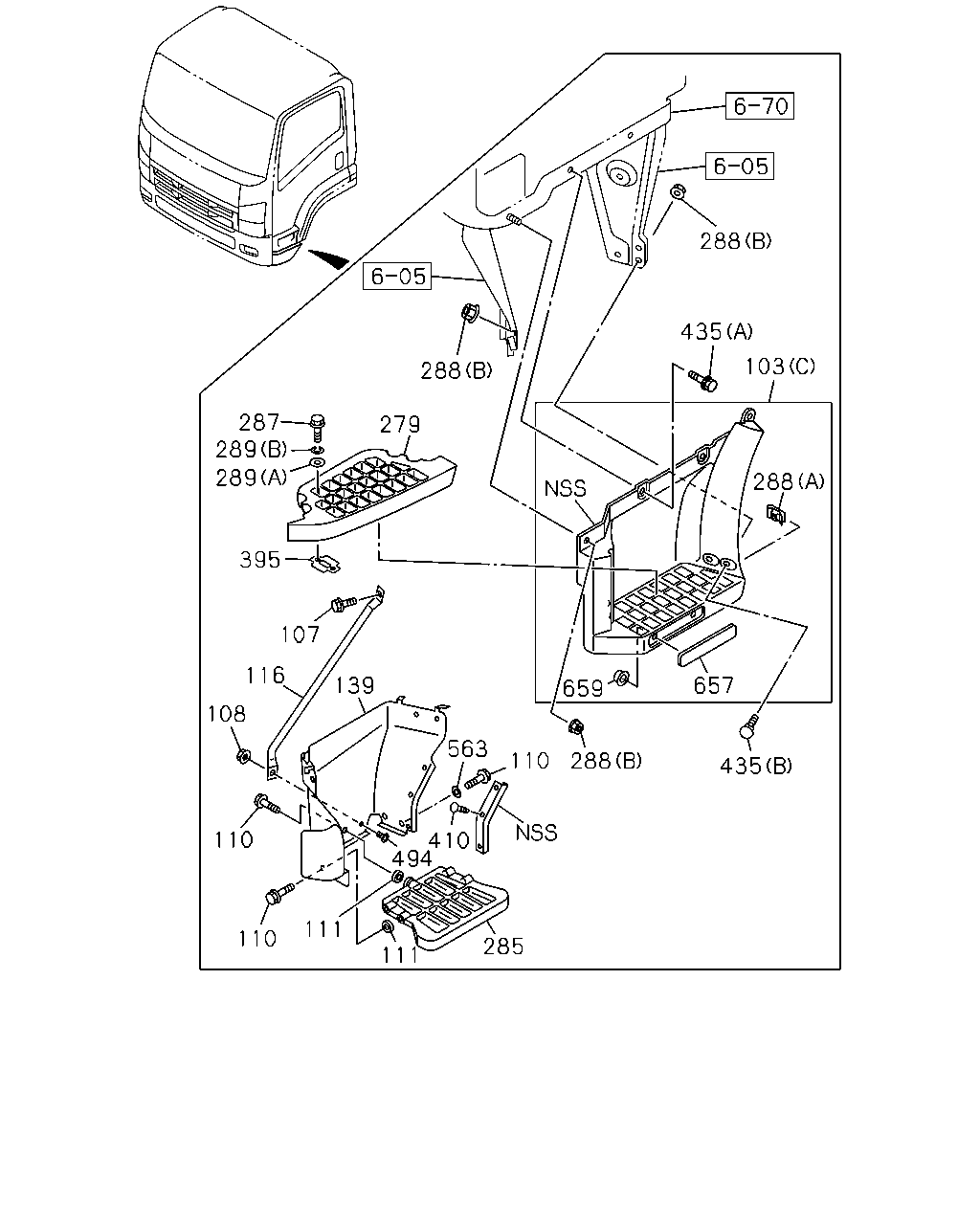

288 287 289 395 289 107 116 108 110 111 110 494 139 563 110 288 435 657 659 288 103 435 288 410 111 285 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
103	PLATE; STEP (A)	8-98080-623-1	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	1507-
103	PLATE; STEP (B)	8-98080-628-0	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	1507-
103	PLATE; STEP (A)	8-98080-622-1	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	1507-
103	PLATE; STEP (B)	8-98080-627-0	01	1	1505-1506
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	1507-
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	1507-
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	1507-
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	1505-
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	1505-
110	BOLT; 1ST STEP PLATE TIRE 245/70R19.5-136/134M RIB EEC(5J8) M8X16 FLANGE	0-28050-816-0	10	1	1505-1506
110	BOLT; 1ST STEP PLATE TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6) M8X16 FLANGE	0-28050-816-0	10	1	1507-
110	BOLT; 1ST STEP PLATE TIRE 265/70R19.5-140/138M RIB EEC(5S2) M8X20 FLANGE	0-28050-820-0	10	1	1505-1506
110	BOLT; 1ST STEP PLATE TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) M8X20 FLANGE	0-28050-820-0	10	1	1507-
111	COVER; 1ST STEP	1-71998-153-0	10	1	1505-
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-640-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-640-0	01	1	1507-
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-639-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-639-0	01	1	1507-
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-249-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-249-0	01	1	1507-
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-248-0	01	1	1505-1506
116	STAY; 1ST STEP,FRT TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-248-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-636-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-636-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8)	8-98080-635-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	8-98080-635-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-565-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-565-0	01	1	1507-
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-564-0	01	1	1505-1506
139	CLOSING; 1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-564-0	01	1	1507-
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-628-0	01	1	1507-
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-627-0	01	1	1507-
285	PLATE; STEP,1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8)	1-71998-312-2	02	1	1505-1506
285	PLATE; STEP,1ST STEP TIRE 245/70R19.5-136/134M RIB EEC(5J8),TIRE 245/70R19.5-136/134M TRACTION EEC(5Q6)	1-71998-312-2	02	1	1507-
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-569-0	01	1	1505-1506
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-569-0	01	1	1507-
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2)	8-98273-567-0	01	1	1505-1506
285	PLATE; STEP,1ST STEP TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3)	8-98273-567-0	01	1	1507-
287	BOLT; BOARD STEP KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1507-
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1505-
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1505-
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	1507-
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	1507-
395	BRACKET; SIDE STEP KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	1507-
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	1505-
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1505-
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1505-
494	STUD; BRKT	8-94389-701-0	02	1	1505-
563	WASHER; PL TIRE 265/70R19.5-140/138M RIB EEC(5S2) ID=8.4 OD=26	0-91614-808-0	02	1	1505-1506
563	WASHER; PL TIRE 265/70R19.5-140/138M RIB EEC(5S2),TIRE 265/70R19.5-140/138M TRACTION EEC(5S3) ID=8.4 OD=26	0-91614-808-0	02	1	1507-
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	1505-
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1505-
