Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#161768) — 59 parça
◀

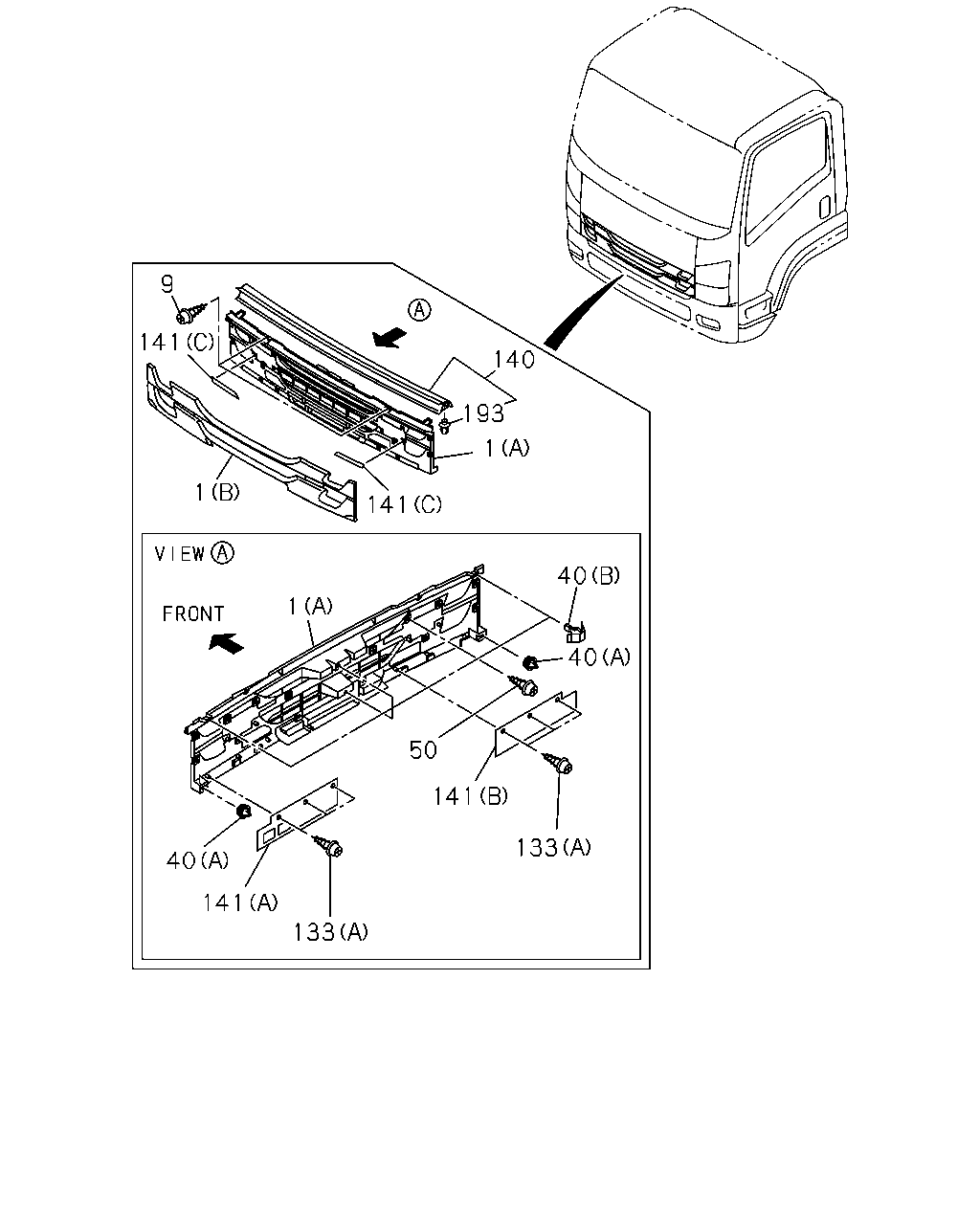

[603A] BRIGHT RAD GRILLE (29 parça)

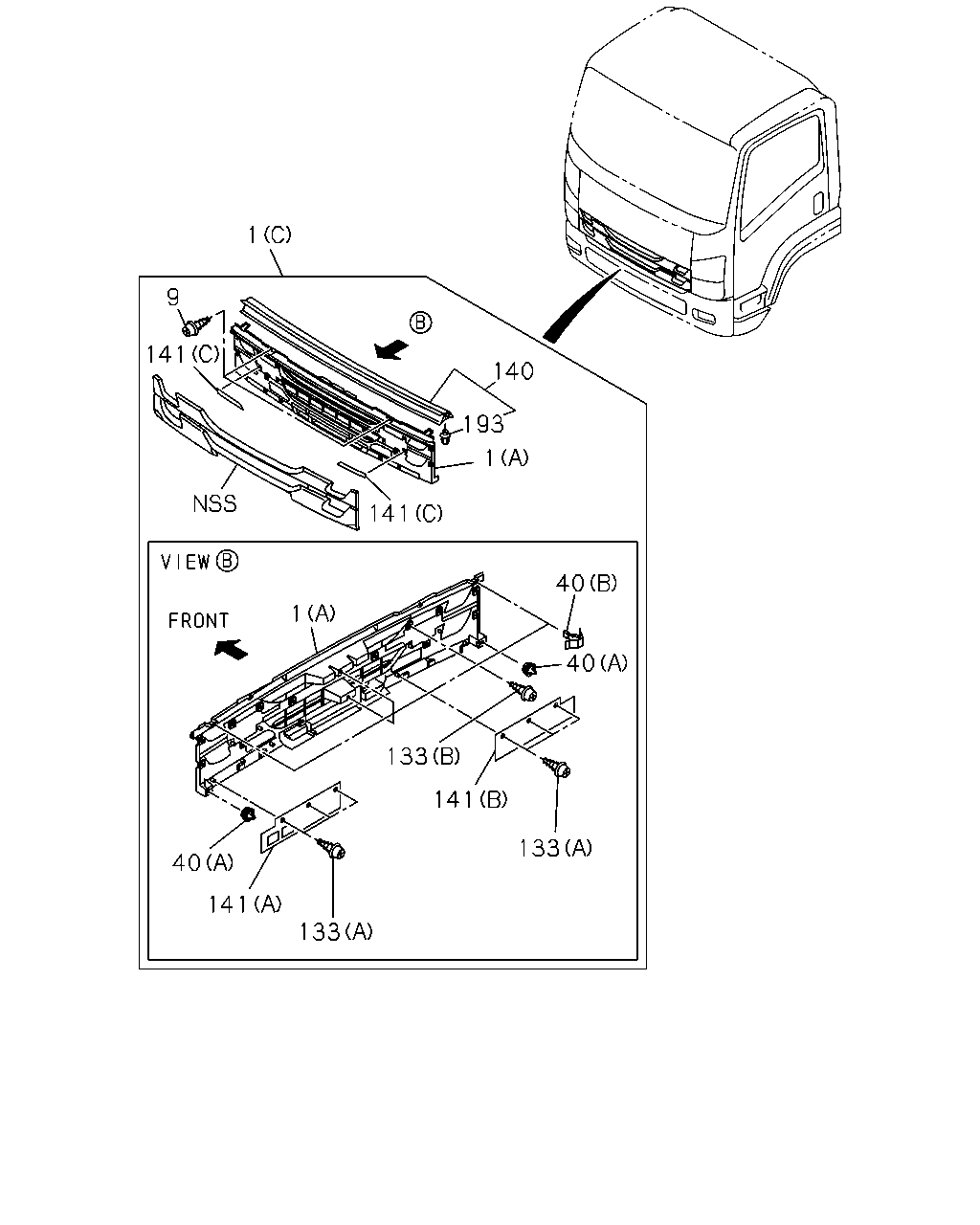

[603A] EXC.BRIGHT RAD GRILLE (30 parça)
▶
133
141
141
133
40
40
133
1
40
1
141
9
140
193
141
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
(A) BLACK
8-98250-843-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (B) GRAY
8-97429-649-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (B) WHITE
8-97429-659-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (B) RED
8-97429-653-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-641-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (B) RED
8-97429-654-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (B) RED
8-97429-651-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (B) YELLOW
8-97429-665-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (B) GREEN
8-97429-644-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (B) ORANGE
8-97429-658-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-670-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (B) WHITE
8-97429-662-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-638-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (B) BEIGE
8-97429-669-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-642-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (B) YELLOW
8-97429-667-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (B) DARK GREEN
8-97429-648-1
01
1
1505-
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98258-596-1
01
1
1505-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1505-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1505-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1505-
133
SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1505-
133
SCREW; COVER
BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
29
1
1505-
140
SEAL; RAD GRILLE
8-98060-339-0
01
1
1505-
141
COVER; RAD GRILLE
(B)
8-98041-012-1
01
1
1505-
141
COVER; RAD GRILLE
(A)
8-98060-783-0
01
1
1505-
141
COVER; RAD GRILLE
(C)
8-98250-849-1
01
1
1505-
141
COVER; RAD GRILLE
(C)
8-98250-850-1
01
1
1505-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1505-
133
141
40
133
141
50
40
40
1
141
1
141
9
140
193
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
(A) BLACK
8-98250-843-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (B) GRAY
8-97429-649-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (B) WHITE
8-97429-659-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (B) RED
8-97429-653-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-641-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (B) RED
8-97429-654-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (B) RED
8-97429-651-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (B) YELLOW
8-97429-665-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (B) GREEN
8-97429-644-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (B) ORANGE
8-97429-658-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-670-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (B) WHITE
8-97429-662-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-638-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (B) BEIGE
8-97429-669-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (B) BLUE
8-97429-642-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (B) YELLOW
8-97429-667-1
01
1
1505-
1
GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (B) DARK GREEN
8-97429-648-1
01
1
1505-
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98258-596-1
01
1
1505-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1505-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1505-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1505-
50
BOLT; GRILLE
EXC. BRIGHT RAD GRILLE<V22> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
15
1
1505-
133
SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1505-
133
SCREW; COVER
BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
29
1
1505-
140
SEAL; RAD GRILLE
8-98060-339-0
01
1
1505-
141
COVER; RAD GRILLE
(B)
8-98041-012-1
01
1
1505-
141
COVER; RAD GRILLE
(A)
8-98060-783-0
01
1
1505-
141
COVER; RAD GRILLE
(C)
8-98250-849-1
01
1
1505-
141
COVER; RAD GRILLE
(C)
8-98250-850-1
01
1
1505-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1505-
