Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

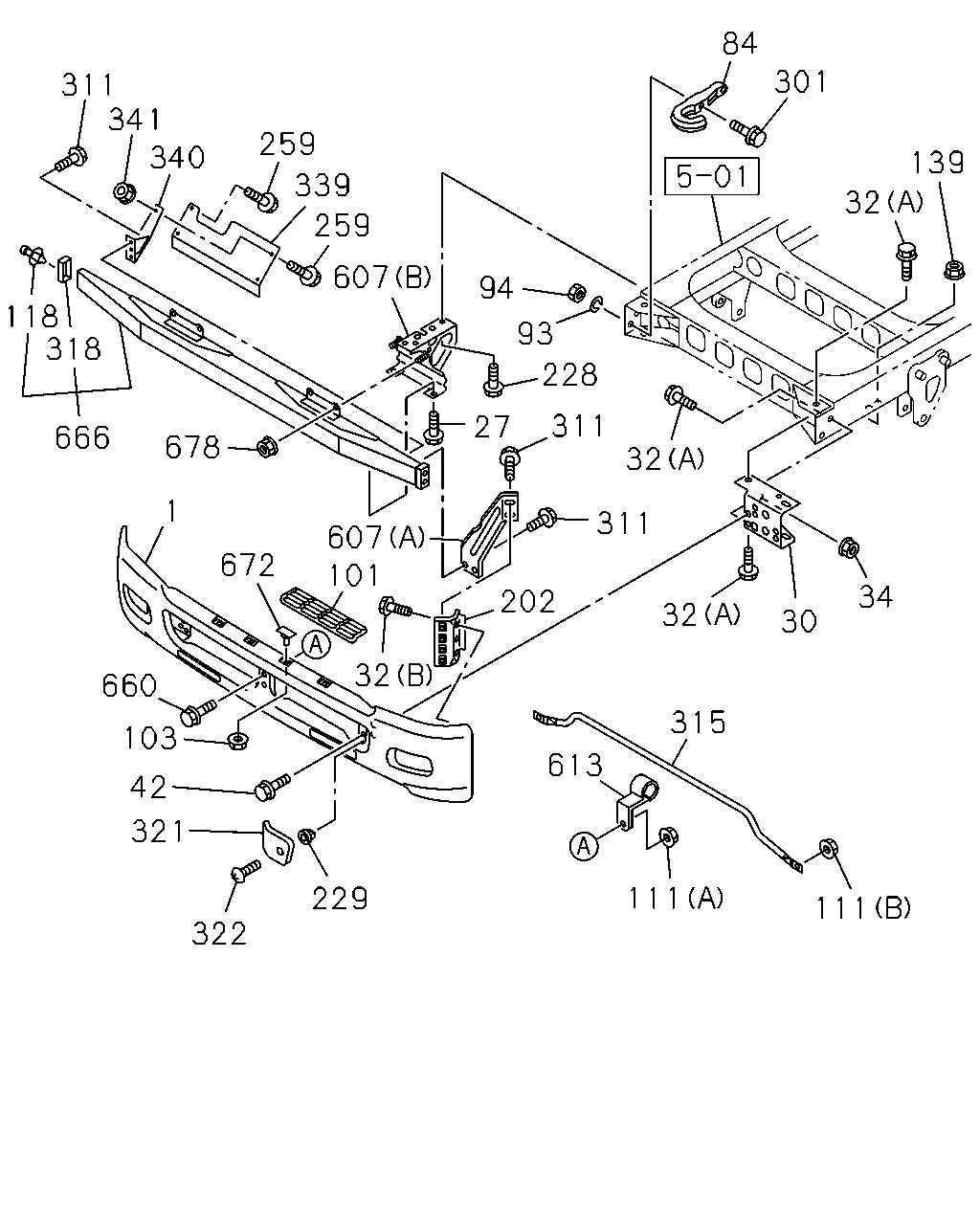

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#161767) — 62 parça
311
340
341
259
259
339
607
94
228
93
311
27
32
311
202
607
672
689
666
318
118
101
1
660
103
42
321
322
229
613
111
111
315
30
34
32
32
139
301
84
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
8-97425-907-0
01
1
1505-
27
BOLT; BUMPER TO BACK BAR
M12X35 FLANGE
0-28651-235-0
04
1
1505-
30
BRACKET; FRT BUMPER
8-97611-518-4
01
1
1505-
30
BRACKET; FRT BUMPER
8-97611-517-5
01
1
1505-
32
BOLT; BRKT,BUMPER
(B) M6X12 FLANGE
0-28050-612-0
06
1
1505-1508
32
BOLT; BRKT,BUMPER
(B) M6X12 FLANGE
0-28050-612-0
06
1
1509-
32
BOLT; BRKT,BUMPER
(A) M10X35 FLANGE
0-28651-035-0
06
1
1505-1508
32
BOLT; BRKT,BUMPER
(A) M10X35 FLANGE
0-28651-035-0
06
1
1509-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
1505-1508
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
1509-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1505-1508
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1509-
84
HOOK
1-57181-003-5
01
1
1505-
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
1505-
94
NUT; HOOK
M14
0-91110-514-0
02
1
1505-
101
STEP; BUMPER
8-97611-541-0
01
1
1505-1508
101
STEP; BUMPER
8-97611-541-0
01
1
1509-
101
STEP; BUMPER
8-97611-540-0
01
1
1505-1508
101
STEP; BUMPER
8-97611-540-0
01
1
1509-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1505-1508
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1509-
111
NUT; STAY
(A) M6 FLANGE
0-91180-106-0
01
1
1505-1508
111
NUT; STAY
(A) M6 FLANGE
0-91180-106-0
01
1
1509-
111
NUT; STAY
(B) M8 FLANGE
0-91180-108-0
02
1
1505-1508
111
NUT; STAY
(B) M8 FLANGE
0-91180-108-0
02
1
1509-
118
RETAINER; BUMPER SIDE
8-98232-279-0
04
1
1505-
139
NUT; BRKT FIX
M14 FLANGE
0-91180-214-0
04
1
1505-
202
BRACKET; BUMPER SIDE
8-97620-619-0
02
1
1505-
228
BOLT; BRKT
M14X45 FLANGE
0-28851-445-0
06
1
1505-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1505-1508
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1509-
259
BOLT; COVER
M8X25 FLANGE
0-28650-825-0
04
1
1505-
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
1505-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
1505-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1505-1508
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1509-
315
STAY; BUMPER
8-97611-513-0
01
1
1505-1508
315
STAY; BUMPER
8-97611-513-0
01
1
1509-
318
CAP; BUMPER SIDE
8-98232-191-0
02
1
1505-
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1505-1508
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1509-
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1505-1508
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1509-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1505-1508
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1509-
339
COVER; SNOW GUARD
8-98258-274-0
01
1
1505-
340
BRACKET; SNOW GUARD
8-98258-223-0
01
1
1505-
341
NUT; COVER
M8 FLANGE
0-91180-108-0
02
1
1505-
607
BRACKET
(A)
8-97620-616-0
01
1
1505-1508
607
BRACKET
(A)
8-97620-616-0
01
1
1509-
607
BRACKET
(B)
8-98045-836-3
01
1
1505-
607
BRACKET
(A)
8-97620-615-0
01
1
1505-1508
607
BRACKET
(A)
8-97620-615-0
01
1
1509-
607
BRACKET
(B)
8-98045-835-4
01
1
1505-
613
CLIP
8-97623-589-0
01
1
1505-1508
613
CLIP
8-97623-589-0
01
1
1509-
660
BOLT; STAY
M6X16 W/LK&PL WASHER
0-50640-616-0
01
1
1505-1508
660
BOLT; STAY
M6X16 W/LK&PL WASHER
0-50640-616-0
01
1
1509-
666
PROTECTOR; UNDER
8-98045-817-1
01
1
1505-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1505-1508
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1509-
678
NUT; BUMPER TO BACK BAR
M12 FLANGE
0-91180-212-0
04
1
1505-
