◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#161765) — 31 parça

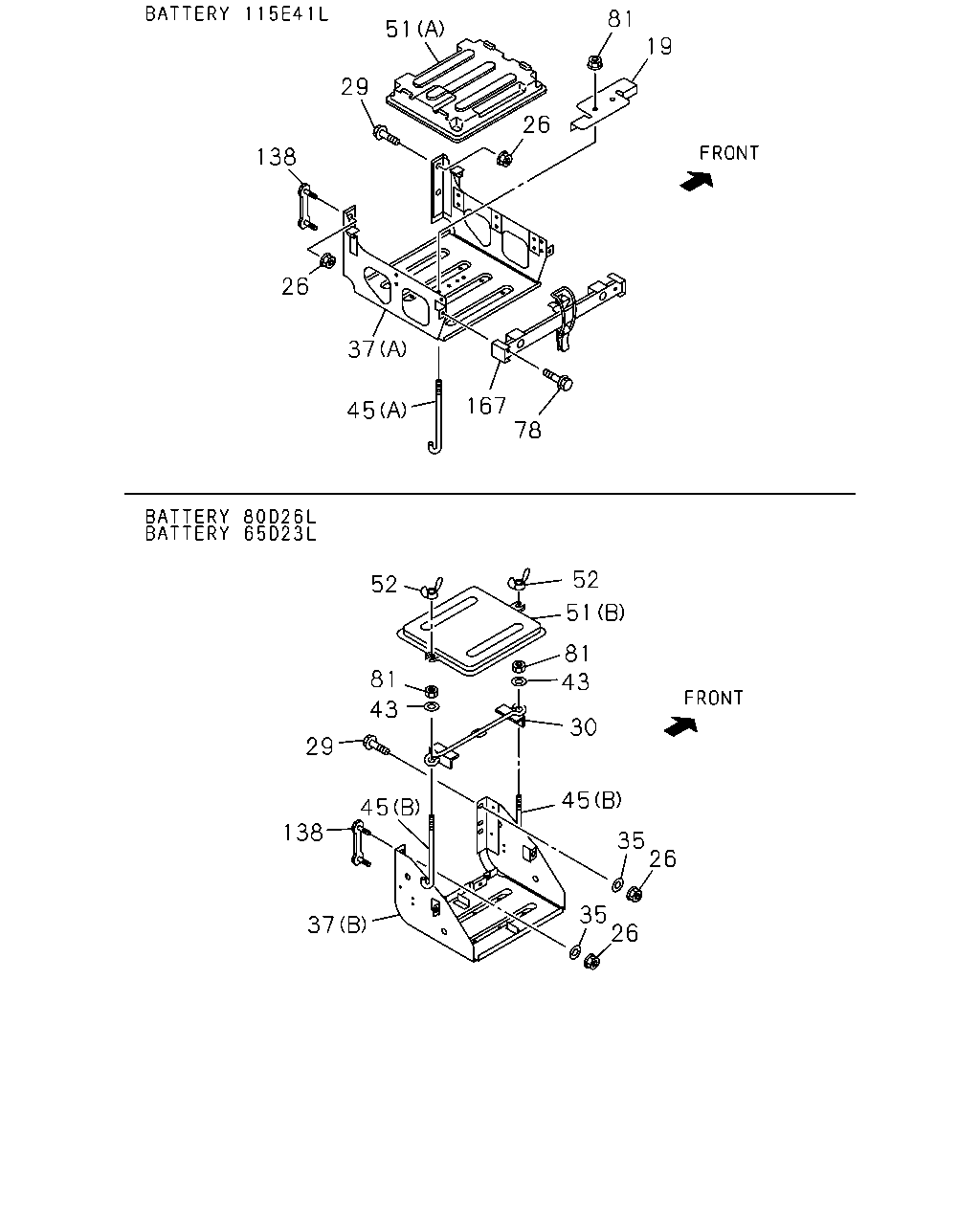

çizim 475673
138 29 51 81 26 19 26 37 45 167 78 52 81 43 29 45 138 37 52 51 81 43 30 45 35 26 35 26
BalonParca AdiParca NoAdetTipApplied Date
19 STAY; BATTERY
BATTERY 115E41L<8MA> 		8-98120-443-0 01 1 1505-
26 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1505-
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 1505-
30 PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		5-53615-004-1 01 1 1505-1508
30 PLATE; BATTERY
EXC. BATTERY 115E41L<8MA> 		5-53615-004-1 01 1 1509-
35 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 		0-91614-610-0 04 1 1505-
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> (A) 		8-98204-177-2 01 1 1505-1506
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98204-177-2 01 1 1507-
37 BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B) 		8-97384-068-2 01 1 1505-
37 BRACKET; BATTERY
BATTERY 80D26L<TM1> (B) 		8-97384-067-2 01 1 1505-
37 BRACKET; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) 		8-98204-178-2 01 1 1507-
43 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=8.4 OD=22 		0-91614-708-0 02 1 1505-1508
43 WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22 		0-91614-708-0 02 1 1509-
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=250 		1-53616-108-0 02 1 1505-1506
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=250 		1-53616-108-0 02 1 1507-
45 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 		9-53616-615-0 02 1 1505-1508
45 ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120 		9-53616-615-0 02 1 1509-
45 ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=235 		8-98120-478-0 02 1 1507-
51 COVER; BATTERY
BATTERY 115E41L<8MA> (A) 		1-53612-037-2 01 1 1505-1506
51 COVER; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) 		1-53612-037-2 01 1 1507-
51 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97120-747-0 01 1 1505-1508
51 COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B) 		8-97120-747-0 01 1 1509-
51 COVER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) 		8-98124-443-0 01 1 1507-
52 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT 		0-91118-408-0 02 1 1505-1508
52 NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT 		0-91118-408-0 02 1 1509-
78 BOLT; COVER
BATTERY 115E41L<8MA> M8X20 FLANGE 		0-28650-820-0 02 1 1505-
81 NUT; BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1505-1508
81 NUT; BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1509-
138 STUD 8-98255-710-0 01 1 1505-1508
138 STUD 8-98255-710-0 01 1 1509-
167 BRACKET; STOPPER
BATTERY 115E41L<8MA> 		8-98204-179-2 01 1 1505-
