5-01 — FRAME AND OTHER PARTS (#161762) — 124 parça

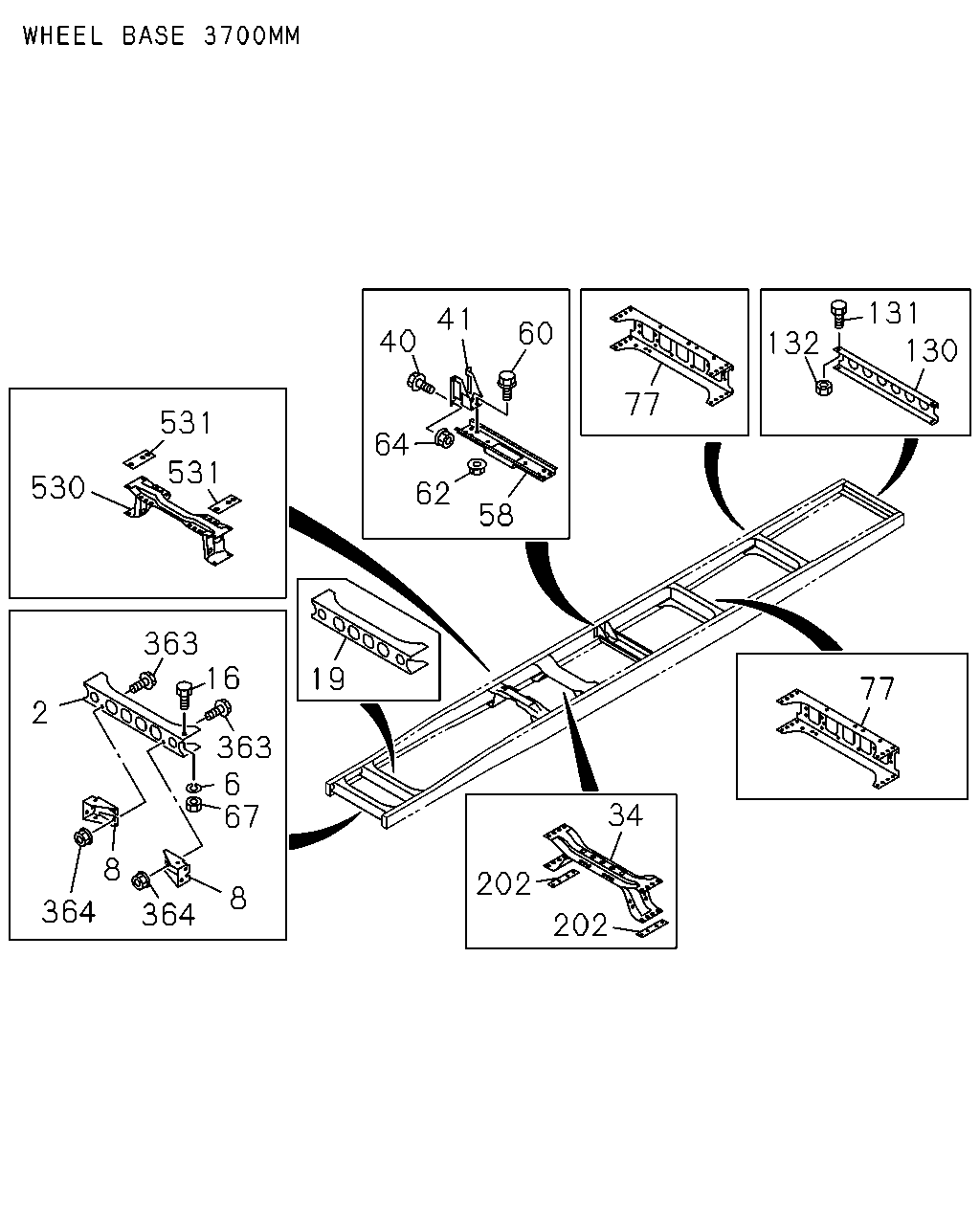

çizim 475995
531 531 530 41 40 64 62 58 60 77 132 131 130 77 34 202 202 364 364 8 2 363 16 363 6 67 8 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-98295-776-1 01 1 1505-1506 ● ● ● ●
2 MEMBER; CROSS,1ST 8-98295-776-1 01 1 1507- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1505-1506 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1507- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 1505-1506 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 1507- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 1505-1506 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 1507- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1505-1506 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1507- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97645-585-2 01 1 1505-1506 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97645-585-2 01 1 1507- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-98288-575-1 01 1 1505-1506 ● ● ● ●
34 MEMBER; CROSS,3RD 8-98288-575-1 01 1 1507- ● ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1507- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1507- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1507- ●
58 MEMBER; CENTER BRG 8-97638-924-0 01 1 1507- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1507- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1507- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1507- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1505-1506 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1507- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1505-1506 ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1507- ● ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1505-1506 ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1507- ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1505-1506 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1507- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1505-1506 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1507- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1505-1506 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1507- ● ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1505-1506 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1507- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1505-1506 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1507- ● ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1505-1506 ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1507- ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1505-1506 ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1507- ● ● ● ● ●

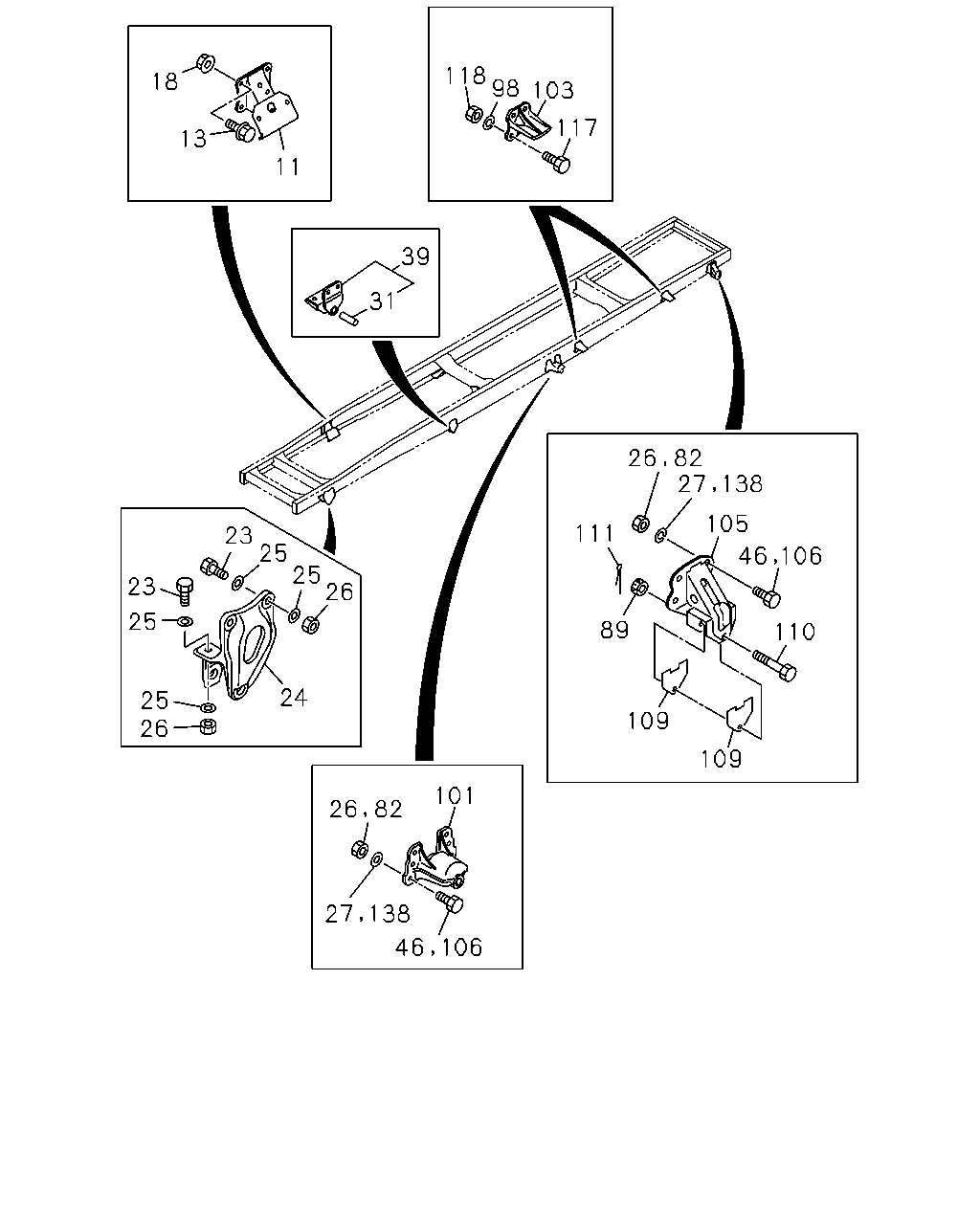

çizim 476067
101 82 26 27 138 46 106 109 109 110 106 46 105 27 138 82 26 111 89 26 25 25 23 23 25 25 26 24 117 103 98 118 11 13 18 31 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-98303-873-0 02 1 1505-1506 ● ● ● ●
11 BRACKET; ENG MTG 8-98303-873-0 02 1 1507- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1505-1506 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1507- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1505-1506 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1507- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1505-1506 ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1507- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1505-1506 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1507- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1505-1506 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1507- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1505-1506 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1507- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 1505- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 12 1 1505- ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 04 1 1505- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1505-1506 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1507- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1505-1506 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1507- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 04 1 1505- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 06 1 1505- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1505- ● ●
89 NUT; LEAF SPR STOPPER
M12 		0-91116-512-0 02 1 1505- ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1505-1506 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1507- ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1505-1506 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1507- ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1505-1506 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1507- ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-084-0 02 1 1505-1506 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-084-0 02 1 1507- ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 06 1 1505- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 1505- ● ●
109 SHIM; RR SPR 1-53359-043-1 04 1 1505- ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER
M12X121 		8-98010-414-0 02 1 1505- ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1505- ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1505-1506 ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1507- ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1505-1506 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1507- ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 06 1 1505- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 02 1 1505- ● ●

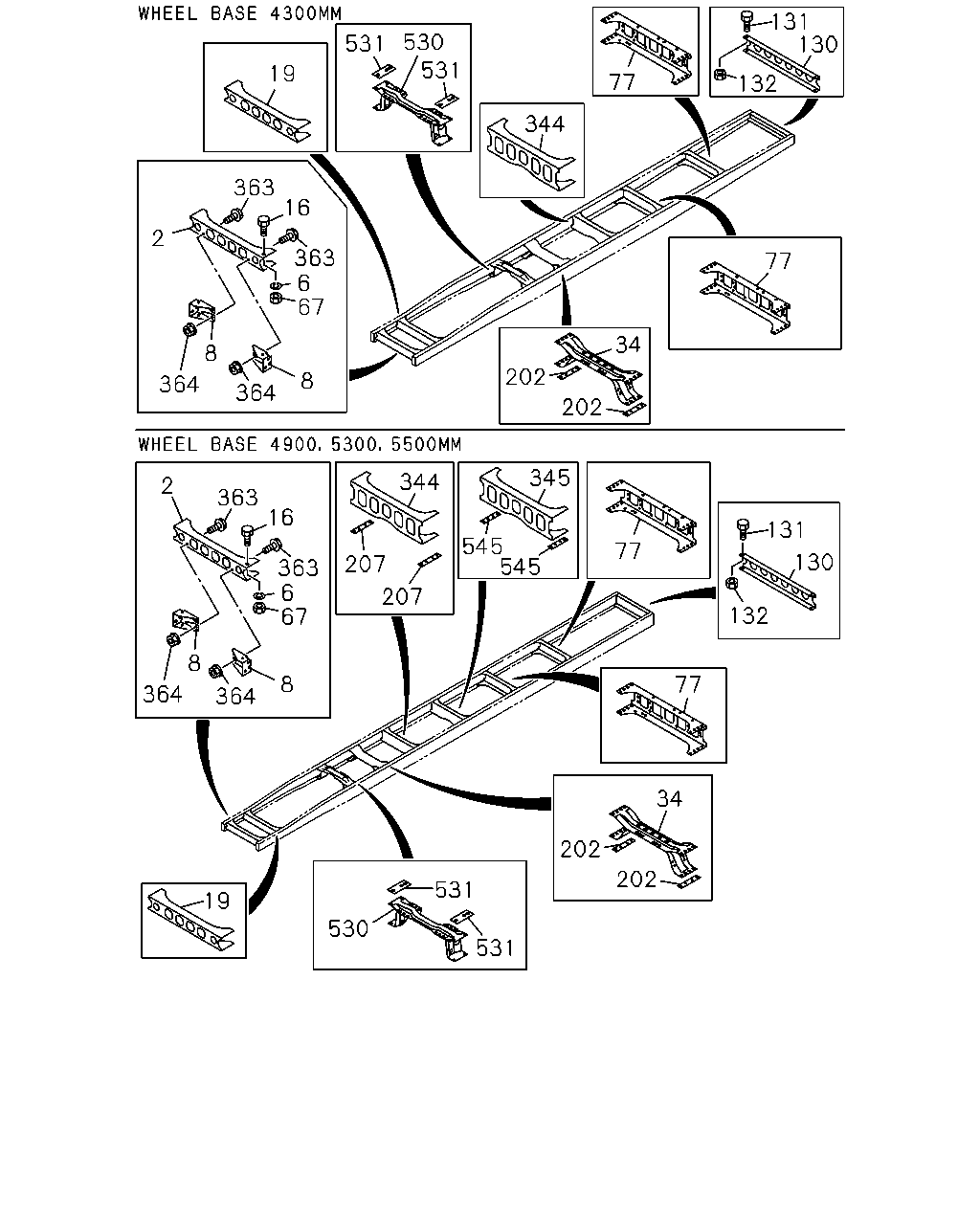

çizim 476393
131 130 132 344 77 531 530 531 19 363 16 363 6 67 8 364 364 8 2 34 202 202 2 363 16 363 6 67 8 364 364 7 344 207 207 345 545 545 77 131 130 132 77 34 202 202 531 531 531 19 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-98295-776-1 01 1 1505-1506 ● ● ● ●
2 MEMBER; CROSS,1ST 8-98295-776-1 01 1 1507- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1505-1506 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1507- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 1505-1506 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 1507- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 1505-1506 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 1507- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1505-1506 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1507- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97645-585-2 01 1 1505-1506 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97645-585-2 01 1 1507- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-98288-575-1 01 1 1505-1506 ● ● ● ●
34 MEMBER; CROSS,3RD 8-98288-575-1 01 1 1507- ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1505-1506 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1507- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1505-1506 ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1507- ● ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1505-1506 ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1507- ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1505-1506 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1507- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1505-1506 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1507- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1505-1506 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1507- ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1505- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1505- ● ● ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1505- ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1505- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1505-1506 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1507- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1505-1506 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1507- ● ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1505-1506 ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1507- ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1505-1506 ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1507- ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1505- ●
