4-50 — FRONT SUSPENSION
(#161757) — 39 parça
◀

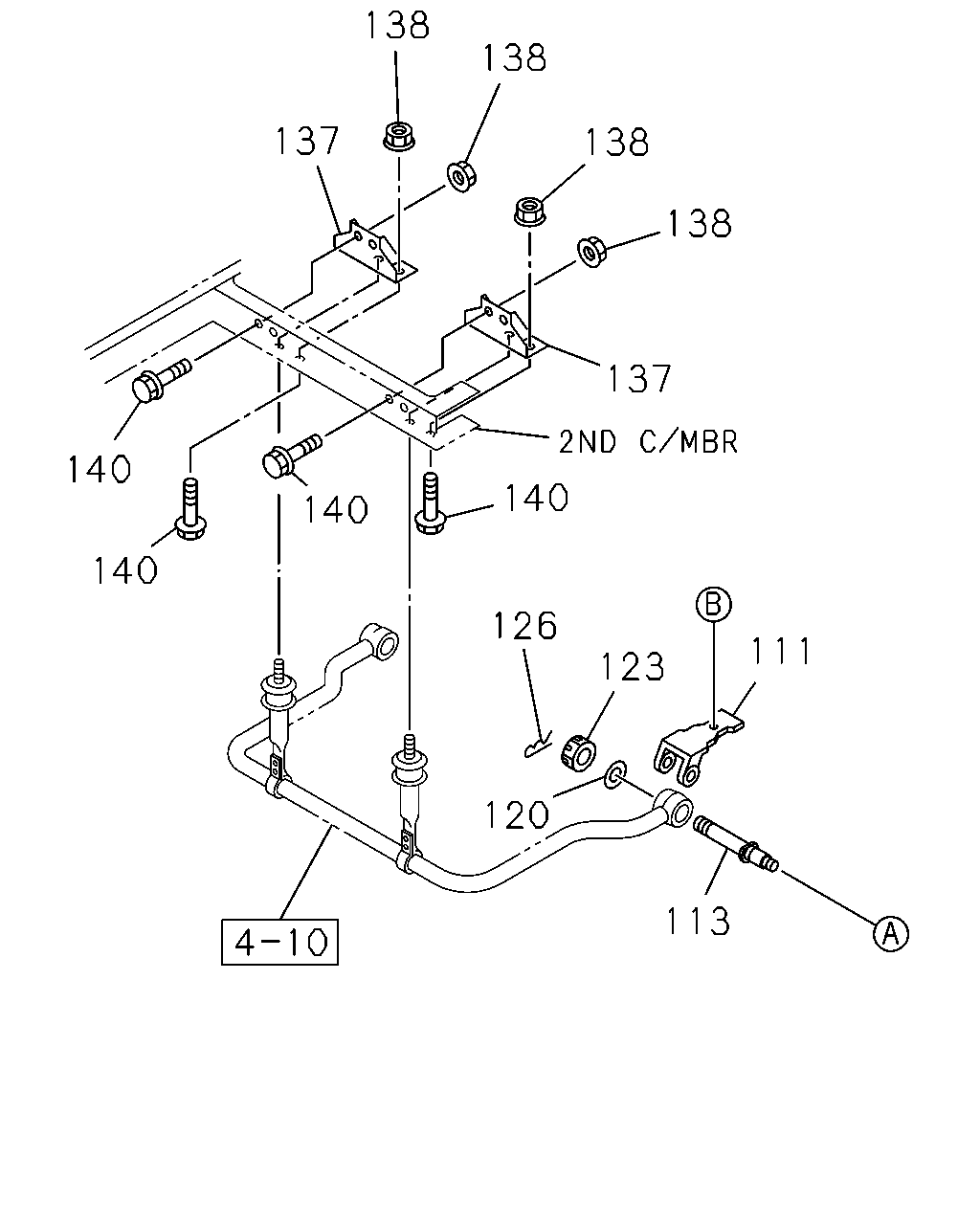

[450A] FRONT STABILIZER SHAFT (9 parça)

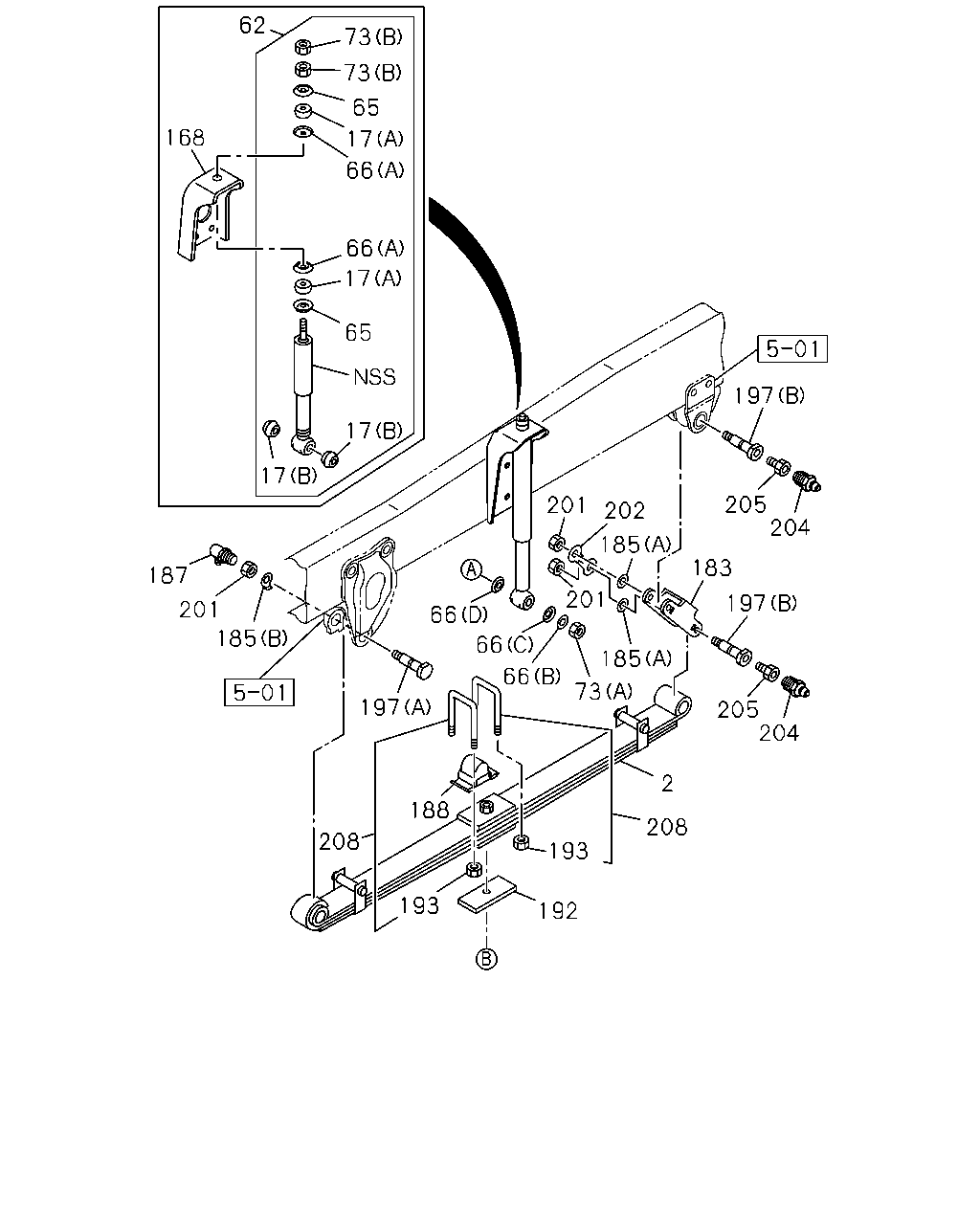

[450A] LEAF SPRING AND SHOCK ABSORBER (30 parça)
▶
138
138
138
138
137
140
126
123
111
113
120
140
137
140
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-655-1
01
1
1505-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-654-1
01
1
1505-
113
PIN; SUPPORTER
8-98019-317-0
02
1
1505-
120
WASHER; PL,SUPPORT BRKT TO BODY
ID=23
0-91614-522-0
02
1
1505-
123
NUT; PIN TO SUPPORTER
M22
0-91116-522-0
02
1
1505-
126
PIN; SPLIT,STAB
OD=4.6 L=45
0-81125-045-0
02
1
1505-
137
BRACKET; STAB BAR TO FRAME
1-51781-060-2
02
1
1505-
138
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
1505-
140
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1505-
168
62
73
65
73
17
66
66
17
65
17
17
187
201
185
197
66
66
66
73
201
202
201
185
183
197
204
205
197
204
205
208
2
185
188
208
193
193
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98229-529-0
01
1
1505-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98229-528-0
01
1
1505-
17
BUSHING; RUBBER,S/ABS
(B)
1-51631-009-1
04
1
1505-
17
BUSHING; RUBBER,S/ABS
(A)
9-51631-050-0
04
1
1505-
62
ABSORBER ASM; SHOCK,FRT
1-51630-302-1
02
1
1505-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1505-1508
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1509-1510
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1509-1510
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1511-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1505-
66
WASHER; LK,S/ABS SETTING
(D) ID=23
1-51631-019-0
02
1
1505-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1505-
66
WASHER; LK,S/ABS SETTING
(A) ID=16.8
1-51631-022-0
04
1
1505-
73
NUT; BRKT,SHOCK
(A) M16
0-91110-516-0
02
1
1505-
73
NUT; BRKT,SHOCK
(B) M12
8-98010-412-0
04
1
1505-
168
BRACKET; S/ABS,FRT SUSP
1-51681-820-0
02
1
1505-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
1505-
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
1505-
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
1505-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1505-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-124-0
02
1
1505-
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
1505-
193
NUT; U BOLT
M18 FLANGE
1-09440-039-1
08
1
1505-
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
1505-
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
1505-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
1505-
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
1505-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1505-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
1505-
208
U-BOLT SET; FRT SPRING
L=165
1-87870-444-0
04
1
1505-
