Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#161753) — 49 parça

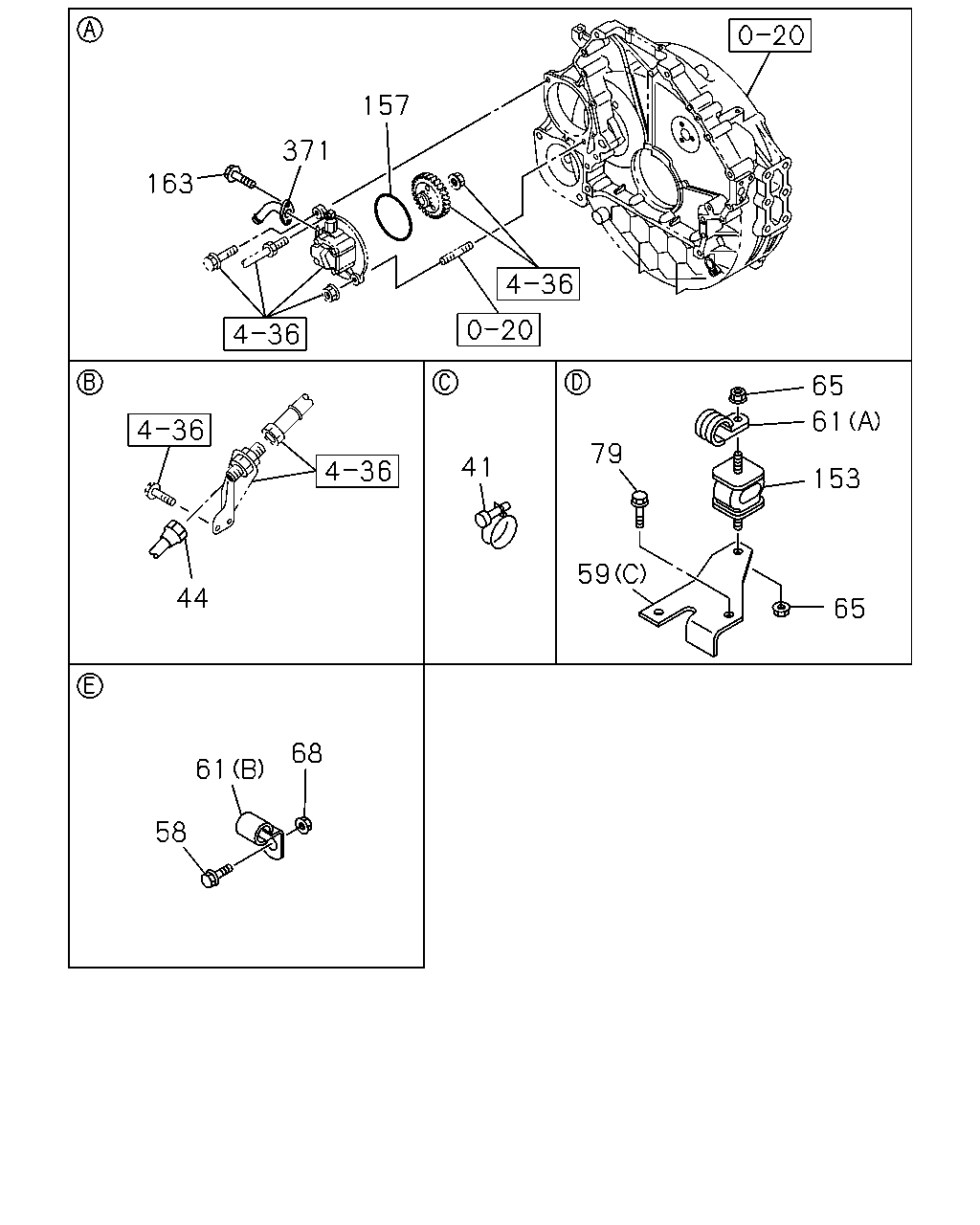

157 371 163 65 61 153 65 59 79 41 44 68 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1505-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98285-048-0	01	1	1505-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE (A)	1-47476-644-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE (B) L=95	1-82699-085-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE (C)	8-98222-221-0	01	1	1505-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1505-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1505-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1505-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1505-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1505-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1505-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1505-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1505-
371	PIPE; OIL,INLET	8-94397-227-0	01	1	1505-

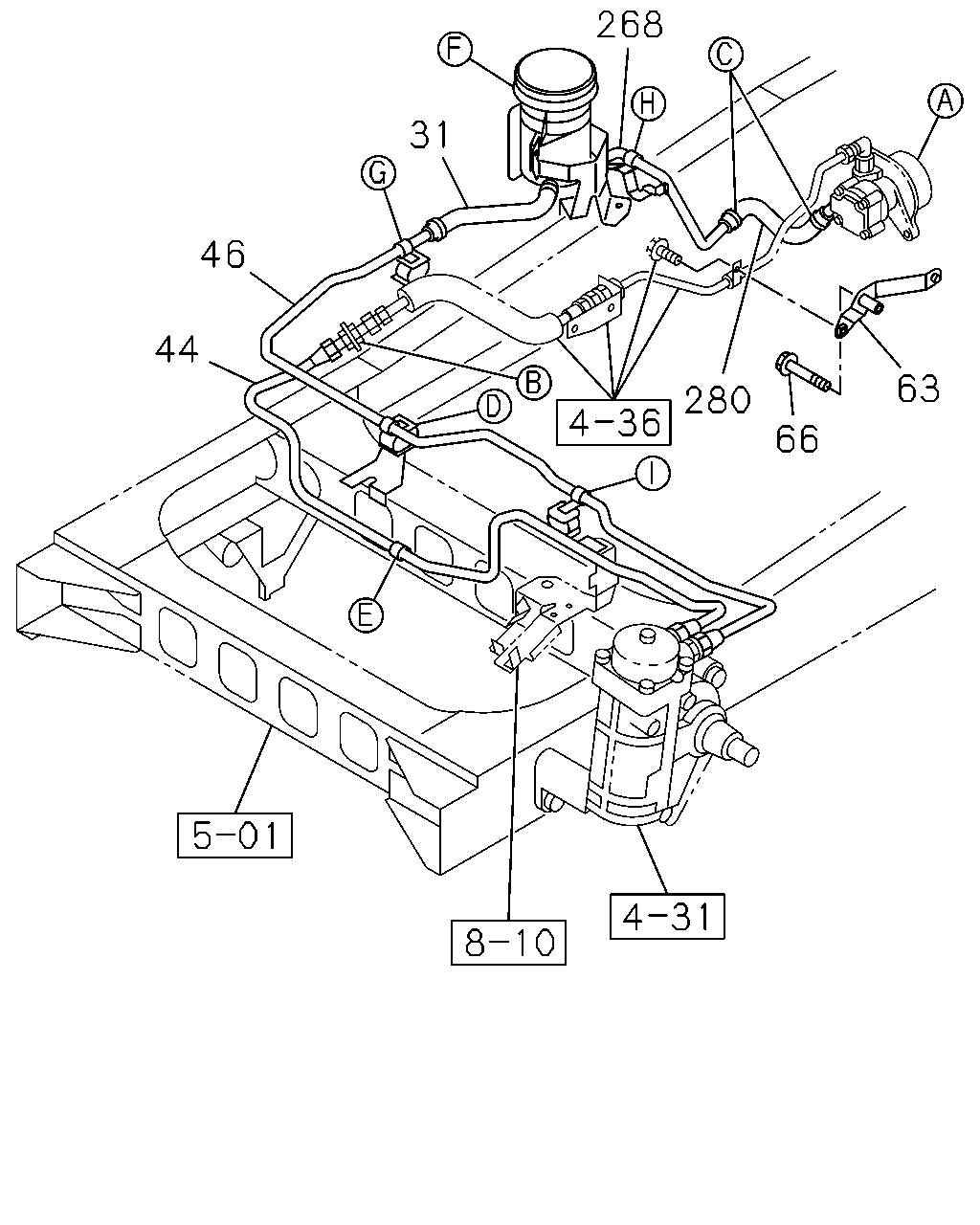

268 31 46 44 280 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL L=220 SERVICED BY L=300	0-09814-300-0	01	1	1505-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98285-048-0	01	1	1505-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1581	8-98317-422-0	01	1	1505-
63	BRACKET; CLIP,P/S	8-98133-447-2	01	1	1505-
66	BOLT; BRKT,OIL PIPE M10X60 FLANGE	0-28151-060-0	01	1	1505-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98167-795-0	01	1	1505-
280	HOSE; P/S OIL PUMP,INL	8-98171-963-0	01	1	1505-

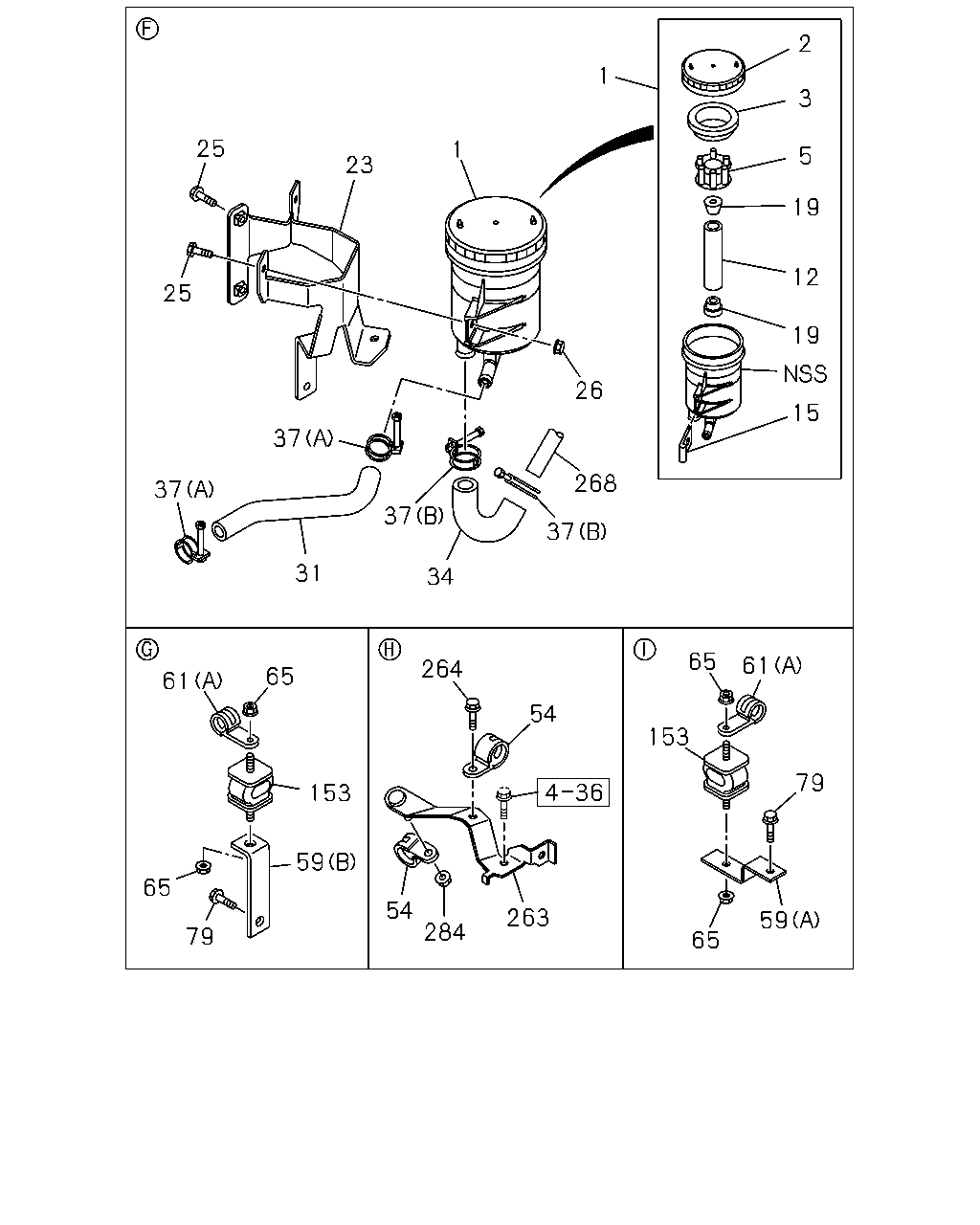

1 2 3 5 19 12 19 15 26 268 37 37 34 31 37 37 23 1 25 25 61 65 153 59 79 65 264 54 263 284 54 65 59 79 61 65 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1505-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1505-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1505-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1505-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1505-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1505-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1505-
23	BRACKET; OIL TANK,P/S	8-98148-531-0	01	1	1505-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1505-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1505-
31	HOSE; P/S OIL TANK,INL L=220 SERVICED BY L=300	0-09814-300-0	01	1	1505-
34	HOSE; P/S OIL TANK,OUTLET	8-98167-796-1	01	1	1505-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1505-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1505-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	02	1	1505-
59	BRACKET; CLIP,OIL PIPE (A)	1-47476-644-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE (B) L=95	1-82699-085-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE (C)	8-98222-221-0	01	1	1505-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1505-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1505-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1505-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1505-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1505-
263	BRACKET; P/S PIPE	8-98167-794-1	01	1	1505-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1505-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98167-795-0	01	1	1505-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1505-
