Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#161749) — 226 parça

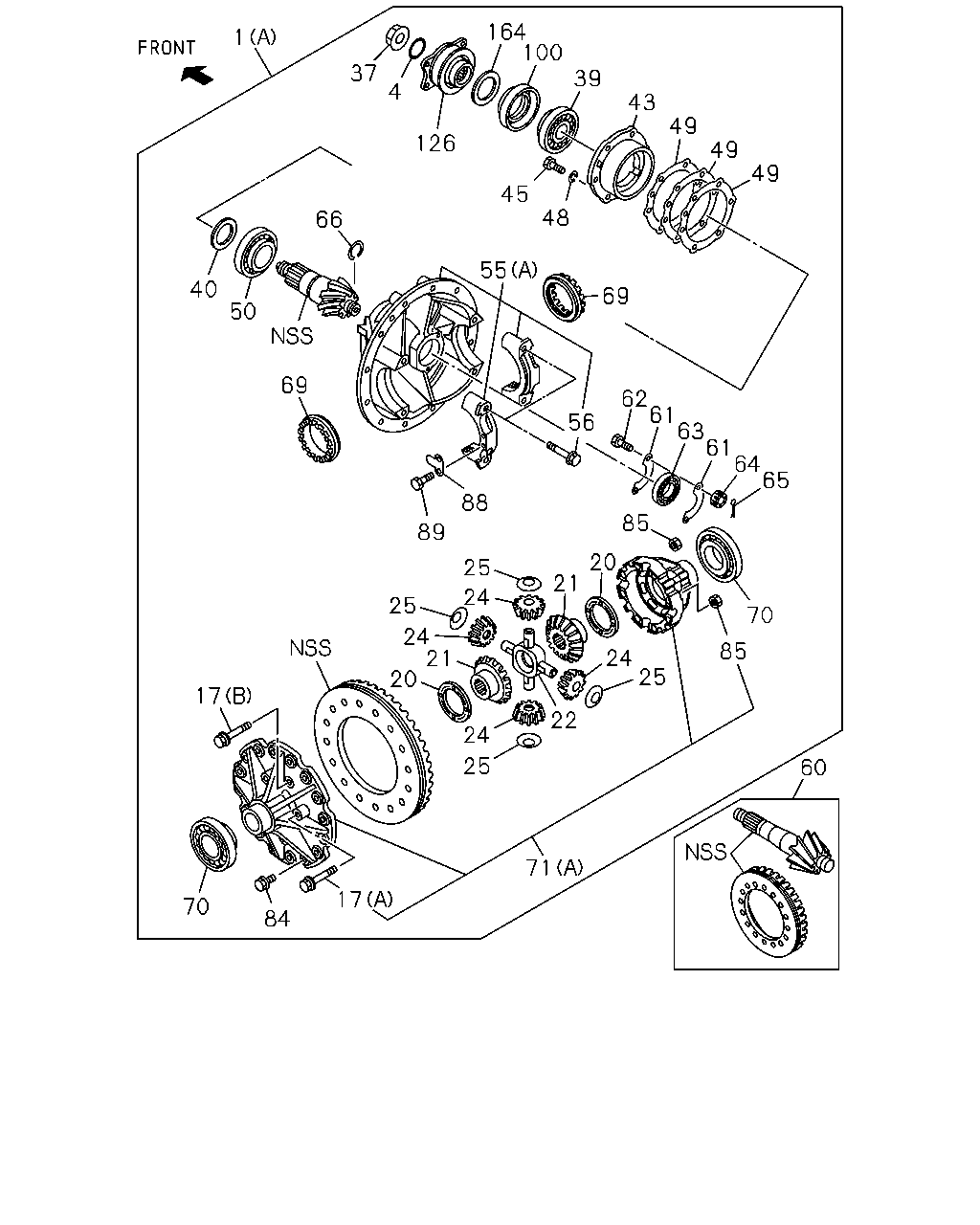

164 39 100 43 49 49 9 69 48 45 126 4 37 55 66 1 69 50 40 89 88 56 62 61 63 61 64 70 65 85 85 20 25 24 21 22 25 20 24 21 24 25 17 70 84 1 17 60 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41003-255-0	01	1	1505-1506	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/7	1-41003-255-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/7	1-41003-342-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR (A) 41/8	1-41003-254-0	01	1	1505-1506		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/8	1-41003-254-0	01	1	1507-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/8	1-41003-547-0	01	1	1507-		●
1	DRIVE ASM; FINAL,RR (A) 41/9	1-41003-343-0	01	1	1505-1506			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1507-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1507-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1505-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1505-1506	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1507-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1505-	●	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1507-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1505-	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1505-	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1505-	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1505-	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1505-	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1505-	●	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1505-	●	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1505-	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1505-	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1505-	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1505-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1505-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1505-	●	●	●
55	CARRIER; DIFF (A)	1-41110-129-0	01	1	1505-1506	●	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1507-	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1507-	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1505-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1505-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	1505-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1505-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1505-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1505-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1505-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1505-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1505-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1505-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1505-	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1505-1506	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1507-	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1507-		●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1505-1506	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1509-	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1509-		●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-	●	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-		●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1509-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1509-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1507-	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1505-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1505-	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1505-	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1505-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1505-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1505-	●	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1505-	●	●	●

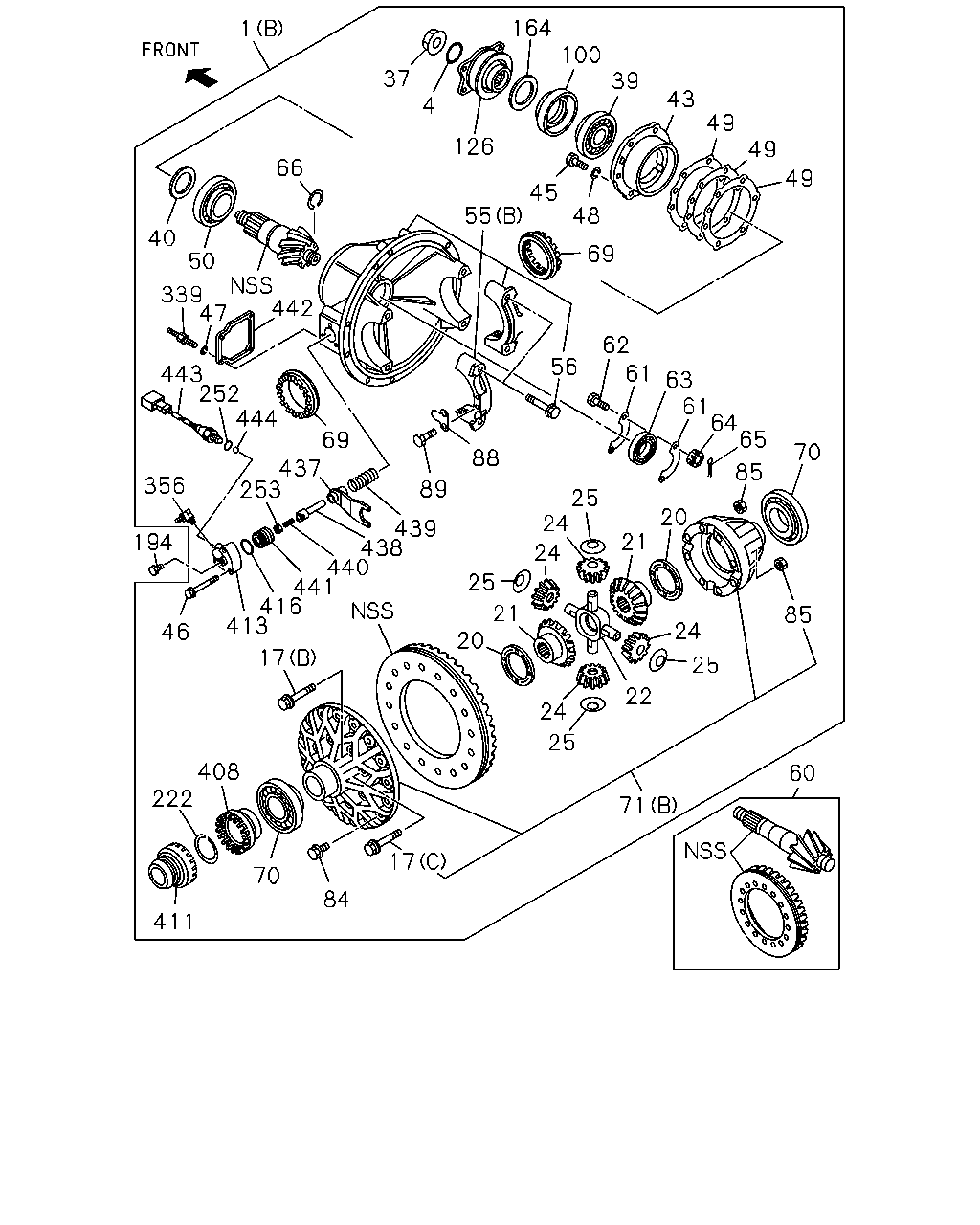

164 100 43 39 49 49 49 48 45 69 55 126 4 37 1 66 442 50 40 339 252 443 437 69 444 253 356 194 89 439 438 440 441 416 413 46 88 17 408 222 17 84 70 411 71 60 85 25 24 22 25 20 24 21 25 24 25 24 21 20 70 85 65 64 61 63 61 62 56 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41003-255-0	01	1	1505-1506	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/7	1-41003-255-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/7	1-41003-342-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR (A) 41/8	1-41003-254-0	01	1	1505-1506		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/8	1-41003-254-0	01	1	1507-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/8	1-41003-547-0	01	1	1507-		●
1	DRIVE ASM; FINAL,RR (A) 41/9	1-41003-343-0	01	1	1505-1506			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1507-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1507-			●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1505-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1505-1506	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1507-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1505-	●	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1507-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1505-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1505-	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1505-	●	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1505-	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1505-	●	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1505-	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1505-	●	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1505-	●	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1505-	●	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1505-	●	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1505-	●	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1505-	●	●	●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1507-	●	●	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1507-	●	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1505-	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1505-	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1505-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1505-	●	●	●
55	CARRIER; DIFF (A)	1-41110-129-0	01	1	1505-1506	●	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1507-	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1507-	●	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1505-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1505-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	1505-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1505-			●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1505-	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1505-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1505-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1505-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1505-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1505-	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1505-	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1505-1506	●	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1507-	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1507-		●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1505-1506	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1509-	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1509-		●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-	●	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-		●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1509-	●	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1509-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1505-1506	●	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1507-	●	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1507-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-335-0	01	1	1507-	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-343-0	01	1	1505-1506	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1507-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-334-0	01	1	1507-		●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1505-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1505-	●	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1505-	●	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1505-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1505-	●	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1505-	●	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1505-	●	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1505-	●	●	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1507-	●	●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1507-	●	●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1507-	●	●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1507-	●	●	●
339	BOLT; COVER DIFF LOCK<C3N> M6X14,M8X17 L=42	5-09309-006-1	04	1	1507-	●	●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1507-	●	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1507-	●	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1507-	●	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1507-	●	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1507-	●	●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1507-	●	●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1507-	●	●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1507-	●	●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1507-	●	●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1507-	●	●	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1507-	●	●	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1507-	●	●	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1507-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
