◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#161746) — 107 parça

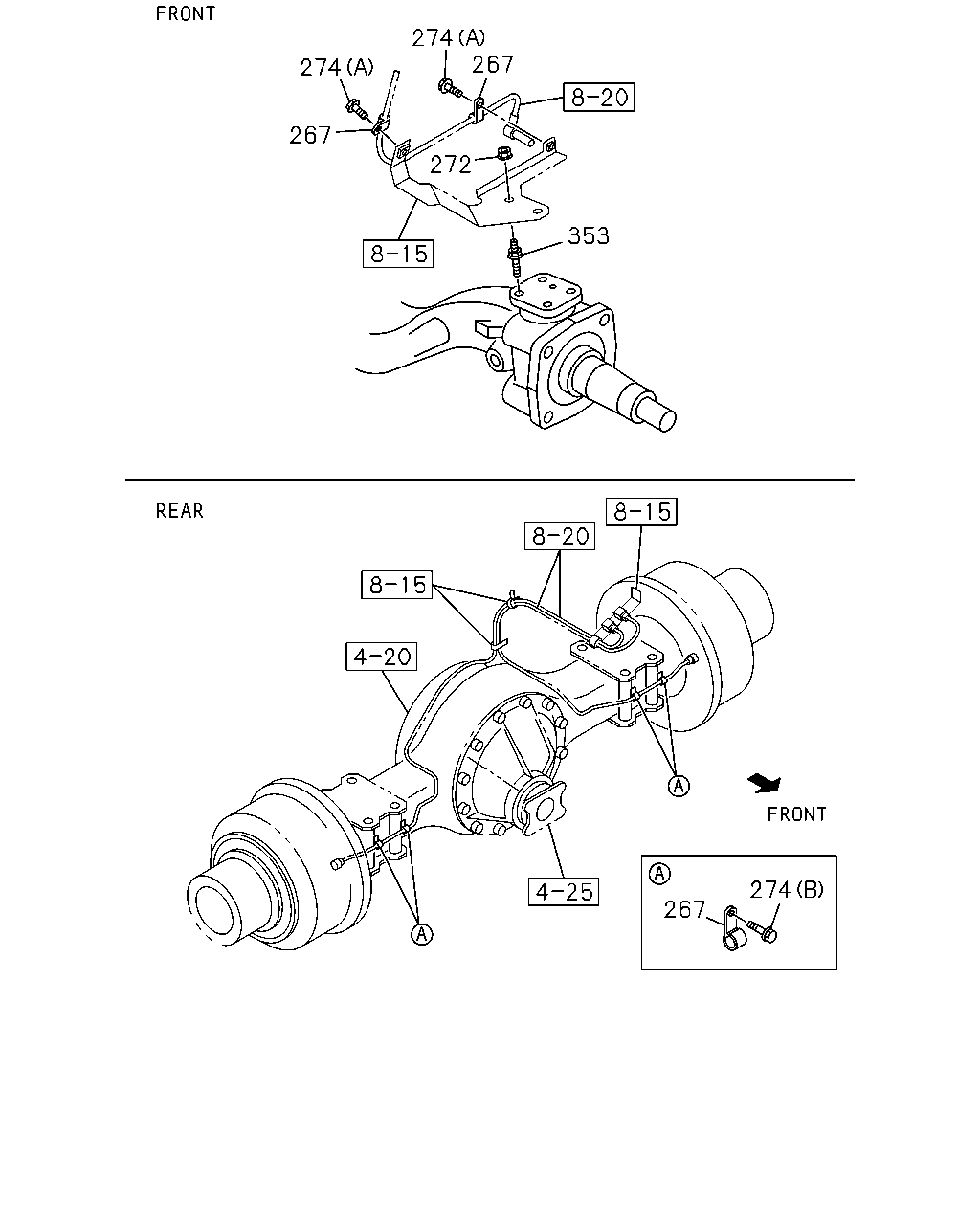

çizim 475614
274 267 274 267 272 353 267 274
BalonParca AdiParca NoAdetTipApplied Date
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 04 1 1505-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 04 1 1505-
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1505-1508
272 NUT; CLIP
BRAKE REGULATION ECE(TDV) M8 FLANGE 		0-91180-108-0 04 1 1509-
274 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 04 1 1505-
274 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1505-1508
274 BOLT; CLIP
BRAKE REGULATION ECE(TDV) (A) M8X16 FLANGE 		0-28050-816-0 04 1 1509-
353 STUD; BRACKET
M8X11,M8X25 L=45 		8-97220-552-2 04 1 1505-1508
353 STUD; BRACKET
BRAKE REGULATION ECE(TDV) M8X11,M8X25 L=45 		8-97220-552-2 04 1 1509-

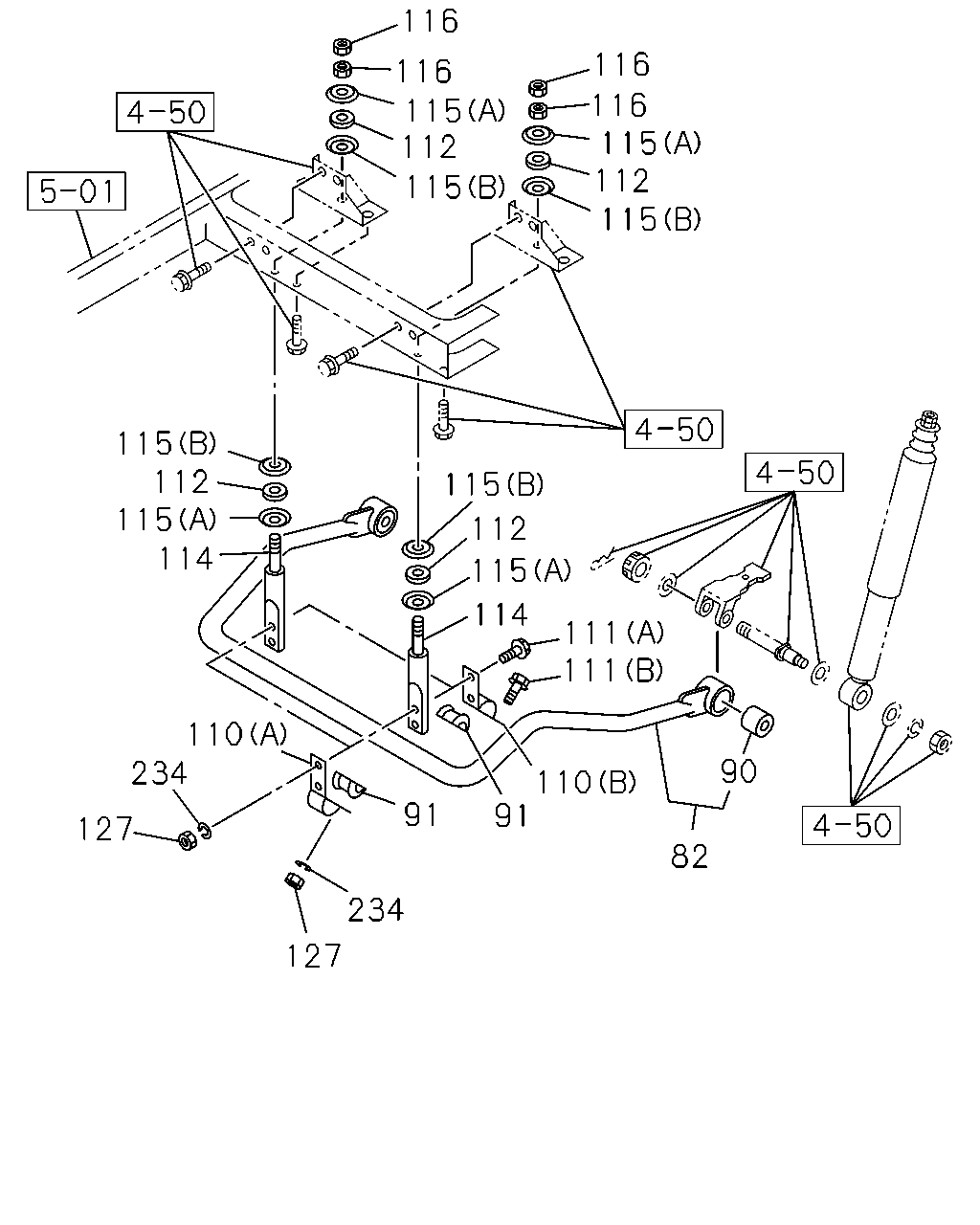

çizim 475906
116 115 116 112 115 116 116 115 115 112 115 112 115 114 115 115 112 111 111 110 82 91 91 234 127 234 127 110 114 90
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51770-114-0 01 1 1505-
90 BUSHING; RUBBER,STAB BAR 1-51779-066-0 02 1 1505-
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1505-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1505-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1505-
111 BOLT; CLAMP TO ROD
(B) M12X30 FLANGE 		0-28051-230-0 02 1 1505-
111 BOLT; CLAMP TO ROD
(A) M12X50 FLANGE 		0-28051-250-0 04 1 1505-
112 BUSHING; ROD 9-51631-050-0 04 1 1505-
114 ROD; STAB BAR 1-51773-082-0 02 1 1505-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1505-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1505-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1505-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1505-
234 WASHER; STAB
ID=12.2 		0-91510-812-0 06 1 1505-

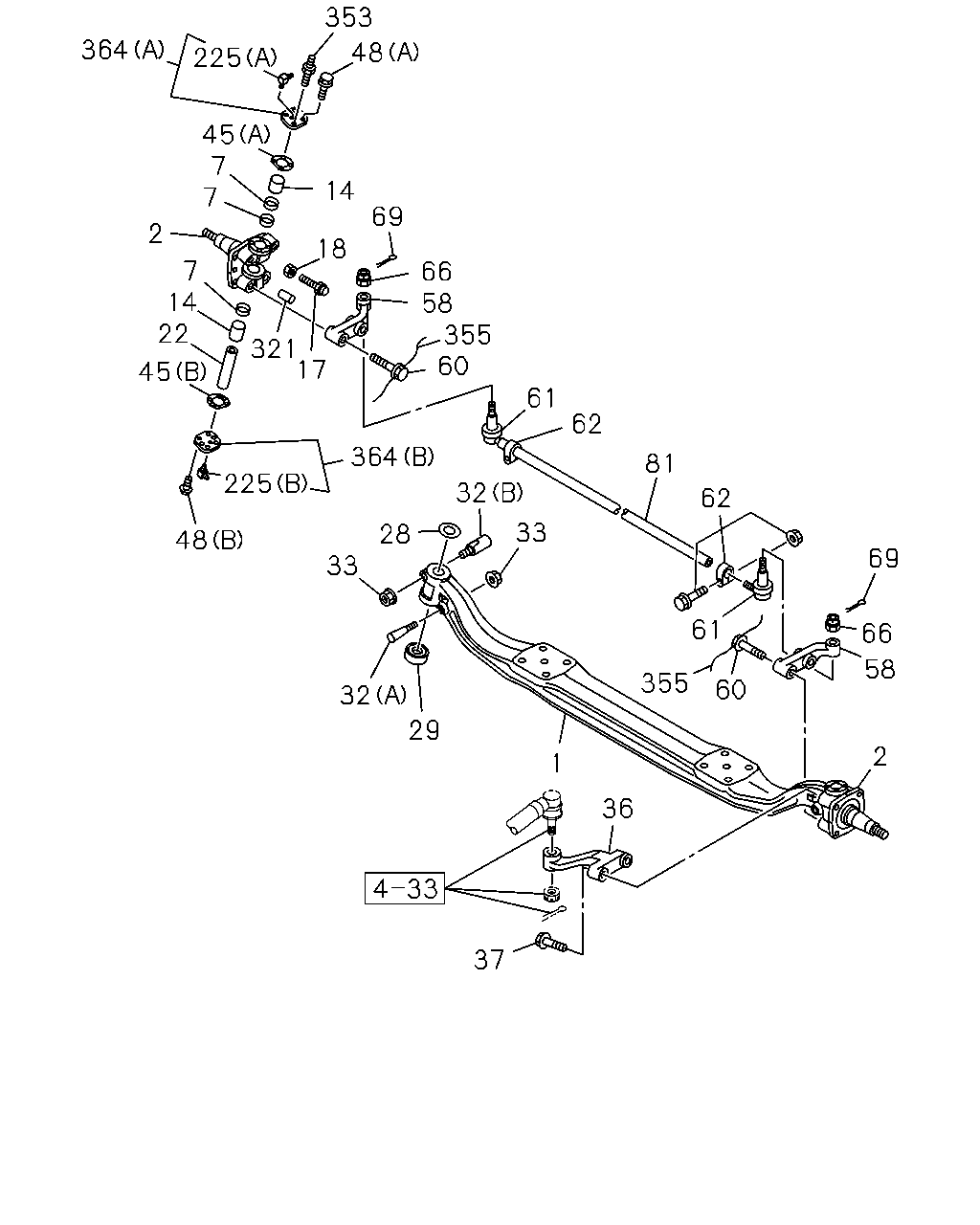

çizim 476568
353 48 225 364 45 7 7 14 69 18 66 58 355 61 62 81 62 69 66 58 2 60 61 355 33 32 364 225 48 45 22 14 7 2 321 17 28 33 32 29 37 36 1 60
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-173-0 01 1 1505-1508
1 AXLE; FRT
BRAKE REGULATION ECE(TDV) 		1-43111-173-0 01 1 1509-
2 KNUCKLE; FRT AXLE 8-98308-422-0 01 1 1505-1508
2 KNUCKLE; FRT AXLE
BRAKE REGULATION ECE(TDV) 		8-98308-422-0 01 1 1509-
2 KNUCKLE; FRT AXLE 8-98308-423-0 01 1 1505-1508
2 KNUCKLE; FRT AXLE
BRAKE REGULATION ECE(TDV) 		8-98308-423-0 01 1 1509-
7 SEAL; OIL,KING PIN 1-09625-648-0 06 1 1505-1508
7 SEAL; OIL,KING PIN
BRAKE REGULATION ECE(TDV) 		1-09625-648-0 06 1 1509-
14 BUSHING; KING PIN 1-43141-014-0 04 1 1505-1508
14 BUSHING; KING PIN
BRAKE REGULATION ECE(TDV) 		1-43141-014-0 04 1 1509-
17 BOLT; STOPPER KNUCKLE 1-09009-184-0 02 1 1505-1508
17 BOLT; STOPPER KNUCKLE
BRAKE REGULATION ECE(TDV) 		1-09009-184-0 02 1 1509-
18 NUT; STOPPER BOLT,KNUCKLE 1-09440-096-0 02 1 1505-1508
18 NUT; STOPPER BOLT,KNUCKLE
BRAKE REGULATION ECE(TDV) 		1-09440-096-0 02 1 1509-
22 PIN; KING,FRT AXLE 1-43161-018-0 02 1 1505-1508
22 PIN; KING,FRT AXLE
BRAKE REGULATION ECE(TDV) 		1-43161-018-0 02 1 1509-
28 WASHER; KING PIN
T=0.80 		1-43171-341-0 AR 1 1505-1508
28 WASHER; KING PIN
BRAKE REGULATION ECE(TDV) T=0.80 		1-43171-341-0 AR 1 1509-
28 WASHER; KING PIN
T=1.00 		1-43171-342-0 AR 1 1505-1508
28 WASHER; KING PIN
BRAKE REGULATION ECE(TDV) T=1.00 		1-43171-342-0 AR 1 1509-
28 WASHER; KING PIN
T=0.12 		1-43171-343-0 AR 1 1505-1508
28 WASHER; KING PIN
BRAKE REGULATION ECE(TDV) T=0.12 		1-43171-343-0 AR 1 1509-
28 WASHER; KING PIN
T=0.25 		1-43171-344-0 AR 1 1505-1508
28 WASHER; KING PIN
BRAKE REGULATION ECE(TDV) T=0.25 		1-43171-344-0 AR 1 1509-
28 WASHER; KING PIN
T=0.40 		1-43171-345-0 AR 1 1505-1508
28 WASHER; KING PIN
BRAKE REGULATION ECE(TDV) T=0.40 		1-43171-345-0 AR 1 1509-
28 WASHER; KING PIN
T=0.60 		1-43171-346-0 AR 1 1505-1508
28 WASHER; KING PIN
BRAKE REGULATION ECE(TDV) T=0.60 		1-43171-346-0 AR 1 1509-
29 BEARING; KING PIN 1-09829-047-0 02 1 1505-1508
29 BEARING; KING PIN
BRAKE REGULATION ECE(TDV) 		1-09829-047-0 02 1 1509-
32 BOLT; KEY,KING PIN
(B) L=70 		1-43116-009-0 02 1 1505-1508
32 BOLT; KEY,KING PIN
BRAKE REGULATION ECE(TDV) (B) L=70 		1-43116-009-0 02 1 1509-
32 BOLT; KEY,KING PIN
(B) L=64 		1-43116-010-0 02 1 1505-1508
32 BOLT; KEY,KING PIN
BRAKE REGULATION ECE(TDV) (B) L=64 		1-43116-010-0 02 1 1509-
32 BOLT; KEY,KING PIN
(A) L=102 		1-43116-011-0 02 1 1505-1508
32 BOLT; KEY,KING PIN
BRAKE REGULATION ECE(TDV) (A) L=102 		1-43116-011-0 02 1 1509-
32 BOLT; KEY,KING PIN
(A) L=96 		1-43116-012-0 02 1 1505-1508
32 BOLT; KEY,KING PIN
BRAKE REGULATION ECE(TDV) (A) L=96 		1-43116-012-0 02 1 1509-
33 NUT; KEY BOLT 1-09440-093-0 04 1 1505-1508
33 NUT; KEY BOLT
BRAKE REGULATION ECE(TDV) 		1-09440-093-0 04 1 1509-
36 ARM; KNUCKLE 1-43133-086-0 01 1 1505-1508
36 ARM; KNUCKLE
BRAKE REGULATION ECE(TDV) 		1-43133-086-0 01 1 1509-
37 BOLT; KNUCKLE ARM 1-09000-780-0 02 1 1505-1508
37 BOLT; KNUCKLE ARM
BRAKE REGULATION ECE(TDV) 		1-09000-780-0 02 1 1509-
45 GASKET; KING PIN COVER
(A) 		1-42319-207-0 02 1 1505-1508
45 GASKET; KING PIN COVER
BRAKE REGULATION ECE(TDV) (A) 		1-42319-207-0 02 1 1509-
45 GASKET; KING PIN COVER
(B) 		8-98308-427-0 02 1 1505-1508
45 GASKET; KING PIN COVER
BRAKE REGULATION ECE(TDV) (B) 		8-98308-427-0 02 1 1509-
48 BOLT; COVER
(B) 		8-98308-435-0 12 1 1505-1508
48 BOLT; COVER
BRAKE REGULATION ECE(TDV) (B) 		8-98308-435-0 12 1 1509-
48 BOLT; COVER
(A) 		8-98308-436-0 08 1 1505-1508
48 BOLT; COVER
BRAKE REGULATION ECE(TDV) (A) 		8-98308-436-0 08 1 1509-
58 ARM; TIE ROD 1-43134-064-0 01 1 1505-1508
58 ARM; TIE ROD
BRAKE REGULATION ECE(TDV) 		1-43134-064-0 01 1 1509-
58 ARM; TIE ROD 1-43135-061-0 01 1 1505-1508
58 ARM; TIE ROD
BRAKE REGULATION ECE(TDV) 		1-43135-061-0 01 1 1509-
60 BOLT; TIE ROD ARM 1-09000-779-0 04 1 1505-1508
60 BOLT; TIE ROD ARM
BRAKE REGULATION ECE(TDV) 		1-09000-779-0 04 1 1509-
61 ROD END; TIE ROD
LH THREAD 		1-43150-875-0 01 1 1505-1508
61 ROD END; TIE ROD
BRAKE REGULATION ECE(TDV) LH THREAD 		1-43150-875-0 01 1 1509-
61 ROD END; TIE ROD
RH THREAD 		1-43150-876-0 01 1 1505-1508
61 ROD END; TIE ROD
BRAKE REGULATION ECE(TDV) RH THREAD 		1-43150-876-0 01 1 1509-
62 CLAMP; TIE ROD 1-43159-125-0 02 1 1505-1508
62 CLAMP; TIE ROD
BRAKE REGULATION ECE(TDV) 		1-43159-125-0 02 1 1509-
66 NUT; TIE ROD END 1-09442-029-0 02 1 1505-1508
66 NUT; TIE ROD END
BRAKE REGULATION ECE(TDV) 		1-09442-029-0 02 1 1509-
69 PIN; SPLIT,TIE ROD END 1-09987-282-0 02 1 1505-1508
69 PIN; SPLIT,TIE ROD END
BRAKE REGULATION ECE(TDV) 		1-09987-282-0 02 1 1509-
81 ROD; TIE 1-43151-156-0 01 1 1505-1508
81 ROD; TIE
BRAKE REGULATION ECE(TDV) 		1-43151-156-0 01 1 1509-
225 NIPPLE; GREASE,COVER
(A) 		1-43175-035-0 02 1 1505-1508
225 NIPPLE; GREASE,COVER
BRAKE REGULATION ECE(TDV) (A) 		1-43175-035-0 02 1 1509-
225 NIPPLE; GREASE,COVER
(B) 		1-43175-036-0 02 1 1505-1508
225 NIPPLE; GREASE,COVER
BRAKE REGULATION ECE(TDV) (B) 		1-43175-036-0 02 1 1509-
321 BUSHING; KNUCKLE 1-83129-474-0 02 1 1505-1508
321 BUSHING; KNUCKLE
BRAKE REGULATION ECE(TDV) 		1-83129-474-0 02 1 1509-
353 STUD; BRACKET
M8X11,M8X25 L=45 		8-97220-552-2 04 1 1505-1508
353 STUD; BRACKET
BRAKE REGULATION ECE(TDV) M8X11,M8X25 L=45 		8-97220-552-2 04 1 1509-
355 WIRE; LOCK 1-43004-703-0 06 1 1505-1508
355 WIRE; LOCK
BRAKE REGULATION ECE(TDV) 		1-43004-703-0 06 1 1509-
364 COVER ASM; KING PIN
(A) 		1-43175-038-0 02 1 1505-1508
364 COVER ASM; KING PIN
BRAKE REGULATION ECE(TDV) (A) 		1-43175-038-0 02 1 1509-
364 COVER ASM; KING PIN
(B) 		8-98309-517-0 02 1 1505-1508
364 COVER ASM; KING PIN
BRAKE REGULATION ECE(TDV) (B) 		8-98309-517-0 02 1 1509-
