3-78 — FIXING PARTS; AIR PIPING (#161744) — 82 parça

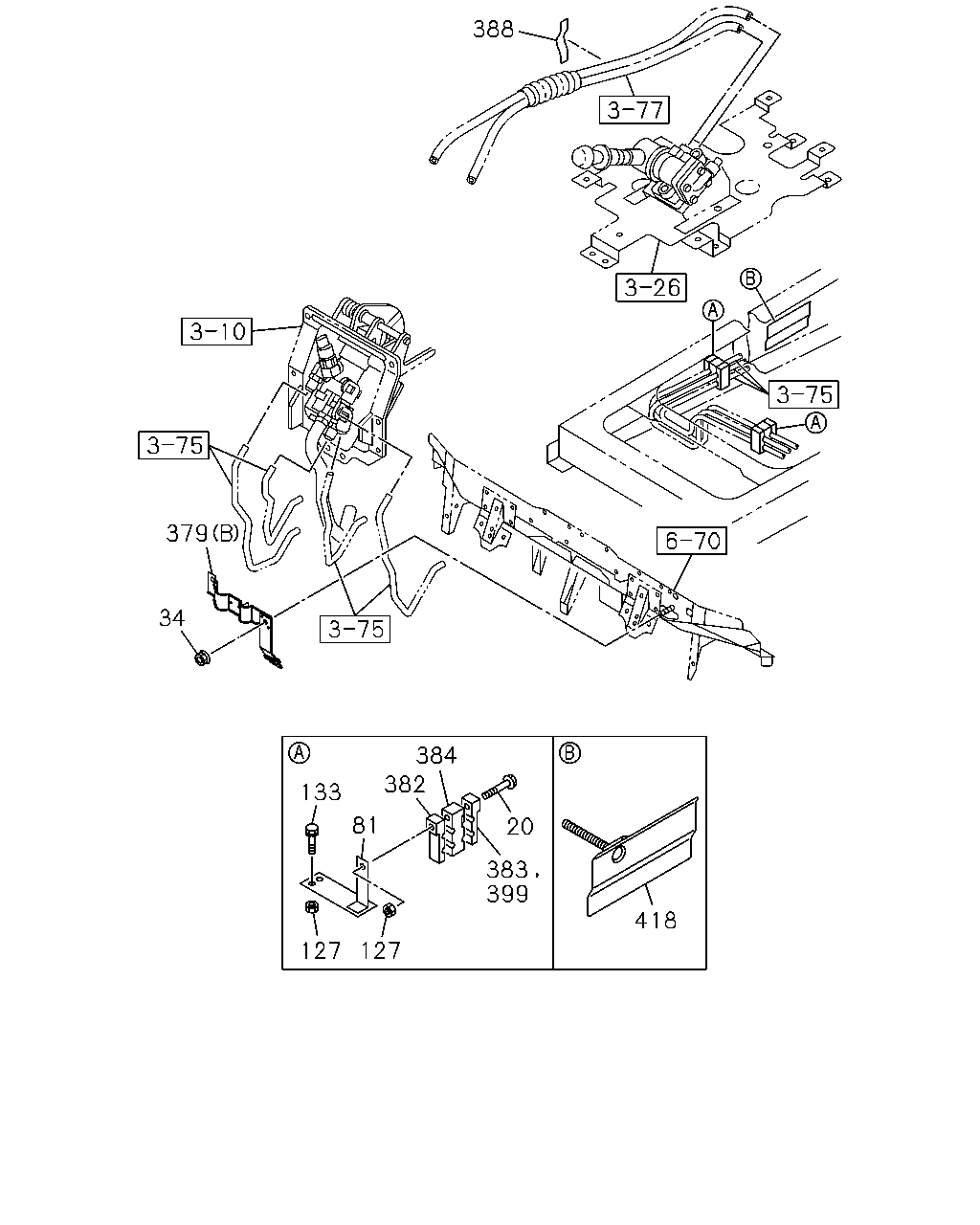

çizim 475924
127 133 127 81 399 20 384 382 418 383 379 34 388
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 01 1 1505-1508
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 01 1 1509-
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 1505-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1505-
20 BOLT; CLIP
M10X30 FLANGE 		0-28651-030-0 01 1 1505-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1505-
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1505-
81 BRACKET; CLIP 8-98090-114-0 01 1 1505-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1505-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1505-
379 BRACKET; NYLON TUBE
(F) 		8-98317-342-0 01 1 1505-
379 BRACKET; NYLON TUBE
(A) L=100 H=30 		1-47477-645-2 01 1 1505-
379 BRACKET; NYLON TUBE
(B) 		8-98112-515-1 01 1 1505-
379 BRACKET; NYLON TUBE
(C) 		8-98117-686-0 03 1 1505-
379 BRACKET; NYLON TUBE
(D) 		8-98157-748-0 01 1 1505-
379 BRACKET; NYLON TUBE
(E) 		8-98284-824-0 01 1 1505-
382 CLIP; UPR
SMOOTHER-FX(TYPE2)(8NS) ID=10 & 10 		1-09709-241-0 02 1 1505-
382 CLIP; UPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 10 		1-09709-241-0 04 1 1505-
383 CLIP; LWR
SMOOTHER-FX(TYPE2)(8NS) ID=10 & 10 		1-09709-243-0 02 1 1505-
384 COLLAR
SMOOTHER-FX(TYPE2)(8NS) ID=8 		1-47459-011-0 02 1 1505-
384 COLLAR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6 		1-47459-010-0 04 1 1505-
384 COLLAR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8 		1-47459-011-0 04 1 1505-
388 SEAL
100X40 		1-72498-022-1 03 1 1505-1508
388 SEAL
100X40 		1-72498-022-1 03 1 1509-
399 CLIP; LWR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 10 		1-09709-243-0 04 1 1505-
418 PROTECTOR; HEAT 8-98284-854-0 01 1 1505-

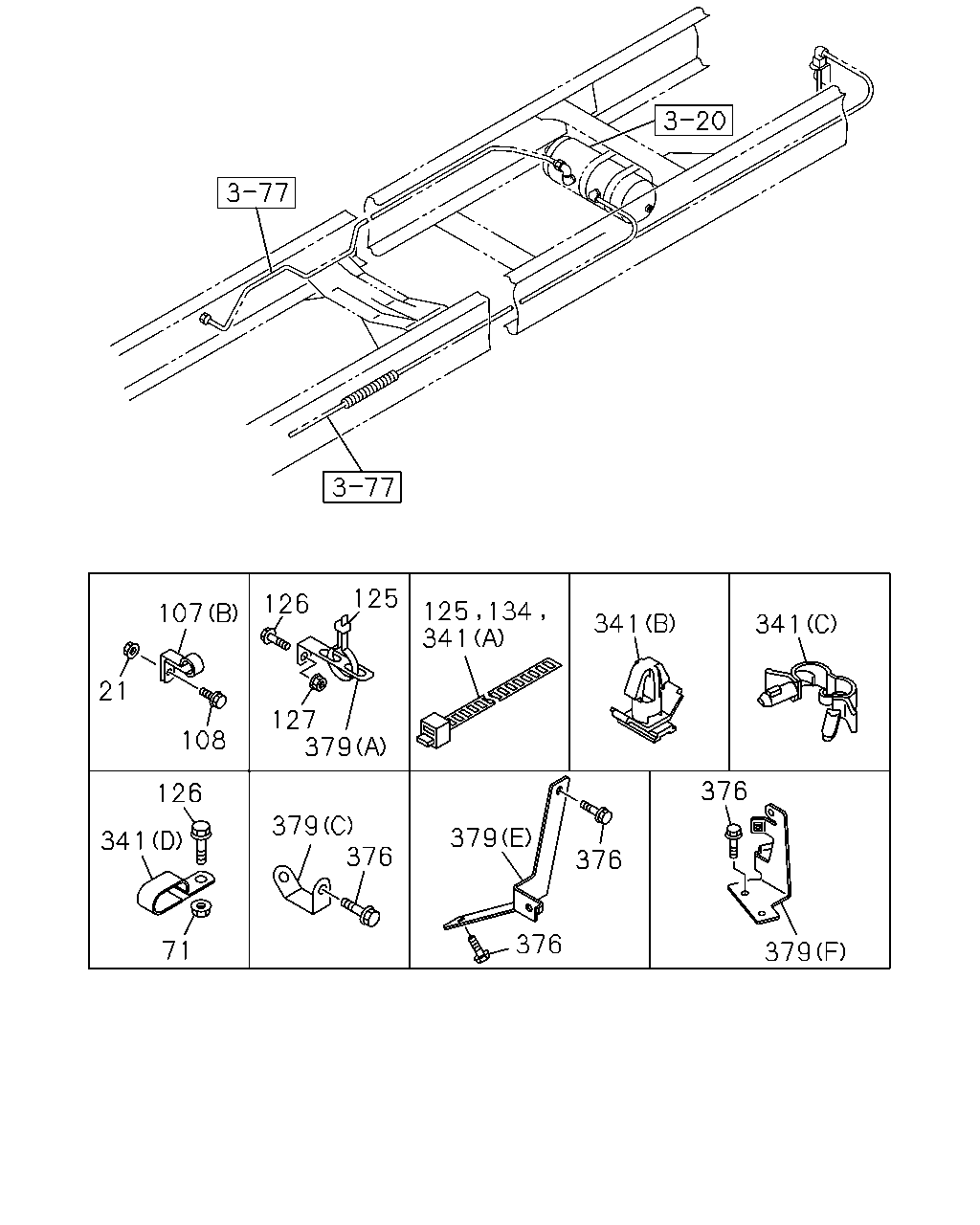

çizim 475942
379 376 376 379 376 376 379 341 71 126 108 107 21 127 379 126 125 125 341 341 134 341
BalonParca AdiParca NoAdetTipApplied Date
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1505-
21 NUT; CLIP
M10 FLANGE 		0-91180-210-0 01 1 1505-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1505-
107 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 1505-
107 CLIP; NYLON TUBE
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1505-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1505-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1505-
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 08 1 1505-
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 16 1 1505-
126 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28050-816-0 08 1 1505-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1505-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1505-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1505-
341 CLIP; HARNESS
(A) L=350 		1-09707-183-0 05 1 1505-
341 CLIP; HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1505-
341 CLIP; HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 01 1 1505-
341 CLIP; HARNESS
(D) ID=17.5X2 L=25 		5-09700-358-0 01 1 1505-
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1505-
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1505-
376 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1505-
376 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1505-
379 BRACKET; NYLON TUBE
(F) 		8-98317-342-0 01 1 1505-
379 BRACKET; NYLON TUBE
(A) L=100 H=30 		1-47477-645-2 01 1 1505-
379 BRACKET; NYLON TUBE
(B) 		8-98112-515-1 01 1 1505-
379 BRACKET; NYLON TUBE
(C) 		8-98117-686-0 03 1 1505-
379 BRACKET; NYLON TUBE
(D) 		8-98157-748-0 01 1 1505-
379 BRACKET; NYLON TUBE
(E) 		8-98284-824-0 01 1 1505-

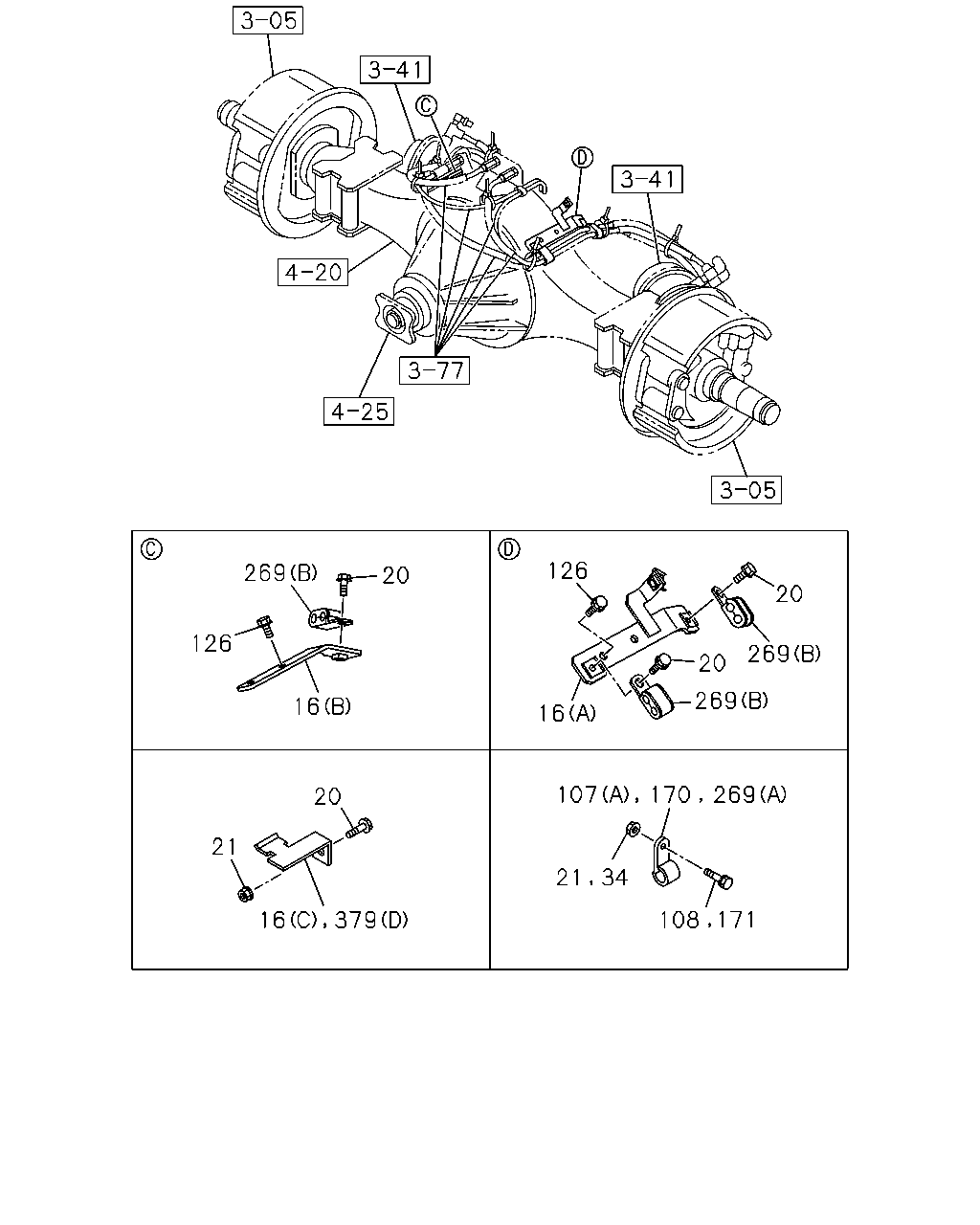

çizim 475943
171 108 269 170 107 34 21 379 16 21 20 16 269 20 126 269 20 269 20 16 126
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(C) 		8-98157-748-0 01 1 1505-
16 BRACKET; PIPE CLIP
(A) 		8-98285-536-0 01 1 1505-
16 BRACKET; PIPE CLIP
(B) 		8-98285-537-0 01 1 1505-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 01 1 1505-1508
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 01 1 1509-
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 1505-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1505-
20 BOLT; CLIP
M10X30 FLANGE 		0-28651-030-0 01 1 1505-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1505-
21 NUT; CLIP
M10 FLANGE 		0-91180-210-0 01 1 1505-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1505-
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1505-
107 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 1505-
107 CLIP; NYLON TUBE
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1505-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1505-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1505-
126 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28050-816-0 08 1 1505-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1505-
170 CLIP; NYLON TUBE
ID=19 L=20 		0-95235-836-0 04 1 1505-
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 1505-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 01 1 1505-1508
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 01 1 1509-
269 CLIP; BAND,NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 1505-
379 BRACKET; NYLON TUBE
(F) 		8-98317-342-0 01 1 1505-
379 BRACKET; NYLON TUBE
(A) L=100 H=30 		1-47477-645-2 01 1 1505-
379 BRACKET; NYLON TUBE
(B) 		8-98112-515-1 01 1 1505-
379 BRACKET; NYLON TUBE
(C) 		8-98117-686-0 03 1 1505-
379 BRACKET; NYLON TUBE
(D) 		8-98157-748-0 01 1 1505-
379 BRACKET; NYLON TUBE
(E) 		8-98284-824-0 01 1 1505-
