0-32 — WATER PIPING; ENGINE (#16174) — 113 parça

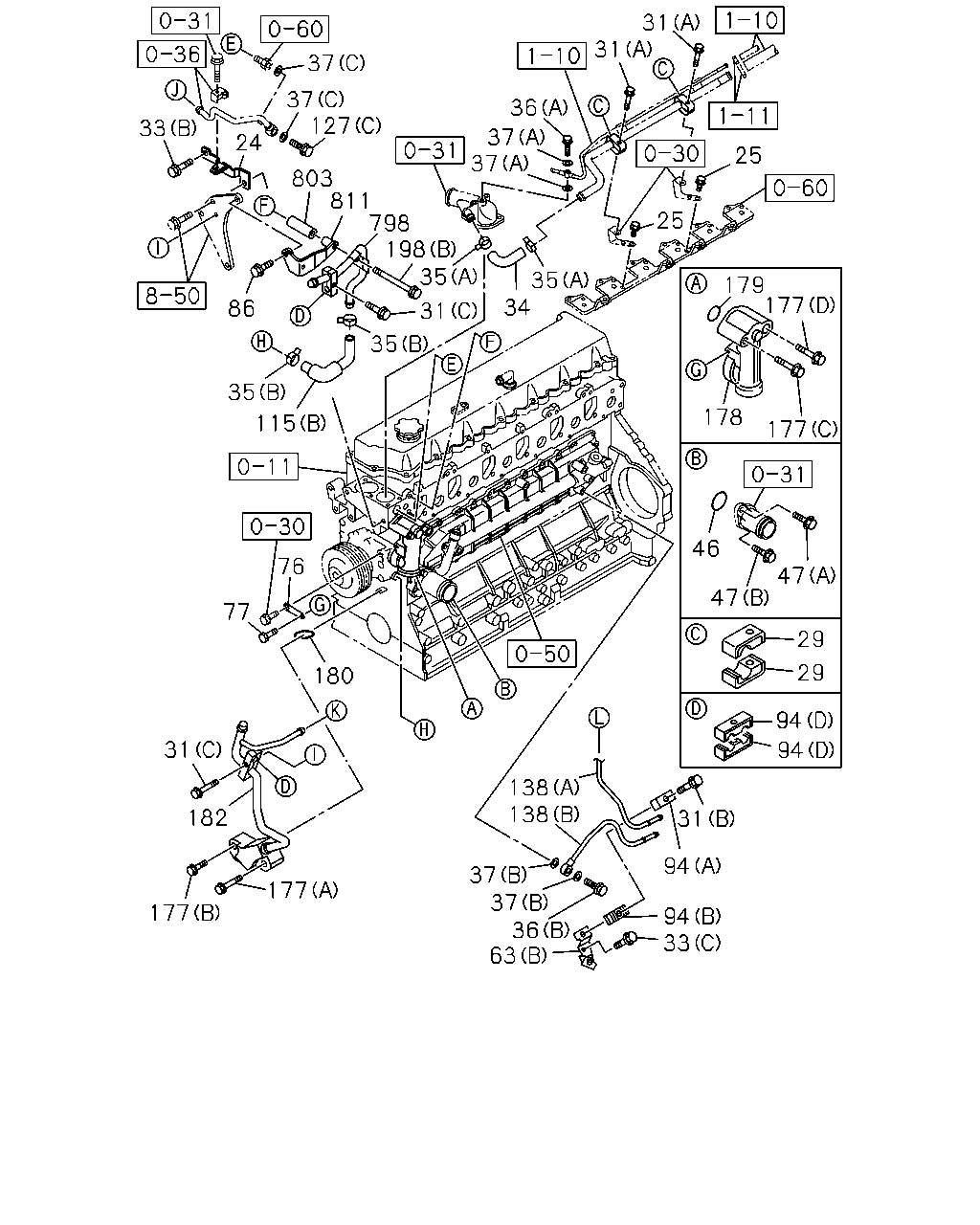

31 31 37 37 33 127 24 36 37 37 25 803 811 798 198 35 25 35 34 179 177 86 31 35 35 178 115 177 46 76 47 47 77 29 29 180 94 31 94 138 138 182 31 94 37 37 36 63 177 177 94 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE	8-98068-255-1	01	1	0907-
25	BOLT; WATER PIPE M8X16 FLANGE	0-28050-816-0	04	1	0907-
29	CLIP; PIPE	1-09701-281-1	04	1	0907-
31	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	02	1	0907-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	05	1	0907-
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	02	1	0907-
33	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	1101-
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	03	1	0907-1012
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1101-
33	BOLT; BRKT (B) M10X16 FLANGE	0-28151-016-0	01	1	0907-
33	BOLT; BRKT (C) M6X16 FLANGE	0-28650-616-0	02	1	0907-
34	HOSE; RUBBER,WATER PIPE	8-94396-676-0	01	1	0907-
35	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	02	1	0907-
35	CLIP; RUBBER HOSE (B) ID=20	8-98127-648-0	02	1	0907-
36	BOLT; EYE,WATER PIPE (B) M14X27 EYE-BOLT	1-09675-193-0	01	1	0907-
36	BOLT; EYE,WATER PIPE (A) M10X21 FLANGE	8-94396-711-0	01	1	0907-
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0907-
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0907-1312
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
37	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16.2	1-09630-086-0	02	1	0907-
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0907-
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0907-
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-
63	BRACKET; WATER PIPE (A)	8-94392-951-0	01	1	0907-
63	BRACKET; WATER PIPE (B)	8-98068-259-3	01	1	0907-
63	BRACKET; WATER PIPE (C)	8-98094-159-0	02	1	0907-
63	BRACKET; WATER PIPE (D)	8-98094-160-1	01	1	0907-
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0907-
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0907-
86	BOLT; BRKT,HTR PIPE M10X35 FLANGE	0-28651-035-0	01	1	0907-
94	CLIP; WATER PIPE (A)	1-09701-172-3	04	1	0907-
94	CLIP; WATER PIPE (C)	8-94396-860-0	01	1	0907-
94	CLIP; WATER PIPE (B)	8-97381-636-0	04	1	0907-1002
94	CLIP; WATER PIPE (B)	1-09701-173-2	04	1	1003-
94	CLIP; WATER PIPE (D)	8-97605-129-1	04	1	0907-
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0907-
115	HOSE; RUBBER (B)	8-97606-735-1	01	1	0907-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0907-
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	0907-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0907-
138	PIPE; WATER (B)	8-98068-258-0	01	1	0907-
138	PIPE; WATER (A)	8-98094-164-0	01	1	0907-
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0907-
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0907-
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0907-
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0907-
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0907-1408
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0907-
182	DUCT; WATER,HTR	8-98112-246-1	01	1	0907-
198	BOLT; PIPE (A) M6X16 FLANGE	0-28050-616-0	01	1	0907-
198	BOLT; PIPE (B) M10X120	0-28166-012-0	01	1	0907-
798	PIPE; HEATER	8-98069-105-0	01	1	0907-
803	SPACER	8-94393-124-0	01	1	0907-
811	BRACKET; HEATER PIPE	8-98069-104-2	01	1	0907-

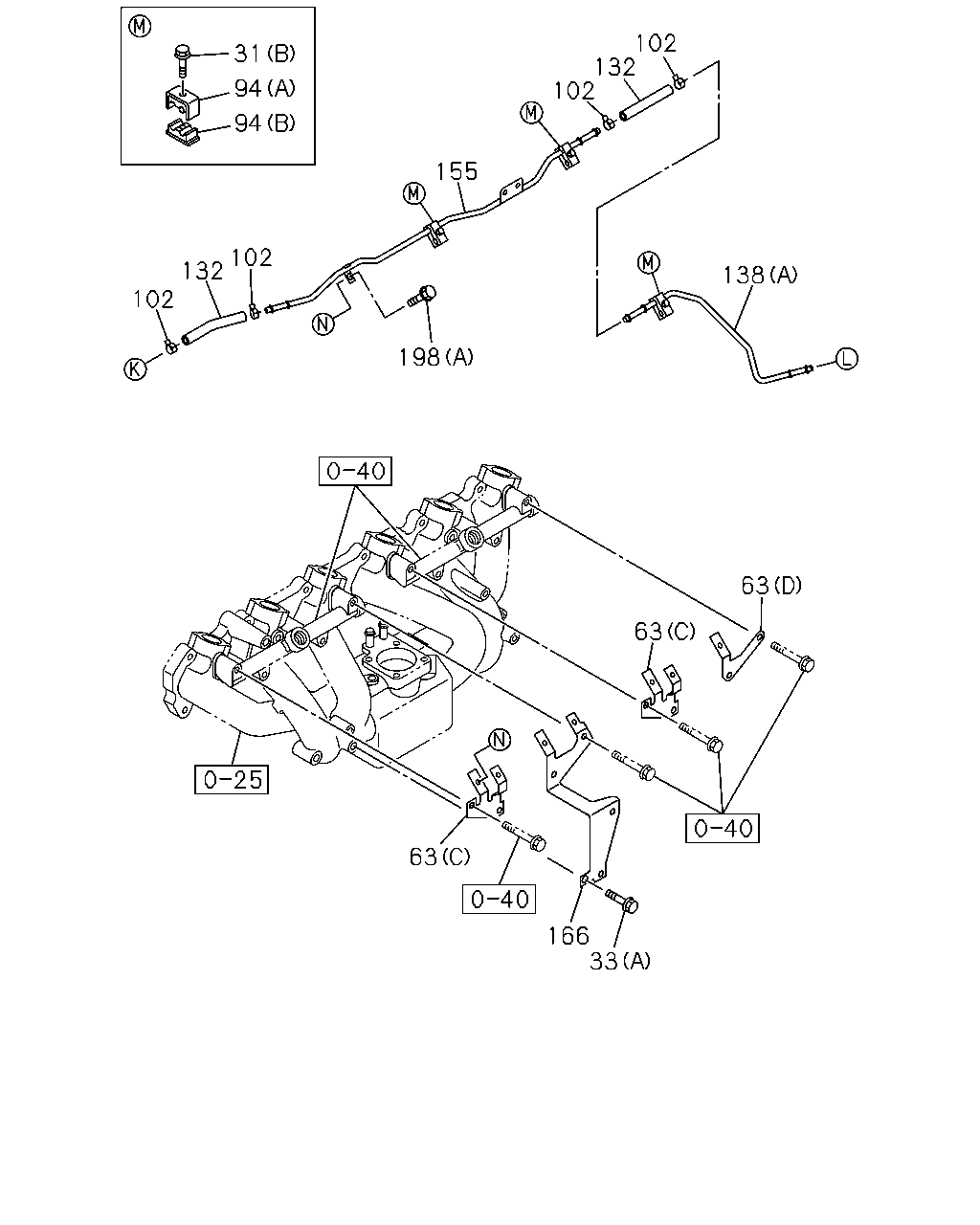

102 132 102 31 94 94 155 102 132 102 138 198 63 63 63 166 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	02	1	0907-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	05	1	0907-
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	02	1	0907-
33	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	1101-
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	03	1	0907-1012
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1101-
33	BOLT; BRKT (B) M10X16 FLANGE	0-28151-016-0	01	1	0907-
33	BOLT; BRKT (C) M6X16 FLANGE	0-28650-616-0	02	1	0907-
63	BRACKET; WATER PIPE (A)	8-94392-951-0	01	1	0907-
63	BRACKET; WATER PIPE (B)	8-98068-259-3	01	1	0907-
63	BRACKET; WATER PIPE (C)	8-98094-159-0	02	1	0907-
63	BRACKET; WATER PIPE (D)	8-98094-160-1	01	1	0907-
94	CLIP; WATER PIPE (A)	1-09701-172-3	04	1	0907-
94	CLIP; WATER PIPE (C)	8-94396-860-0	01	1	0907-
94	CLIP; WATER PIPE (B)	8-97381-636-0	04	1	0907-1002
94	CLIP; WATER PIPE (B)	1-09701-173-2	04	1	1003-
94	CLIP; WATER PIPE (D)	8-97605-129-1	04	1	0907-
102	CLIP; WATER HOSE ID=12	8-94238-610-0	04	1	0907-
132	HOSE; WATER PIPE L=110 SERVICED BY L=3000	0-03557-300-0	02	1	0907-
138	PIPE; WATER (B)	8-98068-258-0	01	1	0907-
138	PIPE; WATER (A)	8-98094-164-0	01	1	0907-
155	PIPE ASM; WATER	8-98094-169-0	01	1	0907-
166	BRACKET; CLIP	8-98094-162-0	01	1	0907-
198	BOLT; PIPE (A) M6X16 FLANGE	0-28050-616-0	01	1	0907-
198	BOLT; PIPE (B) M10X120	0-28166-012-0	01	1	0907-

58 115 58 63 94 33 33 127 31 126 126 91 91 90 89 126 126 90 127 91 91 126 127 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	02	1	0907-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	05	1	0907-
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	02	1	0907-
33	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	1101-
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	03	1	0907-1012
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1101-
33	BOLT; BRKT (B) M10X16 FLANGE	0-28151-016-0	01	1	0907-
33	BOLT; BRKT (C) M6X16 FLANGE	0-28650-616-0	02	1	0907-
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0907-
63	BRACKET; WATER PIPE (A)	8-94392-951-0	01	1	0907-
63	BRACKET; WATER PIPE (B)	8-98068-259-3	01	1	0907-
63	BRACKET; WATER PIPE (C)	8-98094-159-0	02	1	0907-
63	BRACKET; WATER PIPE (D)	8-98094-160-1	01	1	0907-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0907-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0907-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0907-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0907-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0907-
94	CLIP; WATER PIPE (A)	1-09701-172-3	04	1	0907-
94	CLIP; WATER PIPE (C)	8-94396-860-0	01	1	0907-
94	CLIP; WATER PIPE (B)	8-97381-636-0	04	1	0907-1002
94	CLIP; WATER PIPE (B)	1-09701-173-2	04	1	1003-
94	CLIP; WATER PIPE (D)	8-97605-129-1	04	1	0907-
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0907-
115	HOSE; RUBBER (B)	8-97606-735-1	01	1	0907-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0907-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0907-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0907-
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	0907-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0907-
