Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#161739) — 18 parça
◀

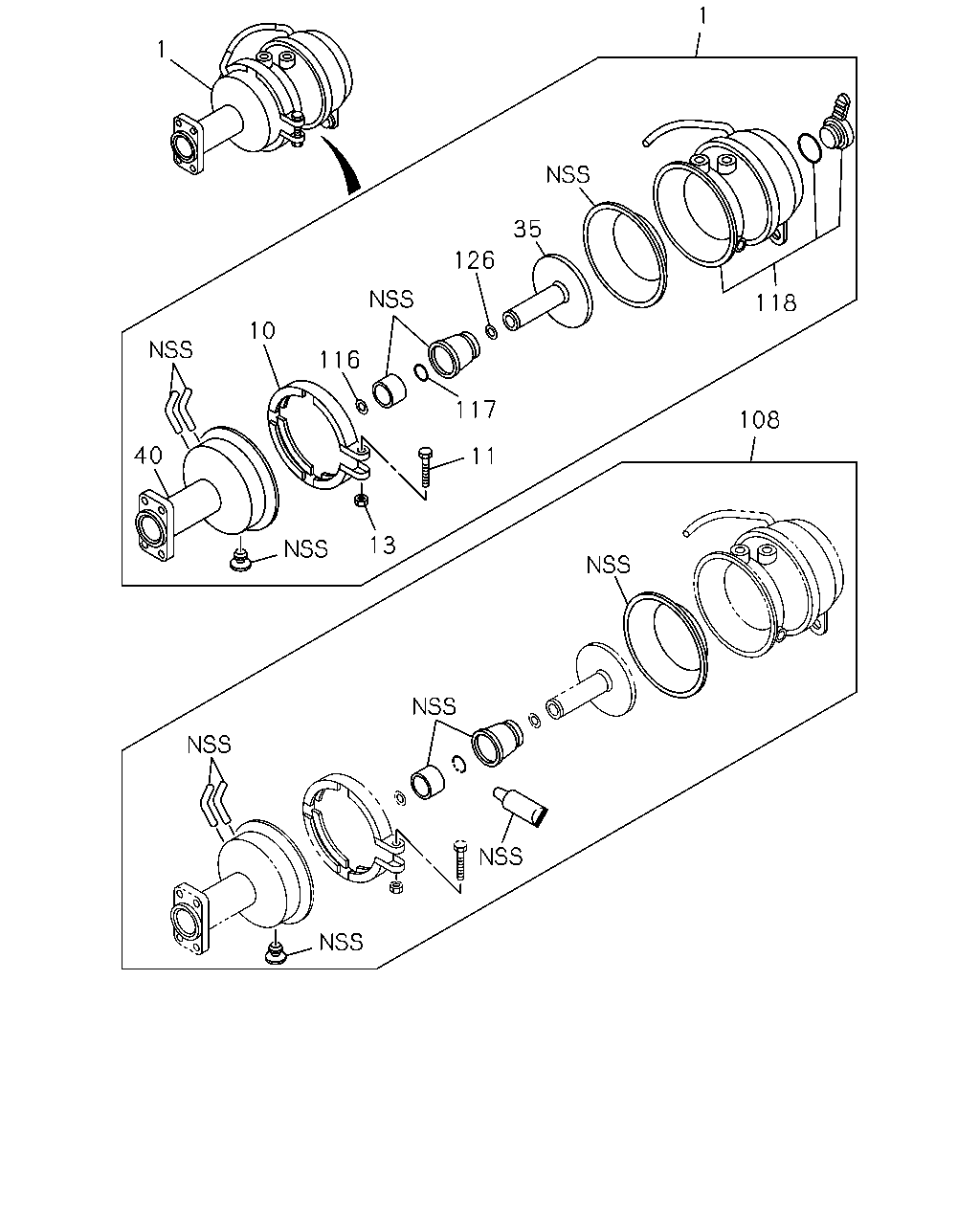

[341A] COMPONENT AND REPAIR KIT (14 parça)
[341A] CONNECTOR (4 parça)
▶
1
1
118
108
35
126
116
117
11
13
40
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-501-0
01
1
1505-
1
CHAMBER ASM; SPRING
1-87412-502-0
01
1
1505-
10
RING; CLAMP,SPR CHAMBER
8-98167-056-0
02
1
1505-
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1505-
13
NUT; CLAMP RING
1-48269-147-0
02
1
1505-
35
PLATE; ROD END,SPR CHAMBER
8-98146-973-1
02
1
1505-
40
COVER ASM; LWR,SPR CHAMBER
8-98284-804-0
01
1
1505-
40
COVER ASM; LWR,SPR CHAMBER
8-98284-805-0
01
1
1505-
108
REPAIR KIT; SPR CHAMBER
8-98146-981-0
02
1
1505-
116
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1505-
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1505-
118
CHAMBER; PIGGY BACK
1-87412-109-0
01
1
1505-
118
CHAMBER; PIGGY BACK
1-87412-110-0
01
1
1505-
126
SHIM
8-98146-965-0
AR
1
1505-
1
1
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-501-0
01
1
1505-
1
CHAMBER ASM; SPRING
1-87412-502-0
01
1
1505-
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1505-
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY
1-09661-776-1
02
1
1505-
