Isuzu WW
▶
TRUCKS
▶
FSR
▶
11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#161735) — 63 parça
◀

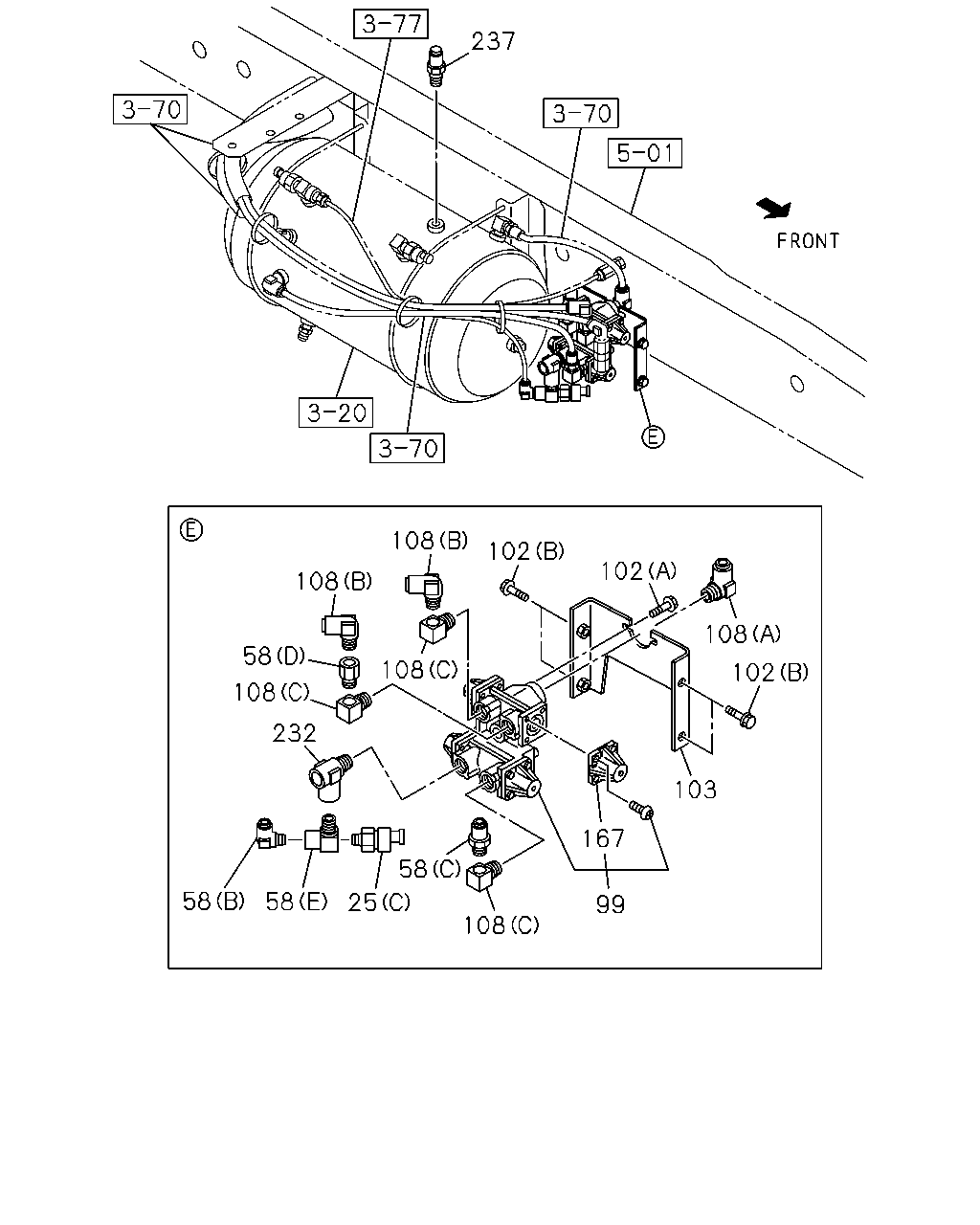

[322A] PROTECTION VALVE (20 parça)

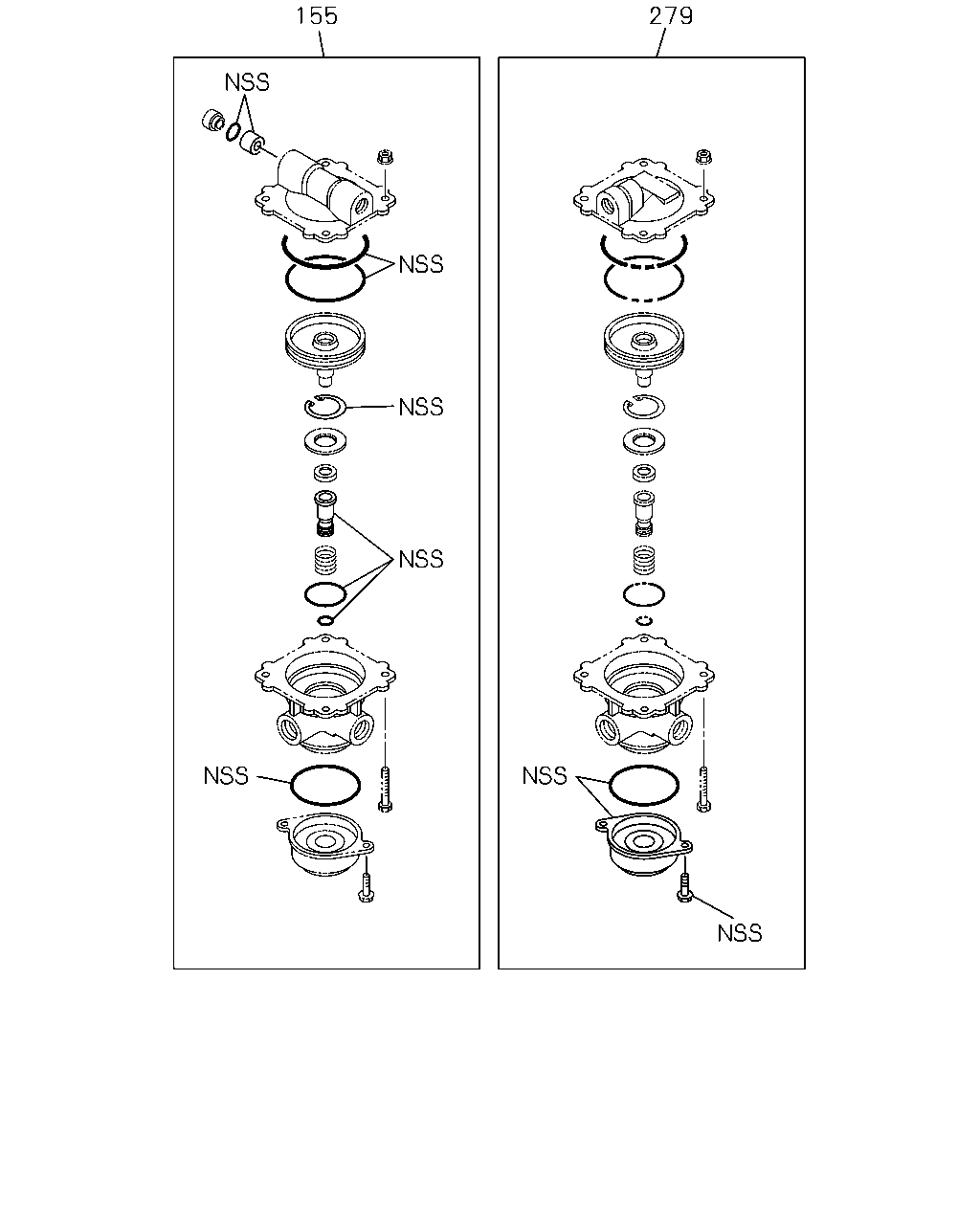

[322A] REPAIR KIT (2 parça)

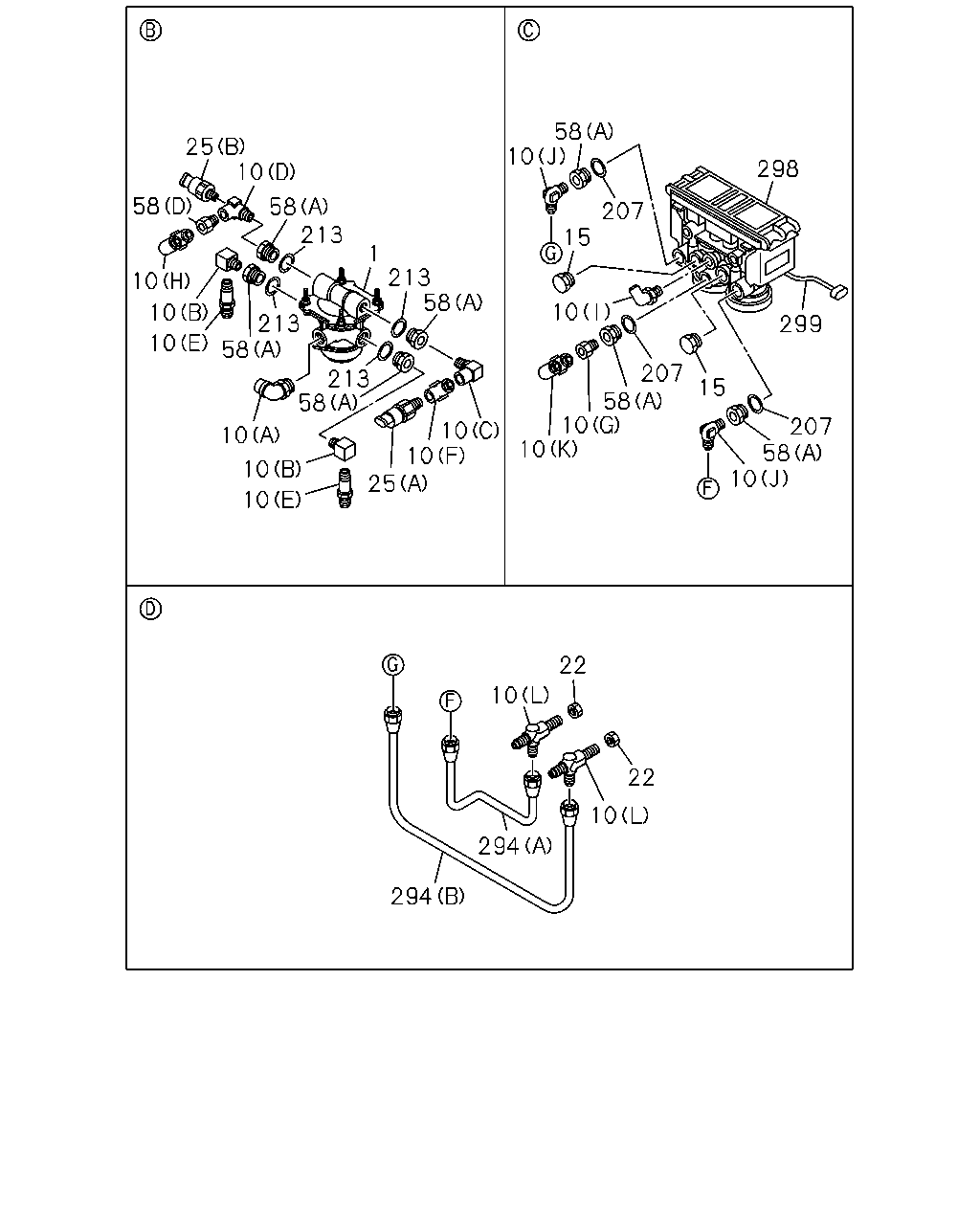

[322A] COMPONENT;RELAY VALVE (32 parça)

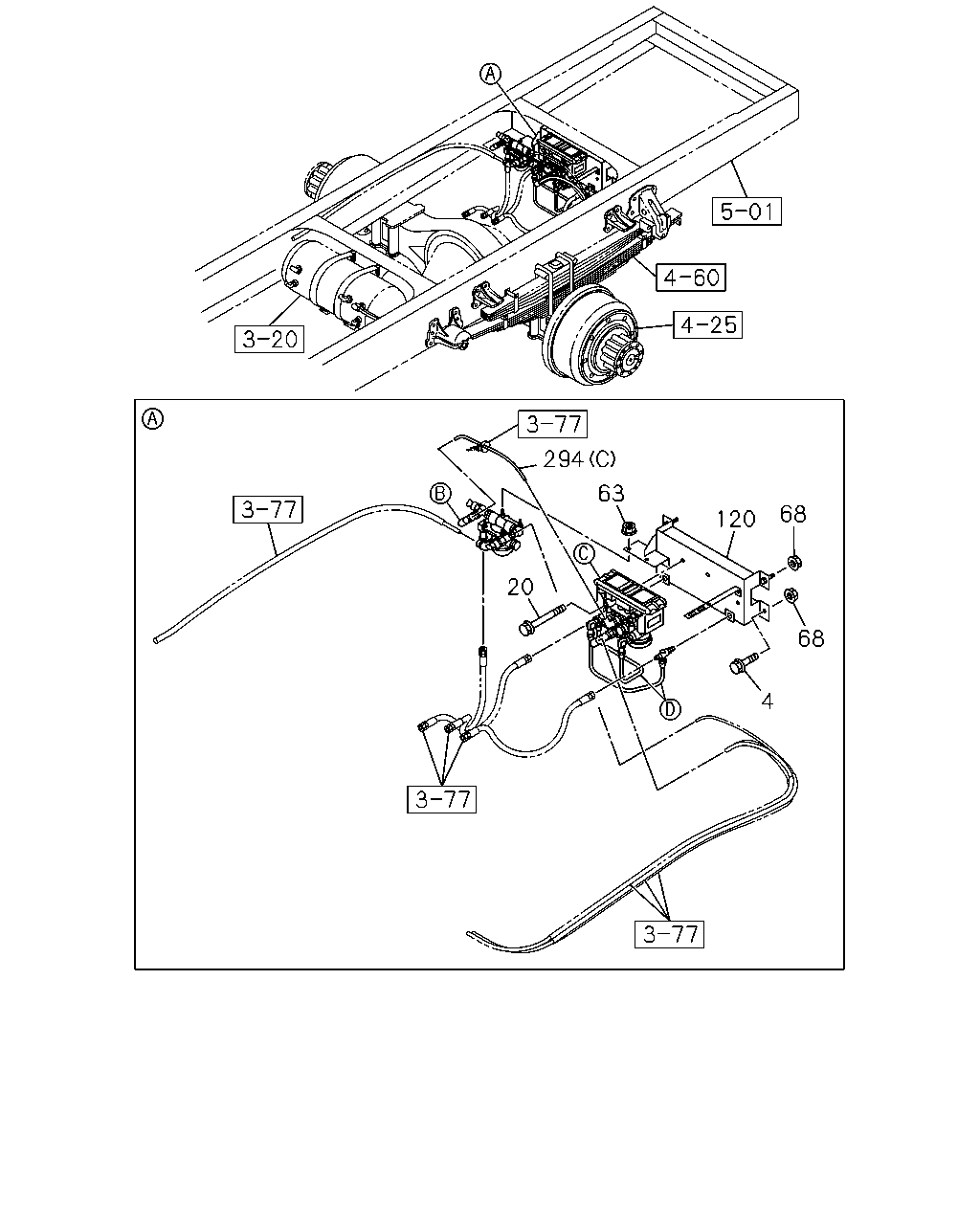

[322A] FIXING;RELAY VALVE (8 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶
237
108
108
108
102
58
108
232
58
58
25
108
58
99
167
103
102
108
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
SWITCH; PRESSURE
(C) STAMP 5.5
8-97609-249-0
01
1
1505-
25
SWITCH; PRESSURE
(A) STAMP 2.0
8-98010-856-2
01
1
1505-
25
SWITCH; PRESSURE
(B) STAMP 0.3
8-98010-857-0
01
1
1505-
58
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
07
1
1505-
58
ADAPTER
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1505-
58
ADAPTER
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1505-
58
ADAPTER
(D) PT3/8
1-09664-210-0
02
1
1505-1508
58
ADAPTER
(D) PT3/8
1-09664-210-0
01
1
1509-
58
ADAPTER
(D) PT3/8
1-09664-210-0
01
1
1509-
58
ADAPTER
(E) R3/8 & RC3/8 & RC1/4 3WAY
8-98166-127-0
01
1
1505-
99
VALVE; PROTECTION
1-48110-290-3
01
1
1505-
102
BOLT; PROTECTION VALVE
(A) M8X16 FLANGE
0-28050-816-0
02
1
1505-
102
BOLT; PROTECTION VALVE
(B) M10X25 FLANGE
0-28051-025-0
04
1
1505-
103
BRACKET; PROTECTION VALVE
8-98284-441-0
01
1
1505-
108
CONNECTOR; ELBOW
(C) PT3/8 ELBOW
1-09660-696-0
03
1
1505-
108
CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1505-
108
CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1505-
167
COVER; VALVE
1-48119-625-0
04
1
1505-
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1505-
237
VALVE; SAFETY
1-48320-012-2
01
1
1505-
155
279
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
155
REPAIR KIT; RELAY VALVE
8-98165-977-0
01
1
1505-
279
REPAIR KIT; SILENCER
8-98165-978-0
01
1
1505-
25
58
10
10
10
10
213
213
58
58
213
213
1
58
10
10
25
58
10
10
10
10
10
58
207
10
15
207
58
10
298
299
15
10
58
207
22
22
10
10
294
294
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
8-98292-213-0
01
1
1505-
10
CONNECTOR
(B) M16 & PT3/8 STRAIGHT
1-09650-150-2
02
1
1505-
10
CONNECTOR
(E) PT3/8 ELBOW
1-09660-696-0
02
1
1505-
10
CONNECTOR
(L) M16 2WAY
1-09650-182-1
02
1
1505-
10
CONNECTOR
(J) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1505-
10
CONNECTOR
(C) PT3/8 ELBOW
1-09660-694-0
01
1
1505-
10
CONNECTOR
(H) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1505-
10
CONNECTOR
(K) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1505-
10
CONNECTOR
(A) DIN12 & M22 ELBOW
1-09661-497-0
01
1
1505-
10
CONNECTOR
(I) DIN8 & M16 ELBOW
1-09661-520-0
01
1
1505-
10
CONNECTOR
(F) DIN8 & RC1/4 & R3/8 3WAY
1-09661-536-0
01
1
1505-
10
CONNECTOR
(G) PT3/8
1-09664-210-0
01
1
1505-
10
CONNECTOR
(D) R3/8 & RC1/4 & RC3/8 3WAY
8-98181-830-0
01
1
1505-
15
PLUG; VALVE
M22
1-09661-502-0
02
1
1505-
22
NUT; BRKT
M12
0-91111-512-0
02
1
1505-
25
SWITCH; PRESSURE
(C) STAMP 5.5
8-97609-249-0
01
1
1505-
25
SWITCH; PRESSURE
(A) STAMP 2.0
8-98010-856-2
01
1
1505-
25
SWITCH; PRESSURE
(B) STAMP 0.3
8-98010-857-0
01
1
1505-
58
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
07
1
1505-
58
ADAPTER
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1505-
58
ADAPTER
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1505-
58
ADAPTER
(D) PT3/8
1-09664-210-0
02
1
1505-1508
58
ADAPTER
(D) PT3/8
1-09664-210-0
01
1
1509-
58
ADAPTER
(D) PT3/8
1-09664-210-0
01
1
1509-
58
ADAPTER
(E) R3/8 & RC3/8 & RC1/4 3WAY
8-98166-127-0
01
1
1505-
207
GASKET; ADAPTER
ID=22.5
9-09571-422-0
03
1
1505-
213
GASKET
ID=22.5
9-09571-422-0
04
1
1505-
294
PIPE; AIR CMPR
(C)
1-09392-008-0
01
1
1505-
294
PIPE; AIR CMPR
(A)
8-98312-881-0
01
1
1505-
294
PIPE; AIR CMPR
(B)
8-98312-882-0
01
1
1505-
298
VALVE; MODULATOR
8-98241-570-1
01
1
1505-
299
HARNESS
8-98284-781-1
01
1
1505-
294
20
63
120
68
68
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOLT; RELAY VLV TO BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1505-
20
BOLT; BRKT
M10X120 FLANGE
0-28056-012-0
02
1
1505-
63
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
1505-
68
NUT; RELAY VLV TO BRKT
M10 FLANGE
0-91180-210-0
04
1
1505-
120
BRACKET; VLV
8-98312-880-0
01
1
1505-
294
PIPE; AIR CMPR
(C)
1-09392-008-0
01
1
1505-
294
PIPE; AIR CMPR
(A)
8-98312-881-0
01
1
1505-
294
PIPE; AIR CMPR
(B)
8-98312-882-0
01
1
1505-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1505-
