◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#161730) — 100 parça

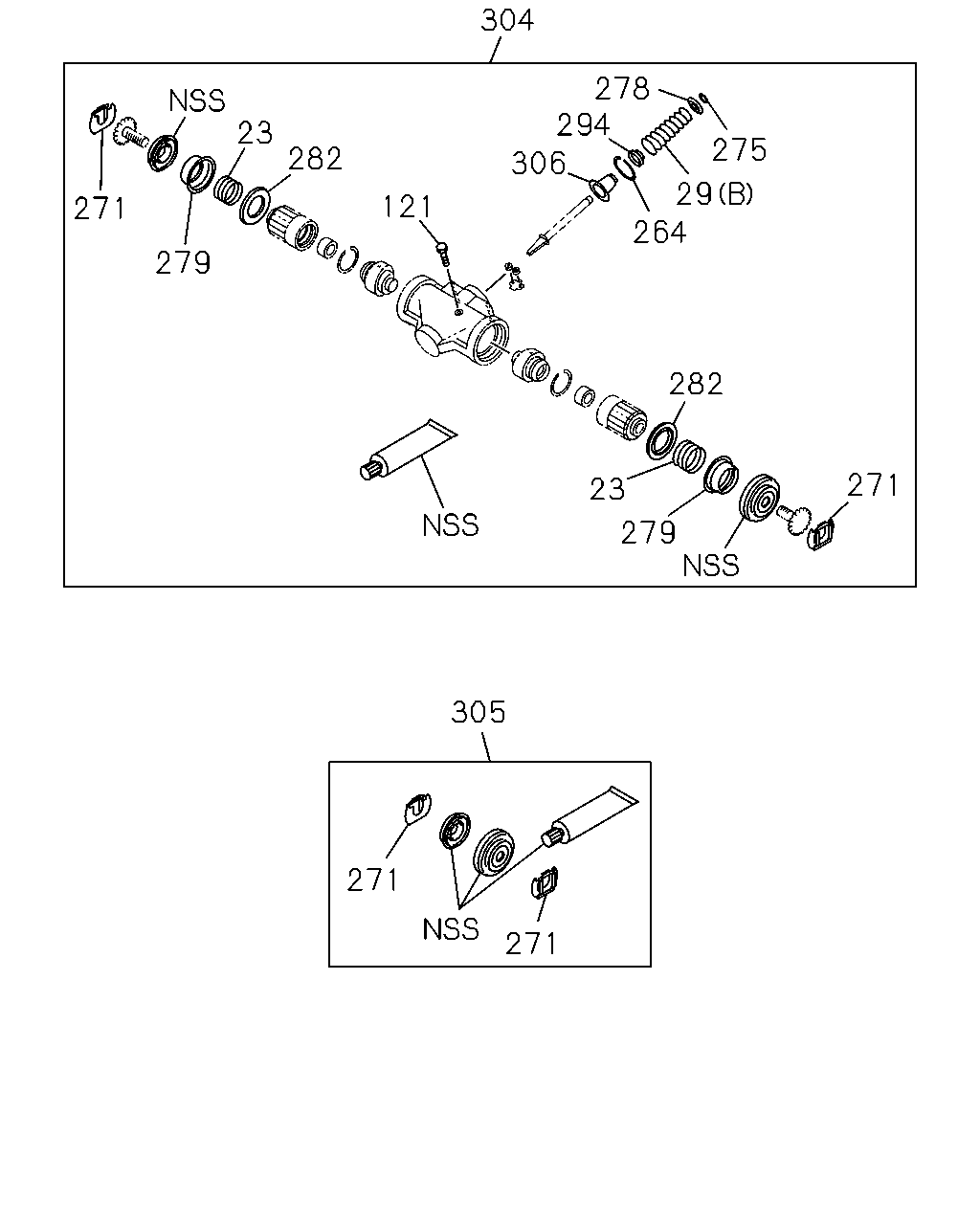

çizim 475957
304 275 29 264 278 294 306 282 271 279 23 121 282 23 279 271 305 271 271
BalonParca AdiParca NoAdetTipApplied Date
23 SPRING; COIL 1-47629-196-0 04 1 1505-1508
23 SPRING; COIL
BRAKE REGULATION ECE(TDV) 		1-47629-196-0 04 1 1509-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-370-0 04 1 1505-1508
29 SPRING; RETURN,FRT BRK SHOE
BRAKE REGULATION ECE(TDV) (A) 		1-09583-370-0 04 1 1509-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1505-1508
29 SPRING; RETURN,FRT BRK SHOE
BRAKE REGULATION ECE(TDV) (B) 		1-47649-041-0 02 1 1509-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1505-1508
121 SCREW; LK SPR FRT WHEEL CYL
BRAKE REGULATION ECE(TDV) 		1-47619-149-1 04 1 1509-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1505-1508
264 RING; SNAP,SPR PIN
BRAKE REGULATION ECE(TDV) 		1-47649-034-1 02 1 1509-
271 CLIP; ADJ 1-47621-017-0 04 1 1505-1508
271 CLIP; ADJ
BRAKE REGULATION ECE(TDV) 		1-47621-017-0 04 1 1509-
275 RING; RETAINER 1-47649-031-0 02 1 1505-1508
275 RING; RETAINER
BRAKE REGULATION ECE(TDV) 		1-47649-031-0 02 1 1509-
278 RETAINER; SPRING 1-47649-020-0 02 1 1505-1508
278 RETAINER; SPRING
BRAKE REGULATION ECE(TDV) 		1-47649-020-0 02 1 1509-
279 CAGE; SPRING 1-47629-192-0 04 1 1505-1508
279 CAGE; SPRING
BRAKE REGULATION ECE(TDV) 		1-47629-192-0 04 1 1509-
282 RING; DRIVE 1-47629-200-0 04 1 1505-1508
282 RING; DRIVE
BRAKE REGULATION ECE(TDV) 		1-47629-200-0 04 1 1509-
294 BOOT; WEDGE 1-47649-042-0 02 1 1505-1508
294 BOOT; WEDGE
BRAKE REGULATION ECE(TDV) 		1-47649-042-0 02 1 1509-
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1505-1508
304 REPAIR KIT; EXPANDER
BRAKE REGULATION ECE(TDV) 		1-85576-403-0 02 1 1509-
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1505-1508
305 REPAIR KIT; BOOT,EXPANDER
BRAKE REGULATION ECE(TDV) 		1-85576-404-0 02 1 1509-
306 CAP; EXPANDER 1-47649-044-0 02 1 1505-1508
306 CAP; EXPANDER
BRAKE REGULATION ECE(TDV) 		1-47649-044-0 02 1 1509-

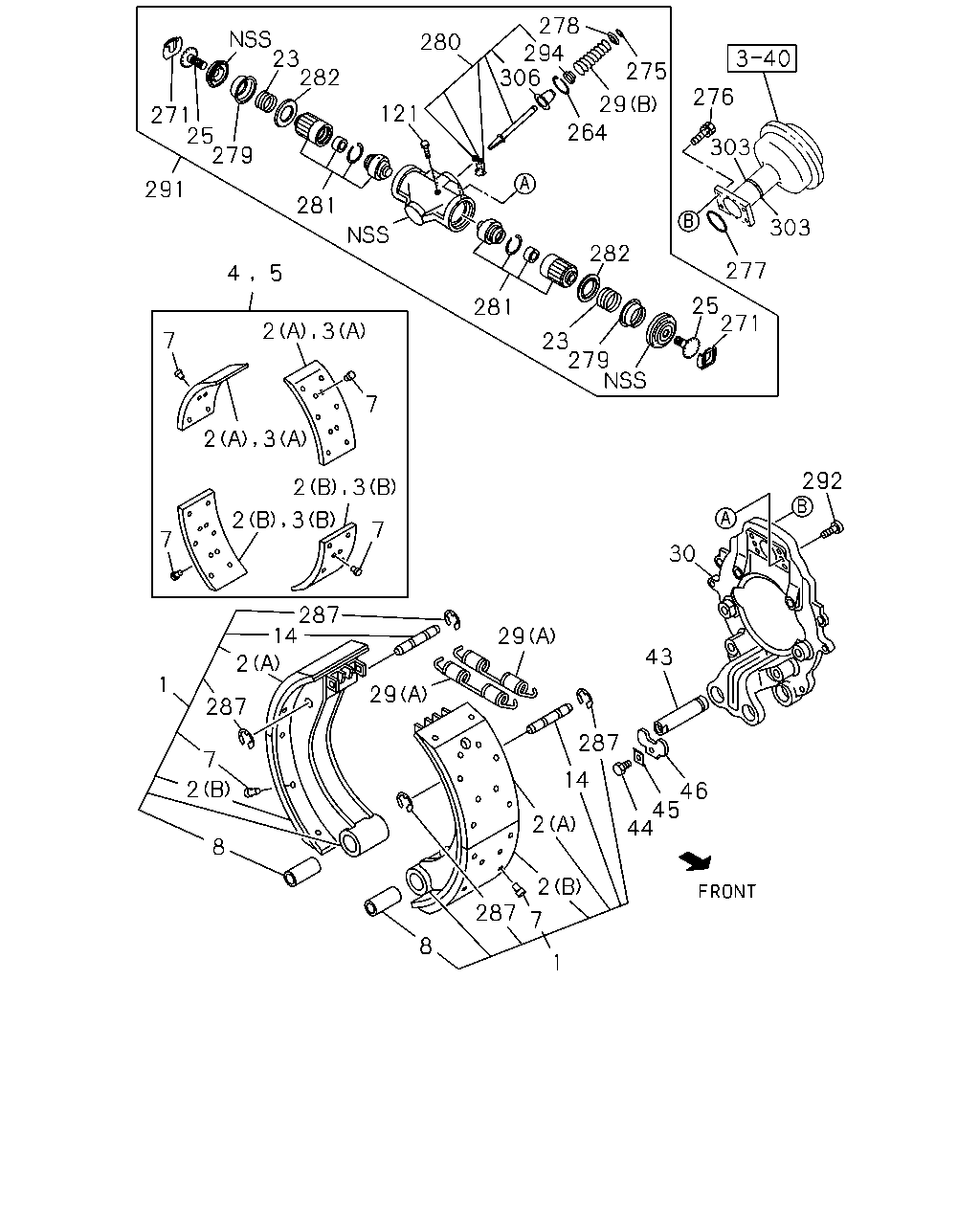

çizim 476401
23 280 278 275 29 264 294 306 121 282 279 25 271 291 281 281 282 276 303 303 277 25 271 279 23 4 5 7 2 3 7 3 2 2 3 3 2 7 7 292 30 43 287 46 45 44 14 29 29 287 14 2 287 7 2 8 8 7 1 287 2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT 1-47170-267-0 04 1 1505-1508
1 SHOE; BRK,FRT
BRAKE REGULATION ECE(TDV) 		1-47170-267-0 04 1 1509-
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47126-677-0 04 1 1505-1508
2 LINING; FRT BRK SHOE,STANDARD
BRAKE REGULATION ECE(TDV) (A) 		1-47126-677-0 04 1 1509-
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47126-679-0 04 1 1505-1508
2 LINING; FRT BRK SHOE,STANDARD
BRAKE REGULATION ECE(TDV) (B) 		1-47126-679-0 04 1 1509-
3 LINING; FRT BRK SHOE,OVER SIZE
(A) 		1-47126-678-0 04 1 1505-1508
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE REGULATION ECE(TDV) (A) 		1-47126-678-0 04 1 1509-
3 LINING; FRT BRK SHOE,OVER SIZE
(B) 		1-47126-680-0 04 1 1505-1508
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE REGULATION ECE(TDV) (B) 		1-47126-680-0 04 1 1509-
4 LINING SET; FRT BRK,STANDARD 1-88311-343-0 02 1 1505-1508
4 LINING SET; FRT BRK,STANDARD
BRAKE REGULATION ECE(TDV) 		1-88311-343-0 02 1 1509-
5 LINING SET; FRT BRK,OVER SIZE 1-88311-345-0 02 1 1505-1508
5 LINING SET; FRT BRK,OVER SIZE
BRAKE REGULATION ECE(TDV) 		1-88311-345-0 02 1 1509-
7 RIVET; LINING,FRT BRK 1-09732-055-0 88 1 1505-1508
7 RIVET; LINING,FRT BRK
BRAKE REGULATION ECE(TDV) 		1-09732-055-0 88 1 1509-
8 BUSHING; BRK SHOE 1-47112-022-0 04 1 1505-1508
8 BUSHING; BRK SHOE
BRAKE REGULATION ECE(TDV) 		1-47112-022-0 04 1 1509-
14 PIN; SHOE RETURN SPR 1-47119-171-1 04 1 1505-1508
14 PIN; SHOE RETURN SPR
BRAKE REGULATION ECE(TDV) 		1-47119-171-1 04 1 1509-
23 SPRING; COIL 1-47629-196-0 04 1 1505-1508
23 SPRING; COIL
BRAKE REGULATION ECE(TDV) 		1-47629-196-0 04 1 1509-
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1505-1508
25 SCREW; ADJ,FRT WHEEL CYL
BRAKE REGULATION ECE(TDV) 		1-47623-035-2 04 1 1509-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-370-0 04 1 1505-1508
29 SPRING; RETURN,FRT BRK SHOE
BRAKE REGULATION ECE(TDV) (A) 		1-09583-370-0 04 1 1509-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1505-1508
29 SPRING; RETURN,FRT BRK SHOE
BRAKE REGULATION ECE(TDV) (B) 		1-47649-041-0 02 1 1509-
30 BRACKET; ANCHOR,FRT 8-98285-289-0 02 1 1505-1508
30 BRACKET; ANCHOR,FRT
BRAKE REGULATION ECE(TDV) 		8-98285-289-0 02 1 1509-
43 PIN; ANCHOR 1-47131-051-0 04 1 1505-1508
43 PIN; ANCHOR
BRAKE REGULATION ECE(TDV) 		1-47131-051-0 04 1 1509-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1505-1508
44 BOLT; LOCK,ANCHOR PIN
BRAKE REGULATION ECE(TDV) M10X16 		1-47139-173-0 02 1 1509-
45 WASHER; LK 1-47133-011-0 02 1 1505-1508
45 WASHER; LK
BRAKE REGULATION ECE(TDV) 		1-47133-011-0 02 1 1509-
46 PLATE; LOCK 1-47133-005-0 02 1 1505-1508
46 PLATE; LOCK
BRAKE REGULATION ECE(TDV) 		1-47133-005-0 02 1 1509-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1505-1508
121 SCREW; LK SPR FRT WHEEL CYL
BRAKE REGULATION ECE(TDV) 		1-47619-149-1 04 1 1509-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1505-1508
264 RING; SNAP,SPR PIN
BRAKE REGULATION ECE(TDV) 		1-47649-034-1 02 1 1509-
271 CLIP; ADJ 1-47621-017-0 04 1 1505-1508
271 CLIP; ADJ
BRAKE REGULATION ECE(TDV) 		1-47621-017-0 04 1 1509-
275 RING; RETAINER 1-47649-031-0 02 1 1505-1508
275 RING; RETAINER
BRAKE REGULATION ECE(TDV) 		1-47649-031-0 02 1 1509-
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 1505-1508
276 BOLT; CHAMBER
BRAKE REGULATION ECE(TDV) M10X42.5 		1-47139-163-0 08 1 1509-
277 RING; CHAMBER 1-48259-231-0 02 1 1505-1508
277 RING; CHAMBER
BRAKE REGULATION ECE(TDV) 		1-48259-231-0 02 1 1509-
278 RETAINER; SPRING 1-47649-020-0 02 1 1505-1508
278 RETAINER; SPRING
BRAKE REGULATION ECE(TDV) 		1-47649-020-0 02 1 1509-
279 CAGE; SPRING 1-47629-192-0 04 1 1505-1508
279 CAGE; SPRING
BRAKE REGULATION ECE(TDV) 		1-47629-192-0 04 1 1509-
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1505-1508
280 WEDGE; FRT WHEEL CYL
BRAKE REGULATION ECE(TDV) 		1-47640-012-0 02 1 1509-
281 SLEEVE 1-47629-247-1 04 1 1505-1508
281 SLEEVE
BRAKE REGULATION ECE(TDV) 		1-47629-247-1 04 1 1509-
282 RING; DRIVE 1-47629-200-0 04 1 1505-1508
282 RING; DRIVE
BRAKE REGULATION ECE(TDV) 		1-47629-200-0 04 1 1509-
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1505-1508
287 RING; SNAP
BRAKE REGULATION ECE(TDV) ID=10 		0-91805-510-0 08 1 1509-
291 EXPANDER 1-47601-087-0 02 1 1505-1508
291 EXPANDER
BRAKE REGULATION ECE(TDV) 		1-47601-087-0 02 1 1509-
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1505-1508
292 BOLT; EXPANDER
BRAKE REGULATION ECE(TDV) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1509-
294 BOOT; WEDGE 1-47649-042-0 02 1 1505-1508
294 BOOT; WEDGE
BRAKE REGULATION ECE(TDV) 		1-47649-042-0 02 1 1509-
303 SEAL; CHAMBER 1-47159-223-0 04 1 1505-1508
303 SEAL; CHAMBER
BRAKE REGULATION ECE(TDV) 		1-47159-223-0 04 1 1509-
306 CAP; EXPANDER 1-47649-044-0 02 1 1505-1508
306 CAP; EXPANDER
BRAKE REGULATION ECE(TDV) 		1-47649-044-0 02 1 1509-
