Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

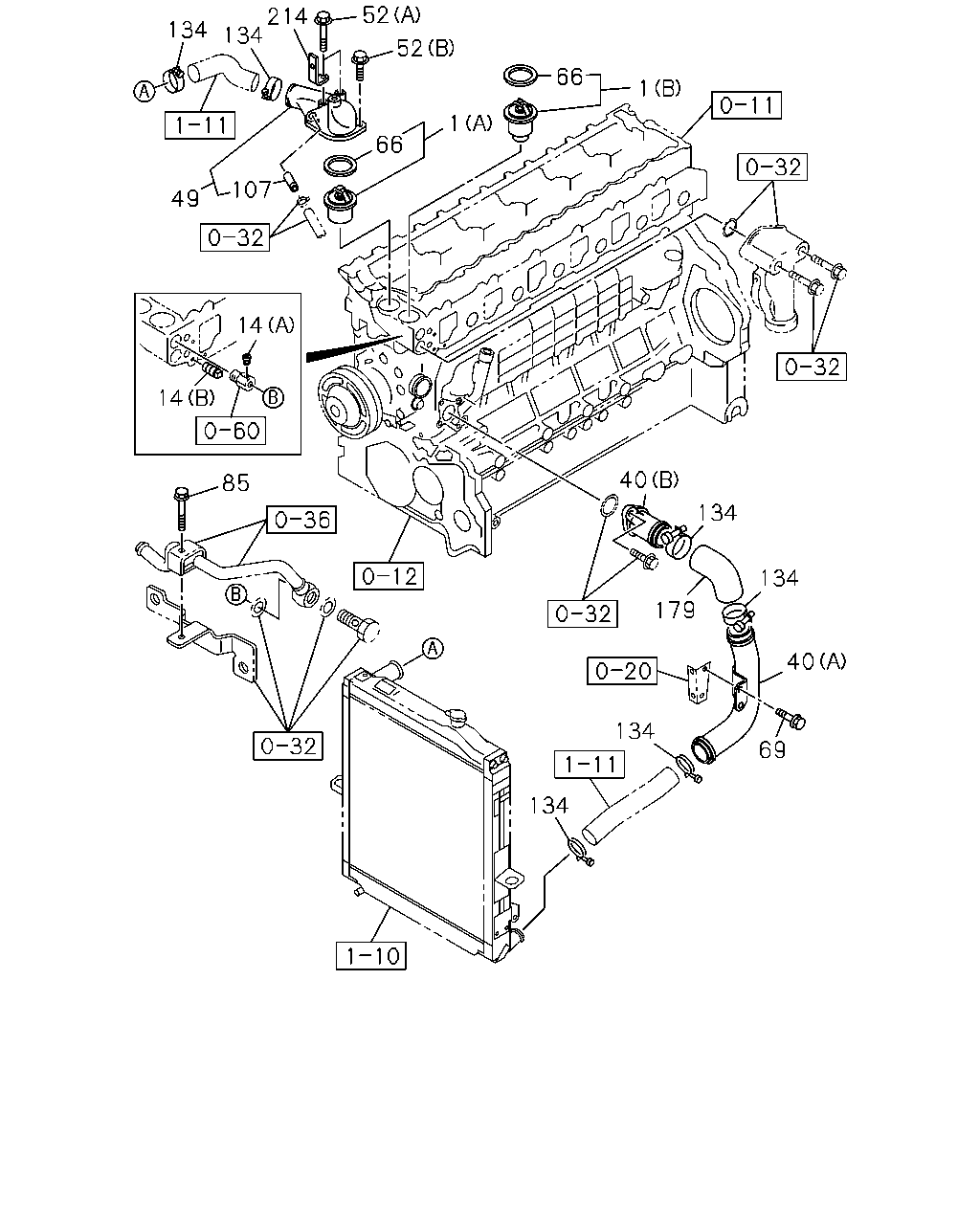

0-31 — THERMOSTAT AND HOUSING
(#16173) — 20 parça
134
214
52
134
49
66
1
52
107
1
40
134
40
179
134
69
134
85
14
14
66
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
(A) 82 CELSIUS
8-97602-048-3
01
1
0907-
1
THERMOSTAT
(B) 82 CELSIUS
8-97602-393-1
01
1
0907-1501
1
THERMOSTAT
(B) 82 CELSIUS
8-98295-921-0
01
1
1502-
14
PLUG; SW
(A) PT1/4
1-09605-019-0
01
1
0907-1008
14
PLUG; SW
(B) PT3/8
8-94397-338-0
01
1
0907-
40
DUCT; WATER,SUCTION
(B)
8-94391-091-1
01
1
0907-
40
DUCT; WATER,SUCTION
(A)
8-94394-404-1
01
1
0907-
49
PIPE; WATER OUTLET
8-97602-039-0
01
1
0907-
52
BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE
0-28050-880-0
01
1
0907-
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0907-
52
BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE
8-97023-062-0
01
1
0907-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0907-1501
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28650-820-0
02
1
0907-
85
BOLT; CLIP
M6X35 FLANGE
0-28050-635-0
01
1
0907-
107
PIPE; WATER,BYPASS
8-94129-650-0
01
1
0907-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
02
1
0907-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
04
1
0907-
179
HOSE; RUBBER,WATER DUCT
8-94390-400-3
01
1
0907-
214
BRACKET; HARNESS
8-94393-074-1
01
1
0907-
