◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#161720) — 128 parça

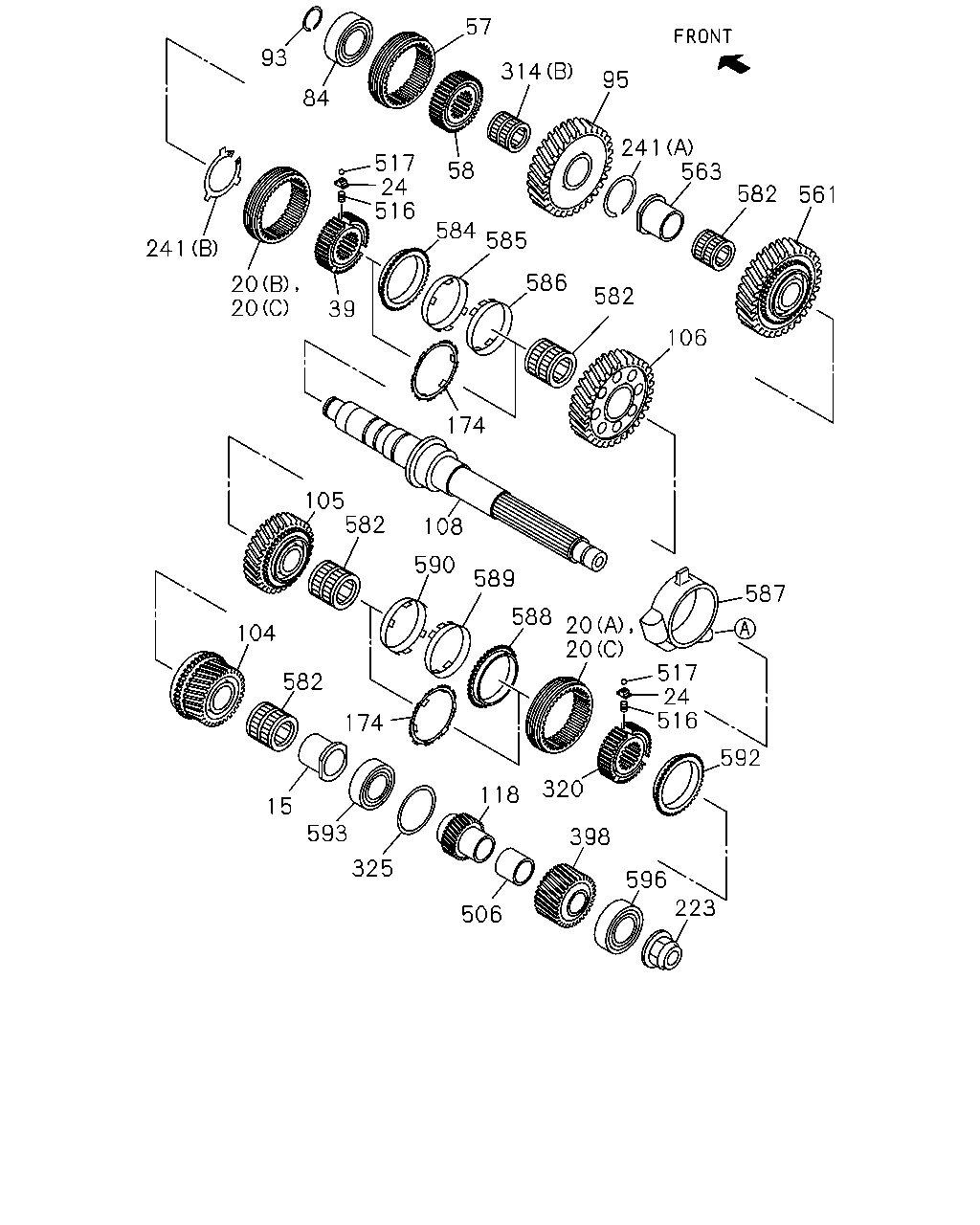

çizim 476256
57 84 93 517 516 58 24 585 584 586 106 582 582 561 563 241 95 314 241 39 20 0 105 174 582 589 108 590 588 20 20 517 587 24 516 592 596 223 398 320 118 174 582 104 15 593 325 506
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1505-
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1505-1508
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (B) Z=45 		8-98034-769-0 01 1 1509-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1505-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1505-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1505-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1505-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1505-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1505-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1505-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1505-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1505-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1505-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1505-
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1505-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1505-
174 SYNCHRONIZER ASM; 2ND-3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98315-823-2 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1505-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1505-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1505-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1505-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1505-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1505-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1505-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1505-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1505-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1505-
516 SPRING; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-98054-981-0 09 1 1505-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1505-
517 BALL; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-97252-935-0 10 1 1505-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1505-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1505-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1505-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1505-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1505-1508
584 RING; BLOCK,2ND
SMOOTHER-FX(TYPE2)(8NS) Z=45 		8-98034-770-0 01 1 1509-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1505-1508
585 RING; OUTSIDE,2ND
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-309-1 01 1 1509-
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1505-1508
586 RING; INSIDE,2ND
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-312-1 01 1 1509-
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1505-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1505-1508
588 RING; BLOCK,3RD
SMOOTHER-FX(TYPE2)(8NS) Z=45 		8-97241-306-1 01 1 1509-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1505-1508
589 RING; OUTSIDE,3RD
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-309-1 01 1 1509-
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1505-1508
590 RING; INSIDE,3RD
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-312-1 01 1 1509-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1505-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1505-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1505-

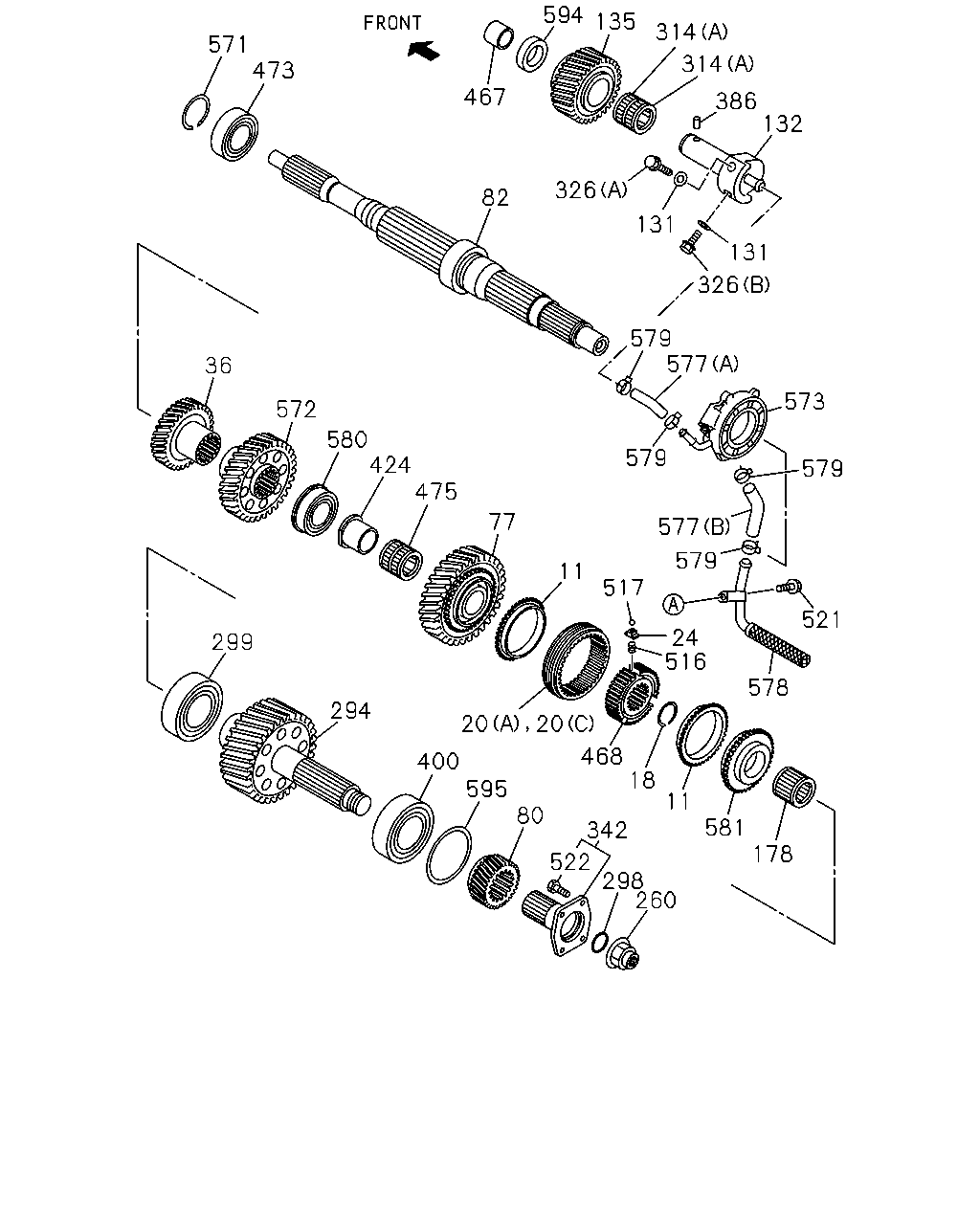

çizim 476387
571 473 594 135 467 82 326 314 314 386 132 131 131 326 579 577 573 579 579 577 579 521 36 572 580 424 475 77 11 517 24 516 578 178 581 11 18 468 20 20 400 294 299 595 80 342 522 298 260
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1505-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1505-
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1505-1508
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (B) Z=45 		8-98034-769-0 01 1 1509-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1505-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1505-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1505-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1505-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1505-
82 SHAFT; MAIN,TRANS
SMOOTHER-FX(TYPE2)(8NS) Z=14-13-21-19-26 		8-98245-058-0 01 1 1505-1507
82 SHAFT; MAIN,TRANS
SMOOTHER-FX(TYPE2)(8NS) Z=14-13-21-19-26 		8-98292-396-0 01 1 1508-
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26 		8-98245-057-0 01 1 1505-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1505-
132 SHAFT; REV 8-98009-372-0 01 1 1505-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1505-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1505-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1505-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1505-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1505-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1505-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1505-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1505-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1505-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1505-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1505-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1505-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1505-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1505-
467 COLLAR; SHAFT
SMOOTHER-FX(TYPE2)(8NS) 		8-97255-183-1 01 1 1505-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1505-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1505-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1505-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1505-
516 SPRING; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-98054-981-0 09 1 1505-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1505-
517 BALL; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-97252-935-0 10 1 1505-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1505-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1505-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1505-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1505-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1505-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1505-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 01 1 1505-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1505-
578 SCREEN; OIL PUMP 8-98009-345-0 01 1 1505-1505
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1506-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 04 1 1505-1505
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1506-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1505-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1505-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1505-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1505-
