Sayfa 2-20 - Isuzu EPC

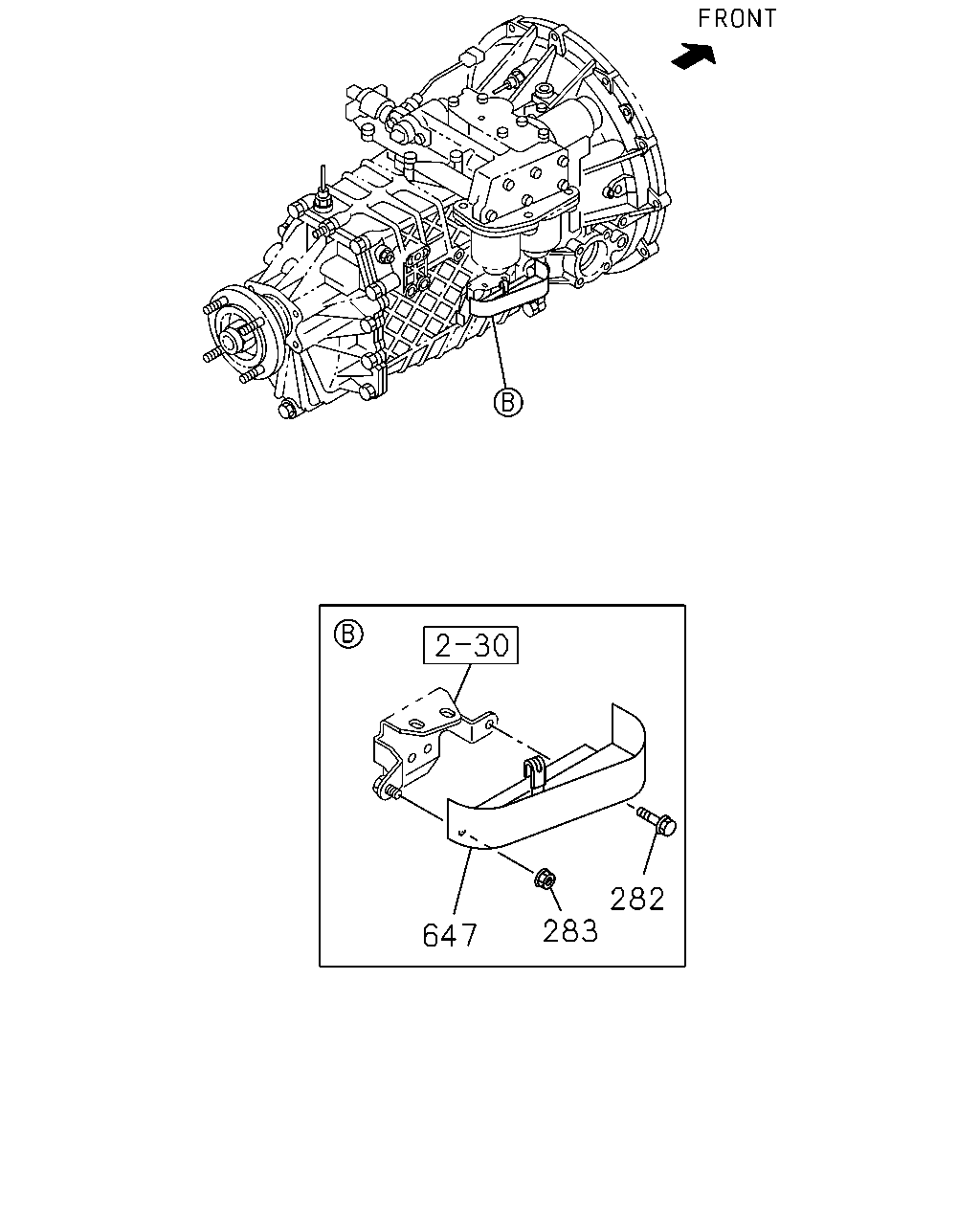

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
282	BOLT; PROTECTOR SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE	0-28650-820-0	01	1	1505-
283	NUT; PROTECTOR SMOOTHER-FX(TYPE2)(8NS) M8 FLANGE	0-91180-108-0	01	1	1505-
647	PROTECTOR; HEAT SMOOTHER-FX(TYPE2)(8NS)	8-97329-465-0	01	1	1505-

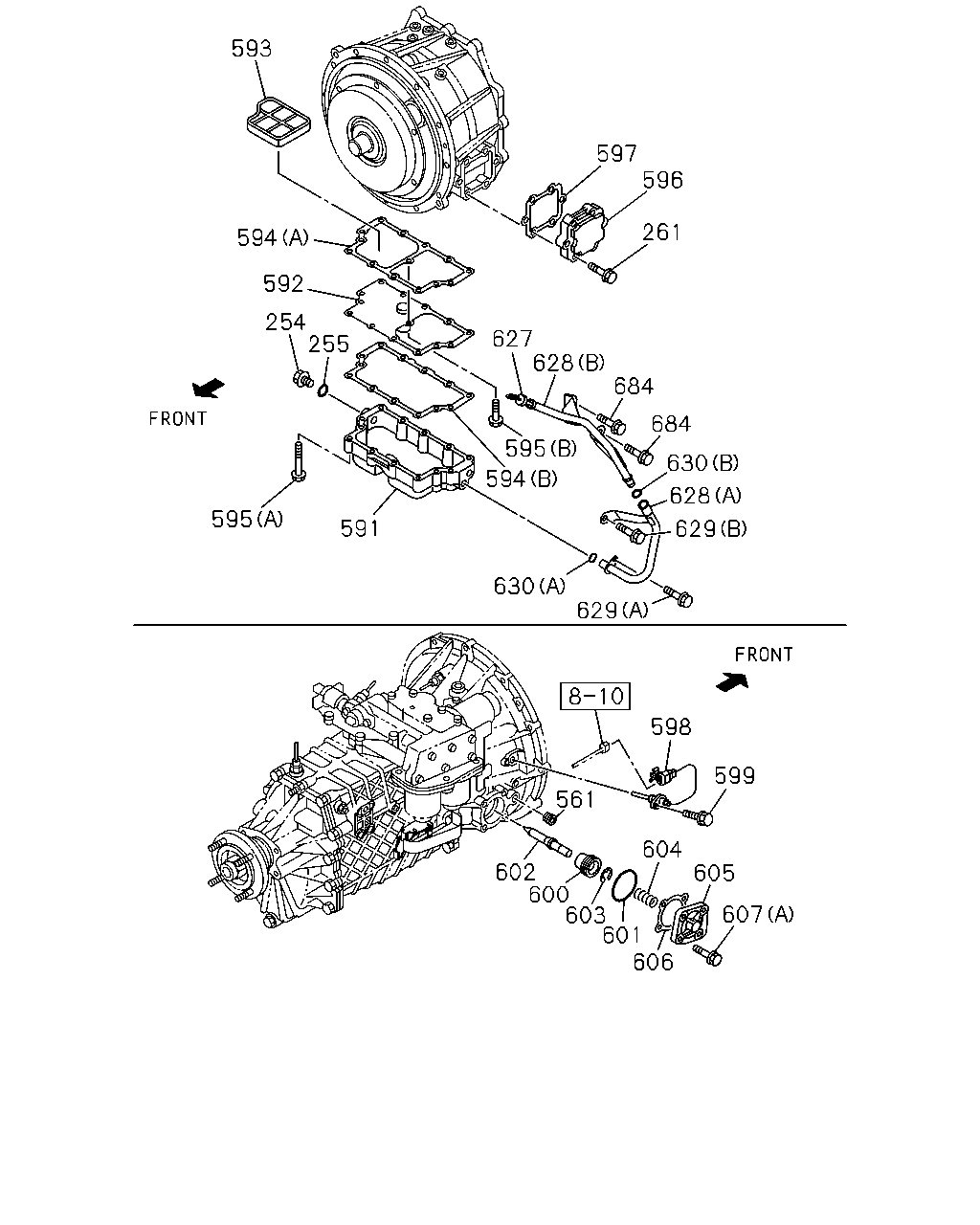

593 597 596 261 627 628 684 684 630 628 629 629 630 591 595 255 254 592 594 595 594 598 599 605 604 561 607 606 601 603 600 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
254	PLUG; DRAIN,OIL SMOOTHER-FX(TYPE2)(8NS)	8-97365-374-0	01	1	1505-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) ID=17	8-97115-712-0	01	1	1505-
261	BOLT; COVER SMOOTHER-FX(TYPE2)(8NS) M6X35 FLANGE	0-28650-635-0	06	1	1505-
561	PLUG SMOOTHER-FX(TYPE2)(8NS)	8-97320-204-0	01	1	1505-
591	PAN; OIL SMOOTHER-FX(TYPE2)(8NS)	8-97256-429-2	01	1	1505-
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS)	8-97289-771-1	01	1	1505-
593	FILTER; STRAINER SMOOTHER-FX(TYPE2)(8NS)	8-97256-438-1	01	1	1505-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (A)	8-97256-430-1	01	1	1505-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (B)	8-97289-772-0	01	1	1505-
595	BOLT; OIL PAN SMOOTHER-FX(TYPE2)(8NS) (B) M6X16 FLANGE	0-28650-616-0	01	1	1505-
595	BOLT; OIL PAN SMOOTHER-FX(TYPE2)(8NS) (A) M6X35 FLANGE	0-28650-635-0	13	1	1505-
596	COVER; OIL PAN SMOOTHER-FX(TYPE2)(8NS)	8-97289-773-0	01	1	1505-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS)	8-97289-774-0	01	1	1505-
598	SENSOR; TURBINE SMOOTHER-FX(TYPE2)(8NS)	8-97316-495-1	01	1	1505-
599	BOLT; SENSOR SMOOTHER-FX(TYPE2)(8NS) M6X16 FLANGE	0-28650-616-0	01	1	1505-
600	PISTON; BRAKE SMOOTHER-FX(TYPE2)(8NS)	8-97254-652-1	01	1	1505-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS)	8-97254-755-0	01	1	1505-
602	PLUNGER; BRAKE SMOOTHER-FX(TYPE2)(8NS)	8-98009-306-1	01	1	1505-
603	RING; SNAP SMOOTHER-FX(TYPE2)(8NS) ID=8	9-09185-008-0	01	1	1505-
604	SPRING; PISTON SMOOTHER-FX(TYPE2)(8NS)	8-97371-467-0	01	1	1505-
605	COVER; CYLINDER SMOOTHER-FX(TYPE2)(8NS)	8-97254-756-0	01	1	1505-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS)	8-97254-757-0	01	1	1505-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-
607	BOLT; COVER (B) M8X18 FLANGE	0-28080-818-0	02	1	1505-
607	BOLT; COVER SMOOTHER-FX(TYPE2)(8NS) (A) M8X30 FLANGE	0-28650-830-0	04	1	1505-
627	GAUGE; OIL LEVEL SMOOTHER-FX(TYPE2)(8NS)	8-98296-926-0	01	1	1505-
628	TUBE; OIL FILLER SMOOTHER-FX(TYPE2)(8NS) (A)	8-98003-673-0	01	1	1505-
628	TUBE; OIL FILLER SMOOTHER-FX(TYPE2)(8NS) (B)	8-98107-821-0	01	1	1505-
629	BOLT; OIL FILLER SMOOTHER-FX(TYPE2)(8NS) (B) M10X16 FLANGE	0-28151-016-0	01	1	1505-
629	BOLT; OIL FILLER SMOOTHER-FX(TYPE2)(8NS) (A) M6X16 FLANGE	0-28650-616-0	01	1	1505-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (A) ID=15.8	8-97305-656-0	01	1	1505-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (B) ID=12.3	8-97313-558-0	01	1	1505-
684	BOLT; OIL FILLER TUBE SMOOTHER-FX(TYPE2)(8NS) M10X16 FLANGE	0-28151-016-0	02	1	1505-

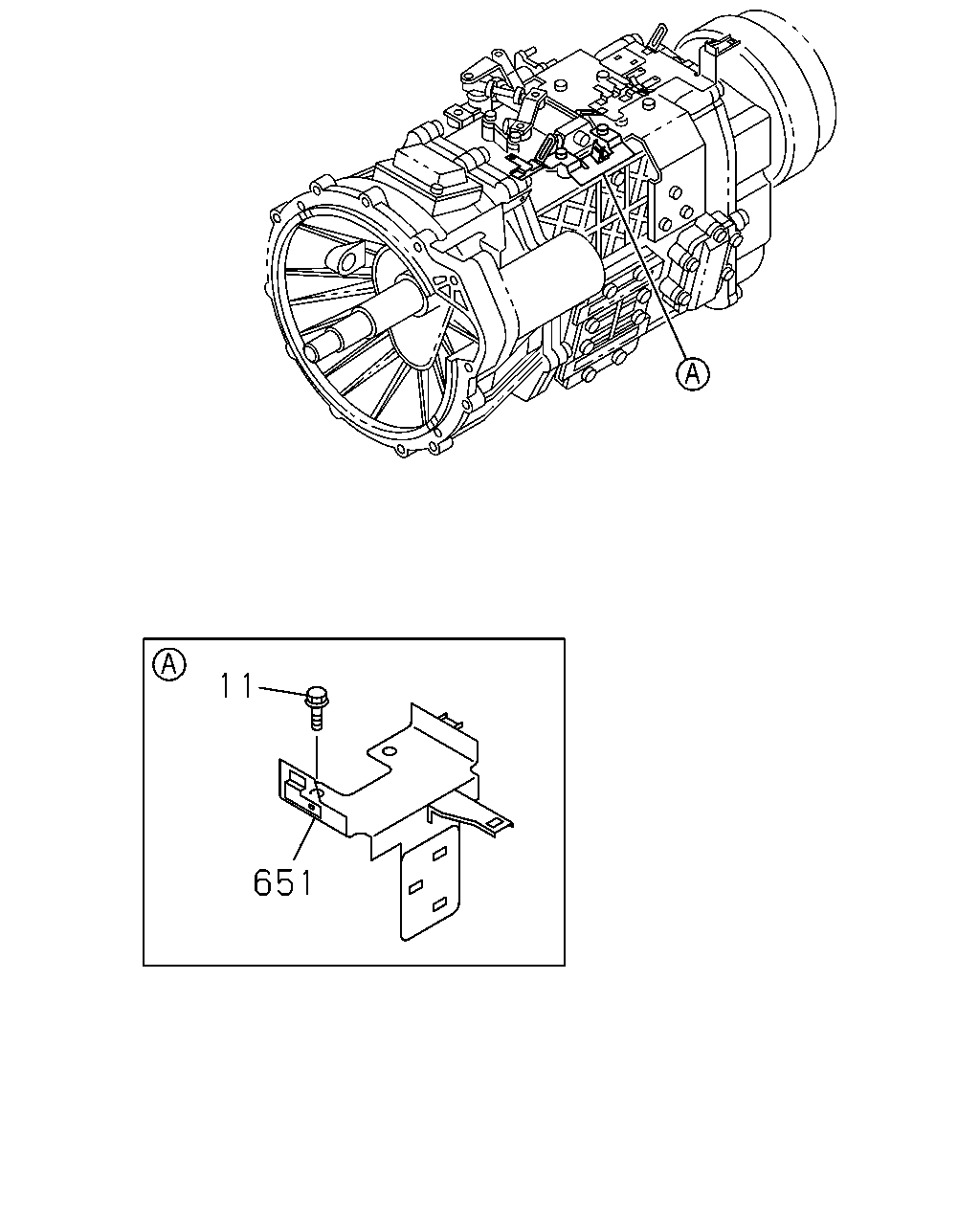

11 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT SMOOTHER-FX(TYPE2)(8NS) M8X35 FLANGE	0-28650-835-0	02	1	1505-1508
11	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X35 FLANGE	0-28650-835-0	02	1	1509-
651	BRACKET; T/M HARNESS SMOOTHER-FX(TYPE2)(8NS)	8-97610-090-3	01	1	1505-1508
651	BRACKET; T/M HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97610-090-3	01	1	1509-

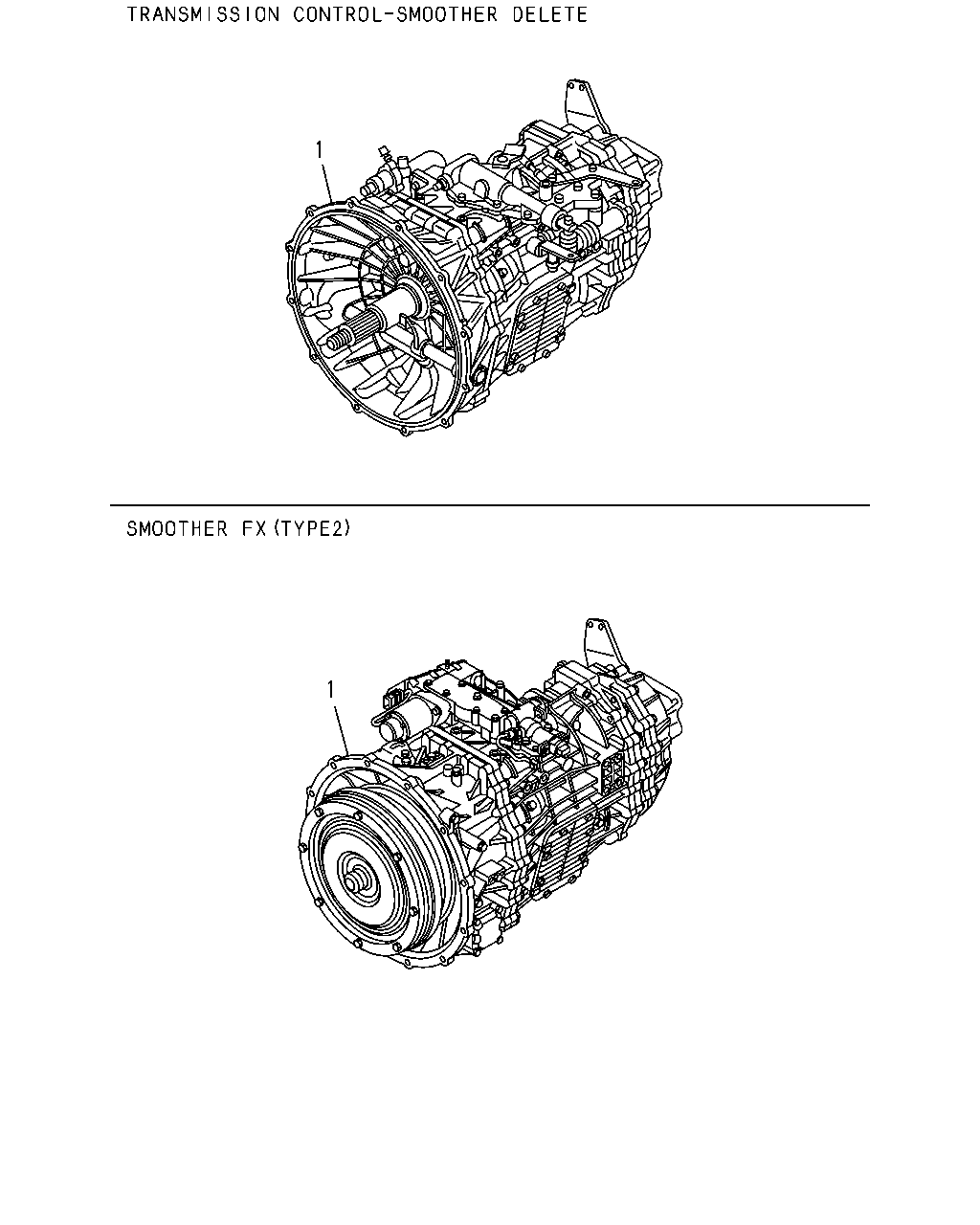

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98284-253-0	01	1	1507-1507
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98326-955-0	01	1	1507-
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98284-252-0	01	1	1505-1506
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. KD PREPARATORY PACK<6HF>	8-98284-252-0	01	1	1507-1507
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. KD PREPARATORY PACK<6HF>	8-98326-954-0	01	1	1507-
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) TRANSMISSION SIDE PTO WO/LEVER(SH5) KD PREPARATORY PACK<6HF>	8-98284-253-0	01	1	1507-1507
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) TRANSMISSION SIDE PTO WO/LEVER(SH5) KD PREPARATORY PACK<6HF>	8-98326-955-0	01	1	1507-
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98284-252-0	01	1	1505-1506
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98326-954-0	01	1	1507-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98203-499-0	01	1	1505-1505
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98323-110-0	01	1	1506-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98203-499-0	01	1	1505-1505
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98323-110-0	01	1	1506-

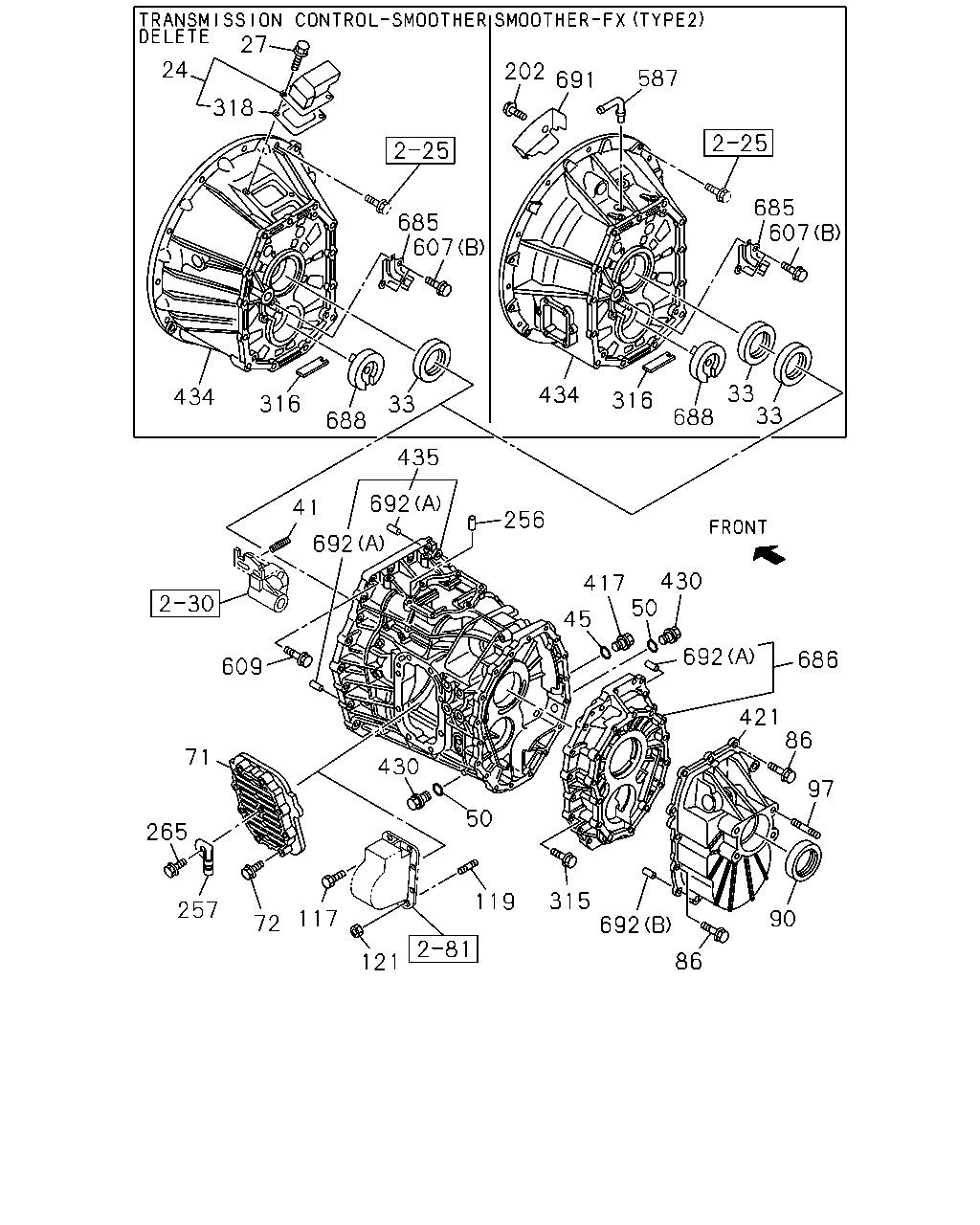

24 27 318 685 607 33 688 316 434 41 692 692 435 256 417 45 50 430 692 686 421 86 97 90 692 315 119 50 430 609 71 265 257 72 117 121 86 434 316 688 33 33 607 685 587 691 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98283-062-0	01	1	1505-
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1505-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS)	8-97255-187-0	02	1	1505-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	1505-
41	SPRING; DETENT BALL SMOOTHER-FX(TYPE2)(8NS)	8-98071-140-0	01	1	1505-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1505-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1505-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1505-1505
71	COVER; SIDE,TRANS CASE SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1506-1506
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1506-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1505-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1505-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1505-1505
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) NOK	8-97377-948-0	01	1	1506-
97	STUD; PARKING BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1506-
97	STUD; PARKING BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1505-1505
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1505-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1505-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1505-
202	BOLT; PLATE SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE	0-28650-820-0	01	1	1505-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1505-
257	CLIP; HARNESS SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1505-
265	BOLT; CLIP SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1505-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1505-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1505-
318	GASKET; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31139-023-0	01	1	1505-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1505-
421	COVER; RR,TRANS SMOOTHER-FX(TYPE2)(8NS)	8-98124-515-0	01	1	1505-
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-790-1	01	1	1505-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1505-
434	HOUSING; CLU SMOOTHER-FX(TYPE2)(8NS)	8-98100-982-1	01	1	1505-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-506-2	01	1	1505-
435	CASE; TRANS	8-98236-421-1	01	1	1505-
587	PIPE; BREATHER SMOOTHER-FX(TYPE2)(8NS)	8-97358-318-0	01	1	1505-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-
607	BOLT; COVER (B) M8X18 FLANGE	0-28080-818-0	02	1	1505-
607	BOLT; COVER SMOOTHER-FX(TYPE2)(8NS) (A) M8X30 FLANGE	0-28650-830-0	04	1	1505-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1505-
685	COVER; OIL PORT	8-98018-864-1	01	1	1505-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1505-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1505-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
691	PLATE; BREATHER SMOOTHER-FX(TYPE2)(8NS)	8-98044-428-0	01	1	1505-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1505-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1505-
