◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11684 - FSR LHD EUROPE EURO6 SPACECAB EVSC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#161712) — 74 parça

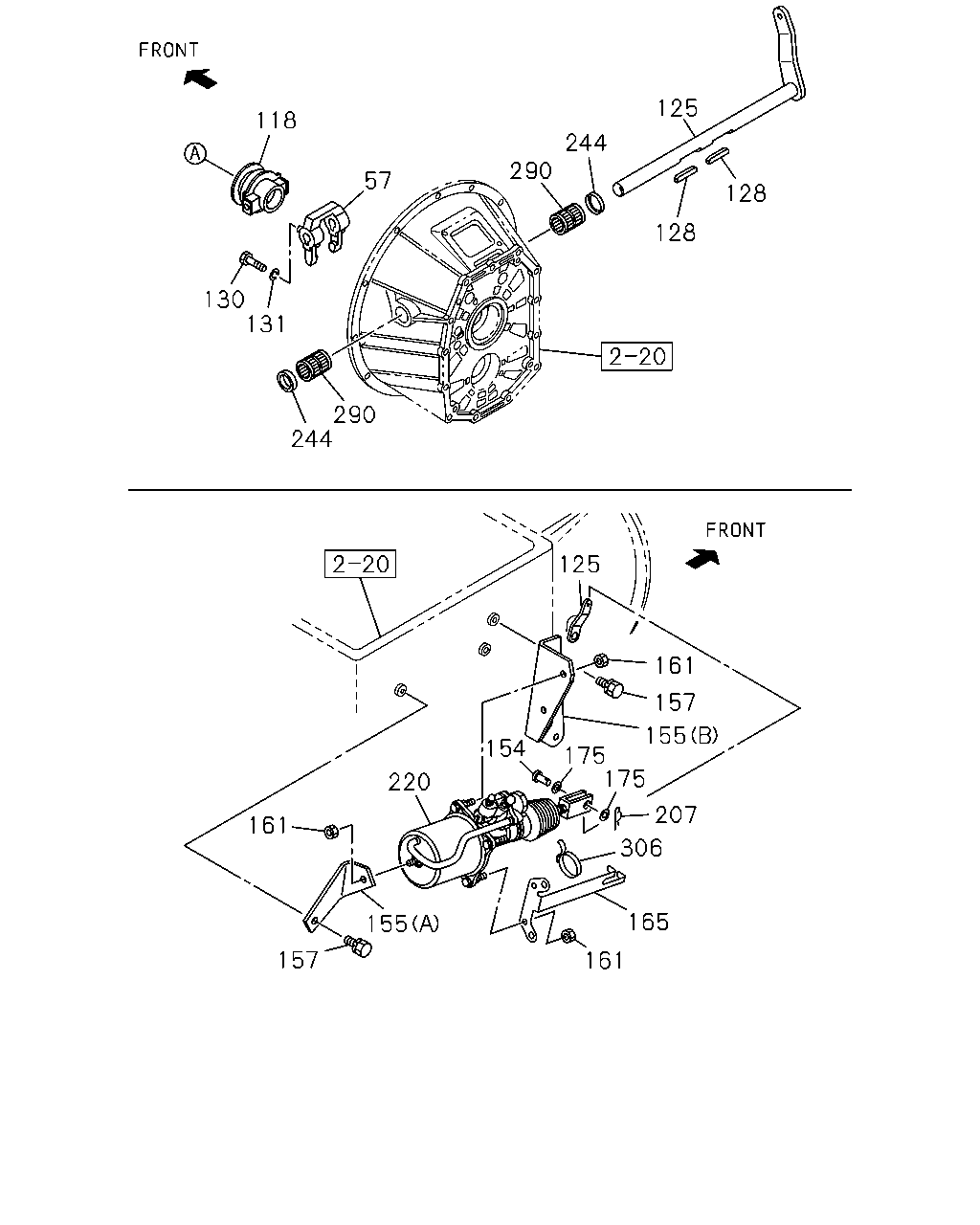

çizim 475420
244 125 128 128 57 118 130 244 290 131 290 125 161 157 155 207 306 165 161 175 175 154 220 161 157 155
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31341-048-2 01 1 1505-
118 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31310-026-0 01 1 1505-
118 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		1-87610-109-0 01 1 1505-
125 SHAFT; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31342-335-0 01 1 1505-
128 KEY; FEATHER,CLU SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09867-008-0 02 1 1505-
130 SCREW; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14 		0-61200-814-0 01 1 1505-
131 WASHER; LK,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 		0-91510-508-0 01 1 1505-
154 PIN; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=35 		1-31424-003-0 01 1 1505-
155 BRACKET; MINIPACK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-31429-529-0 01 1 1505-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (A) 		1-31429-531-0 01 1 1505-
157 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE 		0-28751-025-0 02 1 1505-
157 BOLT; BRKT
15" CLUTCH(RE9) M10X25 FLANGE 		0-28751-025-0 01 1 1505-
161 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 04 1 1505-
161 NUT; BRKT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 01 1 1505-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-785-0 01 1 1505-
175 WASHER; LK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 		0-91610-514-0 02 1 1505-
207 PIN; SPLIT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09747-009-0 01 1 1505-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31800-565-0 01 1 1506-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31800-565-0 01 1 1505-1505
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09625-002-0 02 1 1505-
290 BEARING; NEEDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NTN 		1-09811-002-1 02 1 1505-
306 CLIP; BAND
SMOOTHER-FX(TYPE2)(8NS) L=100 		8-94279-939-0 02 1 1505-
306 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=140 		5-09707-031-1 01 1 1505-

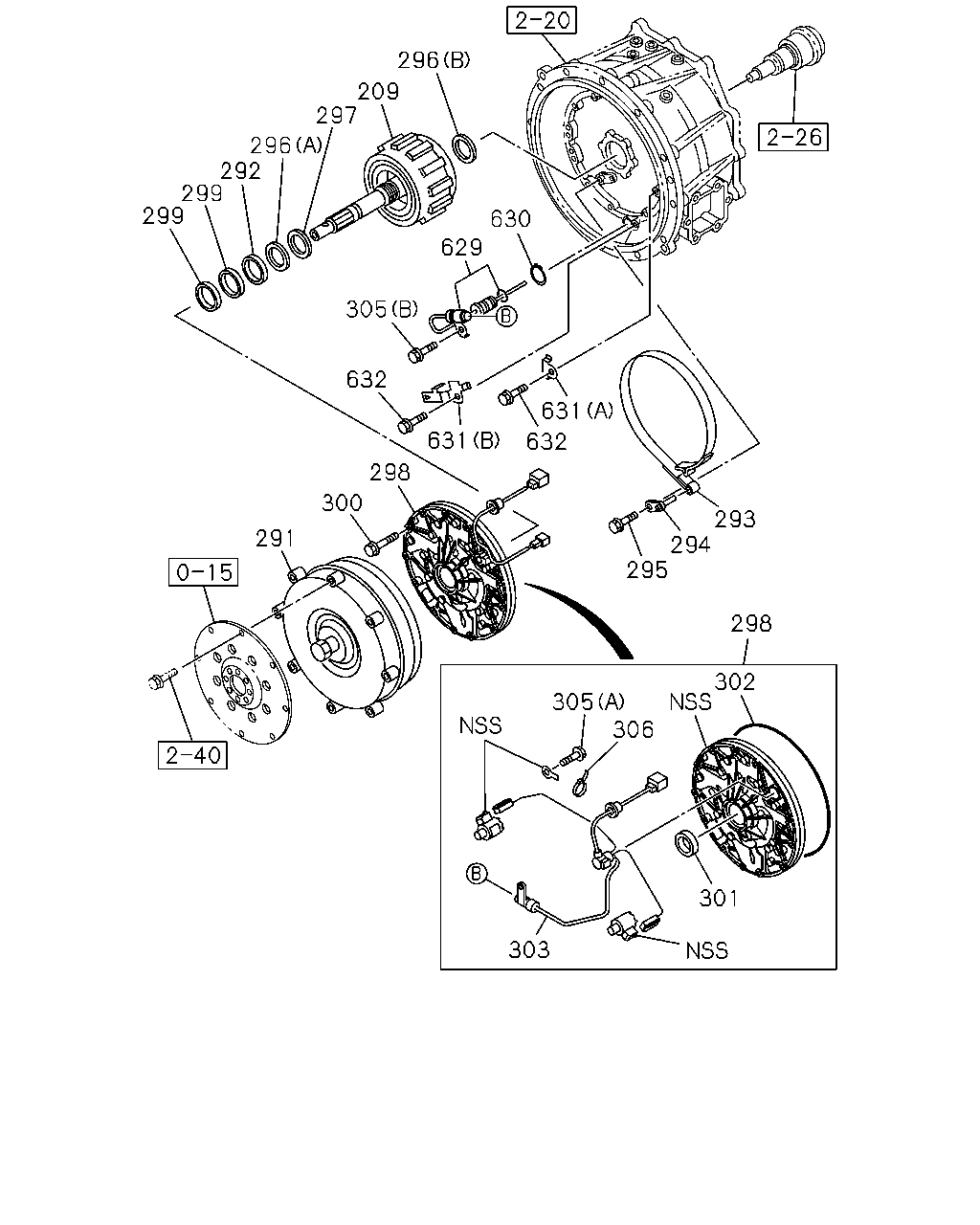

çizim 475470
296 209 297 296 292 299 299 305 629 630 632 631 632 631 295 294 293 298 302 305 306 301 303 291 300 298
BalonParca AdiParca NoAdetTipApplied Date
209 CLUTCH ASM
SMOOTHER-FX(TYPE2)(8NS) 		8-98275-317-0 01 1 1505-
291 COUPLING; FLUID
SMOOTHER-FX(TYPE2)(8NS) 		8-98292-306-1 01 1 1505-
292 RING; SEAL
SMOOTHER-FX(TYPE2)(8NS) 		8-97255-329-0 01 1 1505-
293 BAND; BRAKE
SMOOTHER-FX(TYPE2)(8NS) 		8-97254-651-0 01 1 1505-
294 PIN; ANCHOR
SMOOTHER-FX(TYPE2)(8NS) 		8-97255-703-0 01 1 1505-
295 BOLT; ANCHOR PIN
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 01 1 1505-
296 BEARING; THRUST
SMOOTHER-FX(TYPE2)(8NS) (A) 		8-97255-688-0 01 1 1505-
296 BEARING; THRUST
SMOOTHER-FX(TYPE2)(8NS) (B) 		8-97255-689-0 01 1 1505-
297 WASHER; THRUST
SMOOTHER-FX(TYPE2)(8NS) 		8-97300-070-0 01 1 1505-
298 PUMP ASM; OIL
SMOOTHER-FX(TYPE2)(8NS) 		8-98254-134-0 01 1 1505-
299 RING; SEAL
SMOOTHER-FX(TYPE2)(8NS) 		8-97255-330-0 02 1 1505-
300 BOLT; OIL PUMP
SMOOTHER-FX(TYPE2)(8NS) M8X45 FLANGE 		0-28050-845-0 11 1 1505-
301 SEAL; OIL PUMP
SMOOTHER-FX(TYPE2)(8NS) 		8-97289-811-0 01 1 1505-
302 RING; OIL PUMP
SMOOTHER-FX(TYPE2)(8NS) 		8-97255-188-0 01 1 1505-
303 HARNESS ASM; OIL PUMP
SMOOTHER-FX(TYPE2)(8NS) 		8-98020-613-1 01 1 1505-
305 BOLT; BRACKET
SMOOTHER-FX(TYPE2)(8NS) (A) M6X12 FLANGE 		0-28050-612-0 01 1 1505-
305 BOLT; BRACKET
SMOOTHER-FX(TYPE2)(8NS) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1505-
306 CLIP; BAND
SMOOTHER-FX(TYPE2)(8NS) L=100 		8-94279-939-0 02 1 1505-
306 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=140 		5-09707-031-1 01 1 1505-
629 SENSOR; OIL TEMP
SMOOTHER-FX(TYPE2)(8NS) 		8-98021-895-0 01 1 1505-
630 RING; SNAP
SMOOTHER-FX(TYPE2)(8NS) ID=17.5 		9-09180-019-0 01 1 1505-
631 PLATE; HARNESS
SMOOTHER-FX(TYPE2)(8NS) (A) 		8-98021-285-0 02 1 1505-
631 PLATE; HARNESS
SMOOTHER-FX(TYPE2)(8NS) (B) 		8-98023-254-0 01 1 1505-
632 BOLT; HARNESS
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 03 1 1505-

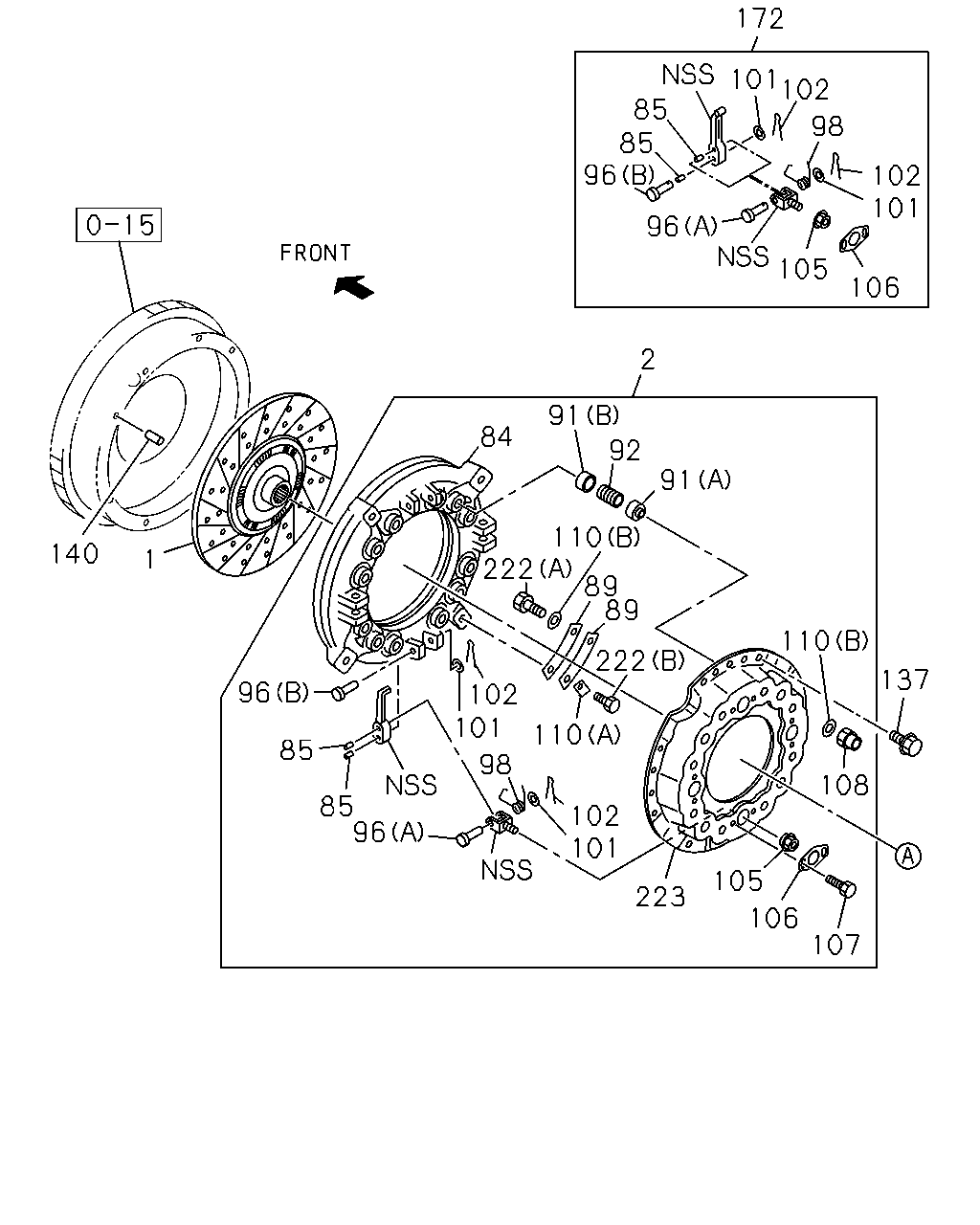

çizim 476271
110 137 108 105 106 107 223 101 102 110 98 96 85 85 96 102 101 222 84 140 1 110 89 89 91 92 91 2 222 96 96 85 85 101 172 102 102 106 105 101 98
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH(RE9) 15" 		1-31240-851-2 01 1 1505-
1 DISC; CLUTCH
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-119-0 01 1 1505-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) 		1-31220-377-2 01 1 1505-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-146-0 01 1 1505-
84 PLATE; PRESSURE
15" CLUTCH(RE9) 15" 		1-31221-100-0 01 1 1505-
85 BUSHING; RELEASE LEVER
15" CLUTCH(RE9) 		9-31239-116-0 08 1 1505-
89 PLATE; STRAP
15" CLUTCH(RE9) 		1-31229-050-0 16 1 1505-
91 SEAT; SPR
15" CLUTCH(RE9) (A) ID=37 H=25 		1-31219-012-0 12 1 1505-
91 SEAT; SPR
15" CLUTCH(RE9) (B) ID=37 H=15 		1-31219-013-0 12 1 1505-
92 SPRING; CLU
15" CLUTCH(RE9) 		1-31214-066-0 12 1 1505-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) (A) L=49.0 		1-31232-005-0 04 1 1505-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9) (B) L=57.0 		1-31232-014-0 04 1 1505-
98 SPRING; RETURN
15" CLUTCH(RE9) 		1-31233-003-0 04 1 1505-
101 WASHER; RELEASE LEVER
15" CLUTCH(RE9) 		1-31239-058-0 08 1 1505-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) OD=2.7 L=22 		9-08103-022-0 08 1 1505-
105 NUT; SUPPORT
15" CLUTCH(RE9) 		1-31235-014-0 04 1 1505-
106 PLATE; LK,LEVER SUPPORT
15" CLUTCH(RE9) 		1-31239-019-0 04 1 1505-
107 BOLT; LK PLATE
15" CLUTCH(RE9) 		1-31239-061-0 08 1 1505-
108 NUT; STRAP
15" CLUTCH(RE9) 		1-09449-036-0 04 1 1505-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (A) T=1.2 		1-31229-009-0 04 1 1505-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (B) T=3.2 		8-97374-512-0 08 1 1505-
137 BOLT; CLU COVER
15" CLUTCH(RE9) M10X20 FLANGE 		0-28151-020-0 12 1 1505-
140 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1505-
172 LEVER KIT; RELEASE,CLU
15" CLUTCH(RE9) 		1-87831-170-1 01 1 1505-
222 BOLT; STRAP
15" CLUTCH(RE9) (B) M10X23.2 		1-09040-042-0 04 1 1505-
222 BOLT; STRAP
15" CLUTCH(RE9) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1505-
223 COVER; CLU
15" CLUTCH(RE9) 		1-31211-019-1 01 1 1505-
